Transporto priemonė: 2233 L; VIN numerio dalis: 623423

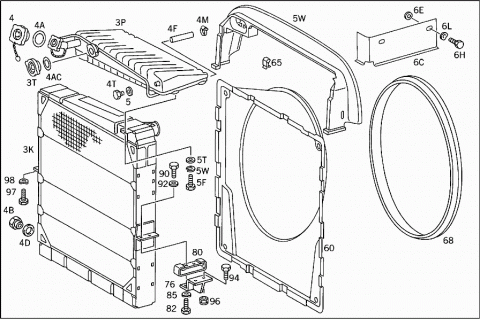

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

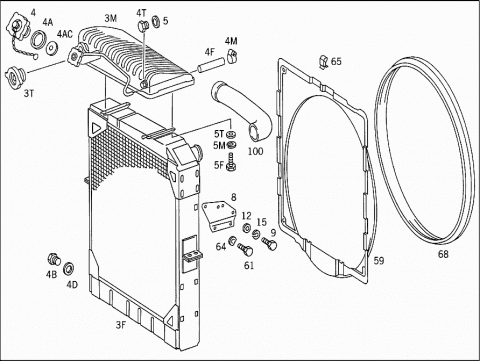

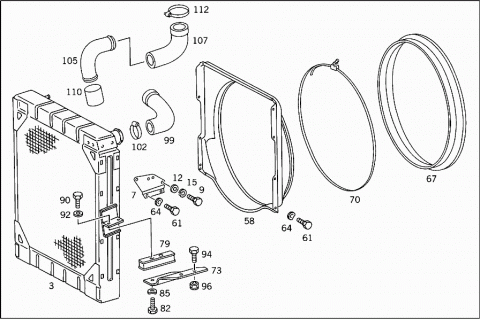

| 003 | A 3855010401 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 003 | A 3875002903 | RADIATOR |
| EXPANSION TANK TO CAB REAR PANEL | ||
| BEHR | ||
| A 0005015701 | RADIATOR | |
| Repalced by: A 0005019101 | ||
| 003F | A 0005019101 | RADIATOR |
| BEHR | ||
| A 0005019001 | RADIATOR | |
| Repalced by: A 0015010201 | ||
| 003F | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 003F | A 0005001103 | RADIATOR |
| BEHR | ||
| 003F | A 0005001103 | RADIATOR |
| 003K | A 0005015801 | RADIATOR |
| BEHR | ||
| A 0005017801 | RADIATOR | |
| Repalced by: A 0015010301 | ||
| A 0015010301 | RADIATOR | |
| 003K | A 0015010301 | RADIATOR |
| BEHR | ||
| 003M | A 0005000749 | TANK |
| ON RADIATOR | ||
| 003M | A 0005001149 | TANK |
| ON RADIATOR | ||
| 003P | A 0005000849 | TANK |
| ON RADIATOR | ||
| 003P | A 0005001049 | TANK |
| ON RADIATOR | ||
| 003T | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 003T | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 004 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 004 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 004A | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 004AC | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 004B | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 004D | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 004F | A 0139978082 | HOSE |
| Repalced by: A 0149975782 | ||
| 004F | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| A 0005040033 | CLAMP | |
| Repalced by: N 916017011000 | ||
| 004M | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 004M | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 004T | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 005 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 005F | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 005F | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 005M | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 005T | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 005T | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 005W | A 6205050286 | BOOT |
| RADIATOR | ||
| 005W | A 6205050486 | BOOT |
| RADIATOR | ||
| 005W | A 6205050186 | BOOT |
| RADIATOR | ||
| A 4030100340 | BRACKET | |
| 006C | A 6205050140 | BRACKET |
| BOOT | ||
| A 6360150051 | SPACER RING | |
| Repalced by: A 3059900740 | ||
| 006E | A 3059900740 | WASHER |
| Repalced by: N 000125006421 | ||
| 006E | N 000125006421 | WASHER |
| BRACKET TO RADIATOR | ||
| 006H | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 006H | N 304017006020 | SCREW |
| BRACKET TO RADIATOR | ||
| 006L | N 000137006204 | SPRING WASHER |
| BRACKET TO RADIATOR | ||
| A 4220100040 | BRACKET | |
| Repalced by: A 4220100240 | ||
| 007 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 008 | A 4220100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 009 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 012 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 015 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||

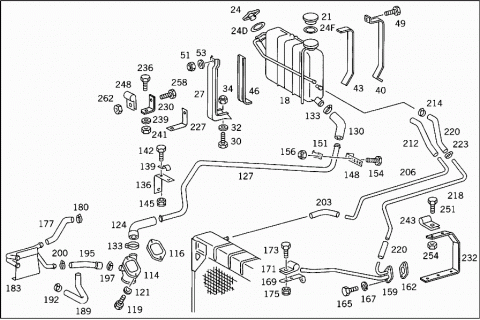

| 018 | A 3815000749 | TANK |
| BEHIND CAB | ||

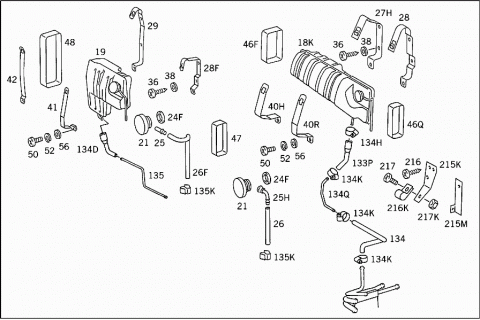

| 018K | A 6205000149 | TANK |
| CAB,FRONT | ||
| A 6175000049 | TANK | |
| Repalced by: A 6205000349 | ||
| 019 | A 6205000349 | TANK |
| CAB,FRONT | ||
| 019 | A 6205000349 | TANK |
| CAB,FRONT | ||
| 021 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 024 | A 0005014615 | RADIATOR CAP |
| LATERAL | ||
| TO 381 500 07 49 | ||
| 024 | A 0005017215 | RADIATOR CAP |
| LATERAL | ||
| TO 381 500 07 49 | ||
| 024D | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 46 15 | ||
| 024F | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 025 | A 0005010010 | DRAIN PIPE |
| TO 617 500 00 49 | ||
| 025H | A 0005010110 | DRAIN PIPE |
| TO 620 500 01 49,620 500 03 49 | ||
| 026 | A 0139978682 | HOSE |
| TO 620 500 01 49,617 500 00 49 | ||
| 026F | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 026F | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 027 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 027H | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 028 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 028F | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 028F | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 029 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 029 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 030 | N 000933010164 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 032 | N 006902011101 | WASHER |
| BRACKET TO RIGHT FENDER | ||
| 034 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 034 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 036 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 038 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 040 | A 3815012520 | BRACKET |
| (STRAP) | ||
| 040H | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 040R | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 041 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 041 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 042 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 042 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 043 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| A 3815010295 | SHIM | |
| Repalced by: A 3815010495 | ||
| 046 | A 3815010495 | SHIM |
| STRAP | ||
| 046F | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 046Q | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 047 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 047 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 048 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 048 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 049 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 050 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 050 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 051 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 051 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 052 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 053 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 053 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 056 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 056 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 058 | A 3875052230 | AIR BAFFLE |
| RADIATOR | ||
| 059 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 059 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 060 | A 6205050555 | FAN SHROUD |
| RADIATOR | ||
| 060 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 061 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 061 | N 000933006102 | SCREW |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 064 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 064 | N 000137006204 | SPRING WASHER |
| GUIDE TUBE BRACKET TO RADIATOR | ||
| 065 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 067 | A 3635050180 | BOOT |
| FAN SHROUD | ||
| 068 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 070 | A 3639950065 | CLAMP |
| FAN SHROUD | ||
| 073 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 073 | A 6205040301 | SUPPORT |
| RADIATOR,RIGHT | ||
| 076 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| 079 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| A 6205040012 | RUBBER MOUNTING | |
| Repalced by: A 6205040112 | ||
| 080 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 082 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 082 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 082 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 085 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 085 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 090 | N 000933010164 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X22 | ||
| 090 | N 000933010164 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X22 | ||
| 090 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 090 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 092 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 092 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 094 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 094 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 094 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 097 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 097 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 097 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 098 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 099 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 100 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||

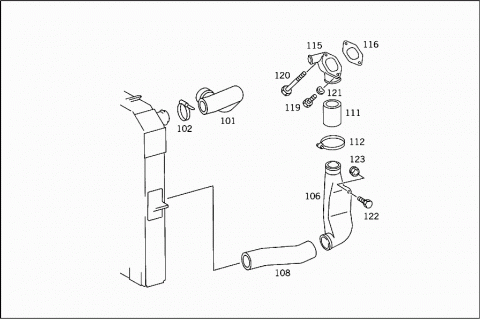

| 101 | A 6205010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 101 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 102 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 105 | A 3875010356 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| A 6205010056 | PIPE ELBOW | |
| Repalced by: A 6205010156 | ||
| 106 | A 6205010156 | PIPE ELBOW |
| Repalced by: A 6205010056 | ||
| 106 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| A 6205010456 | PIPE ELBOW | |
| Repalced by: A 6205010556 | ||
| A 6205010556 | PIPE ELBOW | |
| Repalced by: A 6555010756 | ||
| 106 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| A 3875010782 | HOSE | |
| Repalced by: A 3875012982 | ||
| 107 | A 3875012982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205010382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205013682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 6205013882 | HOSE | |
| Repalced by: A 6555011282 | ||
| 108 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205010982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205010682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 108 | A 6205013782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 110 | N 900271065003 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 70 X 82 X 85 | ||
| 112 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 112 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| A 3875010223 | CONNECTOR | |
| Repalced by: A 3875010423 | ||
| 114 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||
| A 6205010023 | CONNECTOR | |
| Repalced by: A 6205010323 | ||
| 115 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 115 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| A 6205010123 | CONNECTOR | |
| Repalced by: A 6205010423 | ||
| 115 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| A 4032010480 | GASKET | |
| Repalced by: A 4422010480 | ||
| 116 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 119 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 119 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 119 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 120 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 120 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 121 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 122 | N 000931010282 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 123 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 123 | N 910113010000 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 124 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 127 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 127 | A 3875011624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 127 | A 3875012824 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 130 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 130 | A 3815012282 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||

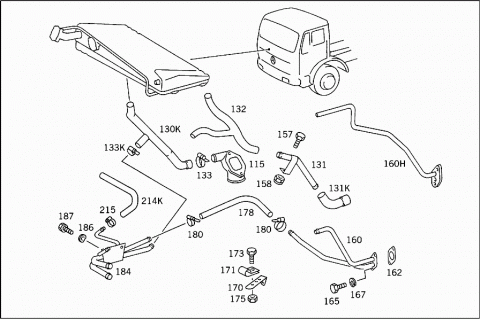

| 130K | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 130K | A 6205011982 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 130K | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 131 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 131K | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 131K | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 132 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 133 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 133 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 133K | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 133K | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 133P | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 134 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 134 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 134D | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 134D | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 134H | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 134H | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 134H | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 134K | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 134K | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 134K | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 134K | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 134K | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 134Q | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 135 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 135 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 135K | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 135K | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 136 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 136 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 139 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 142 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 142 | N 304017008016 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 145 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 145 | N 913004008001 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 148 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 151 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 154 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 154 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 156 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 156 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET & CONSOLE,RESP. | ||
| 157 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 157 | N 304017006034 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 158 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 158 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 159 | A 3875000079 | FLANGE |
| HEATING AND BREATHING | ||
| 160 | A 6205000079 | FLANGE |
| HEATING AND BREATHING | ||
| 160 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| 160H | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 161 | A 6205000479 | FLANGE |
| HEATING AND BREATHING | ||
| 161 | A 6205000879 | FLANGE |
| HEATING AND BREATHING | ||
| 161F | A 6205000779 | FLANGE |
| HEATING AND BREATHING | ||
| 162 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 162F | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 165 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 167 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 168E | A 3875016420 | BRACKET |
| BREATHER LINE TO ENGINE,FRONT | ||
| 168H | A 3609950601 | CLAMP |
| BREATHER LINE TO ENGINE,FRONT | ||
| 168L | N 000933006130 | SCREW |
| BREATHER LINE TO ENGINE,FRONT | ||
| 168N | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 168N | N 913004006001 | NUT |
| BREATHER LINE TO ENGINE,FRONT | ||
| 169 | A 3875011220 | BRACKET |
| HEATING PIPE | ||
| 170 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 170 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 170 | A 6205010620 | BRACKET |
| HEATING PIPE | ||
| 170 | A 6205011420 | BRACKET |
| HEATING PIPE | ||
| 171 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 171 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 173 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE | ||
| 175 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 175 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE | ||
| 177 | A 3875060135 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 178 | A 6205060035 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 178 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 179 | A 6205060635 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||

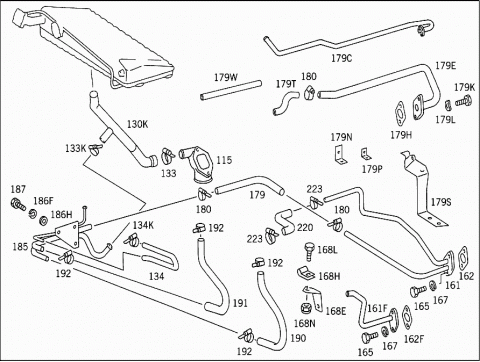

| 179C | A 6205003672 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179E | A 6205003972 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179E | A 6205003172 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179E | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179E | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179H | N 917003022003 | GASKET |
| HEATING PIPE TO ENGINE | ||
| 179K | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| 179K | A 4609900601 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 179L | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 179L | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 179N | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 179P | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 179P | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 179S | A 6205062340 | BRACKET |
| BRACKET TO WATER PUMP | ||
| 179T | A 6205062335 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179T | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179T | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 179W | N 900271018038 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 180 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 180 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 183 | A 3875000072 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| A 6205000272 | LINE | |
| Repalced by: A 6205002672 | ||
| A 6205002672 | LINE | |
| Repalced by: A 6205002872 | ||
| 184 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 184 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| A 6205001572 | LINE | |
| Repalced by: A 6205002872 | ||
| 184 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 184 | A 6205000572 | LINE |
| HEATING AND BREATHING | ||
| A 6205000372 | LINE | |
| Repalced by: A 6205001672 | ||
| 184 | A 6205001672 | LINE |
| HEATING AND BREATHING | ||
| A 6205001672 | LINE | |
| Repalced by: A 6205002972 | ||
| A 6205002972 | LINE | |
| Repalced by: A 6205003072 | ||
| 184 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 184 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| A 6205001772 | LINE | |
| Repalced by: A 6205003072 | ||
| 184 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205000072 | LINE |
| HEATING AND BREATHING | ||
| 185 | A 6205001372 | LINE |
| HEATING AND BREATHING | ||
| 186 | N 000137006204 | SPRING WASHER |
| LINE TO RADIATOR | ||
| 186 | N 000137006204 | SPRING WASHER |
| LINE TO RADIATOR | ||
| 186F | N 912004006102 | LOCK WASHER |
| LINE TO RADIATOR | ||
| 186F | N 912004006102 | LOCK WASHER |
| LINE TO RADIATOR | ||
| 186H | N 000125006421 | WASHER |
| LINE TO RADIATOR | ||
| 186H | N 000125006421 | WASHER |
| LINE TO RADIATOR | ||
| 187 | N 000933006102 | SCREW |
| LINE TO RADIATOR | ||
| 189 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 189 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 190 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 191 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 192 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 192 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| A 3875060435 | HOSE | |
| Repalced by: A 3635060135 | ||
| 195 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 195 | A 3635060235 | HOSE |
| HEATING; TO CONNECTOR | ||
| 197 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 197 | N 000000000668 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 200 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 200 | N 000000000667 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 203 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 206 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 206 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 206 | A 3875014425 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 206 | A 3875014925 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 212 | N 900271012018 | HOSE |
| 12X21 MM | ||
| 212 | N 900271012018 | HOSE |
| BETWEEN DE-AERATION LINE AND EXPANSION TANK | ||
| 12X21 MM | ||
| 212 | N 900271012018 | HOSE |
| BETWEEN THE DE-AERATION LINES | ||
| 12X21 MM | ||
| 214 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 214 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214K | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 215 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 215 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 215K | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 215M | A 6205010920 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 216 | N 007981005306 | SHEET METAL SCREW |
| DE-AERATION LINE TO CAB | ||
| 216K | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 216K | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 216K | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 216K | N 000000000319 | CLAMP |
| DE-AERATION LINE TO CAB | ||
| 217 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 217 | N 000000001146 | SCREW |
| DE-AERATION LINE TO CAB | ||
| M 6X16 | ||
| 217K | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 217K | N 913004006001 | NUT |
| DE-AERATION LINE TO CAB | ||
| 218 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 218 | A 3875014825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 220 | N 900271015037 | HOSE |
| 15X24 MM | ||
| 220 | N 900271015037 | HOSE |
| BETWEEN THE DE-AERATION LINES | ||
| 15X24 MM | ||
| 220 | N 900271015037 | HOSE |
| BETWEEN DE-AERATION LINE AND EXPANSION TANK | ||
| 15X24 MM | ||
| 220 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 223 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 223 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 223 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 223 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| A 3875015920 | BRACKET | |
| Repalced by: A 6454310740 | ||
| 227 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| A 3875015820 | BRACKET | |
| Repalced by: A 3524290740 | ||
| 230 | A 3524290740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 232 | A 3875015620 | BRACKET |
| DE-AERATION LINE TO CAB SUSPENSION CONNECTING RAIL | ||
| 236 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 239 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 239 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 241 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 241 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 243 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 243 | N 916016011202 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 15 MM | ||
| 243 | N 916016011202 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 15 MM | ||
| 243 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 243 | A 6739950001 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 15 MM | ||
| 248 | A 3609950401 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 12 MM | ||
| 248 | A 3609951201 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 10 MM | ||
| 248 | A 3609951201 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 10 MM | ||
| 248 | A 3609951201 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 10 MM | ||
| 251 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 251 | N 304017008016 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 8X16 | ||
| 251 | N 304017008016 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 8X16 | ||
| 251 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 251 | N 304017008021 | SCREW |
| DE-AERATION LINE | ||
| M 8X20 | ||
| 254 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 254 | N 913004008001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 254 | N 913004008001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 254 | N 913004008001 | NUT |
| DE-AERATION LINE | ||
| 258 | N 000933006102 | SCREW |
| DE-AERATION LINE | ||
| 262 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 262 | N 910113006001 | NUT |
| DE-AERATION LINE | ||
| A 6205010101 | RADIATOR | |
| Repalced by: A 6205010201 | ||

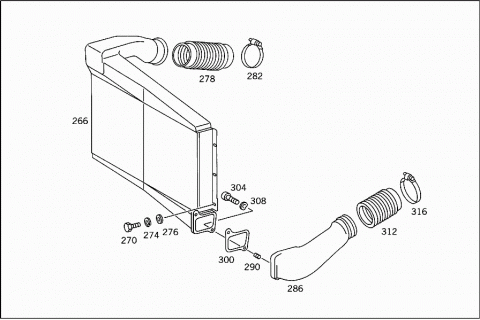

| 266 | A 6205010201 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| 270 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 270 | N 304017006020 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 274 | N 912004006102 | LOCK WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 276 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 278 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 278 | A 0020945282 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 282 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 286 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 290 | N 900421010002 | THREADED INSERT |
| 300 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 300 | A 6555280080 | GASKET |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 304 | N 006912010030 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 304 | N 000912010119 | SCREW |
| Repalced by: N 000912010219 | ||
| 304 | N 000912010219 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 308 | N 000137010201 | SPRING WASHER |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| A 0010947982 | HOSE | |
| Repalced by: A 0020941782 | ||
| A 0020941782 | HOSE | |
| Repalced by: A 0010947982 | ||
| 312 | A 0010947982 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 316 | N 000000000676 | CLAMP |
| HOSE TO PIPE ELBOW AND TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
