Transporto priemonė: 2233 L; VIN numerio dalis: 623423

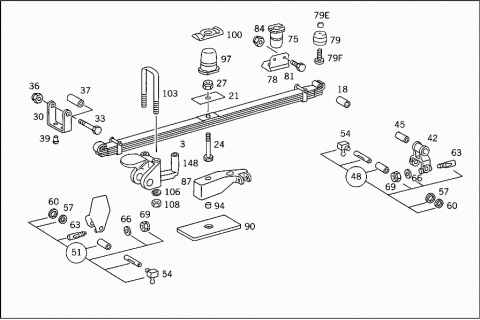

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3933200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 3 | ||
| 003 | A 6203200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 3 | ||
| 003 | A 6203200302 | FRONT SPRING |
| Repalced by: A 6203200002 | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 018 | A 3043210150 | BUSHING |
| 018 | A 6203210050 | BUSHING |
| 021 | A 3933210284 | SHIM |
| 024 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 024 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 027 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 027 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 030 | A 0003249433 | SPRING CLAMP |
| Repalced by: A 6203240633 | ||
| 030 | A 6203240633 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 030 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 030 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 033 | N 000960012222 | SCREW |
| SPRING CLAMP | ||
| 033 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 036 | N 910113012002 | NUT |
| SPRING CLAMP | ||
| 037 | A 3933210053 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 037 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 039 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 042 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 045 | A 3043210150 | BUSHING |
| 045 | A 6203210050 | BUSHING |
| 048 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 048 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 051 | A 3955860332 | REPAIR KIT |
| Repalced by: A 3953200165 | ||
| 051 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 054 | N 071412010300 | GREASE NIPPLE |
| SHACKLE | ||
| 057 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 057 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 057 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 060 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 063 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 066 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 066 | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 069 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 069 | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 075 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 075 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 078 | A 3953210040 | BRACKET |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 078 | A 3953210040 | BRACKET |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 079 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 079E | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 079F | N 007985010122 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| M 10X25 | ||
| 081 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 087 | A 3933310628 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 087 | A 3933310828 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 087 | A 6213310228 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 087 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 087 | A 3933310528 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 087 | A 3933310728 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 087 | A 3933310528 | SHIM |
| RIGHT FRONT SPRING | ||
| 087 | A 6213310128 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 087 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 090 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 094 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 094 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 097 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 097 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 100 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 100 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 103 | A 3933310225 | U-BOLT |
| Repalced by: A 3933310325 | ||
| 103 | A 3933310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 360/240 MM | ||
| 103 | A 3933310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 360/285 MM | ||
| 103 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 103 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 103 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 106 | N 074361020352 | LOCK WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 108 | N 913004020003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

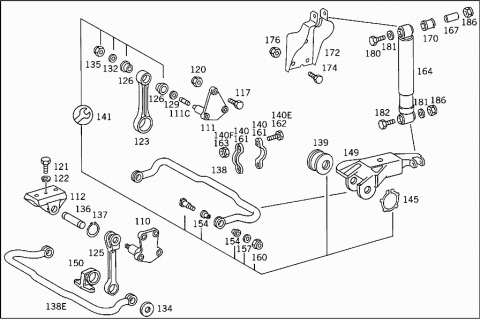

| 110 | A 3873200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 111 | A 6203200178 | CONSOLE |
| Repalced by: A 6203230463 | ||
| 111 | A 6203230463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 111C | N 000939016033 | STUD BOLT |
| 111C | N 000939014036 | STUD BOLT |
| 112 | A 6203230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 117 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 117 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X50 | ||
| 117 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 117 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 120 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 121 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 121 | N 304017008018 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 122 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 125 | A 6203230516 | LINK |
| TORSION BAR,FRONT | ||
| 126 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 126 | A 6203230150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 129 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 132 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 134 | A 6203230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 135 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 135 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 135 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 135 | N 910113014001 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961014127 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 136 | A 6203230274 | PIN |
| SHACKLE TO BEARING BRACKET | ||
| 137 | N 000471040002 | LOCK RING |
| SHACKLE TO BEARING BRACKET | ||
| 138 | A 6223230065 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 138E | A 6213230165 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 139 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 139 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 140 | A 6213230540 | BRACKET |
| TORSION BAR | ||
| 140E | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 140E | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 140F | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 141 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 141 | A 6213200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 145 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 148 | A 6203230220 | BEARING |
| TORSION BAR,LEFT | ||
| 148 | A 6203230320 | BEARING |
| TORSION BAR,RIGHT | ||
| 149 | A 6203232220 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 149 | A 6203232020 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 149 | A 6203232320 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 149 | A 6203232120 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 150 | A 6203230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| A 3893260074 | PIN | |
| Repalced by: A 6203200128 | ||
| 154 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 154 | A 6203230350 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 157 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 157 | A 6203230052 | SPACER WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 160 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 160 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 160 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 160 | N 910113014001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 161 | A 3933251540 | BRACKET |
| TORSION BAR | ||
| 162 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 163 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 163 | N 910113010002 | NUT |
| BRACKET TO TORSION BAR | ||
| 164 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 164 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0033237100 | ||
| 164 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043239200 | ||
| 164 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 164 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 164 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043230100 | ||
| 164 | A 0033237100 | SHOCK ABSORBER |
| Repalced by: A 0043234600 | ||
| 164 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 164 | A 0043234600 | SHOCK ABSORBER |
| 164 | A 0033237200 | SHOCK ABSORBER |
| Repalced by: A 0043230100 | ||
| 164 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 164 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 164 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| 167 | A 0003233150 | BUSHING |
| TO 003 323 32 00,33 00,71 00,72 00 | ||
| 167 | A 0003233150 | BUSHING |
| 004 323 46 00 | ||
| 167 | A 0003233150 | BUSHING |
| 006 323 08 00,09 00 | ||
| 167 | A 0003235250 | BUSHING |
| TO 004 323 01 00,004 323 92 00 | ||
| 170 | A 0003231944 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 170 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 32 00,33 00,71 00,72 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 46 00 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 08 00,09 00 | ||
| 170 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 170 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00,004 323 92 00 | ||
| 172 | A 3993230240 | BRACKET |
| Repalced by: A 3953230640 | ||
| 172 | A 3953230640 | BRACKET |
| Repalced by: A 6203230040 | ||
| 172 | A 3953230640 | BRACKET |
| Repalced by: A 6203230040 | ||
| 172 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 172 | A 6243230340 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 174 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 174 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 176 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 176 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 180 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 180 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X85 | ||
| 180 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X120 | ||
| 180 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X120 | ||
| 180 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X95 | ||
| 181 | A 3878911153 | SPACER TUBE |
| SHOCK ABSORBER TO BRACKET | ||
| 181 | A 3878911153 | SPACER TUBE |
| SHOCK ABSORBER TO BRACKET | ||
| 181 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 182 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 16X90 | ||
| 186 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||

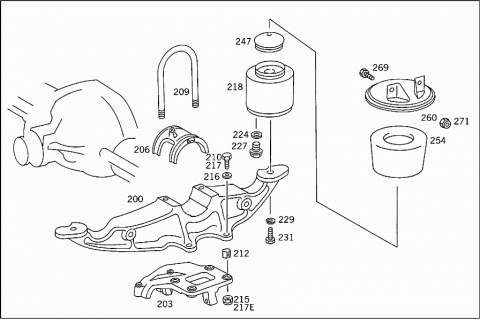

| 200 | A 3933280241 | SUPPORT |
| AIR SPRING BELLOWS | ||
| 200 | A 6203280141 | SUPPORT |
| Repalced by: A 6203280041 | ||
| 200 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280141 | ||
| 200 | A 6553280141 | SUPPORT |
| Repalced by: A 6553280841 | ||
| 200 | A 6553280841 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 200 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280241 | ||
| 200 | A 6553280241 | SUPPORT |
| Repalced by: A 6553280941 | ||
| 200 | A 6553280941 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 203 | A 3933250240 | BRACKET |
| TORSION BAR,LEFT | ||
| 203 | A 3933250140 | BRACKET |
| TORSION BAR,RIGHT | ||
| 206 | A 3933280284 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 209 | A 3873510625 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 290 MM | ||
| 210 | N 000960024058 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| M 24X285 | ||
| 212 | N 007346030004 | CLAMPING SLEEVE |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 215 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 216 | A 6203250070 | SPHERICAL WASHER |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 217 | N 000961016039 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 217E | N 000439016206 | NUT |
| Repalced by: N 308675016001 | ||
| 217E | N 308675016001 | NUT |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 218 | A 3873200818 | PISTON |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 218 | A 3873200818 | PISTON |
| TRAILING AXLE LIFT | ||

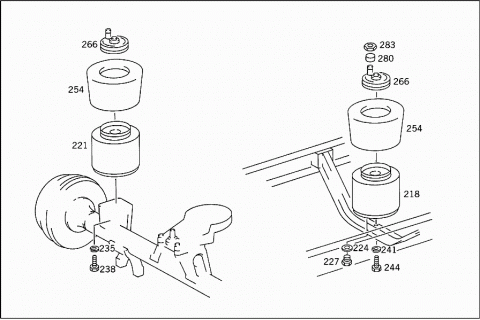

| 221 | A 3933200718 | PISTON |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 224 | N 007603012405 | SEAL RING |
| 227 | A 0004290456 | SCREW PLUG |
| 229 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 231 | N 000961016113 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 231 | N 000961016081 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 235 | N 912004016101 | LOCK WASHER |
| PISTON ON TRAILING AXLE | ||
| 238 | N 000961016004 | SCREW |
| PISTON ON TRAILING AXLE | ||
| 241 | N 912004016101 | LOCK WASHER |
| PISTON TO CROSS MEMBER | ||
| 244 | N 000961016065 | SCREW |
| PISTON TO CROSS MEMBER | ||
| 247 | A 3933280239 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,DRIVING AXLE | ||
| 247 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,TRAILING AXLE | ||
| 254 | A 3873280001 | AIR SPRING BELLOWS |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 254 | A 3873280101 | AIR SPRING BELLOWS |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 254 | A 3873280101 | AIR SPRING BELLOWS |
| TRAILING AXLE LIFT | ||
| 254 | A 3933280101 | AIR SPRING BELLOWS |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 254 | A 3933280201 | AIR SPRING BELLOWS |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 260 | A 3873200635 | PLATE |
| CENTRAL BEARING | ||
| 260 | A 3873200535 | PLATE |
| FRAME | ||
| 266 | A 3833200335 | PLATE |
| TRAILING AXLE PNEUMATIC SUSPENSION | ||
| A 6583250053 | SPACER TUBE | |
| Repalced by: A 6583250253 | ||
| A 6583250253 | SPACER TUBE | |
| PLATE TO CENTRAL BEARING | ||
| 269 | N 000960018133 | SCREW |
| PLATE TO CENTRAL BEARING | ||
| 269 | N 000961012106 | SCREW |
| FRONT PLATE TO SIDE MEMBER | ||
| 271 | N 913004018004 | NUT |
| PLATE TO CENTRAL BEARING | ||
| 271 | N 910113012002 | NUT |
| FRONT PLATE TO SIDE MEMBER | ||
| 280 | A 3833270053 | SPACER TUBE |
| PLATE TO SPRING CONSOLE | ||
| 283 | N 308675022001 | NUT |
| PLATE TO SPRING CONSOLE | ||

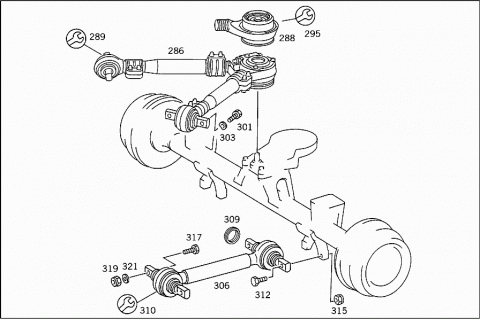

| 286 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 286 | A 6553500305 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 286 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 286 | A 6583500005 | CONTROL ARM |
| Repalced by: A 6583500205 | ||
| 286 | A 6583500205 | CONTROL ARM |
| TRIANGULAR | ||
| LEMFOERDER | ||
| 288 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05; EHRENREICH | ||
| 288 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 288 | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05; EHRENREICH | ||
| 289 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 289 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| 289 | A 0005861433 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05; 658 350 00 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 295 | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 295 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 658 350 00 05; EHRENREICH | ||
| 295 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 295 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 295 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05; EHRENREICH | ||
| 301 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 301 | N 308676020021 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 303 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 303 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO SUPPORT | ||
| 306 | A 3933200132 | LINK |
| Repalced by: A 6553500006 | ||
| 306 | A 6553500006 | CONTROL ARM |
| Repalced by: A 6583500006 | ||
| 306 | A 6583500006 | CONTROL ARM |
| Repalced by: A 6583500206 | ||
| 306 | A 6583500206 | CONTROL ARM |
| BOTTOM | ||
| 309 | A 0003381797 | BOOT |
| 310 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 320 01 32 | ||
| 310 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 310 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 310 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 655 350 00 06; LEMFOERDER | ||
| 310 | A 0005861533 | REPAIR KIT |
| PLATE TO SIDE MEMBER | ||
| TO 658 350 00 06; EHRENREICH | ||
| 310 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 658 350 00 06; EHRENREICH | ||
| 312 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 312 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 312 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 312 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 312 | N 308765020012 | SCREW |
| LINK TO AXLE | ||
| 315 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 315 | N 913004020003 | NUT |
| LINK TO AXLE | ||
| 317 | N 000960020150 | SCREW |
| LINK TO CENTRAL BEARING | ||
| 319 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 319 | N 913004020003 | NUT |
| LINK TO CENTRAL BEARING | ||
| 321 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 321 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 321 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 321 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 321 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||

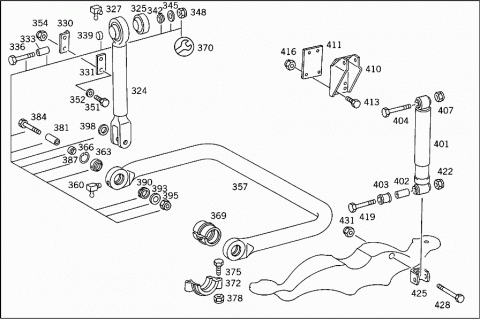

| 324 | A 3933200789 | ROD |
| TORSION BAR TO REAR AXLE I | ||
| 325 | A 0009816131 | JOINT BEARING |
| 327 | N 071412008302 | GREASE NIPPLE |
| 330 | A 3833260940 | BRACKET |
| LINK | ||
| 331 | A 6483120184 | SHIM |
| LINK | ||
| 333 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 336 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 339 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 342 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 345 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 348 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 348 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 351 | N 000961018020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 352 | N 000125019009 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 354 | N 913004018004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 357 | A 3933260865 | TORSION BAR |
| REAR AXLE I | ||
| 360 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR TO REAR AXLE I | ||
| 363 | A 0009816131 | JOINT BEARING |
| TORSION BAR TO REAR AXLE I | ||
| 363 | A 0009817431 | JOINT BEARING |
| TORSION BAR TO REAR AXLE I | ||
| 366 | N 000472055000 | LOCK RING |
| TORSION BAR TO REAR AXLE I | ||
| 369 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE I | ||
| 369 | A 6553260581 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE I | ||
| 370 | A 3875860332 | REPAIR KIT |
| Repalced by: A 3873200328 | ||
| 370 | A 3873200328 | REPAIR KIT |
| TORSION BAR TO REAR AXLE I | ||
| 370 | A 6203200111 | REPAIR KIT |
| TORSION BAR TO REAR AXLE I | ||
| 372 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 372 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,LEFT | ||
| A 6553260064 | STEP BEARING | |
| TORSION BAR TO REAR AXLE I | ||
| 375 | N 000960016285 | SCREW |
| TORSION BAR TO REAR AXLE I | ||
| M 16X115 | ||
| 375 | N 000960016248 | SCREW |
| TORSION BAR TO REAR AXLE I | ||
| M 16X160 | ||
| 375 | N 000960016277 | SCREW |
| Repalced by: N 308765016011 | ||
| 375 | N 308765016011 | SCREW |
| TORSION BAR TO REAR AXLE I | ||
| M 16X110 | ||
| 378 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 378 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE I | ||
| 381 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 384 | N 000960016285 | SCREW |
| ROD TO TORSION BAR | ||
| 387 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 390 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 393 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| 395 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 395 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 398 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||
| 401 | A 0023265500 | SHOCK ABSORBER |
| Repalced by: A 0043262300 | ||
| 401 | A 0043262300 | SHOCK ABSORBER |
| REAR AXLE I | ||
| 401 | A 0023265000 | SHOCK ABSORBER |
| Repalced by: A 0033267400 | ||
| 401 | A 0033267400 | SHOCK ABSORBER |
| Repalced by: A 0043262400 | ||
| 401 | A 0043262400 | SHOCK ABSORBER |
| Repalced by: A 0043264300 | ||
| 401 | A 0043264300 | SHOCK ABSORBER |
| REAR AXLE I | ||
| 402 | A 0003233150 | BUSHING |
| TO 002 326 55 00;003 326 74 00; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 50 00;004 326 23 00 | ||
| 402 | A 0003261250 | BUSHING |
| TO 004 326 24 00 | ||
| 402 | A 0003235250 | BUSHING |
| TO 004 326 43 00 | ||
| 403 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 55 00;003 326 74 00; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 50 00;004 326 23 00 | ||
| 403 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 403 | A 0003233144 | RUBBER BUFFER |
| TO 004 326 24 00,004 326 43 00 | ||
| 404 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 407 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 407 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 410 | A 3873200243 | BRACKET |
| REAR AXLE I SHOCK ABSORBER | ||
| 411 | A 6483120084 | SHIM |
| REAR AXLE I SHOCK ABSORBER | ||
| 413 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 413 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 416 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 419 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 419 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 422 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 422 | N 910113016002 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 425 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 428 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 428 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 428 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 431 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 431 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 434 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 434 | A 3873230563 | BEARING BRACKET |
| TRAILING AXLE TORSION BAR | ||
| 437 | N 000939012102 | STUD BOLT |
| 440 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 440 | N 308676016007 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 443 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 443 | N 910113016001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 446 | A 3873231016 | LINK |
| TORSION BAR | ||
| 449 | A 3873230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 451 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 454 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 457 | N 910113012002 | NUT |
| LINK TO CONSOLE | ||
| 460 | A 3933260263 | BEARING BRACKET |
| TRAILING AXLE TORSION BAR | ||
| 463 | N 000960012331 | SCREW |
| BEARING BRACKET TO TRAILING AXLE | ||
| 466 | N 910113012002 | NUT |
| BEARING BRACKET TO TRAILING AXLE | ||
| 469 | A 3933261165 | TORSION BAR |
| TRAILING AXLE TORSION BAR | ||
| 470 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| A 3353230074 | PIN | |
| Repalced by: A 3935860432 | ||
| 472 | A 3935860432 | REPAIR KIT |
| Repalced by: A 3933200328 | ||
| 472 | A 3933200328 | REPAIR KIT |
| LINK TO TORSION BAR | ||
| 475 | N 000983068000 | LOCK RING |
| LINK TO TORSION BAR | ||
| 481 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 483 | A 0009932026 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 486 | N 000935020001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 488 | N 000094004066 | COTTER PIN |
| TORSION BAR TO BEARING BRACKET | ||
| 492 | A 6233260000 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE II | ||
| 495 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 495 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 60 00 | ||
| 495 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 495 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 47 00 | ||
| 498 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 498 | A 0003233150 | BUSHING |
| TO 002 326 60 00 | ||
| 498 | A 0003234350 | BUSHING |
| TO 003 326 47 00 | ||
| 501 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 504 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 504 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 507 | A 3873200243 | BRACKET |
| REAR AXLE II SHOCK ABSORBER | ||
| 510 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 510 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 513 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 516 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 519 | A 3879915040 | SPACER TUBE |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 521 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 524 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 524 | N 910113016001 | NUT |
| SHOCK ABSORBER TO REAR AXLE II | ||

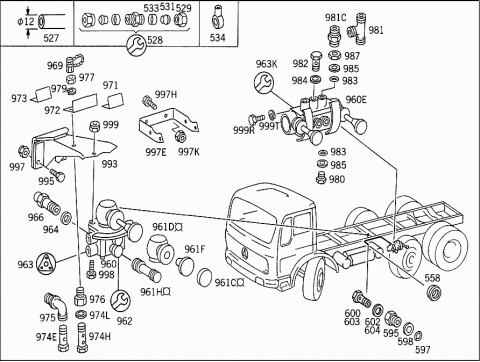

| 527 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 527 | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO PRESSURE RELIEF VALVE | ||
| 9X12 MM | ||
| 527 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE | ||
| 9X12 MM | ||
| 528 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 528 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 529 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| 531 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 531 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 533 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 533 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 534 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||

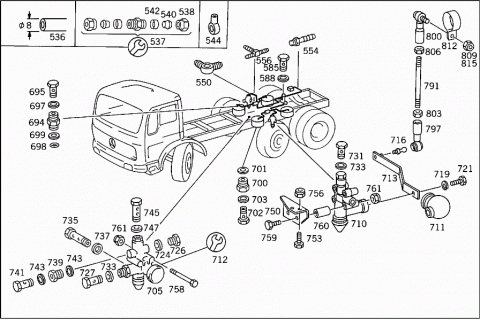

| 536 | A 0089979082 | HOSE |
| AIR RESERVOIR,PRESSURE RELIEF VALVE, TWO-WAY VALVE | ||
| 6X8 MM | ||
| 536 | A 0089979082 | HOSE |
| SHIFT VALVE,CHECK VALVE,THREE-WAY VALVE | ||
| 6X8 MM | ||
| 536 | A 0089979082 | HOSE |
| BRAKE PRESSURE REGULATOR,AIR SPRING VALVE,AIR SPRING BELLOWS | ||
| 6X8 MM | ||
| 536 | A 0089979082 | HOSE |
| TEST CONNECTION | ||
| 6X8 MM | ||
| 537 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 537 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 538 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 540 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 542 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 542 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 544 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 544 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 544 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 544 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 544 | A 0009907488 | BANJO UNION |
| Repalced by: N 915052006012 | ||
| 544 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 MM | ||
| 550 | A 0009909488 | BANJO UNION |
| DOUBLE | ||
| 6/6/16 MM | ||
| 554 | A 0009904678 | CONNECTOR |
| CONNECTION FITTING,CONNECTION: | ||
| "10" | ||
| 554 | A 0019976772 | FITTING |
| Repalced by: N 915059006002 | ||
| 554 | N 915059006002 | FITTING |
| LINE CONNECTIONS | ||
| 556 | A 0009907990 | T-FITTING |
| LINE CONNECTIONS | ||
| 558 | A 0039977581 | GROMMET |
| LINE MOUNTING | ||

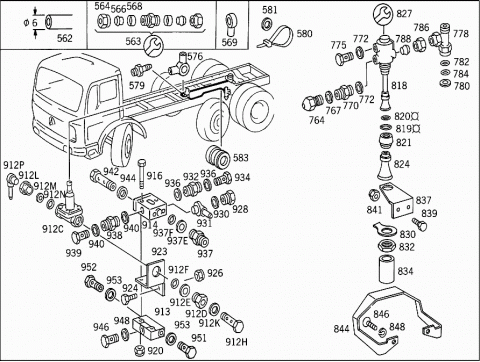

| 562 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 562 | A 0009872627 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 562 | A 0009872627 | PLASTIC PIPE |
| TWO-WAY VALVE,TEST CONNECTION | ||
| 4X6 MM | ||
| 562 | A 0009872627 | PLASTIC PIPE |
| BRAKE PRESSURE REGULATOR,AIR SPRING VALVE | ||
| 4X6 MM | ||
| 563 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 564 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 566 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 566 | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 568 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 568 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 569 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 569 | N 915052004026 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| 569 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 569 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 576 | A 0009906988 | BANJO UNION |
| Repalced by: A 0019904388 | ||
| 576 | A 0019904388 | BANJO UNION |
| DOUBLE | ||
| 4/4/10 MM | ||
| 579 | A 0009904578 | CONNECTOR |
| CONNECTION FITTING,CONNECTION: | ||
| "10" | ||
| 579 | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 4X6 MM | ||
| 580 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 580 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 581 | N 000433008406 | WASHER |
| HOSDE TO FRAME | ||
| 583 | A 0039977481 | GROMMET |
| LINE THRU FRAME | ||
| 583 | A 3879970481 | GROMMET |
| LINE THRU FRAME | ||
| 38/30 MM | ||
| 585 | N 915036008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 585 | N 915047008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 585 | N 915047008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 588 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 588 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 588 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||

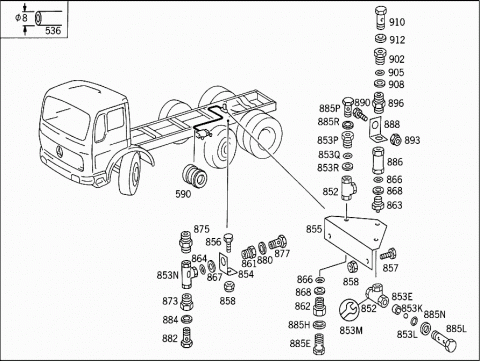

| 590 | A 3879970381 | GROMMET |
| LINE THRU FRAME | ||

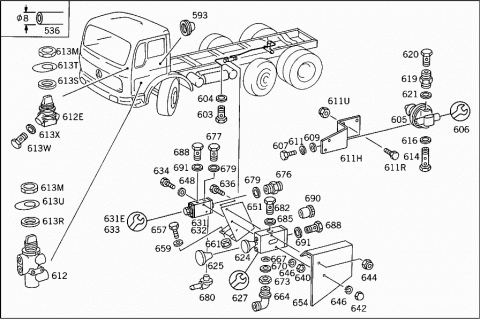

| 593 | A 3833020091 | GROMMET |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 595 | A 0009904468 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 597 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 598 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 598 | A 0009940203 | THRUST RING |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 600 | N 915036008202 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 602 | N 007603012405 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 603 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 603 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 604 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 604 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 605 | A 0014295644 | VALVE |
| Repalced by: A 0044291844 | ||
| 605 | A 0044291844 | VALVE |
| (PRESSURE RELIEF VALVE) | ||
| 606 | A 0004300568 | REPAIR KIT |
| PRESSURE RELIEF VALVE | ||
| 607 | N 000933010128 | SCREW |
| VALVE TO BRACKET | ||
| 609 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 609 | N 009021010209 | WASHER |
| VALVE TO BRACKET | ||
| 611 | N 912004010102 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 611H | A 6234310640 | BRACKET |
| PRESSURE RELIEF VALVE AND LIFT PRESSURE BOOSTER VALVE | ||
| 611H | A 6234310640 | BRACKET |
| PRESSURE RELIEF VALVE AND LIFT PRESSURE BOOSTER VALVE | ||
| 611R | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 611R | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 611R | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 611U | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 611U | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 611U | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 612 | A 0034295444 | VALVE |
| TRAILING AXLE LIFT | ||
| 612 | A 0034295444 | VALVE |
| TRAILING AXLE LIFT | ||
| 612E | A 0029971936 | VALVE |
| STARTING ASSISTANCE | ||
| 612E | A 0029972036 | VALVE |
| STARTING ASSISTANCE | ||
| 613M | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 613M | A 3839900051 | NUT |
| VALVE TO SUBSTRUCTURE | ||
| 613M | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 613R | A 3859901640 | WASHER |
| VALVE TO CAB | ||
| 613R | A 3859901640 | WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 613R | A 3859901640 | WASHER |
| VALVE TO CAB | ||
| 613S | A 6239900040 | WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 613T | A 6235840424 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 613U | A 6235840124 | UNIT IDENTIFICATION PLATE |
| LIFTING TRAILING AXLE | ||
| 613U | A 6235840124 | UNIT IDENTIFICATION PLATE |
| LIFTING TRAILING AXLE | ||
| 613U | A 6235840024 | UNIT IDENTIFICATION PLATE |
| LIFTING TRAILING AXLE | ||
| 613U | A 6235840024 | UNIT IDENTIFICATION PLATE |
| LIFTING TRAILING AXLE | ||
| 613W | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| "12,22" | ||
| 613X | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 613X | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| "12,22" | ||
| 614 | N 915047008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "1" | ||
| 616 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "1" | ||
| 619 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 619 | A 0019972572 | FITTING |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "2" | ||
| 620 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "2" | ||
| 620 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "2" | ||
| 621 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "2" | ||
| 624 | A 0014299244 | VALVE |
| TRAILING AXLE LIFT | ||
| 625 | A 0009972677 | HANDLE |
| 627 | A 0015865542 | REPAIR KIT |
| VALVE | ||
| 631 | A 0024295144 | VALVE |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 631E | A 0004301560 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 632 | A 0044291944 | VALVE |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 633 | A 0004205355 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 634 | N 000931005050 | SCREW |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| M 5X70 | ||
| 636 | N 000931005012 | SCREW |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| M 5X50 | ||
| 636 | N 000931005022 | SCREW |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| M 5X35 | ||
| 640 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 640 | N 304032005005 | NUT |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 642 | N 001587005000 | CAP NUT |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 644 | N 913004005001 | NUT |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 644 | N 913004005001 | NUT |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 646 | N 912004005103 | LOCK WASHER |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 648 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 648 | N 009021005205 | WASHER |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 651 | A 3933910540 | BRACKET |
| VALVE | ||
| 654 | A 3934290047 | COVERING |
| VALVE | ||
| 657 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 657 | N 304017006020 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 659 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 659 | N 009021006208 | WASHER |
| BRACKET TO CAB FLOOR | ||
| 661 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 661 | N 913004006001 | NUT |
| BRACKET TO CAB FLOOR | ||
| 664 | A 0009909271 | ELBOW FITTING |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| "21" | ||
| 667 | A 0079974245 | SEAL RING |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| "21" | ||
| 670 | A 0004290627 | THRUST RING |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| "21" | ||
| 673 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 673 | N 308675014001 | NUT |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| "21" | ||
| 676 | A 0029978472 | FITTING |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| "34" | ||
| 677 | N 915036006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "40" | ||
| 677 | N 915036006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "20" | ||
| 677 | N 915036006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "40" | ||
| 677 | N 915047006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "10" | ||
| 677 | N 915047006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "10" | ||
| 679 | N 007603010404 | SEAL RING |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "10,20,40" | ||
| 680 | A 6233280165 | PIPE SOCKET |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "30" | ||
| 680 | A 6233280165 | PIPE SOCKET |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "30" | ||
| 682 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 682 | N 915036010108 | HOLLOW SCREW |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "22,31" | ||
| 685 | N 007603014405 | SEAL RING |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "22,31" | ||
| 688 | N 915036006202 | HOLLOW SCREW |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "24.31.33" | ||
| 688 | N 915036008202 | HOLLOW SCREW |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "12,20,40" | ||
| 688 | N 915036008202 | HOLLOW SCREW |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "12,20,40" | ||
| 690 | N 915042008200 | PLUG |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "11" | ||
| 691 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 691 | N 007603010110 | SEAL RING |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "24.31.33" | ||
| 691 | N 007603012405 | SEAL RING |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "11,12,20,40" | ||
| 691 | N 007603012405 | SEAL RING |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "11,12,20,40" | ||
| 694 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 694 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 694 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 694 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 695 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 695 | N 915036010108 | HOLLOW SCREW |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 695 | N 915036010108 | HOLLOW SCREW |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 697 | N 007603014405 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 697 | N 007603014405 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 698 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 698 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 698 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 699 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 699 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 699 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 700 | A 6239900168 | FITTING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 701 | N 007603014405 | SEAL RING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 702 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 702 | N 915036010108 | HOLLOW SCREW |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 703 | N 007603014405 | SEAL RING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 705 | A 0003283330 | VALVE |
| REAR AXLE I SELF-LEVELLING DEVICE | ||
| KNORR | ||
| 710 | A 0003282830 | VALVE |
| TRAILING AXLE SELF-LEVELLING DEVICE | ||
| KNORR | ||
| 711 | A 0003280192 | BOOT |
| Repalced by: A 0003280292 | ||
| 711 | A 0003280092 | BOOT |
| Repalced by: A 0003280292 | ||
| 711 | A 0003280292 | BOOT |
| 712 | A 0005861432 | REPAIR KIT |
| Repalced by: A 0003200367 | ||
| 712 | A 0003200367 | REPAIR KIT |
| Repalced by: A 0003200967 | ||
| 712 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/69346 | ||
| 712 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/80095 | ||
| 712 | A 0005861232 | REPAIR KIT |
| Repalced by: A 0003200267 | ||
| 712 | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| TO 000 328 28 30 | ||
| 713 | A 3603200927 | LEVER |
| Repalced by: A 6523200527 | ||
| 713 | A 6523200527 | LEVER |
| SELF-LEVELLING DEVICE | ||
| 716 | N 071803013208 | BALL PIVOT |
| 719 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 721 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 721 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 724 | N 007603012405 | SEAL RING |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "21.22" | ||
| 726 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 726 | N 000908012009 | SCREW PLUG |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "21.22" | ||
| 727 | N 915036008202 | HOLLOW SCREW |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "21.22" | ||
| 727 | N 915036008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11" | ||
| 731 | N 915047008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11" | ||
| 733 | N 007603012405 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11" | ||
| 735 | N 915036012203 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "12" | ||
| 737 | N 007603016401 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "12" | ||
| 739 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 739 | A 0019972572 | FITTING |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "21.22" | ||
| 741 | N 915047012203 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "23" | ||
| 743 | N 007603016401 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "23" | ||
| 745 | N 915047008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "4" | ||
| 747 | N 007603012405 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "4" | ||
| 750 | A 3933281340 | BRACKET |
| TRAILING AXLE SELF-LEVELLING VALVE | ||
| 753 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 753 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| M 8X20 | ||
| 753 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 753 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 753 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 756 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 756 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 758 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 758 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 758 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 758 | N 000931008309 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 759 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 759 | N 304017008053 | SCREW |
| VALVE TO BRACKET | ||
| 760 | A 3159185017 | BUSHING |
| Repalced by: A 3354310053 | ||
| 760 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 760 | A 3094310249 | GUIDE BUSHING |
| VALVE TO BRACKET | ||
| 760 | A 3094310249 | GUIDE BUSHING |
| VALVE TO BRACKET | ||
| 761 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 761 | N 913004008001 | NUT |
| VALVE TO SIDE MEMBER | ||
| 761 | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 764 | A 0024293344 | VALVE |
| CHECK | ||
| 767 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 770 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 770 | A 0019972572 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 772 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "3" | ||
| 775 | N 915039008202 | HOLLOW SCREW FITTING |
| CHECK VALVE,CONNECTION: | ||
| "3" | ||
| 778 | A 0024292444 | VALVE |
| (TEST VALVE) | ||
| 780 | A 0039974348 | SEAL RING |
| 8X2 MM | ||
| 782 | A 0039974448 | SEAL RING |
| 4X1.5 MM | ||
| 784 | A 0039974548 | SEAL RING |
| 5X2 MM | ||
| 786 | N 915017008100 | UNION NUT |
| 788 | N 003861008005 | GLAND |
| 791 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL,REAR AXLE I | ||
| 400 MM | ||
| 791 | N 900331008426 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL,REAR AXLE II | ||
| 200 MM | ||
| 797 | A 0004310667 | YOKE |
| TOP | ||
| 800 | A 0004310767 | YOKE |
| BOTTOM | ||
| 803 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 803 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 806 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 806 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 809 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 809 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 812 | A 1869950544 | CLAMP |
| PULL ROD TO CONTROL ARM | ||
| 815 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 815 | N 913004008001 | NUT |
| PULL ROD TO CONTROL ARM | ||
| 818 | A 0004342501 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| 819 | A 0079972548 | SEAL RING |
| 820 | A 0079972448 | SEAL RING |
| 821 | A 0004340586 | CUP |
| 824 | A 0009972177 | HANDLE |
| 827 | A 0025869843 | REPAIR KIT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 830 | N 000093027000 | LOCK PLATE |
| VALVE TO BRACKET | ||
| 832 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 832 | N 080705026003 | NUT |
| VALVE TO BRACKET | ||
| 834 | A 3633280039 | RUBBER BUFFER |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 837 | A 3934282440 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 839 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 839 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 841 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 841 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 844 | A 3933200543 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 846 | N 000965008006 | SCREW |
| Repalced by: N 000963008036 | ||
| 846 | N 000963008036 | SCREW |
| BRACKET TO SHIM | ||
| 848 | N 912004008102 | LOCK WASHER |
| BRACKET TO SHIM | ||
| 852 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 852 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 852 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 852 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 852 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 852 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 852 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 852 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 852 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 852 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 853E | A 0004291182 | VALVE BODY |
| PISTONS | ||
| WABCO | ||
| 853K | A 0029810485 | BALL |
| VOSS | ||
| 853L | A 0004290180 | GASKET |
| VOSS | ||
| 853M | A 0034302681 | REPAIR KIT |
| SHUT-OFF VALVE | ||
| WABCO | ||
| 853N | A 0029972836 | VALVE |
| Repalced by: A 0044292744 | ||
| 853N | A 0044292744 | VALVE |
| SHUT-OFF VALVE | ||
| 853P | A 0009905168 | FITTING |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| 853Q | A 0009870446 | SEALING CORD |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| 853R | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 853R | A 0009940203 | THRUST RING |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| 854 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 854 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 854 | A 3094921819 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 855 | A 6234310540 | BRACKET |
| Repalced by: A 6484290040 | ||
| 855 | A 6484290040 | BRACKET |
| TWO-WAY VALVE | ||
| 855 | A 6484290040 | BRACKET |
| TWO-WAY VALVE | ||
| 856 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 857 | N 000933010145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 857 | N 000933010145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 858 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 858 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 858 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 858 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 858 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 861 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 862 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 862 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 863 | A 6239900068 | FITTING |
| SHUTTLE VALVE,CONNECTION: | ||
| "20" | ||
| 863 | A 6239900068 | FITTING |
| SHUTTLE VALVE,CONNECTION: | ||
| "20" | ||
| 863 | A 6239900068 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "20" | ||
| 864 | A 0009870446 | SEALING CORD |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 866 | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 866 | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 867 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 867 | A 0009940203 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 868 | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 868 | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 873 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 875 | A 0004291034 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 877 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 880 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 882 | N 915036008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 884 | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885E | N 915047010202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885E | N 915047010202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885H | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885H | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885L | N 915036012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885L | N 915036012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885N | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885N | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885P | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 885P | N 915036010108 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885P | N 915036010108 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885R | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 885R | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 886 | A 0024290444 | VALVE |
| (CHECK VALVE) | ||
| 888 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 888 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 888 | A 3094921819 | BRACKET |
| CHECK VALVE | ||
| 890 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 893 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 893 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 896 | A 0004291034 | ADAPTER FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 902 | A 0009904468 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 902 | A 0009904468 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 902 | A 0009904968 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 902 | A 0019907168 | FITTING |
| CHECK VALVE TO BRACKET | ||
| 905 | A 0009870446 | SEALING CORD |
| CHECK VALVE TO BRACKET | ||
| 905 | A 0009870446 | SEALING CORD |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 905 | A 0009870446 | SEALING CORD |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 908 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 908 | A 0009940203 | THRUST RING |
| CHECK VALVE TO BRACKET | ||
| 908 | A 0009940203 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 908 | A 0009940203 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 910 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 910 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 910 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 910 | N 915047010202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 912 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 912 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 912 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 912 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 912C | A 0034294244 | VALVE |
| (OVERFLOW VALVE) | ||
| 912C | A 0034299944 | VALVE |
| (OVERFLOW VALVE) | ||
| 912D | A 0009905168 | FITTING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 912E | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 912E | A 0009940203 | THRUST RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 912F | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 912H | N 915047012203 | HOLLOW SCREW |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 912K | N 007603016401 | SEAL RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 912L | A 0019907368 | FITTING |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 912M | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 912M | A 0009940203 | THRUST RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 912N | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 912P | A 6233280365 | PIPE SOCKET |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 913 | A 0002607657 | VALVE |
| Repalced by: A 0012604957 | ||
| 913 | A 0012604957 | VALVE |
| (SHUTTLE VALVE) | ||
| 914 | A 0014299344 | VALVE |
| Repalced by: A 0034296844 | ||
| 914 | A 0034296844 | VALVE |
| TRAILING AXLE SELF-LEVELLING VALVE | ||
| 914 | A 0034296844 | VALVE |
| TRAILING AXLE LIFT | ||
| 914 | A 0034296844 | VALVE |
| STARTING ASSISTANCE | ||
| 916 | N 000931005047 | SCREW |
| VALVE TO BRACKET | ||
| M 5X75 | ||
| 916 | N 000931005047 | SCREW |
| VALVE TO BRACKET | ||
| M 5X75 | ||
| 916 | N 007985005165 | SCREW |
| VALVE TO BRACKET | ||
| M 5X40 | ||
| 916 | N 000931005046 | SCREW |
| VALVE TO BRACKET | ||
| M 5X40 | ||
| 916 | N 000931005022 | SCREW |
| VALVE TO BRACKET | ||
| M 5X35 | ||
| 920 | N 913004005001 | NUT |
| VALVE TO BRACKET | ||
| A 3934291240 | BRACKET | |
| 3/2-WAY VALVE | ||
| 923 | A 6194290440 | BRACKET |
| 3/2-WAY VALVE | ||
| 924 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 924 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| M 8X30 | ||
| 924 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| M 8X30 | ||
| 924 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 924 | N 304017008018 | SCREW |
| BRACKET TO FRAME | ||
| M 8X35 | ||
| 926 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 926 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 928 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 928 | N 007604014110 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "13,23" | ||
| 928 | N 007604014110 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTION: | ||
| "14" | ||
| 930 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "13,23" | ||
| 930 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "14" | ||
| 931 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "13,23" | ||
| 931 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "13,23" | ||
| 931 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "31" | ||
| 931 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "31,34" | ||
| 932 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 932 | A 0039979972 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "11" | ||
| 934 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 934 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "11,21" | ||
| 934 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "11,21" | ||
| 934 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "12,33" | ||
| 936 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "11,12,21,32,33" | ||
| 937 | A 0039979972 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "32" | ||
| 937 | A 0039979972 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "24,32" | ||
| A 0009909970 | T-FITTING | |
| 3/2-WAY VALVE;CONNECTION: | ||
| "33" | ||
| 937E | A 0004290627 | THRUST RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "32" | ||
| 937E | A 0004290627 | THRUST RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24,32" | ||
| 937F | A 0079974245 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "32" | ||
| 937F | A 0079974245 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24,32" | ||
| 938 | A 0019973972 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "21" | ||
| 939 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 939 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "21" | ||
| 939 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "21" | ||
| 940 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "21" | ||
| 940 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "24,36" | ||
| 942 | N 915047010202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "12" | ||
| 942 | N 915047010202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "13" | ||
| 942 | N 915047010202 | HOLLOW SCREW |
| SHUTTLE VALVE,CONNECTION: | ||
| "17" | ||
| N 915040010202 | HOLLOW SCREW FITTING | |
| SHUTTLE VALVE,CONNECTION: | ||
| "17" | ||
| 944 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "12" | ||
| 944 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "13,15" | ||
| 946 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 946 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "22" | ||
| 946 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "23" | ||
| 946 | N 915036010108 | HOLLOW SCREW |
| SHUTTLE VALVE,CONNECTION: | ||
| "18,24" | ||
| 948 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "22" | ||
| 948 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "23,25,35" | ||
| 948 | N 007603014405 | SEAL RING |
| SHUTTLE VALVE,CONNECTION: | ||
| "17,18,24" | ||
| 951 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24" | ||
| 951 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "41,43" | ||
| 952 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "45" | ||
| 952 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "42" | ||
| 952 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "42,44 | ||
| 953 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 953 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24,41,42,43,44,45" | ||
| 960 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 960 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 960 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 960 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 960 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 960E | A 0003290525 | VALVE |
| Repalced by: A 0003290925 | ||
| 960E | A 0003290925 | VALVE |
| Repalced by: A 0003291125 | ||
| 960E | A 0003291125 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 961C | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 961C | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 961C | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 961D | A 0003290293 | PROTECTIVE CAP |
| Repalced by: A 0003290092 | ||
| 961D | A 0003290092 | BOOT |
| KNORR | ||
| 961D | A 0003290092 | BOOT |
| KNORR | ||
| 961D | A 0003290092 | BOOT |
| KNORR | ||
| 961F | A 0009973177 | HANDLE |
| KNORR | ||
| 961F | A 0009973177 | HANDLE |
| KNORR | ||
| 961F | A 0009973177 | HANDLE |
| KNORR | ||
| 961H | A 0003200058 | VALVE |
| KNORR | ||
| 961H | A 0003200058 | VALVE |
| KNORR | ||
| 961H | A 0003200058 | VALVE |
| KNORR | ||
| A 0003291325 | VALVE | |
| 962 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 962 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 963 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 963 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 963K | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 963K | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 963K | A 0003200667 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3118-I/75379 | ||
| 963K | A 0003200867 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3118-I/86025 | ||
| 964 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 966 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 969 | A 0004312031 | TEST CONNECTION |
| 969 | A 0004314531 | TEST CONNECTION |
| 969 | A 0004314831 | TEST CONNECTION |
| 969 | A 0004316131 | TEST CONNECTION |
| 971 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| 971 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| 972 | A 3935840721 | GUIDE SIGN |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 973 | A 3935840821 | GUIDE SIGN |
| TRAILING AXLE LIFT | ||
| A 3875840055 | ADHESIVE FOIL | |
| TRAILING AXLE LIFT | ||
| 974E | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 974H | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 974L | N 007603012405 | SEAL RING |
| TEST CONNECTION | ||
| 975 | A 0019904071 | ELBOW FITTING |
| TEST CONNECTION TO BRACKET | ||
| 976 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 976 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 977 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 979 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 980 | N 000908016001 | SCREW PLUG |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 981 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 981C | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 982 | N 915047012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTION: | ||
| "15" | ||
| 982 | N 915047012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 983 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 983 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 984 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 984 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 985 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 985 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 985 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "15" | ||
| 987 | N 080705016003 | NUT |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 993 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 995 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 995 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 997 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 997E | A 6203270240 | BRACKET |
| CONTROL VALVE | ||
| 997H | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 997H | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 997K | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 997K | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 998 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 998 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 998 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 999 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 999 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 999 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 999R | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 999R | N 304017008016 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 999T | N 912004008102 | LOCK WASHER |
| SHIFT VALVE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
