Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145
Grupė: 42 BRAKES
43302
43303
43304
43305
43306
43307

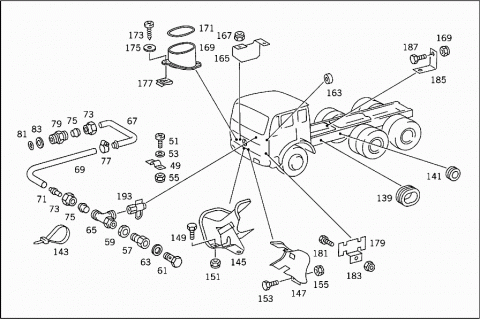

43308
43309
43310

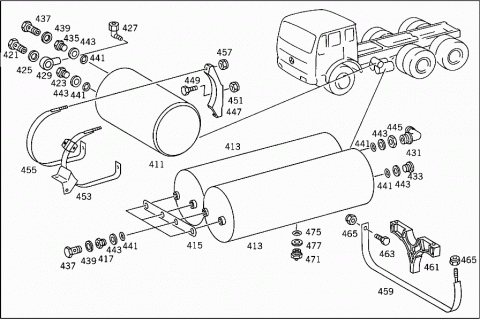

43311
43312

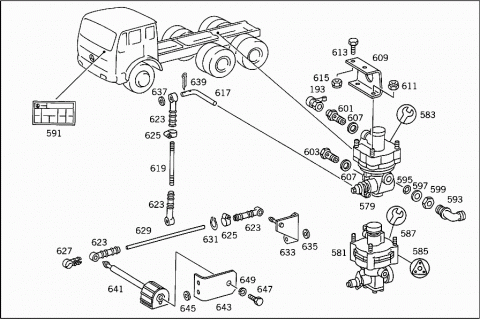

43313
43314

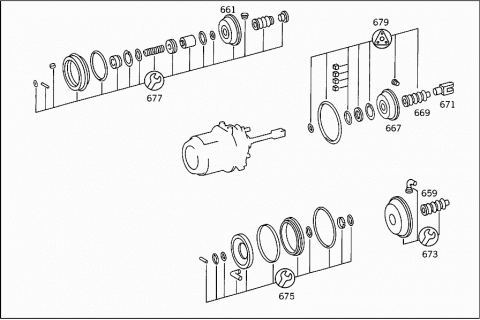

43315
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13
005 A 0004291601 LINE
FROM ENGINE AIR INTAKE PIPE SOCKET TO AIR COMPRESSOR
22 MM
007 N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
009 N 003861022004 GLAND
COMPRESSED AIR LINE TO AIR COMPRESSOR
011 N 900271022023 HOSE
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
22X31 MM
013 N 916017025000 CLAMP
Repalced by: N 000000000668
013 N 000000000668 CLAMP
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
25-40X13 MM
015 A 4031340156 FITTING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
017 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
023 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
025 N 915017015100 UNION NUT
027 N 003861015004 GLAND
029 N 915065015101 THRUST RING
031 N 915045012100 SEAL RING
033 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
035 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
037 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
039 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
041 A 3609952001 CLAMP
Repalced by: A 6739950001
041 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
043 N 007985006193 SCREW
CLAMP TO BRACKET
M 6X16
044 N 000125006421 WASHER
CLAMP TO BRACKET
045 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
047 N 915036012203 HOLLOW SCREW
CLAMP TO BRACKET
049 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
051 N 007985006145 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
053 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
055 N 913004006002 NUT
Repalced by: N 913004006001
055 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
057 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0009970934 SCREW
COMPRESSED AIR LINE THRU FRAME
059 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
061 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
063 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0019908171 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
065 A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
067 A 6194290801 LINE
Repalced by: A 6254293501
067 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
069 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
071 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
073 N 915017012100 UNION NUT
075 N 003861012007 GLAND
077 N 916017016000 CLAMP
Repalced by: N 000000000666
077 N 000000000666 CLAMP
LINE MOUNTING
16-27X13 MM
079 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
081 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
083 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
089 A 0109975982 HOSE
Repalced by: A 0009872827
089 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
089 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
089 A 0009872827 PLASTIC PIPE
BRAKE VALVE
9X12 MM
089 A 0009872827 PLASTIC PIPE
CHECK VALVE
9X12 MM
089 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
091 A 0049971772 FITTING
Repalced by: A 0029906171
091 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
093 N 915017012100 UNION NUT
095 N 003861012007 GLAND
097 N 915062009000 SLEEVE
099 N 915052009005 BANJO UNION
Repalced by: N 915052009009
099 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
101 A 0019901088 BANJO UNION
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
107 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
107 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
107 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
107 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
109 A 0039978972 FITTING
Repalced by: A 0029905971
109 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
111 N 915017008100 UNION NUT
113 N 003861008005 GLAND
115 N 915062006000 SLEEVE
117 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
117 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
117 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
127 A 0089976082 HOSE
AIR RESERVOIR,PRESSURE GAUGE
4X6 MM
129 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
131 N 915017006100 UNION NUT
133 N 003861006007 GLAND
135 N 915062004000 SLEEVE
137 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
139 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
139 A 6454290081 GROMMET
LINE THRU FRAME
141 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
141 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
143 A 0019978390 LOOM TIE
280 MM
143 A 0019978490 LOOM TIE
376 MM
145 A 6204201286 BRACKET
BRAKE LINE MOUNTING
147 A 6204201486 BRACKET
BRAKE LINE MOUNTING
149 N 000933008147 SCREW
BRACKET TO BUMPER STRUT
151 N 913004008004 NUT
BRACKET TO BUMPER STRUT
153 N 000933008153 SCREW
BRACKET TO CONSOLE
155 N 913004008004 NUT
BRACKET TO CONSOLE
163 A 3609902340 WASHER
BRAKE LINE MOUNTING
165 A 6204295240 BRACKET
BRACKET TO CAB FLOOR
167 N 913004006002 NUT
Repalced by: N 913004006001
167 N 913004006001 NUT
BRACKET TO CAB FLOOR
169 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
171 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
173 N 007981004215 SHEET METAL SCREW
BRACKET TO CAB FLOOR
175 N 009021005202 WASHER
BRACKET TO CAB FLOOR
177 A 0009946445 LOCK
BRACKET TO CAB FLOOR
179 A 6204293940 BRACKET
LINE MOUNTING
181 N 000933008152 SCREW
BRACKET TO SIDE MEMBER
M 8X30
183 N 913004008004 NUT
BRACKET TO SIDE MEMBER
185 A 3954290440 BRACKET
Repalced by: A 6205243040
185 A 6205243040 BRACKET
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
187 N 000933008152 SCREW
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
189 N 913004008004 NUT
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
193 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
193 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
193 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
193 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WIRA
A 0009979486 PLUG
197 A 0024314906 PRESSURE REGULATOR
WABCO
199 A 0024314306 PRESSURE REGULATOR
BOSCH
A 0024318306 PRESSURE REGULATOR
KNORR
201 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
203 A 0004307960 REPAIR KIT
TO 002 431 43 06,BOSCH,0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
205 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
207 N 913004008004 NUT
PRESSURE REGULATOR TO BRACKET
209 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
211 N 916026020001 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
213 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
215 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
217 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
219 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
221 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
223 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
227 A 0004292595 AIR CLEANER
BOSCH
227 A 0004292695 AIR CLEANER
KNORR
227 A 0004292895 AIR CLEANER
GRAU
229 A 0004292795 AIR CLEANER
WABCO
233 A 0059930901 SPRING
TO 000 429 27 95,WABCO
235 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
237 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
239 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
239 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
241 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
241 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
243 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
243 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
245 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
245 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
247 A 0049972248 SEAL RING
Repalced by: A 0289972348
247 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
249 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
251 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 6000 429 26 95,KNORR
253 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
255 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"1,2"
257 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
259 N 074305022202 NUT
AIR CLEANER TO BRACKET

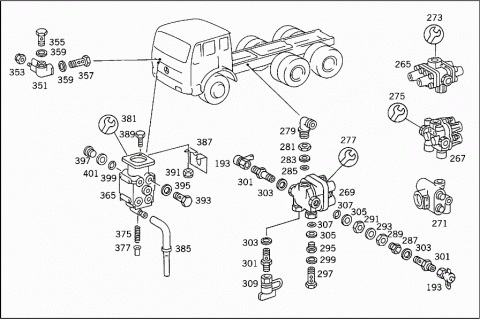

265 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
267 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
269 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
271 A 0024312706 VALVE
Repalced by: A 0024319106
271 A 0024319106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
273 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
275 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
277 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
277 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
279 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
281 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
283 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
285 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
287 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
289 N 000439016206 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
291 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
293 N 000125017010 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
295 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
297 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
299 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
301 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22,23"
303 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
305 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
307 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
309 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
309 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
351 A 0029900871 ELBOW FITTING
353 N 913004008004 NUT
FITTING TO CAB FLOOR
355 N 915036012203 HOLLOW SCREW
AT FITTING
357 N 915047012203 HOLLOW SCREW
AT FITTING
359 N 007603016401 SEAL RING
AT FITTING
365 A 0014318305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
365 A 0014318905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
365 A 0014319905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
GRAU
365 A 0014319105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
375 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
377 A 0004313623 VALVE
WABCO
381 A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
381 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
381 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
381 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
385 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
385 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
387 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
389 N 000933008152 SCREW
BRAKE VALVE TO BRACKET
391 N 913004008004 NUT
BRAKE VALVE TO BRACKET
393 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
395 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
397 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
399 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
401 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
411 A 0004324801 RESERVOIR
Repalced by: A 0014327501
411 A 0014327501 RESERVOIR
Repalced by: A 0034321201
411 A 0034321201 RESERVOIR
AIR RESERVOIR III
20 L
413 A 0004322101 RESERVOIR
Repalced by: A 0034322301
413 A 0034322301 RESERVOIR
AIR RESERVOIRS I AND II
40 L
415 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
417 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
421 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
423 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
425 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
427 A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
429 N 915036010204 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
431 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"31"
433 N 000908022001 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
435 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
437 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23"
439 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23"
441 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
443 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,23,31,32"
445 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"31"
447 A 3874320540 BRACKET
AIR RESERVOIR III
449 N 000933008215 SCREW
BRACKET TO SIDE PART,FRONT
451 N 913004008004 NUT
BRACKET TO SIDE PART,FRONT
453 A 6204301240 STRAP
AIR RESERVOIR III
455 A 6204300240 STRAP
AIR RESERVOIR III
457 N 913004010008 NUT
STRAP TO BRACKET
459 A 6204300040 STRAP
AIR RESERVOIRS I AND II
461 A 6204320018 BASE
AIR RESERVOIR,STRAP
463 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
465 N 913004010008 NUT
AIR RESERVOIR,STRAP
471 A 0004321107 VALVE
DRAIN
471 A 0004322107 VALVE
DRAIN
471 A 0004322407 VALVE
DRAIN
475 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
477 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
483 A 0024299644 VALVE
(CHECK VALVE)
VOSS
485 A 0034290444 VALVE
(CHECK VALVE)
WABCO
487 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
491 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
493 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
495 A 0109970048 SEAL RING
13.6X2,TO 003 429 12 44,SCHAEFER
497 A 0109970148 SEAL RING
15.3X2.4,TO 003 429 12 44,SCHAEFER
499 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
501 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
503 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
505 A 0002950320 VALVE
TO 003 429 04 44,WABCO
507 A 6204292540 BRACKET
Repalced by: A 6164290140
507 A 6164290140 BRACKET
CHECK VALVE
509 N 074305022202 NUT
CHECK VALVE TO BRACKET
511 N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
513 N 913004010008 NUT
BRACKET TO FRAME SIDE MEMBER
N 915045012100 SEAL RING
CHECK VALVE,CONNECTION:
"10"
515 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
517 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
519 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
521 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
523 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
525 N 915036010204 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
527 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
533 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
533 A 0034295344 VALVE
(RELAY VALVE)
KNORR
533 A 0014296844 VALVE
(RELAY VALVE)
WABCO
535 A 0014299144 VALVE
(RELAY VALVE)
GRAU
537 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
539 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
541 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
543 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
545 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
547 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
549 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
549 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;UP TO 03.82
549 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
551 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
551 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
551 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
551 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
555 N 913004008004 NUT
RELAY VALVE TO CROSS MEMBER
557 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
559 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
561 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
563 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
565 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
567 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
569 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
571 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"20"
573 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
579 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
581 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
583 A 0004307560 REPAIR KIT
TO 001 431 32 12,WABCO
585 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 36 12,BOSCH
587 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
587 A 0004301883 REPAIR KIT
VALVE
TO 001 431 36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
591 A 6235840921 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
LOAD-DEPENDING BRAKE
593 A 0019903071 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"1"
595 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
597 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
599 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"1"
601 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
603 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
607 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
609 A 3854317040 BRACKET
BRAKE POWER REGULATOR
611 N 913004008004 NUT
BRACKET TO BRAKE POWER REGULATOR
613 N 000933008154 SCREW
BRACKET TO CROSS MEMBER
M 8X22
615 N 913004008004 NUT
BRACKET TO CROSS MEMBER
617 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
619 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
623 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
625 N 916026010000 CLAMP
CONNECTOR TO ROD
627 A 6249950065 CLAMP
CONNECTOR TO ROD
629 A 3954310192 ROD
LINK
631 N 900055008402 LOCK RING
PULL ROD TO CONNECTOR
633 A 6244300110 BRACKET
LINK
635 N 000125015012 WASHER
637 N 000125008418 WASHER
CONNECTOR TO ROD
639 N 000094002077 COTTER PIN
CONNECTOR TO ROD
641 A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
643 A 6244310040 BRACKET
METAL SPRING BELLOWS
645 N 000125017010 WASHER
647 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1,5X18
649 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
655 A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
655 A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
KNORR
655 A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
BOSCH
655 A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
GRAU
659 A 0004215286 CUP
TO 007 420 65 18,WABCO
661 A 0004312928 DIAPHRAGM
TO 007 420 42 18,KNORR
667 A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
669 A 0004233886 CUP
TO 008 420 90 18,BOSCH
671 N 071752014000 YOKE
TO 008 420 90 18,BOSCH
673 A 0025865042 REPAIR KIT
TO 007 420 65 18,WABCO
675 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
675 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 65 18,WABCO
677 A 0004304060 REPAIR KIT
TO 007 420 42 18,KNORR
679 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18,BOSCH
683 A 3954231233 BEARING BRACKET
REAR AXLES I AND II
685 N 007346012003 CLAMPING SLEEVE
687 N 000961016036 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1,5X40
689 N 000961020007 SCREW
Repalced by: N 000961020061
689 N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
"I,II,M 20X1.5X45"
691 N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X55; "I,II"
693 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
"I,II"
695 A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
I,II
697 A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
I,II
699 N 913004016004 NUT
TRISTOP CYLINDER TO BEARING BRACKET
701 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
703 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
705 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
707 N 915036012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
709 N 915047012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
711 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
713 N 915036012203 HOLLOW SCREW
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11"
715 N 915040012200 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER TO CONNECTIONS "11,12"
717 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE II; CONNECTION:
"12"
719 N 007603016401 SEAL RING
REAR AXLE II TRISTOP CYLINDER
725 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
725 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
725 A 0014306781 VALVE
Repalced by: A 0024309981
725 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
729 A 0014310887 PROTECTIVE CAP
TO 001 430 57 81,WABCO
729 A 0014311087 PROTECTIVE CAP
TO 001 430 43 81,BOSCH
729 A 0014311287 PROTECTIVE CAP
KNORR
733 A 0009975577 HANDLE
KNORR
733 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 43 81,BOSCH
733 A 0009972477 HANDLE
TO 001 430 57 81,WABCO
737 N 001481003025 CLAMPING SLEEVE
KNORR
739 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 431 43 81,BOSCH
739 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
739 A 0034303181 REPAIR KIT
TO 001 430 57 81,WABCO
739 A 0034302081 VALVE
KNORR
743 A 0009976189 COUPLING
PARKING BRAKE VALVE
745 A 0099973948 SEAL RING
PARKING BRAKE VALVE
747 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
749 N 007980008003 LOCK WASHER
HAND BRAKE VALVE TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
