Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145

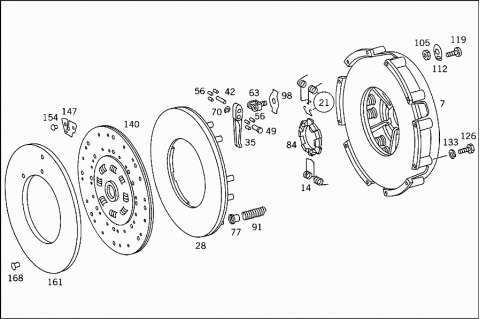

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0032509004 | CLUTCH PRESSURE PLATE |
| 014 | A 0002522927 | SPRING |
| RELEASE LEVER | ||
| 021 | A 0002523127 | SPRING |
| RELEASE LEVER | ||
| 028 | A 0002525612 | PRESSURE PLATE |
| 035 | A 0002526013 | RELEASE LEVER |
| 042 | A 0002523216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 049 | A 0002523316 | SPINDLE |
| FOR BRACKETS | ||
| 056 | A 0002520418 | ROLLER |
| 063 | A 0002522814 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 070 | N 006799009002 | LOCK PLATE |
| 077 | A 0002520535 | SLEEVE |
| 084 | A 0002522345 | FLANGE |
| 091 | A 0002528620 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.30 MM | ||
| 091 | A 0002528720 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.40 MM | ||
| 098 | A 0002523219 | LEAF SPRING |
| 105 | A 0002523572 | NUT |
| 112 | A 0002521273 | LOCK |
| 119 | A 0002522971 | SCREW |
| 126 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 133 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 140 | A 0082507403 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| 140 | A 0052506003 | CLUTCH DISC |
| 140 | A 0052506103 | CLUTCH DISC |
| 147 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 147 | A 0002523919 | LEAF SPRING |
| 154 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 154 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 161 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 161 | A 0012528310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 161 | A 0012522010 | CLUTCH LINING |
| 168 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 168 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 168 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 168 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 170 | A 6202500305 | HOUSING |
| Repalced by: A 4032505405 | ||
| 170 | A 4032505405 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 177 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 184 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 191 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 191 | A 6202510050 | BUSHING |
| TOP | ||
| 198 | A 3389920103 | BUSHING |
| TOP | ||
| 205 | A 3859970040 | SEAL RING |
| 212 | A 0119978846 | SEAL RING |
| 212 | A 0099971547 | SEAL RING |
| 219 | A 3852930027 | COVER PLATE |
| TOP | ||
| 226 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 226 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 232 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 232 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 232 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 232 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 232 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 232 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 239 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 246 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 253 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 260 | A 6202540108 | RELEASE LEVER |
| 267 | N 000931012033 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| M 12X50 | ||
| 274 | N 912004012100 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
| 281 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 281 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 288 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 295 | N 000125010518 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 302 | A 0002507315 | RELEASE BEARING |
| 309 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 323 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 325 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 328 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 330 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 337 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 339 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 341 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 344 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 351 | N 000936014010 | NUT |
| RELEASE BEARING LUBRICATION | ||
| A 6202950028 | LEVER | |
| CLUTCH ACTUATION | ||
| 369 | A 6202900434 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 376 | A 0009967640 | ROD END |
| CLUTCH ACTUATION | ||
| 383 | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 390 | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 397 | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 404 | A 6202540176 | WASHER |
| RELEASE SHAFT,TOP | ||
| 404 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| 411 | A 0029972948 | SEAL RING |
| RELEASE SHAFT,TOP | ||
| 418 | N 000931010258 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 425 | N 912004010102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 432 | A 6202950240 | BRACKET |
| SLAVE CYLINDER | ||
| 439 | N 000933010129 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 446 | N 912004010102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 453 | A 0012952107 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KNORR | ||
| 453 | A 0012956707 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| WABCO | ||
| 453 | A 0012953907 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KONGSBERG | ||
| 460 | A 0002954183 | BOOT |
| WABCO | ||
| 467 | A 0002954283 | BOOT |
| WABCO | ||
| 474 | A 0002903267 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| WABCO | ||
| 481 | N 914126010032 | SCREW |
| Repalced by: N 914146010114 | ||
| 481 | N 914146010114 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| M 10X30 | ||
| 488 | N 000137010201 | SPRING WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 495 | N 000960018111 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| M 18X70 | ||
| 502 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
