Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145

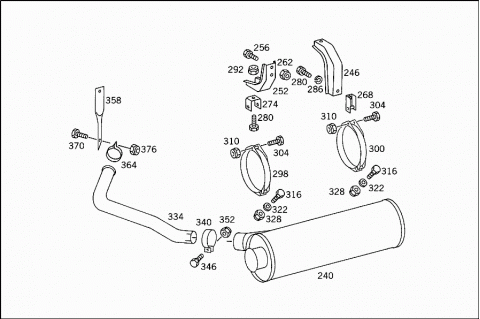

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6204902625 | CONNECTOR |
| LEFT FRONT | ||
| 012 | A 6204902725 | CONNECTOR |
| RIGHT FRONT | ||
| 018 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 018 | N 000931012149 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X60 | ||
| N 000931012182 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X55 | ||
| 018 | N 000931012254 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X70 | ||
| N 000931012179 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 024 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 036 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 042 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 048 | N 000933008161 | SCREW |
| CLAMP TO CONNECTOR | ||
| 054 | N 913004008004 | NUT |
| CLAMP TO CONNECTOR | ||
| 060 | A 6244901319 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 066 | A 6244901419 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 072 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 072 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 078 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 084 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 090 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 096 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 102 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 108 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 114 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 120 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 126 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 132 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 138 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 138 | A 0029909604 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 144 | N 913004014002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 150 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 156 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 162 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 168 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 174 | N 000933008147 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 180 | N 000125008418 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 186 | N 913004008004 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 192 | N 000933008119 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 198 | N 000125008418 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 204 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 210 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 216 | A 0001424457 | SEAL RING |
| 222 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 228 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 234 | N 913004010008 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 240 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 246 | A 6204910715 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 252 | A 6204910415 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 256 | N 000961012097 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 262 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 268 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 274 | A 6204900040 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 280 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 286 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 292 | N 913004010008 | NUT |
| BRACKET TO CONSOLE | ||
| 298 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 300 | A 6204910321 | STRAP |
| Repalced by: A 6204900441 | ||
| 300 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 304 | N 000931010271 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X60 | ||
| 304 | N 000931010282 | SCREW |
| STRAP TO BRACKET | ||
| M 10X40 | ||
| 310 | N 913004010008 | NUT |
| STRAP AND CLAMP TO BRACKET | ||
| 316 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 322 | N 000125008418 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 328 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 334 | A 6234920604 | REAR EXHAUST PIPE |
| 340 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 346 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 352 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 358 | A 6234920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 364 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 370 | N 000933008152 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 376 | N 913004008004 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
