Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145
Grupė: 31 FRAME

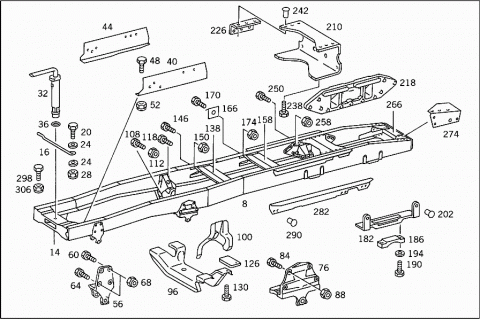

| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6233104501 | FRAME |
| 014 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 016 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 020 | N 000933008153 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 024 | N 000125008418 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 028 | N 913004008004 | NUT |
| SPRING TO CROSS MEMBER | ||
| 032 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 036 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 040 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 044 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 048 | N 000961012097 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 000125013008 | WASHER | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 052 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 056 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 056 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 056 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 060 | A 6569900014 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 064 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 068 | N 913004016005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 076 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 076 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 084 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 084 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 088 | N 913004014005 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 096 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 100 | A 6203121561 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 108 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 112 | N 913004014002 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 118 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 118 | A 0029909604 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 126 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 130 | N 000961014100 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 138 | A 6203100137 | CROSS MEMBER |
| NO. 3 | ||
| 146 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 146 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 150 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 158 | A 3953100037 | CROSS MEMBER |
| NO.4 | ||
| A 3893120025 | CROSS MEMBER | |
| A 3873120261 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 166 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| NO.3-5 | ||
| 170 | N 000961014054 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X45 | ||
| 170 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 170 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 174 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 182 | A 6233250031 | PLATE |
| REAR AXLES I AND II | ||
| 182 | A 3933250731 | PLATE |
| REAR AXLES I AND II | ||
| 186 | A 3933250044 | RUBBER BUFFER |
| REAR AXLES I AND II | ||
| 190 | N 000933010129 | SCREW |
| RUBBER BUFFER TO PLATE | ||
| 194 | N 007349010007 | WASHER |
| RUBBER BUFFER TO PLATE | ||
| 202 | N 910005012087 | RIVET |
| PLATE TO SIDE MEMBER | ||
| 12X58 MM | ||
| 202 | N 910005012080 | RIVET |
| PLATE TO SIDE MEMBER | ||
| 12X42 MM | ||
| 210 | A 3953120124 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO. 5 | ||
| 218 | A 3243250110 | SUPPORT |
| CENTRAL BEARING | ||
| 226 | A 6243120041 | ANGLE |
| Repalced by: A 6243120141 | ||
| 226 | A 6243120141 | ANGLE |
| AT CROSS MEMBER | ||
| 238 | N 000961014050 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 242 | N 910005014017 | RIVET |
| AT CROSS MEMBER | ||
| 250 | A 0003120071 | SCREW |
| Repalced by: A 0003121271 | ||
| 250 | A 0003121271 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X40 | ||
| 250 | A 0003120271 | SCREW |
| Repalced by: N 914112016340 | ||
| 250 | N 914112016340 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X55 | ||
| 250 | A 0003120371 | SCREW |
| Repalced by: N 914112016339 | ||
| 250 | N 914112016341 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X60 | ||
| 250 | A 0003120471 | SCREW |
| Repalced by: N 914112016015 | ||
| 250 | N 914112016015 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X65 | ||
| 250 | A 0003120171 | SCREW |
| Repalced by: A 0003121471 | ||
| 250 | A 0003121471 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| 250 | A 0003120671 | SCREW |
| Repalced by: N 914112016344 | ||
| 250 | N 914112016344 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X95 | ||
| 258 | N 913012016002 | NUT |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| 266 | A 6213120635 | CROSS MEMBER |
| Repalced by: A 6213120335 | ||
| 266 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 266 | A 6553120435 | CROSS MEMBER |
| REAR | ||
| 274 | A 6213120287 | GUSSET PLATE |
| REAR LEFT | ||
| 274 | A 6583120087 | GUSSET PLATE |
| REAR LEFT | ||
| 274 | A 6213120387 | GUSSET PLATE |
| REAR RIGHT | ||
| 274 | A 6583120187 | GUSSET PLATE |
| REAR RIGHT | ||
| 282 | A 6233160052 | ANGLE |
| Repalced by: A 6243160052 | ||
| 282 | A 6243160052 | ANGLE |
| LEFT | ||
| 282 | A 6233160152 | ANGLE |
| RIGHT | ||
| N 000933010157 | SCREW | |
| GUSSET PLATE TO SIDE MEMBER | ||
| N 913004010000 | NUT | |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859900814 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| M 16X16X25X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6569900014 | SCREW | |
| M 16X18X25X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| N 913004014005 | NUT | |
| N 913004016005 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 290 | N 910005012033 | RIVET |
| 12X22 MM | ||
| 290 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 290 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 290 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 290 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 290 | N 910005016017 | RIVET |
| 16X48 MM | ||
| 290 | N 910005016027 | RIVET |
| 16X58 MM | ||
| 290 | N 910005016006 | RIVET |
| 16X65 MM | ||
| 298 | N 000961014050 | SCREW |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 306 | N 913004014002 | NUT |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 402 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 410 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 410 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 414 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 418 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 422 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 432 | A 3878910914 | BRACKET |
| BUFFER | ||
| 436 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 436 | N 000961012097 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 444 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 450 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 454 | N 000933008153 | SCREW |
| BUFFER TO BRACKET | ||
| 458 | N 009021008205 | WASHER |
| BUFFER TO BRACKET | ||
| 462 | N 913004008004 | NUT |
| BUFFER TO BRACKET | ||

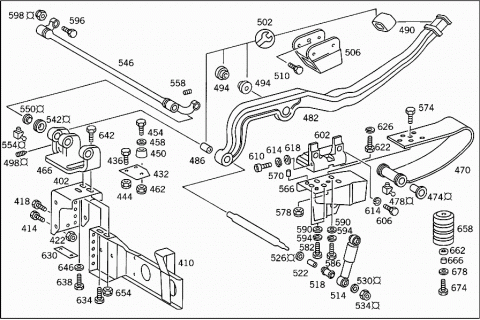

| 466 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 466 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||

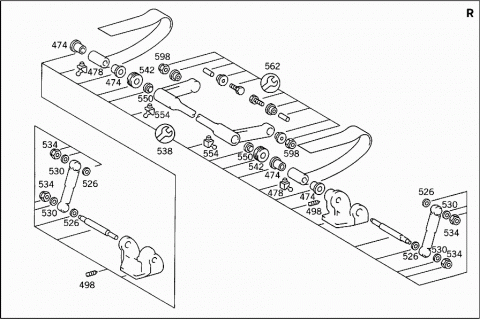

| 470 | A 3878910551 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 474 | A 3638910617 | BUSHING |
| LEAF SPRING | ||
| 478 | N 071412008200 | GREASE NIPPLE |
| LEAF SPRING | ||
| 482 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 486 | A 3879920003 | BUSHING |
| LEVER | ||
| 486 | A 3879920203 | BUSHING |
| LEVER | ||
| 490 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 494 | A 6208910017 | BUSHING |
| LEVER | ||
| 498 | N 000417008004 | HEADLESS SETSCREW |
| SHAFT ADJUSTMENT | ||
| 502 | A 3875860431 | REPAIR KIT |
| CAB MOUNTING | ||
| 506 | A 6208901603 | MOUNTING |
| LEVER | ||
| 510 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 514 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 518 | A 0008910501 | RUBBER MOUNTING |
| 522 | A 0008910617 | BUSHING |
| 526 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB, INSIDE | ||
| 530 | N 000125013008 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB, OUTSIDE | ||
| 534 | N 913004012008 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 538 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 542 | A 3878911910 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 546 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 546 | A 6528900104 | STABILIZER |
| CAB SUSPENSION | ||
| 550 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 550 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 554 | N 071412008200 | GREASE NIPPLE |
| 558 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 562 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 566 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 566 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 570 | A 6218910157 | PIN |
| 574 | N 000933008153 | SCREW |
| SPRING TO BEARING | ||
| 578 | N 913004008004 | NUT |
| SPRING TO BEARING | ||
| 582 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 582 | A 0029909604 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 586 | N 000960014061 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X80 | ||
| 590 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE | ||
| 594 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CONSOLE | ||
| 596 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 598 | N 913004014002 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 602 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 602 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 606 | N 000961012069 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 610 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 614 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 618 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 622 | N 000961014050 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 626 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 630 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 634 | N 000961014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X30 | ||
| 638 | N 000961014088 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 642 | N 000961014103 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 646 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 654 | N 913004014005 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 658 | A 3638910223 | BUFFER |
| CAB,FRONT | ||
| 662 | A 3638910047 | FLANGE |
| BUFFER TO CAB | ||
| 666 | A 3638910517 | BUSHING |
| BUFFER TO CAB | ||
| 674 | N 000933010094 | SCREW |
| BUFFER TO CAB | ||
| 678 | A 3878912210 | WASHER |
| BUFFER TO CAB | ||
| 682 | A 3878911731 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 686 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 690 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 690 | A 0029909604 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 690 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 694 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 702 | A 6208900031 | CONSOLE |
| RIGHT TOP REAR | ||
| 706 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 710 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||
| 714 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 718 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 718 | A 6558910224 | STRUT |
| CROSS CONNECTION | ||
| 722 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 726 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X1,5X25 | ||
| 726 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X30 | ||
| 728 | N 000125013008 | WASHER |
| STRUT TO CONSOLE | ||
| 730 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 734 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 738 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| M 12X110 | ||
| 738 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| M 12X105 | ||
| 742 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 746 | N 009021013102 | WASHER |
| SPRING TO STRUT | ||
| 750 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 754 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 758 | N 913004012008 | NUT |
| SPRING TO STRUT | ||
| 762 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 762 | A 6558900122 | RAIL |
| (CONNECTING RAIL) | ||
| 764 | N 000007012201 | CYLINDRICAL PIN |
| 766 | A 3878910323 | BUFFER |
| (RUBBER BUFFER) | ||
| 770 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 770 | A 3878910072 | MOUNTING |
| RUBBER MOUNTING | ||
| 770 | A 6208910172 | MOUNTING |
| RUBBER MOUNTING | ||
| 774 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 778 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 782 | N 000933008154 | SCREW |
| MOUNTING TO RAIL | ||
| 786 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 790 | N 000125008418 | WASHER |
| MOUNTING TO RAIL | ||
| 794 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 798 | A 3878911753 | SPACER TUBE |
| MOUNTING | ||
| 802 | N 000960016242 | SCREW |
| MOUNTING | ||
| 806 | N 913004016004 | NUT |
| MOUNTING | ||
| 810 | A 3878910811 | PLATE |
| MOUNTING | ||
| 812 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 814 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 818 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 822 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 826 | A 0008910501 | RUBBER MOUNTING |
| 830 | A 0008910617 | BUSHING |
| 834 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 838 | N 000960018125 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 840 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 840 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 842 | N 000960018040 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 846 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 846 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 850 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 850 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 850 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 854 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 858 | N 000933010128 | SCREW |
| FASTENER TO CAB | ||
| M 10X20 | ||
| 858 | N 000933010198 | SCREW |
| FASTENER TO CAB | ||
| M 10X16 | ||
| 862 | N 000933010105 | SCREW |
| FASTENER TO CAB | ||
| M 10X25 | ||
| 864 | N 000125010518 | WASHER |
| FASTENER TO CAB | ||
| 866 | N 912004010102 | LOCK WASHER |
| FASTENER TO CAB | ||
| 870 | N 913004010008 | NUT |
| FASTENER TO CAB | ||
| 874 | A 3878910070 | ROD |
| CENTRAL LOCK | ||
| 878 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| A 1269911907 | PIN | |
| PULL TO FASTENER | ||
| 882 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 884 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| N 912002008001 | LOCK | |
| PULL TO FASTENER | ||
| 886 | A 3878910814 | BRACKET |
| SEAL | ||
| 890 | A 3878910085 | SEAL |
| AT CROSS MEMBER | ||
| 894 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 898 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 902 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 906 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 906 | A 6208970073 | PART NAME MISSING |
| CAB LOCKING MECHANISM | ||
| 910 | N 007985008142 | SCREW |
| BUSHING AND LEVER TO CAB | ||
| 914 | N 913004008004 | NUT |
| BUSHING AND LEVER TO CAB | ||
| 918 | N 007346005004 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 922 | N 000125015013 | WASHER |
| LEVER MOUNTING | ||
| 926 | N 900055014002 | SPRING WASHER |
| LEVER MOUNTING | ||
| 930 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 934 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 938 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
