Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145
Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|

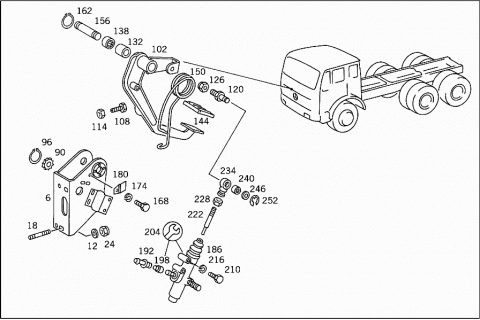

| 006 | A 6202900219 | BEARING BRACKET |
| CLUTCH | ||
| 012 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 018 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 018 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 024 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| A 0004343801 | VALVE | |
| SPLITTER BOX GEARSHIFT 3/2-WAY VALVE | ||
| A 0014307460 | GASKET KIT | |
| 3/2-WAY VALVE | ||
| A 0009940047 | SEAL RING | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| A 0009941248 | LOCK | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| A 0009970834 | SCREW | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| N 074305026202 | NUT | |
| 3/2-WAY VALVE TO ANGLE | ||
| A 3609900840 | WASHER | |
| Repalced by: N 001440027000 | ||
| N 001440027000 | WASHER | |
| VALVE TO BRACKET | ||
| A 6202900133 | BRACKET | |
| N 000933006130 | SCREW | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| N 000433006403 | WASHER | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 090 | A 3812910186 | STOP |
| PEDAL ASSEMBLY | ||
| 096 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 102 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 102 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 108 | A 3529902101 | SCREW |
| 114 | N 000439008211 | NUT |
| 120 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 126 | N 913004008004 | NUT |
| PIN TO CLUTCH PEDAL | ||
| 132 | A 3812910053 | SPACER TUBE |
| PEDAL BEARING | ||
| 138 | A 0119813410 | NEEDLE BEARING |
| PEDAL BEARING | ||
| 144 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 150 | A 6209930010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 156 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 162 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 168 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 174 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 180 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 186 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 186 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 192 | A 0002950836 | INTERMEDIATE PIECE |
| 198 | A 0009971186 | PLUG |
| 204 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 204 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 001 295 29 06 | ||
| 204 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 210 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 216 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 222 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 228 | N 000439008211 | NUT |
| ROD TO YOKE | ||
| 234 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 234 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 240 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 240 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 240 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 240 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 246 | N 000433008406 | WASHER |
| PISTON ROD TO CLUTCH PEDAL | ||
| 252 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO CLUTCH PEDAL | ||

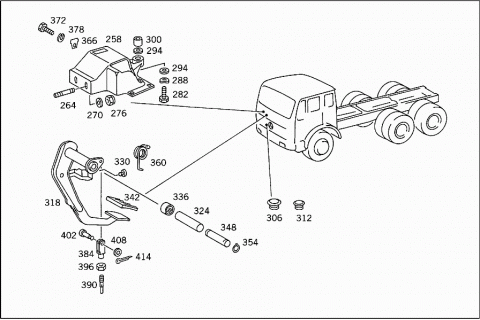

| 258 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 264 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 270 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 276 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 282 | N 000931010272 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 288 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 294 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 294 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 300 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 306 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 312 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 312 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 312 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 318 | A 3852900518 | PEDAL |
| BRAKE | ||
| 324 | A 3852920053 | SPACER TUBE |
| PEDAL BEARING | ||
| 330 | A 1152910186 | STOP |
| BRAKE PEDAL | ||
| 336 | A 0119813410 | NEEDLE BEARING |
| PEDAL BEARING | ||
| 342 | A 1072910182 | PAD |
| BRAKE | ||
| 348 | A 3852940007 | PIVOT PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 354 | N 000471020001 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 360 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 366 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 366 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 372 | N 000933006103 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 378 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 384 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 390 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 390 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 396 | N 000439008211 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 402 | A 3852920174 | PIN |
| PISTON ROD TO LEVER | ||
| 408 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 414 | N 000094002059 | COTTER PIN |
| PISTON ROD TO LEVER | ||

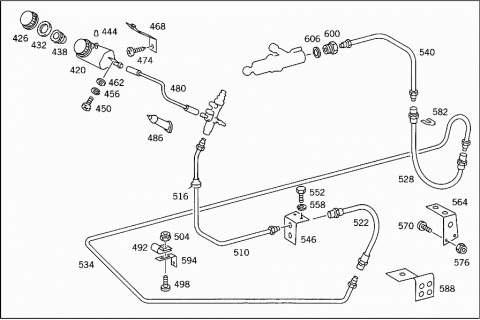

| 420 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 426 | A 0002950116 | LOCKING CAP |
| 432 | A 0009972940 | SEAL RING |
| 438 | A 0004314334 | STRAINER |
| 444 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 450 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 456 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 462 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 468 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 474 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 480 | A 0009978952 | HOSE |
| LINES FROM MASTER CYLINDER TO RESERVOIR | ||
| 486 | A 6209970281 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 492 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 492 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 492 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 498 | N 007985006145 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 504 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 504 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 510 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 516 | A 3819970881 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 522 | A 0002951435 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 555 MM | ||
| 528 | A 0002951735 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE | ||
| 215 MM | ||
| 534 | A 3812902314 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| 540 | A 3812901514 | LINE |
| HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER | ||
| 400 MM | ||
| 546 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 552 | N 000933006183 | SCREW |
| BRACKET TO CAB | ||
| 558 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 564 | A 6162950240 | BRACKET |
| AT OIL TANK BRACKET | ||
| 570 | N 007985006193 | SCREW |
| BRACKET TO OIL TANK | ||
| 576 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 576 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 582 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 582 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 588 | A 6202950440 | BRACKET |
| CLUTCH HOSE TO FENDER BRACKET | ||
| 594 | A 6202952540 | BRACKET |
| AT ENGINE MOUNTING CONSOLE | ||
| 600 | A 0049971172 | FITTING |
| CLUTCH BOOSTER | ||
| 606 | N 007603014106 | SEAL RING |
| CLUTCH BOOSTER | ||
