Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

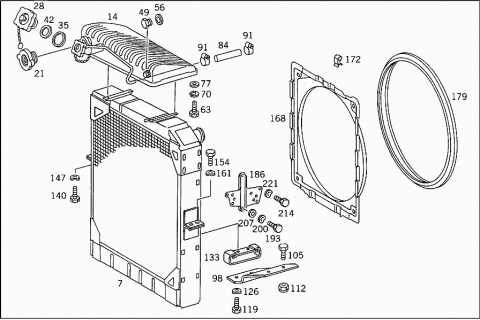

| 007 | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 007 | A 0005001103 | RADIATOR |
| BEHR | ||
| 014 | A 0005001149 | TANK |
| ON RADIATOR | ||
| 021 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 021 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 028 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 028 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 035 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 042 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 049 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 049 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 056 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 063 | N 000933008212 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 070 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 077 | N 000125008418 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 084 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 091 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 091 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| 098 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 105 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 112 | N 913004012008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 119 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 10X18 | ||
| 126 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 133 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 140 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| M 10X18 | ||
| 140 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 147 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 147 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 154 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X20 | ||
| 161 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| N 000125010518 | WASHER | |
| RADIATOR TO RUBBER MOUNTING | ||
| 168 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 172 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 179 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 186 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 193 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 200 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 207 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 214 | N 000933006102 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 221 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||

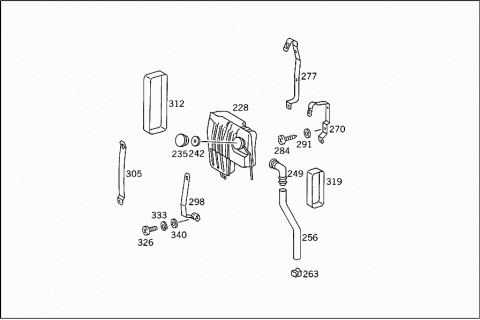

| 228 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 235 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 242 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 249 | A 0005010110 | DRAIN PIPE |
| 256 | A 0079972682 | HOSE |
| 263 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 270 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 277 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 284 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 291 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 298 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 305 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 312 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 319 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 326 | N 007985006193 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 333 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 340 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||

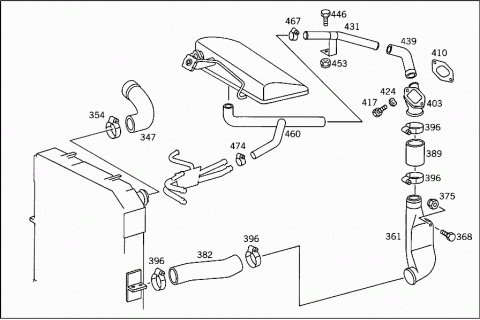

| 347 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 354 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 354 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 70-90X13 MM | ||
| 361 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 361 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 361 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 368 | N 000931010264 | SCREW |
| PIPE BEND TO BRACKET | ||
| 375 | N 913004010008 | NUT |
| PIPE BEND TO BRACKET | ||
| 382 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 382 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 389 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 396 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 396 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| 70-90X13 MM | ||
| 403 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 403 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 410 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 410 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 417 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 424 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 431 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 439 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 439 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 446 | N 000933006103 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 453 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 453 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 460 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 467 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 467 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 474 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 474 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||

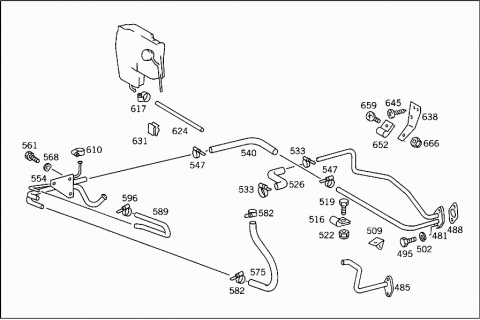

| 481 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| 485 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 488 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 495 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 502 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 509 | A 6205010620 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 516 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 516 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 516 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 519 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 519 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 519 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 522 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 522 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 522 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 522 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 526 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 533 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 533 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| 540 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| A 6205003972 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| N 917003022003 | GASKET | |
| HEATING PIPE TO ENGINE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| A 4609900601 | SCREW | |
| HEATING PIPE TO ENGINE | ||
| M 8X20 | ||
| N 000137008204 | SPRING WASHER | |
| HEATING PIPE TO ENGINE | ||
| A 6205062340 | BRACKET | |
| BRACKET TO WATER PUMP | ||
| A 3818320714 | BRACKET | |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| A 6205062935 | HOSE | |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 547 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 547 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 554 | A 6205002972 | LINE |
| Repalced by: A 6205003072 | ||
| 554 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 561 | N 000933006102 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 568 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 575 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 582 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 582 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 20-32X13 MM | ||
| 589 | N 900271008043 | HOSE |
| 8X17MM | ||
| 589 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17MM | ||
| 589 | N 900271008043 | HOSE |
| FROM PIPE LINE AT CAB TO HEATING PIPE AT RADIATOR | ||
| 8X17MM | ||
| 589 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 589 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 596 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 596 | N 000000000667 | CLAMP |
| HEATING PIPE | ||
| 20-32X13 MM | ||
| 610 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 610 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 617 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 617 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 20-32X13 MM | ||
| 624 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 631 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 638 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 645 | N 007981005306 | SHEET METAL SCREW |
| DE-AERATION LINE TO CAB | ||
| 652 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 652 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 652 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 659 | N 007985006193 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 666 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 666 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
