Transporto priemonė: 2233 S 6X4 MBSA; VIN numerio dalis: 623145
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

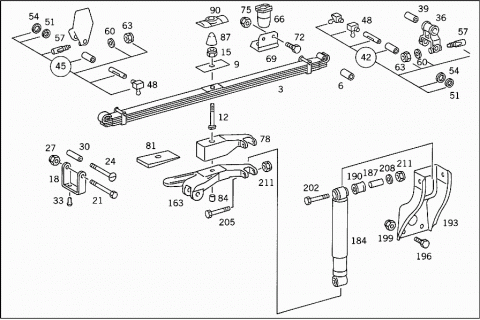

| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 006 | A 3043210150 | BUSHING |
| 006 | A 6203210050 | BUSHING |
| 009 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 012 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 015 | N 913004014005 | NUT |
| SPRING BOLT | ||
| A 0003244233 | SPRING CLAMP | |
| Repalced by: A 6203240533 | ||
| 018 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 021 | N 000960012222 | SCREW |
| SPRING CLAMP | ||
| 024 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 027 | N 913004012008 | NUT |
| SPRING CLAMP | ||
| 030 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 033 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 036 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 039 | A 3043210150 | BUSHING |
| 039 | A 6203210050 | BUSHING |
| 042 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT), SPRING SHACKLE | ||
| 045 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 048 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 051 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 051 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 054 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 057 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 060 | N 000125010518 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 063 | N 913004010008 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 066 | A 3833240008 | HELPER SPRING |
| RUBBER SPRING | ||
| 069 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 072 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 075 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 078 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 078 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 081 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 084 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 087 | A 3263310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 090 | A 3043310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 093 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 093 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 093 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 096 | N 913004020004 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

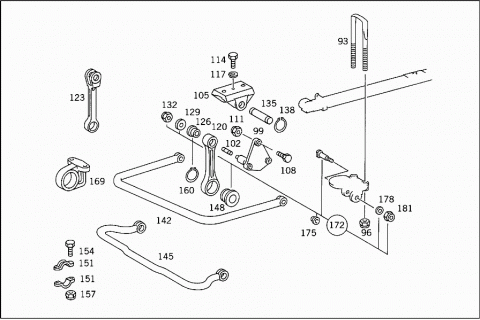

| 099 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 099 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 102 | N 000939012102 | STUD BOLT |
| 105 | A 6203230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 108 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 111 | N 913004016004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 114 | N 000933008150 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 117 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 120 | A 3893230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 126 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 129 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 132 | N 913004012008 | NUT |
| LINK TO CONSOLE | ||
| 135 | A 6203230074 | PIN |
| LINK TO BEARING BRACKET | ||
| 138 | N 000471032000 | LOCK RING |
| LINK TO BEARING BRACKET | ||
| 142 | A 3873230165 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 145 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 145 | A 6523230765 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 148 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 151 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 151 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 154 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 157 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 160 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 163 | A 6203231420 | BEARING |
| TORSION BAR,SHOCK ABSORBER,LEFT | ||
| 163 | A 6203231320 | BEARING |
| TORSION BAR,SHOCK ABSORBER,RIGHT | ||
| 169 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 172 | A 6203200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 172 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 175 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 175 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 178 | N 007349017002 | WASHER |
| TORSION BAR MOUNTING | ||
| 181 | N 913004016005 | NUT |
| TORSION BAR MOUNTING | ||
| 184 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 184 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 184 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 187 | A 0003233150 | BUSHING |
| TO 004 323 46 00;006 323 08 00 | ||
| 187 | A 0003235250 | BUSHING |
| TO 004 323 01 00 | ||
| 190 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 46 00,006 323 08 00 | ||
| 190 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 01 00 | ||
| 193 | A 6243230340 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 196 | N 000961014050 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 199 | N 913004014002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 202 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 205 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 208 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 211 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 211 | N 913004016004 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||

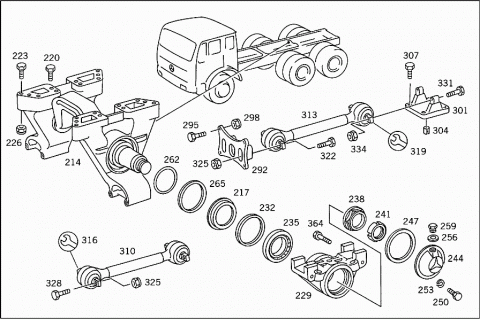

| 214 | A 3933201278 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 217 | A 3873250162 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 220 | N 914142020103 | SCREW |
| Repalced by: A 0003250775 | ||
| 220 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 220 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X75 | ||
| 223 | N 000960020078 | SCREW |
| Repalced by: A 0003250875 | ||
| 223 | A 0003250875 | SCREW |
| CONSOLE TO FRAME | ||
| 223 | N 914112020201 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X85 | ||
| 226 | N 913004020003 | NUT |
| CONSOLE TO FRAME | ||
| 229 | A 3833250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 232 | A 0099975346 | SEAL RING |
| OUTSIDE | ||
| 232 | A 0119973746 | SEAL RING |
| OUTSIDE | ||
| 232 | A 0109971646 | SEAL RING |
| INSIDE | ||
| 232 | A 0099975246 | SEAL RING |
| INSIDE | ||
| 235 | A 0049811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 235 | A 0049814405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 235 | A 0049814305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 235 | A 0049811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 235 | A 0059815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 238 | A 3933250052 | SPACER WASHER |
| REAR SPRING TO BEARING BRACKET | ||
| 241 | A 3939900060 | NUT |
| REAR SPRING TO BEARING BRACKET | ||
| 244 | A 3833200084 | COVER |
| SPRING SUPPORT | ||
| 247 | A 3833250080 | GASKET |
| COVER TO REAR AXLE CASING | ||
| 250 | N 000933008145 | SCREW |
| COVER TO REAR AXLE CASING | ||
| 253 | N 912004008102 | LOCK WASHER |
| COVER TO REAR AXLE CASING | ||
| 256 | N 007603014405 | SEAL RING |
| OIL FILLING | ||
| 259 | N 007604014106 | SCREW PLUG |
| OIL FILLING | ||
| 262 | A 0079976048 | SEAL RING |
| INSIDE | ||
| 265 | A 3853200167 | GASKET |
| INSIDE | ||
| 268 | A 3933252209 | BEARING BRACKET |
| REAR AXLE I | ||
| 271 | A 3933253009 | BEARING BRACKET |
| REAR AXLE II,LEFT | ||
| 271 | A 3933253109 | BEARING BRACKET |
| REAR AXLE II,RIGHT | ||
| 274 | A 3933250719 | SPRING SEAT |
| Repalced by: A 6583250019 | ||
| 274 | A 6583250019 | SPRING SEAT |
| 274 | A 6583250019 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 274 | A 6583250019 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 277 | A 3933250819 | SPRING SEAT |
| Repalced by: A 6583250119 | ||
| 277 | A 6583250119 | SPRING SEAT |
| 277 | A 6583250119 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 277 | A 6583250119 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 280 | A 3959900201 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 20X205 | ||
| 283 | A 3959900301 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 20X240 | ||
| 286 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 289 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I CONTROL ARM BEARING BRACKET,SEE GROUP: | ||
| "42" | ||
| 292 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 292 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 292 | A 3953253709 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 292 | A 3953254009 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 295 | N 000960014121 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 298 | N 913004014002 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 301 | A 3853250309 | BEARING BRACKET |
| UPPER CONTROL ARM TO REAR AXLE II | ||
| 301 | A 3853250309 | BEARING BRACKET |
| FOR REAR AXLE II CONTROL ARM BEARING BRACKET,SEE GROUP: | ||
| "42" | ||
| 304 | N 001481028004 | CLAMPING SLEEVE |
| BEARING BRACKET TO REAR AXLE II | ||
| 307 | N 000960020200 | SCREW |
| BEARING BRACKET TO REAR AXLE II | ||
| 310 | A 3953500706 | CONTROL ARM |
| BOTTOM | ||
| 310 | A 6593500406 | CONTROL ARM |
| BOTTOM | ||
| 310 | A 6593502706 | CONTROL ARM |
| BOTTOM | ||
| 313 | A 3953500206 | CONTROL ARM |
| TOP | ||
| 313 | A 6593500106 | CONTROL ARM |
| TOP | ||
| 313 | A 6593502406 | CONTROL ARM |
| TOP | ||
| 316 | A 0003500413 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 319 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 319 | A 0003500613 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 322 | N 000960020152 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X230 | ||
| 322 | N 000960020152 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| M 20X230 | ||
| 325 | N 913004020004 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 325 | N 913004020004 | NUT |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| 328 | N 000960020032 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 20X90 | ||
| 331 | N 000960020138 | SCREW |
| UPPER CONTROL ARM,REAR AXLE II | ||
| M 20X85 | ||
| 334 | N 913004020004 | NUT |
| CONTROL ARM TO REAR AXLE | ||

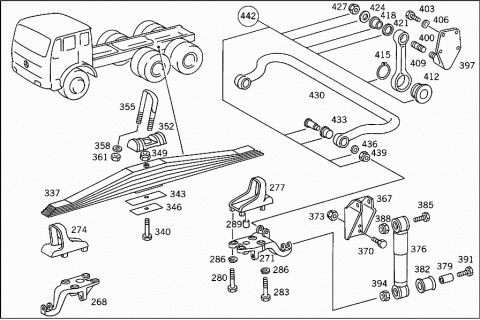

| 337 | A 3933200406 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 340 | A 3933240071 | SPRING BOLT |
| 343 | A 3933210184 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 346 | A 3913210184 | SHIM |
| Repalced by: A 3933210184 | ||
| 346 | A 3933210184 | SHIM |
| REAR SPRING TO SPRING SADDLE | ||
| 349 | N 913004016005 | NUT |
| SPRING BOLT | ||
| 352 | A 6233510326 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 355 | A 3933510425 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 358 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 361 | N 000934024006 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 364 | N 000960020093 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| 367 | A 3873200243 | BRACKET |
| SHOCK ABSORBER | ||
| 370 | N 000961012097 | SCREW |
| BRACKET TO FRAME | ||
| 373 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 376 | A 0023269200 | SHOCK ABSORBER |
| REAR AXLES I AND II | ||
| 376 | A 0033265000 | SHOCK ABSORBER |
| REAR AXLES I AND II | ||
| 379 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 379 | A 0003233150 | BUSHING |
| TOP AND BOTTOM | ||
| TO 002 326 92 00 | ||
| 379 | A 0003233150 | BUSHING |
| TOP | ||
| TO 003 326 50 00 | ||
| 379 | A 0003234350 | BUSHING |
| BOTTOM | ||
| TO 003 326 50 00 | ||
| 382 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 382 | A 0003232885 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 002 326 92 00 | ||
| 382 | A 0003232885 | RUBBER MOUNTING |
| TOP | ||
| TO 003 326 50 00 | ||
| 382 | A 0003233044 | RUBBER BUFFER |
| LOWER PART | ||
| 385 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 388 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 391 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 394 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 397 | A 3933201178 | CONSOLE |
| Repalced by: A 3933261263 | ||
| 397 | A 3933261263 | BEARING BRACKET |
| SHACKLE | ||
| 400 | N 000939016033 | STUD BOLT |
| 403 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X30 | ||
| 403 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X30 | ||
| 403 | N 000961016100 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X35 | ||
| 403 | N 000961016100 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X35 | ||
| 406 | N 000137016202 | SPRING WASHER |
| CONSOLE TO FRAME | ||
| 409 | A 3873260647 | SHACKLE |
| TORSION BAR,REAR | ||
| 412 | A 3933260481 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 415 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 418 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 421 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 424 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 427 | N 913004016004 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 430 | A 3933260265 | TORSION BAR |
| REAR AXLE II | ||
| 433 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 436 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 439 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 439 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 442 | A 6233200041 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
