Transporto priemonė: 2233 S; VIN numerio dalis: 623145
Grupė: 42 BRAKES

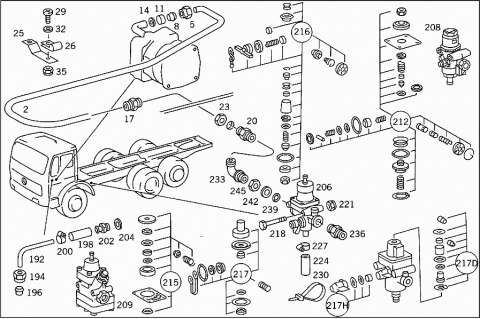

42276

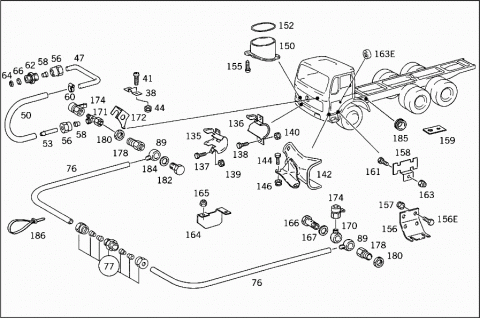

42277

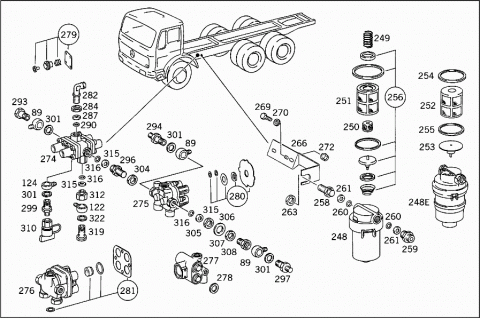

42278

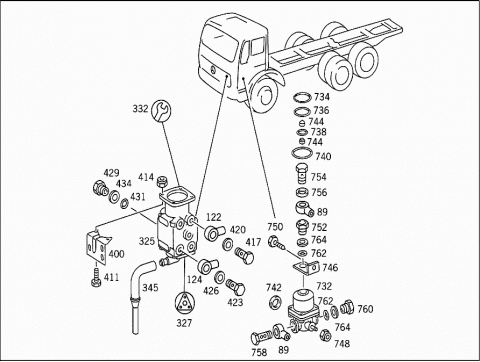

42279

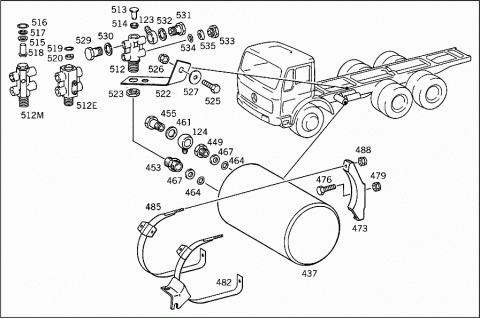

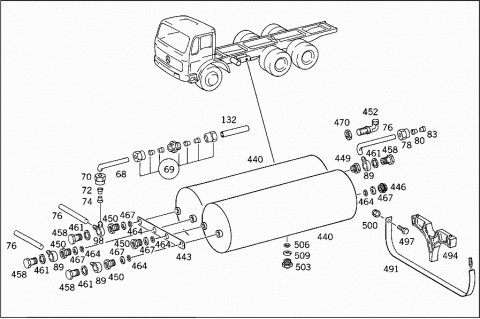

42280

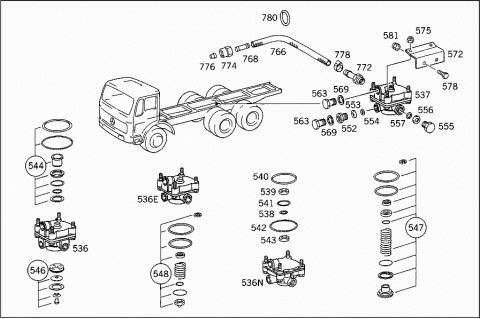

42281

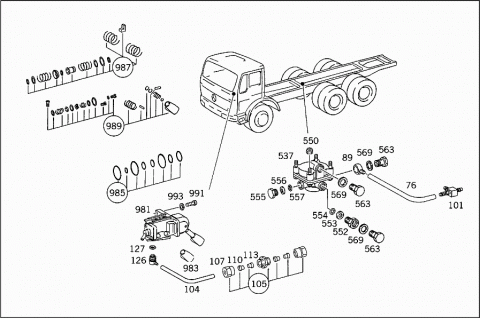

42282
42283

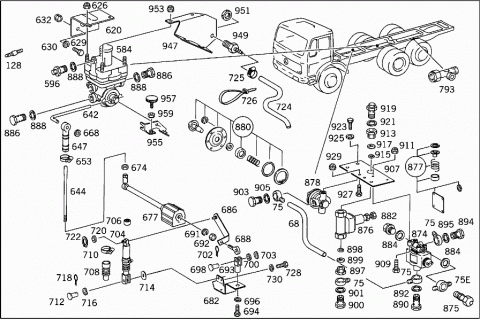

42284

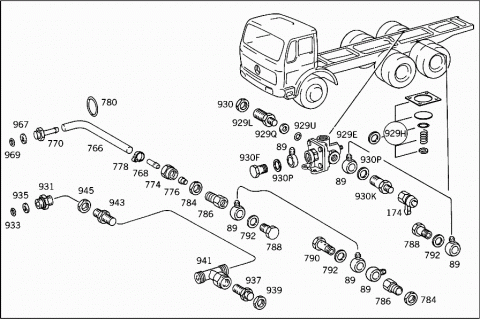

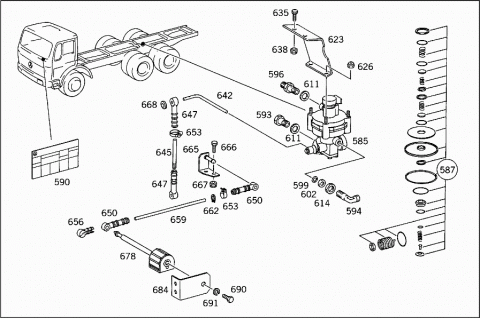

42285
42286

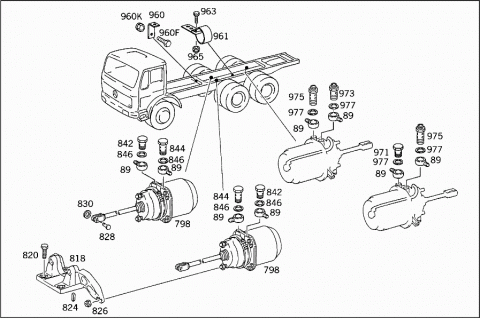

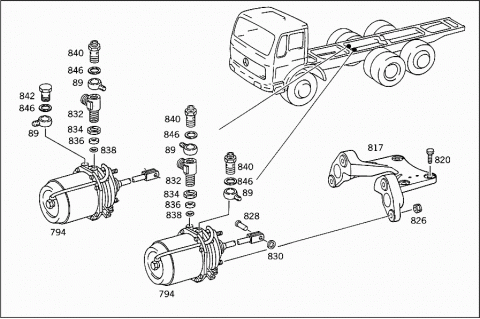

42287
42288

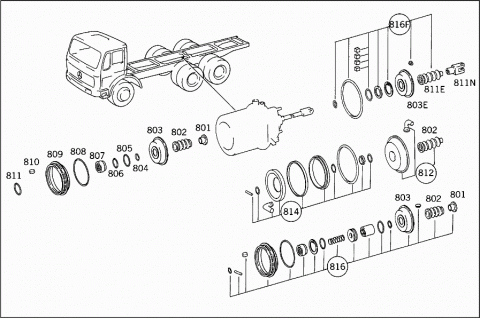

42289
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
Y YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
740.3
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
748.4
Y YYYYYYYYYYYY PART NAME MISSING
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON TRAILING AXLE, SEE PARTS LIST:
749.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.7
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
FOR REAR AXLE I,SEE UNIT STANDARD VERSION,MODEL:
740.0
Y YYYYYYYYYYYY PART NAME MISSING
FOR REAR AXLE II,SEE UNIT STANDARD VERSION,MODEL:
740.9
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
002 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
002 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
005 N 915018015000 UNION NUT
LINE CONNECTION
N 915017015100 UNION NUT
LINE CONNECTION
008 N 003861015004 GLAND
LINE CONNECTION
011 N 915065015101 THRUST RING
LINE CONNECTION
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
LINE CONNECTION
017 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
020 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
023 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
025 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
026 A 3609952001 CLAMP
Repalced by: A 6739950001
026 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
029 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
029 N 007985006193 SCREW
Repalced by: N 000000001146
029 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
032 N 000125006421 WASHER
CLAMP TO BRACKET
035 N 913004006002 NUT
Repalced by: N 913004006001
035 N 913004006001 NUT
CLAMP TO BRACKET
N 912004006102 LOCK WASHER
CLAMP TO BRACKET
038 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
041 N 007985006145 SCREW
Repalced by: N 007985006581
041 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
044 N 913004006002 NUT
Repalced by: N 913004006001
044 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
047 A 3834290801 LINE
Repalced by: A 6194290801
047 A 6194290801 LINE
Repalced by: A 6254293501
047 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
050 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
053 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
056 N 915017012100 UNION NUT
LINE CONNECTION
058 N 003861012007 GLAND
Repalced by: A 0019901967
058 A 0019901967 SEAL CONE
LINE CONNECTION
060 N 916017016000 CLAMP
Repalced by: N 000000000666
060 N 000000000666 CLAMP
LINE MOUNTING
062 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
064 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
066 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
068 A 0089976082 HOSE
Repalced by: A 0009872627
068 A 0009872627 PLASTIC PIPE
AIR RESERVOIR,PRESSURE GAUGE
4 X 6 MM
068 A 0009872627 PLASTIC PIPE
DISTRIBUTOR,SOLENOID VALVE,AIR SPRING BELLOWS
4 X 6 MM
068 A 0009872627 PLASTIC PIPE
PRESSURE RELIEF VALVE,OVERFLOW VALVE
4 X 6 MM
069 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
070 N 915017006100 UNION NUT
LINE CONNECTION
072 N 003861006007 GLAND
Repalced by: A 0019901667
072 A 0019901667 SEAL CONE
LINE CONNECTION
074 N 915062004000 SLEEVE
LINE CONNECTION
075 N 915052004015 BANJO UNION
HOSE WIDTH, / I.D.,
4/12 MM
075E A 0009907688 BANJO UNION
075E A 0009906188 BANJO UNION
076 A 0109975982 HOSE
Repalced by: A 0009872827
076 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
076 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
076 A 0009872827 PLASTIC PIPE
BRAKE VALVE
9X12 MM
076 A 0009872827 PLASTIC PIPE
CHECK VALVE
9X12 MM
076 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
077 A 0049971772 FITTING
Repalced by: A 0029906171
077 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
078 N 915017012100 UNION NUT
LINE CONNECTION
080 N 003861012007 GLAND
Repalced by: A 0019901967
080 A 0019901967 SEAL CONE
LINE CONNECTION
083 A 0009921505 BUSHING
Repalced by: N 915062009000
083 N 915062009000 SLEEVE
LINE CONNECTION
089 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
098 A 0019901088 BANJO UNION
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
101 A 0019903970 T-FITTING
Repalced by: A 0029909070
101 A 0029909070 T-FITTING
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
104 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
104 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
104 A 0089979082 HOSE
PRESSURE GAUGE
6X8 MM
104 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
104 A 0089979082 HOSE
PRESSURE RELIEF VALVE,OVERFLOW VALVE
6X8 MM
104 A 0089979082 HOSE
DISTRIBUTOR,SOLENOID VALVE,AIR SPRING BELLOWS
6X8 MM
104 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
105 A 0039978972 FITTING
Repalced by: A 0029905971
105 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
107 N 915017008100 UNION NUT
LINE CONNECTION
110 N 003861008005 GLAND
LINE CONNECTION
113 N 915062006000 SLEEVE
LINE CONNECTION
122 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
123 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
124 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
A 0009907588 BANJO UNION
Repalced by: A 0019908288
A 0019908288 BANJO UNION
126 A 0009976189 COUPLING
PARKING BRAKE VALVE
127 A 0099973948 SEAL RING
128 A 0009904678 CONNECTOR
BRAKE VALVE,BRAKE POWER REGULATOR
132 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
135 A 6204201386 BRACKET
Repalced by: A 6154200086
135 A 6154200086 BRACKET
BRAKE LINE MOUNTING
A 6204201486 BRACKET
BRAKE LINE MOUNTING
136 A 6204201986 BRACKET
BRAKE LINE MOUNTING
A 6204202086 BRACKET
BRAKE LINE MOUNTING
137 N 000933008153 SCREW
Repalced by: N 304017008034
137 N 304017008034 SCREW
BRACKET TO CONSOLE
138 N 000961014100 SCREW
BRACKET TO CONSOLE
139 N 913004008004 NUT
Repalced by: N 913004008001
139 N 913004008001 NUT
BRACKET TO CONSOLE
140 N 913004014002 NUT
Repalced by: N 910113014001
140 N 910113014001 NUT
BRACKET TO CONSOLE
142 A 6204201186 BRACKET
BRAKE LINE MOUNTING
A 6204201286 BRACKET
BRAKE LINE MOUNTING
142 A 6204201586 BRACKET
BRAKE LINE MOUNTING
A 6204201686 BRACKET
BRAKE LINE MOUNTING
144 N 000933008147 SCREW
Repalced by: N 304017008021
144 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
146 N 913004008004 NUT
Repalced by: N 913004008001
146 N 913004008001 NUT
BRACKET TO BUMPER STRUT
150 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
150 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
152 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
155 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
BRACKET TO CAB FLOOR
A 0009946445 LOCK
BRACKET TO CAB FLOOR
156 A 6204297040 BRACKET
LINE MOUNTING
156E N 000933010129 SCREW
Repalced by: N 304017010002
156E N 304017010002 SCREW
BRACKET TO SIDE MEMBER
157 N 913004010008 NUT
Repalced by: N 910113010000
157 N 910113010000 NUT
BRACKET TO SIDE MEMBER
158 A 6204293940 BRACKET
LINE MOUNTING
158 A 6204293940 BRACKET
LINE MOUNTING
159 A 6204294340 BRACKET
Repalced by: A 3604293140
159 A 3604293140 BRACKET
LINE MOUNTING
161 N 000933008152 SCREW
Repalced by: N 304017008027
161 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
M 8X30
161 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
M 8X30
163 N 913004008004 NUT
Repalced by: N 913004008001
163 N 913004008001 NUT
BRACKET TO SIDE MEMBER
163 N 913004008001 NUT
BRACKET TO SIDE MEMBER
163E A 3609902340 WASHER
BRAKE LINE MOUNTING
164 A 6204295240 BRACKET
BRACKET TO CAB FLOOR
164 A 6204295240 BRACKET
BRACKET TO CAB FLOOR
165 N 913004006002 NUT
Repalced by: N 913004006001
165 N 913004006001 NUT
BRACKET TO CAB FLOOR
166 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
166 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
167 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
170 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
170 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
171 A 0019901570 T-FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
172 A 6204290473 LOCK
COMPRESSED AIR LINE THRU FRAME
A 0019908171 ELBOW FITTING
Repalced by: A 0029905871
A 0029905871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
174 A 0004314831 TEST CONNECTION
WABCO
174 A 0004316131 TEST CONNECTION
WIRA
174 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
174 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
174 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
174 A 0004316131 TEST CONNECTION
REAR AXLE I TRISTOP CYLINDER
WIRA
174 A 0004316131 TEST CONNECTION
REGULATING VALVE,CONNECTION:
"2"
174 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WIRA
A 0009979486 PLUG
178 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0009970934 UNION SCREW
COMPRESSED AIR LINE THRU FRAME
180 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
182 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
184 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
185 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
185 A 6454290081 GROMMET
Repalced by: A 6554290081
185 A 6554290081 GROMMET
LINE THRU FRAME
185 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
185 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
A 0039977581 GROMMET
LINE THRU FRAME
186 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
186 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
192 A 0004291601 LINE
FROM ENGINE AIR INTAKE PIPE SOCKET TO AIR COMPRESSOR
22 MM
194 N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
196 N 003861022004 GLAND
Repalced by: A 0019901267
196 A 0019901267 SEAL CONE
COMPRESSED AIR LINE TO AIR COMPRESSOR
198 N 900271022023 HOSE
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
22X31 MM
200 N 916017025000 CLAMP
Repalced by: N 000000000668
200 N 000000000668 CLAMP
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
202 A 4031340156 FITTING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
204 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
206 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
208 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
208 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
208 A 0024314906 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
WABCO
209 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
209 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
209 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
120 A 0024318306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
KNORR
212 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
212 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
212 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
212 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
212 A 0014304960 REPAIR KIT
TO 003 431 37 06
215 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
215 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
216 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
217 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
217D A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
217D A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH. 0 481 039 201
217D A 0004301768 REPAIR KIT
DIAPHRAGM
TO 003 431 35 06
217H A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
217H A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH. 0 481 039 201
217H A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 003 431 35 06
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
218 N 000931008228 SCREW
Repalced by: N 000933008134
218 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
218 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
221 N 913004008004 NUT
Repalced by: N 913004008001
221 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
224 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
224 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
227 N 916026016001 CLAMP
Repalced by: A 0059970190
227 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
227 N 916026020001 CLAMP
Repalced by: N 000000000667
227 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
230 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
233 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
236 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
239 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
242 A 0004290227 THRUST RING
Repalced by: A 0009940203
242 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
245 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
248 A 0004292595 AIR CLEANER
BOSCH
248 A 0004292695 AIR CLEANER
KNORR
248 A 0004292795 AIR CLEANER
WABCO
248E A 0004292895 AIR CLEANER
GRAU
249 A 0059930901 SPRING
TO 000 429 27 95,WABCO
250 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
251 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
252 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
253 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
254 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
255 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
A 0049972248 SEAL RING
Repalced by: A 0289972348
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
256 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 42926 95,KNORR
258 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
259 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
STUTZEN
260 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"1,2"
261 A 0004290227 THRUST RING
Repalced by: A 0009940203
261 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
263 N 074305022202 NUT
AIR CLEANER TO BRACKET
266 A 6204310740 BRACKET
AIR CLEANER
269 N 000933008147 SCREW
Repalced by: N 304017008021
269 N 304017008021 SCREW
BRACKET TO STRAP
270 N 000125008418 WASHER
Repalced by: N 000125008443
270 N 000125008443 WASHER
BRACKET TO STRAP
272 N 913004008004 NUT
Repalced by: N 913004008001
272 N 913004008001 NUT
BRACKET TO STRAP
274 A 0014318906 VALVE
Repalced by: A 0024314006
274 A 0024314006 VALVE
Repalced by: A 0034315006
275 A 0014318706 VALVE
Repalced by: A 0034315006
276 A 0014319306 VALVE
Repalced by: A 0034315006
277 A 0024310206 VALVE
Repalced by: A 0024312706
277 A 0024312706 VALVE
Repalced by: A 0024319106
277 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
278 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
279 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
280 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
281 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
281 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
282 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
282 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
284 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
287 A 0004290227 THRUST RING
Repalced by: A 0009940203
287 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
290 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
293 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
294 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
294 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
296 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
297 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
297 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
299 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
301 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
304 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
305 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
305 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
306 N 000125017010 WASHER
Repalced by: N 000125017016
306 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
306 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
307 N 000439016206 NUT
Repalced by: N 308675016001
307 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
307 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
308 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
" 22 "
308 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
" 22 "
310 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
310 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
312 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
312 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
315 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
316 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
N 080705016003 NUT
"24"
A 0019905270 T-FITTING
"24"
319 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
322 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
325 A 0024310605 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
325 A 0024311005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
325 A 0024312005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
325 A 0014318305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
325 A 0014318905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
325 A 0014319905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
GRAU
325 A 0014319105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
A 0014316993 SPRING
TO 001 431 89 05,BOSCH
A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
A 0004318383 PISTON
TO 001 431 83 05,WABCO
A 0004313623 VALVE
WABCO
327 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
327 A 0014308460 GASKET KIT
TO 002 431 10 05,BOSCH
332 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
332 A 0004308206 REPAIR KIT
TO 002 431 06 05,WABCO
A 0025868043 REPAIR KIT
Repalced by: A 0004301160
332 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
332 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
332 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
332 A 0004308006 REPAIR KIT
TO 001 431 83 05,WABCO
332 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
332 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
332 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
A 6204290035 BRAKE HOSE
Repalced by: A 6174310073
A 6204290041 FITTING
Repalced by: A 6174310073
A 0004300270 MUFFLER
Repalced by: A 6174310073
345 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
345 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
400 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
411 N 000933008152 SCREW
Repalced by: N 304017008027
411 N 304017008027 SCREW
BRAKE VALVE TO BRACKET
414 N 913004008004 NUT
Repalced by: N 913004008001
414 N 913004008001 NUT
BRAKE VALVE TO BRACKET
417 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
420 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
423 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
426 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
429 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
431 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
434 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
437 A 0004324801 RESERVOIR
Repalced by: A 0014327501
437 A 0014327501 RESERVOIR
Repalced by: A 0034321201
437 A 0034321201 RESERVOIR
AIR RESERVOIR III
20 L
440 A 0004322101 RESERVOIR
Repalced by: A 0034322301
440 A 0034322301 RESERVOIR
AIR RESERVOIRS I AND II
40 L
443 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
446 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
446 N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
449 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
449 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
450 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
452 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"31"
453 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
455 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
458 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
458 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"31"
461 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23"
461 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"31"
464 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
467 A 0004290227 THRUST RING
Repalced by: A 0009940203
467 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
A 0009970934 UNION SCREW
AIR RESERVOIR,CONNECTIONS:
470 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"31"
473 A 3874320540 BRACKET
AIR RESERVOIR III
476 N 000933008215 SCREW
Repalced by: A 0069909301
476 A 0069909301 SCREW
BRACKET TO SIDE PART,FRONT
479 N 913004008004 NUT
Repalced by: N 913004008001
479 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
482 A 6204300640 STRAP
AIR RESERVOIR III
A 6204300240 STRAP
AIR RESERVOIR III
485 A 6204300740 STRAP
AIR RESERVOIR III
A 6204301240 STRAP
AIR RESERVOIR III
488 N 913004010008 NUT
Repalced by: N 910113010000
488 N 910113010000 NUT
STRAP TO BRACKET
491 A 6204300040 STRAP
AIR RESERVOIRS I AND II
494 A 6204320018 BASE
AIR RESERVOIR,STRAP
497 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
500 N 913004010008 NUT
Repalced by: N 910113010000
500 N 910113010000 NUT
AIR RESERVOIR,STRAP
503 A 0004321107 VALVE
AIR RESERVOIR DRAIN
503 A 0004322107 VALVE
AIR RESERVOIR DRAIN
503 A 0004322407 VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN
TO 000 432 08 07
506 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
509 A 0004290227 THRUST RING
Repalced by: A 0009940203
509 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
512 A 0024299644 VALVE
(CHECK VALVE)
VOSS
512E A 0034290444 VALVE
(CHECK VALVE)
WABCO
512M A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
513 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
514 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
515 A 0109970048 SEAL RING
13.6X2,TO 003 429 12 44,SCHAEFER
516 A 0109970148 SEAL RING
15.3X2.4,TO 003 429 12 44,SCHAEFER
517 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
518 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
519 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
520 A 0002950320 VALVE
TO 003 429 04 44,WABCO
522 A 6204292540 BRACKET
Repalced by: A 6164290140
522 A 6204292540 BRACKET
Repalced by: A 6164290140
522 A 6164290140 BRACKET
CHECK VALVE
522 A 6164290140 BRACKET
CHECK VALVE
523 N 074305022202 NUT
CHECK VALVE TO BRACKET
525 N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
526 N 913004010008 NUT
Repalced by: N 910113010000
526 N 910113010000 NUT
BRACKET TO FRAME SIDE MEMBER
527 A 3529900640 WASHER
BRACKET TO FRAME SIDE MEMBER
A 6204310062 COVERING
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO COVER PLATE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO COVER PLATE
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
529 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
530 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
531 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
531 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
532 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
533 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
534 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
535 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
536 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
536 A 0034291644 VALVE
TRAILING AXLE
BOSCH
536E A 0024290744 VALVE
Repalced by: A 0034295344
536E A 0034295344 VALVE
(RELAY VALVE)
KNORR
536E A 0034295344 VALVE
TRAILING AXLE
KNORR
536N A 0014299144 VALVE
(RELAY VALVE)
GRAU
536N A 0014299144 VALVE
TRAILING AXLE
GRAU
537 A 0014296844 VALVE
(RELAY VALVE)
WABCO
537 A 0014296844 VALVE
TRAILING AXLE
WABCO
538 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
539 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
540 A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95, GRAU
541 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
542 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
543 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
544 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
544 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
544 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
546 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
546 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
547 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
548 A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
550 N 913004008004 NUT
Repalced by: N 913004008001
550 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
552 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
552 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
553 A 0004290227 THRUST RING
Repalced by: A 0009940203
553 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
553 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
554 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
554 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
555 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
556 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
556 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"1"
557 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
557 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"1"
563 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,2,4"
563 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1,2"
N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
569 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
N 080705016003 NUT
RELAY VALVE,CONNECTION:
"1"
A 0019905270 T-FITTING
RELAY VALVE;CONNECTIONS:
"1"
A 0024293344 VALVE
RELAY VALVE;CONNECTIONS:
"1"
N 007603012405 SEAL RING
RELAY VALVE;CONNECTIONS:
"1"
572 A 3634311740 BRACKET
RELAY VALVE
575 N 913004008004 NUT
Repalced by: N 913004008001
575 N 913004008001 NUT
RELAY VALVE TO BRACKET
578 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
581 N 913004010008 NUT
Repalced by: N 910113010000
581 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
584 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
584 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
584 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
585 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
585 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
585 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
587 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
587 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12,BOSCH
A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
590 A 6235841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235841021 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235842221 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235842221 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235842521 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235842521 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235842521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 6235844621 GUIDE SIGN
LOAD-DEPENDING BRAKE
590 A 6235840921 GUIDE SIGN
LOAD-DEPENDING BRAKE
593 A 0029971572 FITTING
594 A 0019903071 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"1"
596 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
599 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
599 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
602 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
602 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1"
N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
611 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
A 0069970072 FITTING
BRAKE POWER REGULATOR,CONNECTION:
2
614 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"1"
620 A 3934311140 BRACKET
BRAKE POWER REGULATOR
623 A 3934311040 BRACKET
Repalced by: A 6234311540
623 A 6234311540 BRACKET
BRAKE POWER REGULATOR
623 A 6234311540 BRACKET
BRAKE POWER REGULATOR
A 3854317040 BRACKET
BRAKE POWER REGULATOR
A 3854317040 BRACKET
BRAKE POWER REGULATOR
626 N 913004008004 NUT
Repalced by: N 913004008001
626 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
629 N 000933010129 SCREW
Repalced by: N 304017010002
629 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
M 10X30
630 N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
632 N 913004010008 NUT
Repalced by: N 910113010000
632 N 910113010000 NUT
BRACKET TO SIDE MEMBER
635 N 000933008154 SCREW
Repalced by: N 304017008021
635 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
M 8X22
638 N 913004008004 NUT
Repalced by: N 913004008001
638 N 913004008001 NUT
BRACKET TO CROSS MEMBER
642 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
642 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
642 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
A 6204310439 LEVER
BRAKE POWER REGULATOR CONTROL
A 6204310439 LEVER
BRAKE POWER REGULATOR CONTROL
644 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
644 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
645 N 900331008262 PULL ROD
Repalced by: N 900331008420
645 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
647 A 3434310035 CONNECTOR
Repalced by: A 0004310735
650 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
653 N 916026010000 CLAMP
Repalced by: N 000000000665
653 N 000000000665 CLAMP
CONNECTOR TO ROD
656 A 6249950065 CLAMP
CONNECTOR TO ROD
656 A 6249950065 CLAMP
CONNECTOR TO ROD
659 A 3954310192 ROD
LINK
662 N 900055008402 LOCK RING
PULL ROD TO CONNECTOR
665 A 3854301910 BRACKET
Repalced by: A 6234300010
665 A 6234300010 BRACKET
LINK
665 A 6234300010 BRACKET
LINK
A 6244300110 BRACKET
A 6244300110 BRACKET
N 000933006130 SCREW
666 N 000933008160 SCREW
Repalced by: N 304017008040
666 N 304017008040 SCREW
Repalced by: N 910105008010
666 N 910105008010 SCREW
Repalced by: N 910143008005
666 N 910143008005 SCREW
BRACKET TO REAR AXLE II
667 N 913004008004 NUT
Repalced by: N 913004008001
667 N 913004008001 NUT
BRACKET TO REAR AXLE II
668 N 000125008418 WASHER
Repalced by: N 000125008443
668 N 000125008443 WASHER
CONNECTOR TO ROD
N 000094002077 COTTER PIN
CONNECTOR TO ROD
674 N 304032008006 NUT
CONNECTOR TO ROD
677 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
677 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
678 A 0004310918 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
678 A 0004310918 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
682 A 6234300210 BRACKET
METAL SPRING BELLOWS
684 A 6234310040 BRACKET
METAL SPRING BELLOWS
684 A 6234310040 BRACKET
METAL SPRING BELLOWS
A 6244310040 BRACKET
METAL SPRING BELLOWS
A 6244310040 BRACKET
METAL SPRING BELLOWS
N 000125017010 WASHER
Repalced by: N 000125017016
N 000125017016 WASHER
N 000125017016 WASHER
686 A 6234300111 CONSOLE
METAL SPRING BELLOWS
A 3813020050 BUSHING
A 6153010088 COVERING
A 3813010188 COVERING
Repalced by: A 4073015088
A 4073015088 COVERING
N 001440012005 WASHER
N 000094003219 COTTER PIN
688 A 3639900023 SCREW
METAL SPRING BELLOWS
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
M 12X1.5X25
690 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
690 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1,5X18
691 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
692 N 000936012011 NUT
Repalced by: N 304035012002
692 N 304035012002 NUT
METAL SPRING BELLOWS TO BRACKET
693 N 071752012005 YOKE
694 N 000933012058 SCREW
YOKE TO BRACKET
696 N 912004012100 LOCK WASHER
YOKE TO BRACKET
698 N 001434012027 PIN
METAL SPRING BELLOWS TO YOKE
700 N 000433013004 WASHER
METAL SPRING BELLOWS TO YOKE
702 N 000094004051 COTTER PIN
METAL SPRING BELLOWS TO YOKE
703 N 900055012001 SPRING WASHER
METAL SPRING BELLOWS TO YOKE
704 A 0004302926 CYLINDER
706 A 0004340459 SEAL RING
Repalced by: A 0239975247
706 A 0239975247 SEAL RING
708 A 0003530389 BOOT
710 N 916017025000 CLAMP
Repalced by: N 000000000668
710 N 000000000668 CLAMP
712 N 001434008058 PIN
CYLINDER TO BRACKET
712 N 001444008221 PIN
CYLINDER TO BRACKET
714 N 000433008400 WASHER
CYLINDER TO BRACKET
714 N 000433008400 WASHER
CYLINDER TO BRACKET
716 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
716 N 000137008212 SPRING WASHER
CYLINDER TO BRACKET
718 N 000094003219 COTTER PIN
CYLINDER TO BRACKET
718 N 000094002077 COTTER PIN
CYLINDER TO BRACKET
720 N 000125008418 WASHER
Repalced by: N 000125008443
720 N 000125008443 WASHER
CYLINDER TO BRACKET
N 001440008002 WASHER
CYLINDER TO BRACKET
722 N 000471008002 LOCK RING
CYLINDER TO BRACKET
724 A 0004295135 BRAKE HOSE
CONNECTION TO CYLINDER
450 MM
725 N 900288012001 CLAMP
CONNECTION TO CYLINDER
726 A 0019978490 LOOM TIE
LINE MOUNTING
728 N 000933008212 SCREW
Repalced by: N 304017008016
728 N 304017008016 SCREW
METAL SPRING BELLOWS TO REAR AXLE
728 N 304017008016 SCREW
BRACKET TO REAR AXLE I
730 N 912004008102 LOCK WASHER
METAL SPRING BELLOWS TO REAR AXLE
730 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE I
732 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
734 A 0019871746 SEALING CORD
38 X 3 MM
736 A 0089970445 SEAL RING
34.6 X 2.6 MM
738 A 0089978648 SEAL RING
28.4 X 2.6 MM
740 A 0089978748 SEAL RING
56 X 1.7 MM
742 N 007603016401 SEAL RING
16 X 20 MM
744 A 0004313223 VALVE
746 A 6204312440 BRACKET
PRESSURE RATIO VALVE
746 A 6204312540 BRACKET
PRESSURE RATIO VALVE
748 N 913004008004 NUT
Repalced by: N 913004008001
748 N 913004008001 NUT
VALVE TO FLOOR
750 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
752 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
752 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
754 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
756 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
" 1,2 "
758 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
760 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
762 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1.2"
764 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1.2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915045012200 SEAL RING
AT FITTING
N 007603016401 SEAL RING
AT FITTING
766 N 916027011014 HOSE
REAR AXLE I TRISTOP CYLINDER
766 N 916027011014 HOSE
REAR AXLE II TRISTOP CYLINDER
768 A 0004290541 FITTING
BRAKE HOSE
770 N 074304016201 FITTING
REAR AXLE II TRISTOP CYLINDER
772 N 074304016201 FITTING
AT RELAY VALVE
772 N 074304016201 FITTING
BRAKE POWER REGULATOR
774 N 915017012100 UNION NUT
LINE CONNECTION
776 N 003861012007 GLAND
Repalced by: A 0019901967
776 A 0019901967 SEAL CONE
LINE CONNECTION
778 N 916017016000 CLAMP
Repalced by: N 000000000666
778 N 000000000666 CLAMP
LINE MOUNTING
780 A 3039971440 SEAL RING
LINE MOUNTING
780 A 0039975745 SEAL RING
LINE MOUNTING
A 1159950465 CLAMP
BRAKE HOSE MOUNTING
A 6209950065 CLAMP
BRAKE HOSE MOUNTING
784 N 080705018002 NUT
FITTING TO FRAME SIDE MEMBER
786 A 0004296934 ADAPTER FITTING
FITTING TO FRAME SIDE MEMBER
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINES TO FRAME
A 0019907070 T-FITTING
COMPRESSED AIR LINES TO FRAME
A 0019908171 ELBOW FITTING
Repalced by: A 0029905871
A 0029905871 ELBOW FITTING
COMPRESSED AIR LINES TO FRAME
A 0029905871 ELBOW FITTING
COMPRESSED AIR LINES TO FRAME
A 0029901171 ELBOW FITTING
COMPRESSED AIR LINES TO FRAME
A 0019908370 T-FITTING
COMPRESSED AIR LINES TO FRAME
788 N 915036012203 HOLLOW SCREW
FITTING TO FRAME SIDE MEMBER
790 N 915047012203 HOLLOW SCREW
FITTING TO FRAME SIDE MEMBER
792 N 007603016401 SEAL RING
FITTING TO FRAME SIDE MEMBER
N 915040012206 HOLLOW SCREW FITTING
FITTING TO FRAME SIDE MEMBER
A 0009940147 SEAL RING
COMPRESSED AIR LINES TO FRAME
A 0009941448 LOCK
COMPRESSED AIR LINES TO FRAME
A 0009970934 UNION SCREW
COMPRESSED AIR LINES TO FRAME
N 000439018204 NUT
COMPRESSED AIR LINES TO FRAME
A 0004312031 TEST CONNECTION
LINE THRU FRAME
A 0004314531 TEST CONNECTION
LINE THRU FRAME
A 0004314831 TEST CONNECTION
LINE THRU FRAME
A 0004316131 TEST CONNECTION
LINE THRU FRAME
793 N 003954012101 FITTING
Repalced by: A 0019900970
793 A 0019900970 T-FITTING
REAR BRAKE HOSE,REAR AXLE II
A 0009979486 PLUG
794 A 0074207118 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
WABCO
794 A 0084205918 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
KNORR
794 A 0094205818 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
GRAU
798 A 0074205618 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
WABCO
798 A 0074205618 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
WABCO
798 A 0084209118 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
BOSCH
798 A 0084209118 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
BOSCH
798 A 0084205618 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
KNORR
798 A 0084205618 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
KNORR
798 A 0094209718 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
GRAU
798 A 0094209718 WHEEL BRAKE CYLINDER
REAR AXLE I TRISTOP CYLINDER
GRAU
A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
WABCO
A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
KNORR
A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
KNORR
A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
BOSCH
A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
BOSCH
A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
GRAU
A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLE I & II TRISTOP CYLINDERS
GRAU
801 A 0004231060 SEAL RING
TO 008 420 59 18,008 420 56 18
802 A 0004234187 PROTECTIVE CAP
TO 008 420 59 18,008 420 56 18
802 A 0004212286 CUP
Repalced by: A 0004215286
802 A 0004215286 CUP
TO 007 420 71 18,56 18,65 18
803 A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
803 A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
803 A 0004314128 DIAPHRAGM
TO 008 420 59 18,KNORR
803 A 0004312928 DIAPHRAGM
TO 008 420 56 18,007 420 42 18,KNORR
803E A 0004313028 DIAPHRAGM
TO 008 420 91 18,008 420 90 18,BOSCH
804 A 0099979348 SEAL RING
TO 008 420 59 18,KNORR
805 A 0099979448 SEAL RING
TO 008 420 59 18,KNORR
806 A 0099979548 SEAL RING
TO 008 420 59 18,KNORR
807 A 0004231160 SEAL RING
TO 008 420 59 18,KNORR
808 A 0099979648 SEAL RING
TO 008 420 59 18,KNORR
809 A 0109970247 SEAL RING
TO 008 420 59 18,KNORR
810 A 0019973086 PLUG
TO 008 420 59 18,KNORR
811 A 0099979748 SEAL RING
TO 008 420 59 18,KNORR
811E A 0004233886 CUP
TO 008 420 91 18,008 420 90 18,BOSCH
811N A 0004211263 GUIDE
Repalced by: N 071752014000
811N N 071752014000 YOKE
TO 008 420 91 18,008 420 90 18,BOSCH
812 A 0025865142 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 71 18,WABCO
812 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 56 18,007 420 65 18
814 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
814 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
814 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 71 18,56 18,65 18
816 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 56 18,007 420 42 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 56 18,007 420 42 18,KNORR
816F A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 91 18,008 420 91 18,BOSCH
817 A 3634230033 BEARING BRACKET
REAR AXLE I TRISTOP CYLINDER
818 A 3854231133 BEARING BRACKET
REAR AXLE I TRISTOP CYLINDER
818 A 3854231133 BEARING BRACKET
REAR AXLE I TRISTOP CYLINDER
818 A 3854232033 BEARING BRACKET
REAR AXLE I TRISTOP CYLINDER
818 A 3854232033 BEARING BRACKET
REAR AXLE I TRISTOP CYLINDER
A 3954231233 BEARING BRACKET
REAR AXLES I AND II
A 3954231233 BEARING BRACKET
REAR AXLES I AND II
N 007346012003 CLAMPING SLEEVE
N 007346012003 CLAMPING SLEEVE
N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
"I,II"
N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
"I,II"
820 N 000961016036 SCREW
Repalced by: N 308676016013
820 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1,5X40
820 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
"I,II"
820 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1,5X40
820 N 914142020201 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X50
820 N 914142020201 SCREW
BEARING BRACKET TO REAR AXLE
"I,II"
N 000961020034 SCREW
Repalced by: N 308676020015
N 308676020015 SCREW
BEARING BRACKET TO REAR AXLE
N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
"I,II,M 20X1,5X45"
820 N 000960020200 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1,5X60
820 N 000960020200 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1,5X60
N 914142020025 SCREW
BEARING BRACKET TO REAR AXLE
"I,II,M20X1.5X55"
824 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
824 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X55; "I,II"
N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X55; "I,II"
A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
I,II
A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
I,II
A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
I,II
A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
I,II
826 N 913004016004 NUT
Repalced by: N 910113016002
826 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
826 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
826 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
828 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
828 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
828 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
830 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
830 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
830 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
832 A 0019905370 T-FITTING
REAR AXLE I TRISTOP CYLINDER
834 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER
836 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER
838 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER
840 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE I TRISTOP CYLINDER
842 N 915036012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER
844 N 915047012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER
846 N 007603016401 SEAL RING
REAR AXLE I TRISTOP CYLINDER
874 A 0004202755 BLEEDER VALVE
SOLENOID VALVE
875 A 0024293344 VALVE
(CHECK VALVE)
876 A 0024297244 VALVE
(OVERFLOW VALVE)
WABCO
877 A 0015862042 REPAIR KIT
TO 002 42 72 44,WABCO
878 A 0014295644 VALVE
Repalced by: A 0044291844
878 A 0044291844 VALVE
(PRESSURE RELIEF VALVE)
880 A 0004300568 REPAIR KIT
TO 001 429 56 44
882 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
882 N 000908012009 SCREW PLUG
SOLENOID VALVE CONNECTION
" 1 "
884 A 0004290827 THRUST RING
Repalced by: A 0009940103
884 A 0009940103 THRUST RING
SOLENOID VALVE CONNECTION
"1"
A 0019970845 SEAL RING
SOLENOID VALVE CONNECTION
"1"
886 N 915039008202 HOLLOW SCREW FITTING
888 N 007603012405 SEAL RING
890 N 915047008202 HOLLOW SCREW
BLEEDER VALVE,CONNECTION:
"2"
892 N 007603012405 SEAL RING
SOLENOID VALVE
"2"
A 0049970572 FITTING
SOLENOID VALVE CONNECTION
"2"
N 080705016003 NUT
SOLENOID VALVE CONNECTION
"2"
A 0004290927 THRUST RING
SOLENOID VALVE CONNECTION
"2"
A 0009971548 SEAL RING
SOLENOID VALVE CONNECTION
"2"
894 N 915036008202 HOLLOW SCREW
SOLENOID VALVE CONNECTION
"3"
894 N 915036008202 HOLLOW SCREW
SOLENOID VALVE CONNECTION
"1"
895 N 007603012405 SEAL RING
SOLENOID VALVE CONNECTION
"3"
895 N 007603012405 SEAL RING
SOLENOID VALVE CONNECTION
"1"
897 A 0009904468 FITTING
OVERFLOW VALVE,CONNECTION:
"2"
A 0009904168 FITTING
Repalced by: A 0019907168
A 0019907168 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
898 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
"2"
899 A 0004290227 THRUST RING
Repalced by: A 0009940203
899 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION:
"2"
900 N 915036008202 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"2"
901 N 007603012405 SEAL RING
OVERFLOW VALVE,CONNECTION:
"2"
903 N 915036008202 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTION:
"2"
905 N 007603012405 SEAL RING
PRESSURE RELIEF VALVE,CONNECTION:
"2"
907 A 3933910040 BRACKET
SOLENOID VALVE
907 A 6233910140 BRACKET
SOLENOID VALVE
909 N 000933006124 SCREW
VALVE TO BRACKET
911 N 913004006002 NUT
Repalced by: N 913004006001
911 N 913004006001 NUT
VALVE TO BRACKET
913 A 0009904468 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
915 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
"1"
917 A 0004290227 THRUST RING
Repalced by: A 0009940203
917 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION:
"1"
919 N 915039008202 HOLLOW SCREW FITTING
OVERFLOW VALVE,CONNECTION:
"1"
N 915036008202 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
921 N 007603012405 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
923 N 000933010128 SCREW
PRESSURE RELIEF VALVE TO BRACKET
925 N 912004010102 LOCK WASHER
PRESSURE RELIEF VALVE TO BRACKET
927 N 000933008147 SCREW
Repalced by: N 304017008021
927 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
929 N 913004008004 NUT
Repalced by: N 913004008001
929 N 913004008001 NUT
BRACKET TO CROSS MEMBER
929E A 0014309981 VALVE
TRAILING AXLE
929H A 0005867943 REPAIR KIT
TO 001 430 99 81
929L N 074313012304 FITTING
REGULATING VALVE,CONNECTION:
" 2 "
929Q A 0004290927 THRUST RING
REGULATING VALVE,CONNECTION:
" 2 "
929U A 0009971548 SEAL RING
REGULATING VALVE,CONNECTION:
"2"
930 N 080705018002 NUT
REGULATING VALVE,CONNECTION:
" 2 "
930F N 915036012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
" 1 "
930K N 915039012205 HOLLOW SCREW FITTING
REGULATING VALVE,CONNECTION:
" 2 "
930P N 007603016401 SEAL RING
REGULATING VALVE,CONNECTIONS:
"1,2"
931 A 0019973972 FITTING
TRAILING AXLE PNEUMATIC SUSPENSION
931 A 0039979972 FITTING
TRAILING AXLE PNEUMATIC SUSPENSION
933 A 0079974245 SEAL RING
TRAILING AXLE PNEUMATIC SUSPENSION
935 A 0004290627 THRUST RING
TRAILING AXLE PNEUMATIC SUSPENSION
937 A 0009977172 FITTING
LEFT SIDE MEMBER
939 N 080705012003 NUT
LEFT SIDE MEMBER
941 N 003953006101 FITTING
LEFT SIDE MEMBER
943 A 0009977172 FITTING
RIGHT SIDE MEMBER
945 N 080705012003 NUT
RIGHT SIDE MEMBER
A 6234320017 ANGLE
AT CROSS MEMBER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AT CROSS MEMBER
M 8X20
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AT CROSS MEMBER
947 A 3933911140 BRACKET
947 A 6233910040 BRACKET
N 000933008301 SCREW
Repalced by: A 0079900801
A 0079900801 SCREW
REGULATOR TO BRACKET
M 8X14
949 A 0029978272 FITTING
AT BRACKET
949 A 0019977472 FITTING
AT BRACKET
951 N 080705012003 NUT
AT BRACKET
951 N 080705014002 NUT
AT BRACKET
953 N 913004008004 NUT
Repalced by: N 913004008001
953 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
955 A 3854302210 BRACKET
955 A 6234300410 BRACKET
955 A 6234300510 BRACKET
957 A 0009900127 KNURLED HEAD SCREW
BRACKET TO BRAKE POWER REGULATOR
957 A 0009900227 KNURLED HEAD SCREW
BRACKET TO BRAKE POWER REGULATOR
959 N 304032008006 NUT
BRACKET TO BRAKE POWER REGULATOR
960 A 3954290440 BRACKET
Repalced by: A 6205243040
960 A 6205243040 BRACKET
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
960F N 000933008152 SCREW
Repalced by: N 304017008027
960F N 304017008027 SCREW
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
960K N 913004008004 NUT
Repalced by: N 913004008001
960K N 913004008001 NUT
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
961 A 3954290840 BRACKET
Repalced by: A 6674920240
961 A 6674920240 CLAMP
Repalced by: A 6554314640
961 A 6554314640 BRACKET
COMPRESSED AIR LINE
963 N 000933008147 SCREW
Repalced by: N 304017008021
963 N 304017008021 SCREW
BRACKET TO CONTROL ARM
965 N 913004008004 NUT
Repalced by: N 913004008001
965 N 913004008001 NUT
BRACKET TO CONTROL ARM
967 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER
969 A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER
971 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
973 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
975 N 915040012206 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
977 N 007603016401 SEAL RING
REAR AXLE II TRISTOP CYLINDER
981 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
981 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
981 A 0014306681 VALVE
Repalced by: A 0024309881
981 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
981 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
981 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
981 A 0014306781 VALVE
Repalced by: A 0024309981
981 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81,BOSCH
A 0009975577 HANDLE
KNORR
983 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 34 81,001 430 43 81,BOSCH
983 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
N 001481003025 CLAMPING SLEEVE
KNORR
985 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 431 43 81,BOSCH
987 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
987 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
989 A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
991 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
993 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
