Transporto priemonė: 2233 S; VIN numerio dalis: 623145
Grupė: 31 FRAME

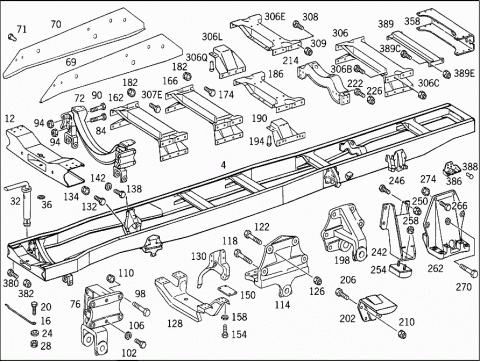

28767

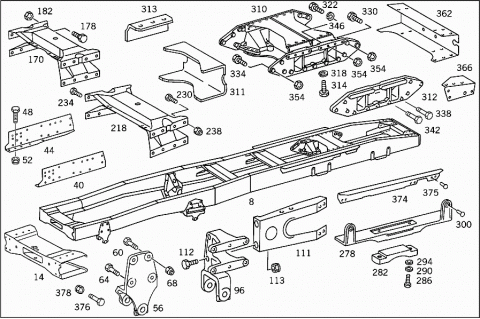

28768

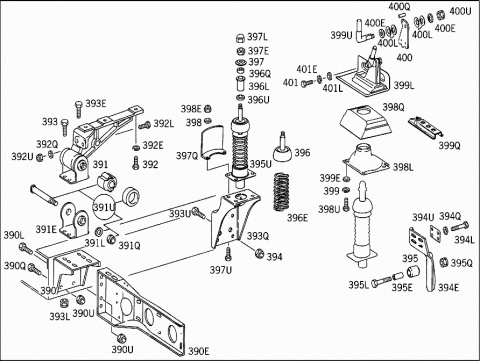

28769

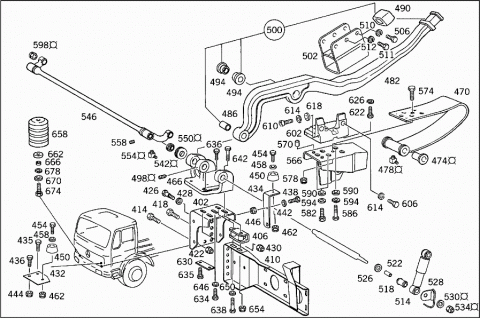

28770

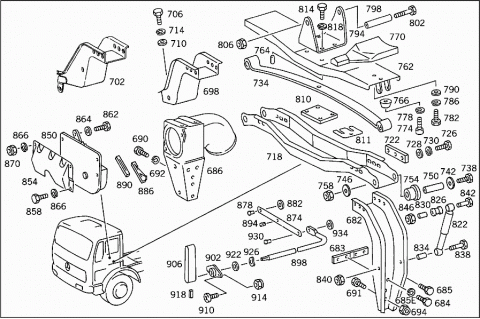

28771

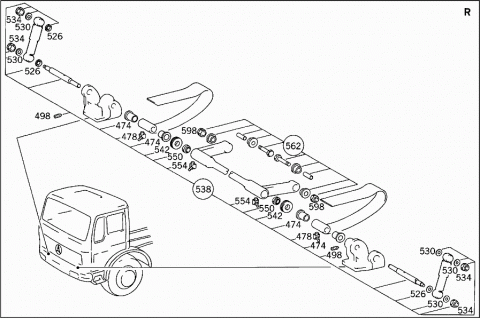

28772
# Kodas Pavadinimas
004 A 6233104001 FRAME
004 A 6233104101 FRAME
004 A 6233104701 FRAME
004 A 6233102301 FRAME
Repalced by: A 6233105001
004 A 6233105001 FRAME
008 A 6233104501 FRAME
008 A 6233101801 FRAME
Repalced by: A 6233105401
008 A 6233105401 FRAME
012 A 6203100022 CROSS MEMBER
FRONT
012 A 6203100222 CROSS MEMBER
FRONT
014 A 3873100422 CROSS MEMBER
FRONT
016 A 3353150031 LOCKING SPRING
FOR COUPLING MOUTH
020 N 000933008153 SCREW
Repalced by: N 304017008034
020 N 304017008034 SCREW
SPRING TO CROSS MEMBER
024 N 000125008418 WASHER
Repalced by: N 000125008443
024 N 000125008443 WASHER
SPRING TO CROSS MEMBER
028 N 913004008004 NUT
Repalced by: N 913004008001
028 N 913004008001 NUT
SPRING TO CROSS MEMBER
032 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
032 A 6203150006 COUPLING PIN
FOR COUPLING MOUTH
036 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
040 A 3873122087 GUSSET PLATE
FRONT LEFT
044 A 3873122187 GUSSET PLATE
Repalced by: A 6203120987
044 A 6203120987 GUSSET PLATE
FRONT RIGHT
048 N 000961012097 SCREW
Repalced by: N 308676012026
048 N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X35
048 N 000961012069 SCREW
Repalced by: N 308676012015
048 N 308676012015 SCREW
CROSS MEMBER TO FRAME TRUSSING
M 12X45
N 000125013008 WASHER
052 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
056 A 6203220201 FRONT SPRING BRACKET
Repalced by: A 6203220501
056 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
056 A 6203220901 FRONT SPRING BRACKET
FRONT
060 A 3879900114 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
060 A 6569900014 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
064 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
068 N 913004016005 NUT
Repalced by: N 910113016001
068 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
069 A 6203110353 ANGLE
LEFT REINFORCEMENT
069 A 6203110553 ANGLE
LEFT REINFORCEMENT
070 A 6203110453 ANGLE
RIGHT REINFORCEMENT
070 A 6203110653 ANGLE
RIGHT REINFORCEMENT
071 N 910005012080 RIVET
REINFORCEMENT ANGLE TO SIDE MEMBER
072 A 6213100036 CROSS MEMBER
NO.2
076 A 6213220001 FRONT SPRING BRACKET
FRONT LEFT
076 A 6213220101 FRONT SPRING BRACKET
FRONT RIGHT
084 N 000960016065 SCREW
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
M 16X95
090 N 000960016244 SCREW
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
M 16X90
094 N 913004016004 NUT
Repalced by: N 910113016002
094 N 910113016002 NUT
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
096 A 6203220301 FRONT SPRING BRACKET
Repalced by: A 6203220601
096 A 6203220601 FRONT SPRING BRACKET
FRONT
098 N 000960016112 SCREW
Repalced by: N 308676016015
098 N 308676016015 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
098 N 000961016096 SCREW
Repalced by: N 308676016007
098 N 308676016007 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X50
102 N 000961016075 SCREW
Repalced by: N 308676016020
102 N 308676016020 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X35
102 N 000961016108 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X30
106 N 912004016101 LOCK WASHER
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
110 N 913004016005 NUT
Repalced by: N 910113016001
110 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
111 A 6203121261 STRUT
FRONT LEFT
111 A 6203100653 STRUT
Repalced by: A 6553100453
111 A 6553100453 STRUT
FRONT LEFT
111 A 6203121361 STRUT
FRONT RIGHT
111 A 6203100753 STRUT
FRONT RIGHT
112 N 000960016061 SCREW
STRUT TO FRONT SPRING BRACKET
M16X85
113 N 913004016005 NUT
Repalced by: N 910113016001
113 N 910113016001 NUT
STRUT TO FRONT SPRING BRACKET
114 A 6203220003 FRONT SPRING BRACKET
Repalced by: A 6203220103
114 A 6203220103 FRONT SPRING BRACKET
REAR
118 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
122 N 000960014237 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X50
122 N 000961014101 SCREW
Repalced by: N 308676014012
122 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
126 N 913004014005 NUT
Repalced by: N 910113014000
126 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
128 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
128 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.3
128 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
A 3873122561 STRUT
Repalced by: A 3873100353
130 A 3873100353 STRUT
Repalced by: A 6203121561
130 A 6203121561 STRUT
FRONT SPRING REAR BRACKET
132 N 000961014113 SCREW
STRUT TO CROSS AND SIDE MEMBERS
132 N 000961014113 SCREW
STRUT TO CROSS AND SIDE MEMBERS
134 N 913004014002 NUT
Repalced by: N 910113014001
134 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
138 N 000961014028 SCREW
STRUT TO CROSS AND SIDE MEMBERS
142 N 912004014100 LOCK WASHER
STRUT TO CROSS AND SIDE MEMBERS
150 A 3873120084 SHIM
Repalced by: A 6203121984
150 A 6203121984 SHIM
CROSS MEMBER TO FRONT SPRING REAR BRACKET
154 N 000961014100 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
158 N 912004014100 LOCK WASHER
CROSS MEMBER TO FRONT SPRING REAR BRACKET
162 A 3953100136 CROSS MEMBER
NO.3
162 A 3953100136 CROSS MEMBER
NO.4
162 A 3953100136 CROSS MEMBER
NO.3
162 A 6213100136 CROSS MEMBER
NO.3
A 3873120025 CROSS MEMBER
NO.3
A 3873120025 CROSS MEMBER
NO.4
A 3873120025 CROSS MEMBER
NO.3
A 6213120225 CROSS MEMBER
Repalced by: A 3873120025
A 3873120025 CROSS MEMBER
NO.3
A 3953120261 STRUT
AT CROSS MEMBER
A 6243120261 STRUT
AT CROSS MEMBER
166 A 3873100136 CROSS MEMBER
NO.3
166 A 3873100136 CROSS MEMBER
NO.4
166 A 3873100136 CROSS MEMBER
NO.5
166 A 3873100136 CROSS MEMBER
NO.4
A 3873120025 CROSS MEMBER
A 3873121961 STRUT
AT CROSS MEMBER
170 A 6203100137 CROSS MEMBER
NO.3
170 A 6203100137 CROSS MEMBER
NO.4
170 A 6203100137 CROSS MEMBER
NO.3
A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
174 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
178 N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
182 N 913004014002 NUT
Repalced by: N 910113014001
182 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
186 A 3893120025 CROSS MEMBER
NO.4
186 A 3893120025 CROSS MEMBER
NO.5
186 A 3893120025 CROSS MEMBER
NO.6
186 A 3893120025 CROSS MEMBER
NO.5
190 A 3873120161 STRUT
AT CROSS MEMBER
194 N 910005012080 RIVET
STRUT TO CROSS MEMBER
198 A 3873250001 REAR SPRING BRACKET
FRONT
202 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
202 A 6843250017 HELPER SPRING BRACKET
REAR SPRING
202 A 6233250017 HELPER SPRING BRACKET
Repalced by: A 6233250240
A 6233250240 BRACKET
REAR SPRING
A 0009885711 BUFFER
BRACKET
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
RUBBER BUFFER TO BRACKET
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
RUBBER BUFFER TO BRACKET
206 N 000961012122 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
210 N 910113012002 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
214 A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.5
214 A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.6
214 A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.7
214 A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.6
218 A 6243100237 CROSS MEMBER
Repalced by: A 3953100037
218 A 3953100037 CROSS MEMBER
NO.5 , NO.7
218 A 3953100037 CROSS MEMBER
NO.4
218 A 3953100037 CROSS MEMBER
NO.5
218 A 3953100037 CROSS MEMBER
NO.4
A 3893120025 CROSS MEMBER
A 3873120261 STRUT
AT CROSS MEMBER
A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
222 N 000961012097 SCREW
Repalced by: N 308676012026
222 N 308676012026 SCREW
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
226 N 910113012002 NUT
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
230 N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
234 N 000961014054 SCREW
CROSS MEMBER WITH SHIM TO SIDE MEMBER
238 N 913004014002 NUT
Repalced by: N 910113014001
238 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
242 A 3353200029 STOP
REAR SPRING
246 N 000961014050 SCREW
Repalced by: N 308676014020
246 N 308676014020 SCREW
STOP TO SIDE MEMBER
250 N 913004014002 NUT
Repalced by: N 910113014001
250 N 910113014001 NUT
STOP TO SIDE MEMBER
254 A 3353250044 RUBBER BUFFER
REAR SPRING
258 N 913004010008 NUT
Repalced by: N 910113010000
258 N 910113010000 NUT
RUBBER BUFFER TO STOP
262 A 3633930038 SUPPORT
REAR SPRING
266 N 000961016039 SCREW
CONSOLE TO SIDE MEMBER
M 16X50
270 N 000960016244 SCREW
CONSOLE TO SIDE MEMBER
M 16X90
274 N 913004016004 NUT
Repalced by: N 910113016002
274 N 910113016002 NUT
CONSOLE TO SIDE MEMBER
278 A 6233250031 PLATE
REAR AXLES I AND II
278 A 3933250731 PLATE
REAR AXLES I AND II
282 A 3933250044 RUBBER BUFFER
REAR AXLES I AND II
286 N 000933010129 SCREW
Repalced by: N 304017010002
286 N 304017010002 SCREW
RUBBER BUFFER TO PLATE
290 N 912004010102 LOCK WASHER
RUBBER BUFFER TO PLATE
294 N 007349010003 WASHER
Repalced by: N 007349010007
294 N 007349010007 WASHER
RUBBER BUFFER TO PLATE
300 N 910005012087 RIVET
PLATE TO SIDE MEMBER
12X58 MM
300 N 910005012080 RIVET
PLATE TO SIDE MEMBER
12X42 MM
306 A 3933100037 CROSS MEMBER
NO.6
306 A 3933100037 CROSS MEMBER
NO.7
306 A 3933100037 CROSS MEMBER
NO.7
306 A 3933100037 CROSS MEMBER
NO.8
306 A 3933100037 CROSS MEMBER
NO.8
A 3873120017 CROSS MEMBER
A 3873120261 STRUT
AT CROSS MEMBER
306B N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
306B N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
306C N 913004014002 NUT
Repalced by: N 910113014001
306C N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
306E A 3933120325 CROSS MEMBER
NO.6
306E A 3933120325 CROSS MEMBER
NO.7
306E A 3933120325 CROSS MEMBER
NO.7
306E A 3933120325 CROSS MEMBER
NO.6
306L A 3933120561 STRUT
AT CROSS MEMBER
306Q N 910005012080 RIVET
STRUT TO CROSS MEMBER
307E N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14 X 40 MM
N 000961014034 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14 X 30 MM
308 N 000960016249 SCREW
Repalced by: N 308676016004
308 N 308676016004 SCREW
STRUT TO SIDE MEMBER
309 N 913004014002 NUT
Repalced by: N 910113014001
309 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
309 N 913004016004 NUT
Repalced by: N 910113016002
309 N 910113016002 NUT
CROSS MEMBER TO SIDE MEMBERS
310 A 6243100037 CROSS MEMBER
CENTRAL BEARING
NO.6
310 A 6243100037 CROSS MEMBER
CENTRAL BEARING
NO.6
310 A 6243100037 CROSS MEMBER
CENTRAL BEARING
NO.5
310 A 6243100037 CROSS MEMBER
CENTRAL BEARING
NO.5
311 A 3953120124 CROSS MEMBER
CENTRAL BEARING
312 A 6243250110 SUPPORT
Repalced by: A 6243250310
312 A 6243250310 SUPPORT
CENTRAL BEARING
313 A 6243120041 ANGLE
Repalced by: A 6243120141
313 A 6243120141 ANGLE
AT CROSS MEMBER
314 N 000961014050 SCREW
Repalced by: N 308676014020
314 N 308676014020 SCREW
CROSS MEMBER TO CONSOLE
318 N 912004014100 LOCK WASHER
CROSS MEMBER TO CONSOLE
322 A 0003120071 SCREW
Repalced by: A 0003121271
322 A 0003121271 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X40
330 A 0003120271 SCREW
Repalced by: N 914112016340
330 N 914112016340 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X55
330 A 0003120371 SCREW
Repalced by: N 914112016339
330 N 914112016341 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X60
334 A 0003120471 SCREW
Repalced by: N 914112016015
334 N 914112016015 SCREW
Repalced by: A 3469901104
334 A 3469901104 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X65
338 A 0003120171 SCREW
Repalced by: A 0003121471
338 A 0003121471 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X85
342 A 0003120671 SCREW
Repalced by: N 914112016344
342 N 914112016344 SCREW
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
M 16X95
346 N 912004016101 LOCK WASHER
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
354 N 913012016002 NUT
CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
358 A 3933100246 CROSS MEMBER
Repalced by: A 3873120735
358 A 3873120735 CROSS MEMBER
REAR
362 A 6213120635 CROSS MEMBER
Repalced by: A 6213120335
362 A 6213120335 CROSS MEMBER
Repalced by: A 6553120435
362 A 6553120435 CROSS MEMBER
REAR
366 A 6213120287 GUSSET PLATE
REAR LEFT
366 A 6583120087 GUSSET PLATE
REAR LEFT
366 A 6213120387 GUSSET PLATE
REAR RIGHT
366 A 6583120187 GUSSET PLATE
REAR RIGHT
374 A 6233160052 ANGLE
Repalced by: A 6243160052
374 A 6243160052 ANGLE
LEFT
374 A 6233160152 ANGLE
RIGHT
N 000933010157 SCREW
GUSSET PLATE TO SIDE MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
GUSSET PLATE TO SIDE MEMBER
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
M 12X12X16X32
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X18X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
Repalced by: A 3169900014
A 3169900014 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
Repalced by: A 0009906314
A 0009906314 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6569900014 SCREW
M 16X18X25X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
Repalced by: N 000961018043
N 000961018043 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
375 N 910005012012 RIVET
12X26 MM
375 N 910005012073 RIVET
12X28 MM
375 N 910005012080 RIVET
12X42 MM
375 N 910005014056 RIVET
14X45 MM
375 N 910005014059 RIVET
14X55 MM
375 N 910005014066 RIVET
14X70 MM
375 N 910005016017 RIVET
16X48 MM
375 N 910005016027 RIVET
16X58 MM
375 N 910005016027 RIVET
16X68 MM
376 N 000960016112 SCREW
Repalced by: N 308676016015
376 N 308676016015 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
376 N 000961016039 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X50
378 N 913004016004 NUT
Repalced by: N 910113016002
378 N 910113016002 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
380 N 000961014050 SCREW
Repalced by: N 308676014020
380 N 308676014020 SCREW
CROSS MEMBER NO.1 TO SIDE MEMBERS
382 N 913004014002 NUT
Repalced by: N 910113014001
382 N 910113014001 NUT
CROSS MEMBER NO.1 TO SIDE MEMBERS
386 A 3874030701 SUPPORT
SPARE WHEEL MOUNTING
388 N 910005012080 RIVET
SUPPORT TO FRAME
12X42 MM
388 N 910005012087 RIVET
SUPPORT TO FRAME
12X58 MM
389 A 3874030501 SUPPORT
SPARE WHEEL MOUNTING
389 A 3874030401 SUPPORT
SPARE WHEEL MOUNTING
389C N 000933010105 SCREW
CROSS MEMBER TO FRAME
389C N 000933010129 SCREW
Repalced by: N 304017010002
389C N 304017010002 SCREW
CROSS MEMBER TO FRAME
389E N 913004010008 NUT
Repalced by: N 910113010000
389E N 910113010000 NUT
CROSS MEMBER TO FRAME
390 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
390E A 6203170223 STRUT
BUMPER,LEFT
390E A 6203170423 STRUT
BUMPER,RIGHT
390L N 000961014101 SCREW
Repalced by: N 308676014012
390L N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
390Q N 000961014063 SCREW
Repalced by: A 9429901304
390Q A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
390U N 913004014005 NUT
Repalced by: N 910113014000
390U N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
391 A 3813106509 BRACKET
CAB,LEFT
391 A 6208902103 MOUNTING
CAB,LEFT
391 A 3813106609 BRACKET
CAB, RIGHT
391 A 6208902203 MOUNTING
CAB, RIGHT
391E A 3878902903 MOUNTING
391E A 6208902003 MOUNTING
391L N 007349017002 WASHER
391Q N 913004016004 NUT
Repalced by: N 910113016002
391Q N 910113016002 NUT
391U A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
392 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
392E N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
392L N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
392Q A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
392U N 913004014002 NUT
Repalced by: N 910113014001
392U N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
393 N 000961014063 SCREW
Repalced by: A 9429901304
393 A 9429901304 SCREW
CAB TO FRAME
M 14X40
393E N 000961014101 SCREW
Repalced by: N 308676014012
393E N 308676014012 SCREW
CAB TO FRAME
M 14X45
393L N 913004014005 NUT
Repalced by: N 910113014000
393L N 910113014000 NUT
CAB TO FRAME
393Q A 3873170001 CONSOLE
Repalced by: A 6553170001
393Q A 6553170001 CONSOLE
Repalced by: A 3873170001
393Q A 3873170001 CONSOLE
CAB MOUNTING,REAR
393U N 000961012097 SCREW
Repalced by: N 308676012026
393U N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
394 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
394E A 3873170626 GUIDE
LEFT
394E A 3873170726 GUIDE
RIGHT
394L N 000961012151 SCREW
GUIDE TO CAB
394Q N 912004012100 LOCK WASHER
GUIDE TO CAB
394U A 3873170084 SHIM
GUIDE TO CAB
395 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
395E A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
395L N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
395Q N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
395U A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
395U A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
395U A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
395U A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
395U A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
395U A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
396 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19,620 890 00 19
396 A 0008900148 JOINT
Repalced by: A 0008910301
396 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19,387 890 13 19
396E A 0008910751 SPRING
Repalced by: A 0008910451
396E A 0008910451 SPRING
396E A 0008911051 SPRING
TO 620 890 00 19
396E A 0008911151 SPRING
TO 620 890 01 19
A 0008910123 BUFFER
TO 620 890 00 19
396L A 3813170753 SPACER TUBE
SHOCK ABSORBER MOUNTING
396Q A 3275045082 RUBBER RING
SHOCK ABSORBER MOUNTING
396U N 000433015005 WASHER
SHOCK ABSORBER MOUNTING
397 A 3878912010 WASHER
SHOCK ABSORBER MOUNTING
397E N 000934012022 NUT
SHOCK ABSORBER MOUNTING
397L N 001587012008 CAP NUT
Repalced by: N 001587012010
397L N 001587012010 CAP NUT
SHOCK ABSORBER MOUNTING
397Q A 3813170031 COVER PLATE
SHOCK ABSORBER
397U N 000933008153 SCREW
Repalced by: N 304017008034
397U N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
398 N 009021008205 WASHER
Repalced by: N 009021008213
398 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
398E N 913004008004 NUT
Repalced by: N 913004008001
398E N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
398L A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
398L A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
398Q A 3813170097 BOOT
SHOCK ABSORBER,TOP
398U N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
399 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
399E N 000125010518 WASHER
Repalced by: N 000125010532
399E N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
399L A 3813102075 LOCKING MECHANISM
CAB LOCKING MECHANISM,LEFT
399L A 3813101975 LOCKING MECHANISM
CAB LOCKING MECHANISM,RIGHT
399Q A 3813170119 LATCH
399U A 3813172374 PIN
400 A 3813170924 LEVER
400E A 3813170676 WASHER
400L A 0009935426 DISC SPRING
400Q N 001481006041 CLAMPING SLEEVE
400U N 910113012002 NUT
401 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
401E N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
401L N 000125010518 WASHER
Repalced by: N 000125010532
401L N 000125010532 WASHER
LOCKING MECHANISM TO CAB
402 A 3878912631 CONSOLE
CAB SUSPENSION,FRONT
402 A 3878912831 CONSOLE
CAB SUSPENSION,FRONT
406 A 6208900232 BOW
CAB SUSPENSION,FRONT
410 A 6203100253 STRUT
BUMPER,LEFT
410 A 6203100053 STRUT
BUMPER,LEFT
410 A 6203100353 STRUT
BUMPER,RIGHT
410 A 6203100153 STRUT
BUMPER,RIGHT
414 N 000961014063 SCREW
Repalced by: A 9429901304
414 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
418 N 000961014101 SCREW
Repalced by: N 308676014012
418 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
422 N 913004014005 NUT
Repalced by: N 910113014000
422 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
426 A 6209900014 SCREW
CONSOLE AND STRUT TO FRAME
428 A 3939900240 WASHER
CONSOLE AND STRUT TO FRAME
430 N 913004016005 NUT
Repalced by: N 910113016001
430 N 910113016001 NUT
CONSOLE AND STRUT TO FRAME
432 A 3878910914 BRACKET
BUFFER
434 A 3878900314 BRACKET
LEFT
434 A 3878900414 BRACKET
RIGHT
435 N 000961012151 SCREW
BRACKET TO FRAME
M 12X30
436 N 000961012097 SCREW
Repalced by: N 308676012026
436 N 308676012026 SCREW
BRACKET TO FRAME
M 12X35
438 N 000961014028 SCREW
BRACKET TO CONSOLE
442 N 007349015003 WASHER
BRACKET TO CONSOLE
444 N 910113012002 NUT
BRACKET TO FRAME
446 N 913004014002 NUT
Repalced by: N 910113014001
446 N 910113014001 NUT
BRACKET TO CONSOLE
450 A 3348910072 MOUNTING
(RUBBER BUFFER)
454 N 000933008153 SCREW
Repalced by: N 304017008034
454 N 304017008034 SCREW
BUFFER TO BRACKET
458 N 009021008205 WASHER
Repalced by: N 009021008213
458 N 009021008213 WASHER
BUFFER TO BRACKET
462 N 913004008004 NUT
Repalced by: N 913004008001
462 N 913004008001 NUT
BUFFER TO BRACKET
466 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
466 A 6208910420 MOUNTING
CAB SUSPENSION,FRONT LEFT
466 A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
466 A 6208910520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
470 A 3878910551 SPRING
(LEAF SPRING),CAB SUSPENSION
470 A 6208910151 SPRING
(LEAF SPRING),CAB SUSPENSION
474 A 3638910617 BUSHING
LEAF SPRING
478 N 071412008200 GREASE NIPPLE
LEAF SPRING
482 A 3878912556 LEVER
(TILTING LEVER),CAB
482 A 3878912856 LEVER
(TILTING LEVER),CAB
482 A 3878912856 LEVER
(TILTING LEVER),CAB
486 A 3879920003 BUSHING
LEVER
486 A 3879920203 BUSHING
LEVER
490 A 3638910023 BUFFER
LEVER TO BEARING
494 A 6208910017 BUSHING
LEVER
498 N 000417008004 HEADLESS SETSCREW
SHAFT ADJUSTMENT
500 A 3875860431 REPAIR KIT
Repalced by: A 3879920003
500 A 3879920003 BUSHING
CAB MOUNTING
502 A 3878915520 MOUNTING
Repalced by: A 3878913220
502 A 3878913220 MOUNTING
Repalced by: A 6208901603
502 A 6208901603 MOUNTING
LEVER
506 N 000933010105 SCREW
MOUNTING TO CAB
510 N 912004010102 LOCK WASHER
MOUNTING TO CAB
511 N 000961012052 SCREW
Repalced by: N 308676012012
511 N 308676012012 SCREW
MOUNTING TO CAB
511 N 308676012012 SCREW
MOUNTING TO CAB
512 N 912004012100 LOCK WASHER
MOUNTING TO CAB
514 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
514 A 0008911805 SHOCK ABSORBER
Repalced by: A 0008912205
514 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,FRONT
518 A 0008910501 RUBBER MOUNTING
522 A 0008910617 BUSHING
526 A 3873170176 WASHER
Repalced by: A 6203170176
526 A 6203170176 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB, INSIDE
528 A 6208900332 BOW
SHOCK ABSORBER,BOTTOM LEFT
530 A 3873170276 WASHER
Repalced by: N 000125013008
530 N 000125013008 WASHER
530 N 000125013008 WASHER
534 N 910113012002 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
538 A 3875860131 REPAIR KIT
Repalced by: A 3873100077
538 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
542 A 3878911910 WASHER
CAB SUSPENSION,FRONT
546 A 6218900304 STABILIZER
Repalced by: A 6528900104
546 A 6528900104 STABILIZER
CAB SUSPENSION
546 A 6218900504 STABILIZER
Repalced by: A 6558900004
546 A 6558900004 STABILIZER
CAB SUSPENSION
550 A 0009817331 JOINT BEARING
Repalced by: A 0009817231
550 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
550 A 0019814631 JOINT BEARING
A 0019814831 JOINT BEARING
554 N 071412008200 GREASE NIPPLE
558 N 000906010000 SCREW PLUG
STABILIZER
562 A 6203100077 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
562 A 6203100177 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
566 A 6218900203 MOUNTING
Repalced by: A 6218900403
566 A 6218900403 MOUNTING
STABILIZER TO CAB,LEFT
566 A 6218900303 MOUNTING
Repalced by: A 6218900503
566 A 6218900503 MOUNTING
STABILIZER TO CAB,RIGHT
570 A 6218910157 PIN
574 N 000933008153 SCREW
Repalced by: N 304017008034
574 N 304017008034 SCREW
SPRING TO BEARING
578 N 913004008004 NUT
Repalced by: N 913004008001
578 N 913004008001 NUT
SPRING TO BEARING
582 N 000961014028 SCREW
MOUNTING TO CONSOLE
M 14X40
586 N 000960014061 SCREW
MOUNTING TO CONSOLE
M 14X80
590 N 007349015003 WASHER
MOUNTING TO CONSOLE
594 N 912004014100 LOCK WASHER
MOUNTING TO CONSOLE
N 000960014245 SCREW
STABILIZER TO BEARING BRACKET
598 N 913004014002 NUT
Repalced by: N 910113014001
598 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
602 A 3878910831 CONSOLE
Repalced by: A 6208910631
602 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
602 A 3878910931 CONSOLE
Repalced by: A 6208910731
602 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
606 N 000961012069 SCREW
Repalced by: N 308676012015
606 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
610 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
614 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
618 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
622 N 000961014050 SCREW
Repalced by: N 308676014020
622 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
626 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
630 A 3878910098 SHIM
Repalced by: A 3878910498
630 A 3878910498 SHIM
CAB ON CONSOLE AT FRAME
634 N 000961014008 SCREW
Repalced by: N 308676014003
634 N 308676014003 SCREW
CAB ON CONSOLE AT FRAME
M 14X30
635 N 000961014088 SCREW
Repalced by: N 308676014008
635 N 308676014008 SCREW
CAB ON CONSOLE AT FRAME
M 14X35
636 N 000961014103 SCREW
CAB ON CONSOLE AT FRAME
M 14X55
638 N 000960014251 SCREW
CAB ON CONSOLE AT FRAME
M 14X85
642 N 000960014248 SCREW
Repalced by: N 308765014008
642 N 308765014008 SCREW
CAB ON CONSOLE AT FRAME
M 14X100
646 N 007349015003 WASHER
CAB ON CONSOLE AT FRAME
650 N 912004014100 LOCK WASHER
CAB ON CONSOLE AT FRAME
654 N 913004014005 NUT
Repalced by: N 910113014000
654 N 910113014000 NUT
CAB ON CONSOLE AT FRAME
658 A 3638910223 BUFFER
CAB,FRONT
662 A 3638910047 FLANGE
BUFFER TO CAB
666 A 3638910517 BUSHING
BUFFER TO CAB
670 A 3878912210 WASHER
Repalced by: A 4432610076
670 A 4432610076 WASHER
BUFFER TO CAB
674 N 000933010129 SCREW
Repalced by: N 304017010002
674 N 304017010002 SCREW
BUFFER TO CAB
M 10X30
674 N 000933010094 SCREW
BUFFER TO CAB
M 10X40
678 N 912004010102 LOCK WASHER
BUFFER TO CAB
682 A 3878911731 CONSOLE
CAB SUSPENSION,REAR LEFT
682 A 6208910031 CONSOLE
CAB SUSPENSION,REAR LEFT
683 A 6208910096 BASE
CAB SUSPENSION,REAR LEFT
684 N 000961014028 SCREW
SHIM
685 N 000961014050 SCREW
Repalced by: N 308676014020
685 N 308676014020 SCREW
SHIM
685E N 912004014100 LOCK WASHER
SHIM
686 A 6208910231 CONSOLE
AIR INTAKE
686 A 6208910231 CONSOLE
AIR INTAKE
686 A 6208910831 CONSOLE
AIR INTAKE
686 A 6208910831 CONSOLE
AIR INTAKE
690 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
690 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
690 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
690 N 000961016040 SCREW
CONSOLE TO SIDE MEMBER
691 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
691 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
692 N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
692 N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
692 N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
692 N 912004016101 LOCK WASHER
CONSOLE TO SIDE MEMBER
694 N 913004014002 NUT
Repalced by: N 910113014001
694 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
694 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
694 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
698 A 6208910131 CONSOLE
RIGHT TOP REAR
702 A 6208900031 CONSOLE
RIGHT TOP REAR
706 N 000961012151 SCREW
CONSOLE TO CONSOLE
710 A 3609900940 WASHER
CONSOLE TO CONSOLE
714 N 912004012100 LOCK WASHER
CONSOLE TO CONSOLE
718 A 3878910024 STRUT
Repalced by: A 6558910224
718 A 6558910224 STRUT
CROSS CONNECTION
722 A 3878910198 SHIM
STRUT TO CONSOLE
726 N 000961012052 SCREW
Repalced by: N 308676012012
726 N 308676012012 SCREW
STRUT TO CONSOLE
M 12X25
726 N 000961012151 SCREW
STRUT TO CONSOLE
M 12X30
728 N 000125013008 WASHER
730 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
734 A 3878911051 SPRING
CAB SUSPENSION,REAR
734 A 6208910051 SPRING
CAB SUSPENSION,REAR
738 N 000960012153 SCREW
SPRING TO STRUT
738 N 000960012332 SCREW
SPRING TO STRUT
742 A 3638910010 WASHER
SPRING TO STRUT
746 N 009021013200 WASHER
SPRING TO STRUT
750 A 3638910218 TUBE
SPRING TO STRUT
754 A 3638910717 BUSHING
SPRING TO STRUT
758 N 910113012002 NUT
SPRING TO STRUT
762 A 3878900522 RAIL
Repalced by: A 6558900122
762 A 6558900122 RAIL
(CONNECTING RAIL)
764 N 000007012201 CYLINDRICAL PIN
766 A 3878910323 BUFFER
(RUBBER BUFFER)
770 A 6208910072 MOUNTING
Repalced by: A 3878910072
770 A 3878910072 MOUNTING
RUBBER MOUNTING
770 A 6208910172 MOUNTING
RUBBER MOUNTING
770 A 6208910272 MOUNTING
RUBBER MOUNTING
774 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
778 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
782 N 000933008154 SCREW
Repalced by: N 304017008021
782 N 304017008021 SCREW
MOUNTING TO RAIL
786 N 912004008102 LOCK WASHER
MOUNTING TO RAIL
790 N 000125008418 WASHER
Repalced by: N 000125008443
790 N 000125008443 WASHER
MOUNTING TO RAIL
794 A 6208910020 MOUNTING
CAB MOUNTING,REAR
798 A 3878911753 SPACER TUBE
MOUNTING
802 N 000960016242 SCREW
Repalced by: N 000960016251
802 N 000960016251 SCREW
MOUNTING
806 N 913004016004 NUT
Repalced by: N 910113016002
806 N 910113016002 NUT
MOUNTING
810 A 3878910811 PLATE
MOUNTING
811 A 6208910296 BASE
RAIL AND PLATE TO SPRING
814 N 000931010258 SCREW
RAIL AND PLATE TO SPRING
818 N 912004010102 LOCK WASHER
RAIL AND PLATE TO SPRING
822 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
822 A 0008911805 SHOCK ABSORBER
Repalced by: A 0008912205
822 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
826 A 0008910501 RUBBER MOUNTING
830 A 0008910617 BUSHING
834 A 3878910453 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
838 N 000960018125 SCREW
Repalced by: N 000960018072
838 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
840 N 913004018003 NUT
Repalced by: N 910113018004
840 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
842 N 000960018040 SCREW
Repalced by: N 000960018142
842 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
846 N 913004018003 NUT
Repalced by: N 910113018004
846 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
850 A 0008900089 FASTENER
Repalced by: A 0008902389
850 A 0008901389 FASTENER
Repalced by: A 0008902389
850 A 0008902389 FASTENER
(CENTRAL LOCK)
854 A 3878911131 CONSOLE
CENTRAL LOCK
858 N 000933010128 SCREW
FASTENER TO CAB
M 10X20
858 N 000933010198 SCREW
FASTENER TO CAB
M 10X16
858 N 000933010198 SCREW
FASTENER TO CAB
M 10X16
862 N 000933010105 SCREW
FASTENER TO CAB
M 10X25
864 N 000125010518 WASHER
Repalced by: N 000125010532
864 N 000125010532 WASHER
FASTENER TO CAB
866 N 912004010102 LOCK WASHER
FASTENER TO CAB
870 N 913004010008 NUT
Repalced by: N 910113010000
870 N 910113010000 NUT
FASTENER TO CAB
874 A 3878910070 ROD
CENTRAL LOCK
874 A 6208910070 ROD
Repalced by: A 6208910270
874 A 6208910270 ROD
CENTRAL LOCK
878 N 001444008202 PIN
PULL TO FASTENER
A 1269911907 PIN
PULL TO FASTENER
882 N 000433008406 WASHER
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
N 912002008001 LOCK
Repalced by: N 912002008003
N 912002008003 LOCK
PULL TO FASTENER
886 A 3878910814 BRACKET
SEAL
890 A 3878910085 SEAL
AT CROSS MEMBER
894 N 007346005003 CLAMPING SLEEVE
ROD TO BRACKET
898 A 3878911456 LEVER
CAB LOCKING MECHANISM
898 A 6208910256 LEVER
CAB LOCKING MECHANISM
898 A 6208910256 LEVER
CAB LOCKING MECHANISM
898 A 6208910556 LEVER
CAB LOCKING MECHANISM
902 A 3638910317 BUSHING
CAB LOCKING MECHANISM
906 A 6208910073 HANDLE
CAB LOCKING MECHANISM
910 N 007985008142 SCREW
BUSHING AND LEVER TO CAB
914 N 913004008004 NUT
Repalced by: N 913004008001
914 N 913004008001 NUT
BUSHING AND LEVER TO CAB
A 2019900292 RIVET
BUSHING AND LEVER TO CAB
918 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
918 N 001481005039 CLAMPING SLEEVE
HANDLE TO LEVER
918 N 001481005039 CLAMPING SLEEVE
LEVER MOUNTING
922 N 000125015013 WASHER
Repalced by: N 000125015019
922 N 000125015019 WASHER
LEVER MOUNTING
926 N 900055014401 LOCK RING
LEVER MOUNTING
930 N 001444008233 PIN
ROD TO LEVER
934 N 000433008406 WASHER
ROD TO LEVER
N 000094002059 COTTER PIN
ROD TO LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
