Transporto priemonė: 2244/S,LS; VIN numerio dalis: 648195
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

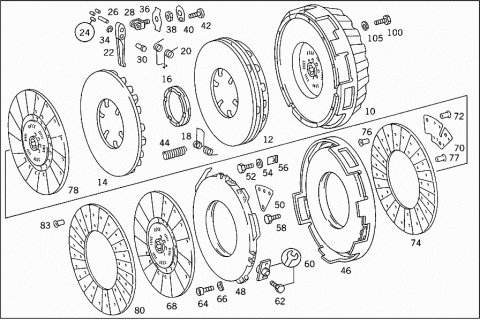

| CLUTCH PRESSURE PLATE,BELL HOUSING | ||
| 010 | A 0042504104 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 010 | A 0042505504 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 010 | A 0042507304 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 010 | A 0042509804 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042504104 | ||
| 010 | A 0042504004 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) | ||
| 010 | A 0042503504 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 010 | A 0042503604 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 010 | A 0042509704 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 012 | A 0042505404 | CLUTCH PRESSURE PLATE |
| 014 | A 0002526412 | PRESSURE PLATE |
| 016 | A 0002522445 | FLANGE |
| 018 | A 0002524027 | SPRING |
| 020 | A 0002523927 | SPRING |
| 022 | A 0002526713 | RELEASE LEVER |
| 024 | A 0002520118 | ROLLER |
| RELEASE LEVER | ||
| 026 | A 0002520616 | SPINDLE |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 028 | A 0002520614 | BRACKET |
| RELEASE LEVER | ||
| 030 | A 0002522816 | SPINDLE |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 034 | N 006799007007 | LOCK PLATE |
| 036 | A 0002523719 | LEAF SPRING |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 038 | A 0002523072 | NUT |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 040 | A 0002521073 | LOCK |
| BRACKET TO CLUTCH PRESSURE PLATE HOUSING | ||
| 042 | A 0002522971 | SCREW |
| LOCK TO CLUTCH PRESSURE PLATE | ||
| 044 | A 0002528320 | PRESSURE SPRING |
| 046 | A 0002501408 | INTERMEDIATE PIECE |
| Repalced by: A 0002501908 | ||
| 046 | A 0002501908 | INTERMEDIATE PIECE |
| 048 | A 0002510176 | WASHER |
| 050 | A 0002524119 | LEAF SPRING |
| Repalced by: A 0002525019 | ||
| 050 | A 0002525019 | LEAF SPRING |
| 052 | A 0002523471 | SCREW |
| 054 | A 0002510276 | WASHER |
| 056 | A 0002510112 | REINFORCEMENT PLATE |
| 058 | A 0002521071 | SCREW |
| Repalced by: A 1829900001 | ||
| 058 | A 1829900001 | SCREW |
| 060 | A 0002500261 | SLEEVE VALVE |
| Repalced by: A 0002500361 | ||
| 060 | A 0002500361 | SLEEVE VALVE |
| (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.HEAD SCREW | ||
| M 6 | ||
| 060 | A 0002500461 | SLEEVE VALVE |
| (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.SOCKET SCREW | ||
| M 8 | ||
| 062 | A 0002510471 | SCREW |
| M 6 | ||
| 062 | A 0002510671 | SCREW |
| M 8 | ||
| 064 | A 0009908412 | SCREW |
| Repalced by: N 000912010038 | ||
| 064 | N 006912010030 | SCREW |
| 066 | N 000137010201 | SPRING WASHER |
| 068 | A 0072505003 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0082501703 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0082508303 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0102507803 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0072504903 | CLUTCH DISC |
| ON TRANSMISSION END | ||
| 068 | A 0072500203 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0072500303 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 068 | A 0102507603 | CLUTCH DISC |
| ON TRANSMISSION END;ASBESTOS-FREE LINING | ||
| 070 | A 0002524219 | LEAF SPRING |
| 072 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 074 | A 0012523610 | CLUTCH LINING |
| Repalced by: A 0012529410 | ||
| 074 | A 0012529410 | CLUTCH LINING |
| Repalced by: A 0022521010 | ||
| 074 | A 0022521010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 076 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 077 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 078 | A 0072504703 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0082501603 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0082508203 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0102507703 | CLUTCH DISC |
| Repalced by: A 0072504703 | ||
| 078 | A 0072504703 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0072504603 | CLUTCH DISC |
| ON ENGINE END | ||
| 078 | A 0062509503 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0062509603 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 078 | A 0102507503 | CLUTCH DISC |
| ON ENGINE END; ASBESTOS-FREE LINING | ||
| 080 | A 0012523510 | CLUTCH LINING |
| Repalced by: A 0012529710 | ||
| 080 | A 0012529710 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 083 | A 0002524075 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 100 | N 000931010379 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 105 | N 912004010102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 110 | A 6202500305 | HOUSING |
| Repalced by: A 4032505405 | ||
| 110 | A 4032505405 | HOUSING |
| CLUTCH | ||
| 115 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 120 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 24X27 MM | ||
| 125 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 125 | A 6202510050 | BUSHING |
| TOP | ||
| 130 | A 3389920103 | BUSHING |
| TOP | ||
| 35X39 MM | ||
| 135 | A 3859970040 | SEAL RING |
| TOP | ||
| 140 | A 0119978846 | SEAL RING |
| TOP | ||
| 140 | A 0099971547 | SEAL RING |
| TOP | ||
| 145 | A 3852930027 | COVER PLATE |
| TOP | ||
| 150 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 150 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 155 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 155 | N 308676018010 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 160 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

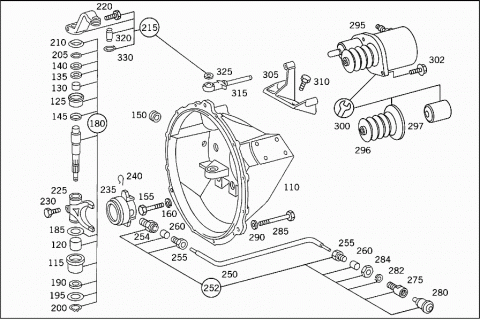

| CLUTCH ACTUATION | ||
| 180 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 180 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 185 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 185 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 185 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 185 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 185 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 185 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 190 | A 3379975040 | SEAL RING |
| RELEASE SHAFT,BOTTOM | ||
| 195 | A 3432930052 | SPACER WASHER |
| RELEASE SHAFT,BOTTOM | ||
| 200 | N 000471024000 | LOCK RING |
| RELEASE SHAFT,BOTTOM | ||
| 205 | A 0029972948 | SEAL RING |
| RELEASE SHAFT,TOP | ||
| 210 | A 6202540176 | WASHER |
| RELEASE SHAFT,TOP | ||
| 210 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| A 6202950028 | LEVER | |
| CLUTCH ACTUATION | ||
| 215 | A 6202900434 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 220 | N 000931010258 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 225 | A 6202540108 | RELEASE LEVER |
| 230 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 230 | N 000933012102 | SCREW |
| Repalced by: N 304017012018 | ||
| 230 | N 304017012018 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| 235 | A 0002507515 | RELEASE BEARING |
| 240 | A 3179930225 | SPRING |
| RELEASE BEARING TO RELEASE LEVER | ||
| 250 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 252 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 254 | N 071428004102 | SCREW-IN FITTING |
| GEARSHIFT,TRANSMISSION | ||
| 255 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 260 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 275 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 280 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 282 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 284 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 284 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 284 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 285 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 290 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 290 | N 000125010532 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 295 | A 0012952107 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KNORR | ||
| 295 | A 0012956707 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| WABCO | ||
| 295 | A 0012953907 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KONGSBERG | ||
| 296 | A 0002954183 | BOOT |
| WABCO | ||
| 296 | A 0002956683 | BOOT |
| KONGSBERG | ||
| 297 | A 0002954283 | BOOT |
| WABCO | ||
| 297 | A 0002956783 | BOOT |
| KONGSBERG | ||
| 300 | A 0002903267 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| WABCO | ||
| 300 | A 0002900047 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| KONGSBERG | ||
| 302 | N 914126010032 | SCREW |
| Repalced by: N 914146010114 | ||
| 302 | N 914146010114 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 305 | A 6202950240 | BRACKET |
| SLAVE CYLINDER | ||
| 310 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 310 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 315 | A 0009967640 | ROD END |
| CLUTCH ACTUATION | ||
| 320 | A 3072560074 | PIN |
| ROD END TO CLUTCH RELEASE SHAFT LEVER | ||
| 325 | A 0019972141 | SEAL RING |
| ROD END TO CLUTCH RELEASE SHAFT LEVER | ||
| 330 | N 000471012001 | LOCK RING |
| ROD END TO CLUTCH RELEASE SHAFT LEVER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

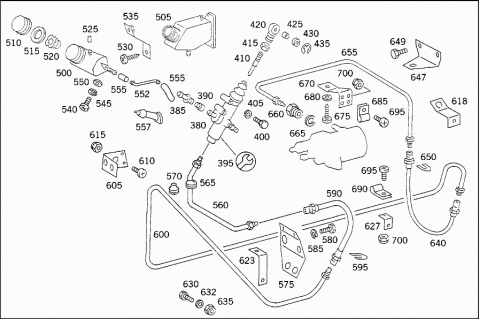

| MASTER CYLINDER,OIL TANK,HYDRAULIC LINES | ||
| 380 | A 0012953006 | MASTER CYLINDER |
| CLUTCH | ||
| 385 | A 0002950836 | INTERMEDIATE PIECE |
| 390 | A 0009971186 | PLUG |
| 395 | A 0005866029 | REPAIR KIT |
| MASTER CYLINDER | ||
| 400 | N 000931006134 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X60 | ||
| 400 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 400 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 405 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 410 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 415 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 415 | N 304035008001 | NUT |
| ROD TO ARTICULATION | ||
| 420 | A 0009961045 | ARTICULATION PIECE |
| MASTER CYLINDER | ||
| 420 | A 0009961145 | ARTICULATION PIECE |
| MASTER CYLINDER | ||
| 425 | A 0059813810 | NEEDLE BEARING |
| JOINT TO PIN | ||
| 425 | A 0059814410 | NEEDLE BEARING |
| JOINT TO PIN | ||
| 425 | A 0089811210 | NEEDLE BEARING |
| JOINT TO PIN | ||
| 425 | A 0139818210 | NEEDLE BEARING |
| JOINT TO PIN | ||
| 430 | N 000433008406 | WASHER |
| JOINT TO PIN | ||
| 435 | N 006799006003 | LOCK PLATE |
| JOINT TO PIN | ||
| 500 | A 0002951715 | RESERVOIR |
| EXPANSION TANK | ||
| 500 | A 0002952315 | RESERVOIR |
| EXPANSION TANK | ||
| 505 | A 0002952715 | RESERVOIR |
| EXPANSION TANK | ||
| 510 | A 0002950116 | LOCKING CAP |
| 515 | A 0009972940 | SEAL RING |
| 520 | A 0004314334 | STRAINER |
| 525 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 530 | N 007981005306 | SHEET METAL SCREW |
| RESERVOIR TO FIRE WALL | ||
| 535 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 535 | A 6202900233 | BRACKET |
| RESERVOIR | ||
| 540 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 540 | N 007985006581 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 545 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 550 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 550 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 552 | A 3872950313 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 10X700 MM | ||
| 555 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 557 | A 3819970781 | GROMMET |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 557 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 560 | A 3812901714 | LINE |
| Repalced by: A 3812903214 | ||
| 560 | A 3812903214 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 570 MM | ||
| 560 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 565 | A 3149970581 | GROMMET |
| 570 | A 3819970881 | GROMMET |
| 575 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 580 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 580 | N 304017006016 | SCREW |
| BRACKET TO CAB | ||
| 585 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 590 | A 3832950035 | HOSE |
| Repalced by: A 3982950035 | ||
| 590 | A 3982950035 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 605 MM | ||
| 595 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 595 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 600 | A 3812902214 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2000 MM | ||
| 605 | A 6202951640 | BRACKET |
| AT OIL TANK BRACKET | ||
| 605 | A 6202951740 | BRACKET |
| AT OIL TANK BRACKET | ||
| 610 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 610 | N 000000001146 | SCREW |
| BRACKET TO OIL TANK | ||
| M 6X16 | ||
| 615 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 615 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 618 | A 6162952540 | BRACKET |
| AT SIDE MEMBER | ||
| 618 | A 6452950640 | BRACKET |
| AT SIDE MEMBER | ||
| 623 | A 3815530640 | BRACKET |
| AT LEFT SIDE MEMBER | ||
| 623 | A 6452950740 | BRACKET |
| AT LEFT SIDE MEMBER | ||
| 627 | A 3604280243 | ANGLE |
| AT LEFT SIDE MEMBER | ||
| 627 | A 3604280243 | ANGLE |
| AT RIGHT SIDE MEMBER | ||
| 630 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 630 | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 630 | N 304017008027 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 630 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 630 | N 304017010002 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 632 | N 007349008003 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 635 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 635 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 635 | N 913004008001 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 635 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 635 | N 910113010000 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 640 | A 0002951735 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT TRANSMISSION | ||
| 215 MM | ||
| 640 | A 0002951735 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE | ||
| 215 MM | ||
| 640 | A 0002951835 | HOSE |
| CLUTCH;FROM BRACKET AT FRAME TO BRACKET AT ENGINE | ||
| 350 MM | ||
| 647 | A 6452950540 | BRACKET |
| AT ENGINE,RIGHT | ||
| 649 | N 000933016060 | SCREW |
| Repalced by: N 304017016011 | ||
| 649 | N 304017016011 | SCREW |
| BRACKET TO ENGINE | ||
| 650 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 650 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| 655 | A 3812902014 | LINE |
| HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER | ||
| 1100 MM | ||
| 655 | A 3812901814 | LINE |
| HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER | ||
| 700 MM | ||
| 660 | A 0049971172 | FITTING |
| CLUTCH BOOSTER,CONNECTION: | ||
| "4" | ||
| 665 | N 007603014106 | SEAL RING |
| CLUTCH BOOSTER,CONNECTION: | ||
| "4" | ||
| 670 | A 3812950440 | BRACKET |
| HYDRAULIC LINE | ||
| 675 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 680 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 685 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 685 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO WIPER MOTOR BRACKET | ||
| 690 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 690 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 690 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 690 | N 000000000319 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 690 | N 000000000319 | CLAMP |
| HYDRAULIC LINE TO ANGLE | ||
| 695 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 695 | N 007985006581 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 695 | N 007985006581 | SCREW |
| HYDRAULIC LINE TO WIPER MOTOR BRACKET | ||
| 695 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 695 | N 000000001146 | SCREW |
| HYDRAULIC LINE TO ANGLE | ||
| M 6X16 | ||
| 695 | N 000000001146 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X16 | ||
| 700 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 700 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 700 | N 913004006001 | NUT |
| HYDRAULIC LINE TO WIPER MOTOR BRACKET | ||
| 700 | N 913004006001 | NUT |
| HYDRAULIC LINE TO ANGLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
