Transporto priemonė: 2244/S,LS; VIN numerio dalis: 648195
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

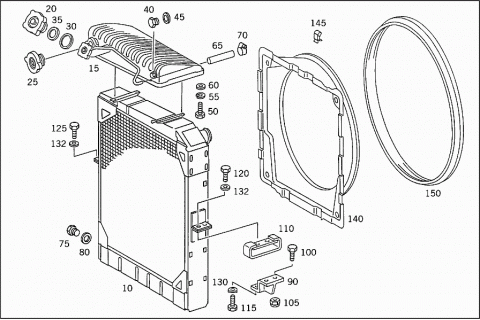

| A 0015013901 | RADIATOR | |
| Repalced by: A 0015013701 | ||
| 010 | A 0015013701 | RADIATOR |
| WATER | ||
| BEHR | ||
| 010 | A 0005001203 | RADIATOR |
| WATER | ||
| 010 | A 0015013801 | RADIATOR |
| WATER | ||
| BEHR | ||
| 015 | A 0005001149 | TANK |
| COOLING WATER EXPANSION | ||
| BEHR | ||
| 015 | A 0005000849 | TANK |
| COOLING WATER EXPANSION | ||
| BEHR | ||
| 020 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 020 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 025 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 025 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 030 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 035 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 040 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 045 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 050 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 050 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 055 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 060 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 060 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 065 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 070 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 070 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 075 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 080 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||

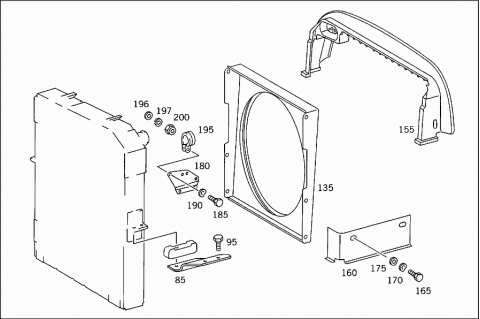

| 085 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 090 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| 095 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 100 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 105 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 110 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 115 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 115 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 115 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 120 | N 000933010128 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| M 10X20 | ||
| 125 | N 000933010105 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| M 10X25 | ||
| 125 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| M 10X25 | ||
| 130 | N 000137010201 | SPRING WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 130 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 132 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 132 | N 000125010532 | WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 135 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 140 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 145 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 150 | A 6205050086 | BOOT |
| FAN SHROUD TO FAN RING | ||
| 155 | A 6205050286 | BOOT |
| CIRCULATING AIR PARTITIONING | ||
| 160 | A 6205050140 | BRACKET |
| BOOT | ||
| 165 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 165 | N 304017006020 | SCREW |
| BRACKET TO RADIATOR | ||
| 170 | N 000137006204 | SPRING WASHER |
| BRACKET TO RADIATOR | ||
| 175 | A 3059900740 | WASHER |
| Repalced by: N 000125006421 | ||
| 175 | N 000125006421 | WASHER |
| BRACKET TO RADIATOR | ||
| 180 | A 4420100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 180 | A 4420100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 185 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 185 | N 304017006016 | SCREW |
| BRACKET TO RADIATOR | ||
| 190 | N 000137006204 | SPRING WASHER |
| BRACKET TO RADIATOR | ||
| 195 | A 3609951201 | CLAMP |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 196 | N 007349008006 | WASHER |
| Repalced by: N 007349008007 | ||
| 196 | N 007349008007 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 197 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 200 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 200 | N 913004008001 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||

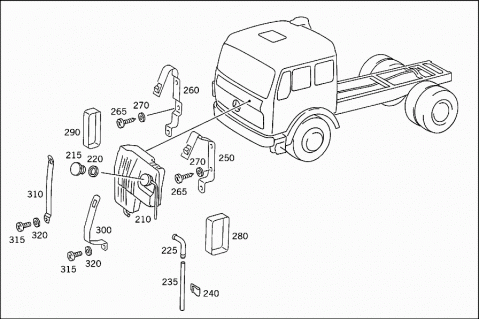

| X XXXXXXXXXXXX | PART NAME MISSING | |

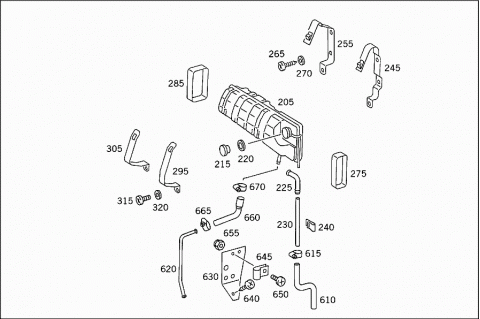

| EXPANSION TANK | ||
| 205 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 210 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 210 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 215 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 220 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 225 | A 0005010110 | DRAIN PIPE |
| 230 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 235 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 235 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 235 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 240 | A 0009881878 | CLIP |
| OVERFLOW HOSE TO CAB FIRE WALL FRONT EDGE | ||
| 245 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 250 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 250 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 255 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 260 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 260 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 265 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 270 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 275 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 280 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 280 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 285 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 290 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 290 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 295 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 300 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 300 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 305 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 310 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 310 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 315 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 315 | N 000000001146 | SCREW |
| STRAP TO BRACKET | ||
| M 6X16 | ||
| 320 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 320 | N 009021006208 | WASHER |
| STRAP TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

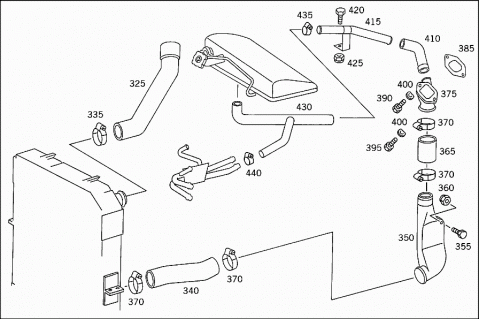

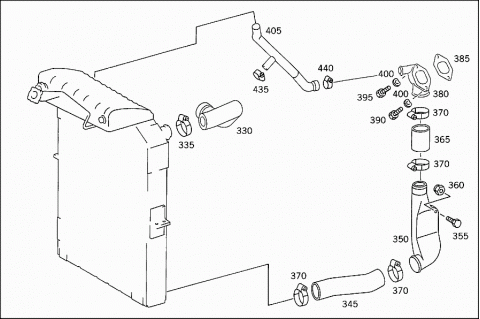

| COOLING WATER LINES | ||
| 325 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 330 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 335 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 335 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 70-90X13 MM | ||
| A 6205013882 | HOSE | |
| Repalced by: A 6555011282 | ||
| 340 | A 6555011282 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 345 | A 6205013782 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 350 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 350 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 350 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 350 | A 6555011556 | PIPE ELBOW |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 355 | N 000931010282 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 360 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 360 | N 910113010000 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 365 | N 900271070007 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 370 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 370 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| 70-90X13 MM | ||
| A 6205010023 | CONNECTOR | |
| Repalced by: A 6205010323 | ||
| 375 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 375 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 380 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 380 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 385 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 385 | A 4422010480 | GASKET |
| CONNECTOR | ||
| 390 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 390 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 395 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 395 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 400 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 405 | A 6205012082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 405 | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 410 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 410 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 415 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 420 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 420 | N 304017006018 | SCREW |
| PIPE LINE TO CONTROL BRACKET | ||
| 425 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 425 | N 913004006001 | NUT |
| PIPE LINE TO CONTROL BRACKET | ||
| 430 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 435 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 435 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 435 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 440 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 440 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||

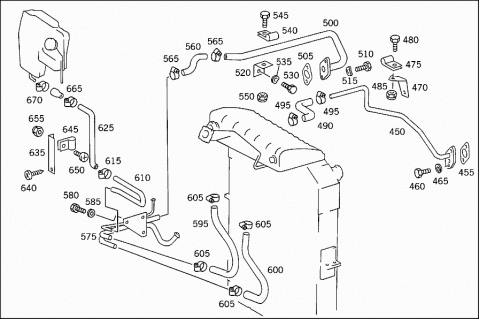

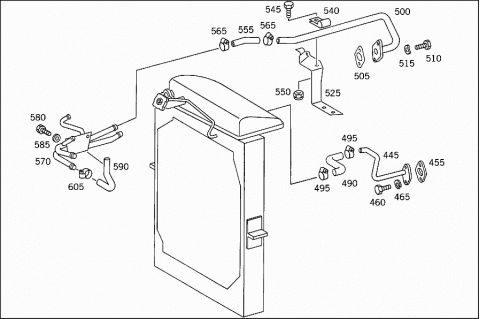

| 445 | A 6205000579 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 450 | A 6205000779 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 455 | N 917003040008 | GASKET |
| FLANGE | ||
| 460 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 465 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 470 | A 3875016420 | BRACKET |
| BREATHER PIPE | ||
| 475 | A 3609950601 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 480 | N 000933006130 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| 485 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 485 | N 913004006001 | NUT |
| BREATHER PIPE TO BRACKET | ||
| 490 | A 3875011682 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 495 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 495 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HEATING LINES | ||
| 500 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 500 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 500 | A 6205003772 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 500 | A 6205003672 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 500 | A 6205003972 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 500 | A 6205004272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 505 | N 917003022003 | GASKET |
| HEATING PIPE | ||
| 510 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 510 | N 304017008021 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 515 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 515 | N 000137008212 | SPRING WASHER |
| HEATING PIPE TO ENGINE | ||
| 520 | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 520 | A 3604280243 | ANGLE |
| HEATING PIPE | ||
| 520 | A 3818320714 | BRACKET |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 525 | A 6205062340 | BRACKET |
| HEATING PIPE | ||
| 530 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 530 | N 304017008021 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 530 | N 304017008021 | SCREW |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 535 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 535 | N 000137008212 | SPRING WASHER |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 535 | N 000137008212 | SPRING WASHER |
| ANGLE TO AIR BAFFLE BRACKET | ||
| 540 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 540 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 540 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 545 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 545 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 545 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 550 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 550 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 550 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE AND TO BRACKET | ||
| 550 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 555 | N 900271018038 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 450 MM | ||
| 560 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 560 | A 6205062935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 560 | A 6205062335 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 565 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 565 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 570 | A 6205002872 | LINE |
| HEATING AND BREATHING | ||
| 570 | A 6455000272 | LINE |
| HEATING AND BREATHING | ||
| 570 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| A 6455000672 | LINE | |
| HEATING AND BREATHING | ||
| 575 | A 6455000072 | LINE |
| HEATING AND BREATHING | ||
| 580 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 580 | N 304017006016 | SCREW |
| LINE TO RADIATOR | ||
| 585 | N 000125006421 | WASHER |
| LINE TO RADIATOR | ||
| 590 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 595 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 600 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 605 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 605 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 610 | N 900271008043 | HOSE |
| DE-AERATION | ||
| 610 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO DE-AERATION PIPE AT RADIATOR | ||
| 610 | N 900271008043 | HOSE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 615 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 615 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 12-22X13 MM | ||
| 620 | A 6175010225 | BREATHER PIPE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 625 | A 6205010725 | BREATHER PIPE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 625 | A 6205010725 | BREATHER PIPE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 630 | A 6175010420 | BRACKET |
| BREATHER PIPE | ||
| 635 | A 6205010920 | BRACKET |
| BREATHER PIPE | ||
| 640 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 645 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 645 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 645 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 645 | N 000000000319 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 650 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 650 | N 000000001146 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| M 6X16 | ||
| 655 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 655 | N 913004006001 | NUT |
| BREATHER PIPE TO BRACKET | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 660 | A 6205012882 | HOSE |
| FROM DE-AERATION PIPE AT RADIATOR TO EXPANSION TANK | ||
| 665 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 665 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 670 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 670 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

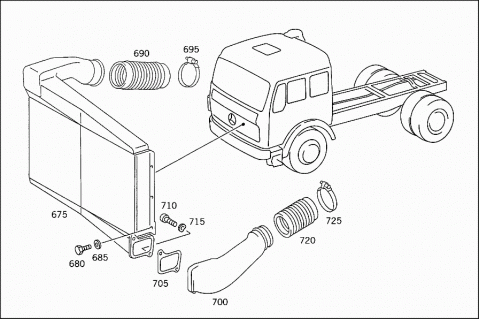

| CHARGE AIR INTERCOOLER | ||
| 675 | A 6205010201 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| BEHR | ||
| 680 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 680 | N 304017006020 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 685 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 690 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 690 | A 0020945282 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 695 | N 000000000676 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 100-120X13 MM | ||
| 700 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 705 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 705 | A 6555280080 | GASKET |
| PIPE ELBOW | ||
| 710 | N 000912010119 | SCREW |
| Repalced by: N 000912010219 | ||
| 710 | N 000912010219 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 715 | N 000137010201 | SPRING WASHER |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 720 | A 0010947982 | HOSE |
| Repalced by: A 0020941782 | ||
| 720 | A 0020941782 | HOSE |
| Repalced by: A 0010947982 | ||
| 720 | A 0010947982 | HOSE |
| FROM PIPE ELBOW TO ENGINE | ||
| 725 | N 000000000676 | CLAMP |
| HOSE TO PIPE ELBOW AND TO ENGINE CONNECTION | ||
| 100-120X13 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
