Transporto priemonė: 2244/S,LS; VIN numerio dalis: 648195
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

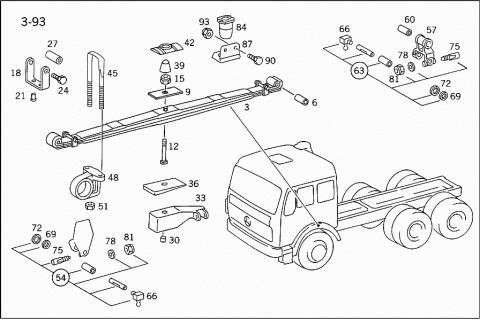

| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SPRING | ||
| 003 | A 6203200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6213200102 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 006 | A 3043210150 | BUSHING |
| 006 | A 6203210050 | BUSHING |
| 009 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 012 | A 3913210071 | SCREW |
| SPRING BOLT | ||
| 012 | A 3913210171 | SCREW |
| SPRING BOLT | ||
| 012 | A 6213210171 | SCREW |
| SPRING BOLT | ||
| 015 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 015 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 018 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 018 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 021 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 021 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 024 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 027 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 030 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 030 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 033 | A 6213310228 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 033 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 033 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 033 | A 6213310628 | SHIM |
| FOR CENTRAL AXLE,SEE PARTS LIST: | ||
| 033 | A 6213310128 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 033 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 033 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 033 | A 6213310528 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 036 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 039 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 039 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 042 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 042 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 042 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 042 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 045 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 045 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 045 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 048 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 051 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 051 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 051 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 054 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 057 | A 3873200162 | SHACKLE |
| FRONT SPRING,REAR | ||
| 060 | A 3043210150 | BUSHING |
| 060 | A 6203210050 | BUSHING |
| 063 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 066 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 069 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 069 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 069 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 072 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 075 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 078 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 078 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 081 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 081 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 084 | A 3833240008 | HELPER SPRING |
| FRONT SPRING STOP | ||
| 087 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 090 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 093 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 093 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||

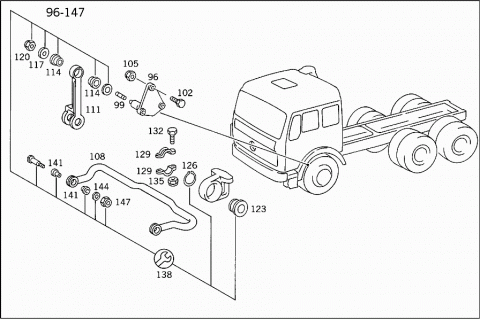

| X XXXXXXXXXXXX | PART NAME MISSING | |
| TORSION BAR,FRONT | ||
| 096 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 096 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 099 | N 000939012102 | STUD BOLT |
| 102 | N 000961016040 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X45 | ||
| 102 | N 308676016015 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X55 | ||
| 105 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 105 | N 910113016002 | NUT |
| CONSOLE TO FRAME | ||
| 108 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 108 | A 6523230765 | TORSION BAR |
| FRONT AXLE | ||
| 111 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 114 | A 0003232150 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 117 | A 3873230152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 120 | N 910113012002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 123 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 126 | N 000983068000 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 129 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 129 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 132 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 132 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 135 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 138 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 141 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 144 | N 007349017002 | WASHER |
| TORSION BAR TO SHACKLE | ||
| 147 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 147 | N 910113016001 | NUT |
| TORSION BAR TO SHACKLE | ||

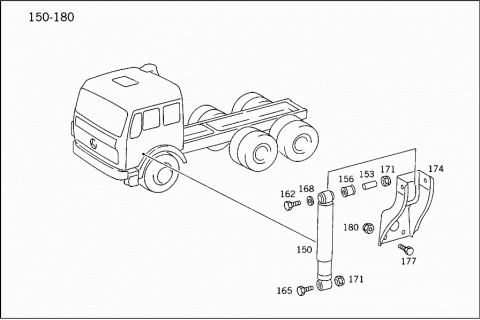

| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SHOCK ABSORBERS | ||
| 150 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 150 | A 0033233300 | SHOCK ABSORBER |
| Repalced by: A 0043239200 | ||
| 150 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 150 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 150 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 150 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 150 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 153 | A 0003233150 | SPACER RING |
| TO 004 323 46 00,003 323 32 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 33 00,006 323 08 00,09 00 | ||
| 153 | A 0003235250 | BUSHING |
| TO 004 323 01 00,004 323 92 00 | ||
| 156 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 156 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 46 00,003 323 32 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 33 00,006 323 08 00,09 00 | ||
| 156 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 156 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00,004 323 92 00 | ||
| 162 | N 000960016275 | SCREW |
| Repalced by: N 308765016016 | ||
| 162 | N 308765016016 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 162 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| A 6208910053 | SPACER TUBE | |
| Repalced by: A 6458910653 | ||
| A 6458910653 | SPACER TUBE | |
| A 6458910553 | SPACER TUBE | |
| 165 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO SHIM | ||
| 168 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 171 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 171 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 171 | N 910113016002 | NUT |
| SHOCK ABSORBER TO SHIM | ||
| 174 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 52 | ||
| 177 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 177 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 177 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 180 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 180 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 180 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||

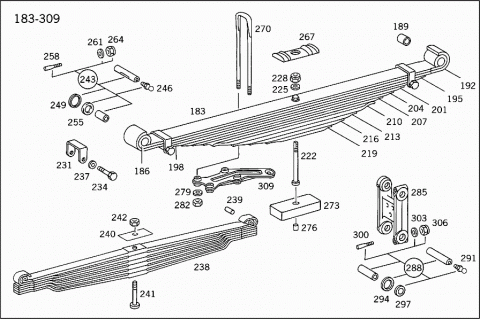

| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE I | ||
| 183 | A 6233200206 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "11" | ||
| 186 | A 6233200093 | SPRING LEAF |
| NO.1 | ||
| 189 | A 3353240350 | BUSHING |
| 189 | A 6203240050 | BUSHING |
| 192 | A 6233240112 | SPRING LEAF |
| NO.2 | ||
| 195 | A 6233240113 | SPRING LEAF |
| NO.3 | ||
| 198 | A 6233240014 | SPRING LEAF |
| NO.4 | ||
| 201 | A 6233240015 | SPRING LEAF |
| NO.5 | ||
| 204 | A 6233240016 | SPRING LEAF |
| NO.6 | ||
| 207 | A 6233240017 | SPRING LEAF |
| NO.7 | ||
| 210 | A 6233240018 | SPRING LEAF |
| NO.8 | ||
| 213 | A 6233240019 | SPRING LEAF |
| NO.9 | ||
| 216 | A 6233240020 | SPRING LEAF |
| NO.10 | ||
| 219 | A 6233240021 | SPRING LEAF |
| NO.11 | ||
| 222 | A 6213240271 | SPRING BOLT |
| M 18X185 | ||
| 225 | N 007349019002 | WASHER |
| 228 | N 913004018004 | NUT |
| 231 | A 0003248733 | SPRING CLAMP |
| Repalced by: A 0003244233 | ||
| 231 | A 0003244233 | SPRING CLAMP |
| 234 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 234 | N 308765012007 | SCREW |
| 237 | A 3039902440 | WASHER |
| 238 | A 6233200506 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "6" | ||
| 239 | A 3353240350 | BUSHING |
| 239 | A 6203240050 | BUSHING |
| 240 | A 3873210084 | SHIM |
| 241 | A 3873240171 | SPRING BOLT |
| Repalced by: A 9463210071 | ||
| 241 | A 9463210071 | SCREW |
| M 18X175 | ||
| 242 | N 913004018004 | NUT |
| 243 | A 6583200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING EYE | ||
| 243 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR SPRING EYE | ||
| 243 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR LEFT SPRING EYE | ||
| 243 | A 6483200065 | SHACKLE PIN |
| (PARTS KIT),REAR RIGHT SPRING EYE | ||
| 246 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 246 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 249 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 249 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 255 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 258 | A 3529900337 | BOLT |
| REAR SPRING PIN TO REAR SPRING BRACKET | ||
| 258 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE | ||
| 261 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 261 | N 000125010532 | WASHER |
| REAR SPRING PIN TO REAR SPRING BRACKET | ||
| 261 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 264 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 264 | N 910113010000 | NUT |
| REAR SPRING PIN TO REAR SPRING BRACKET | ||
| 264 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE | ||
| 267 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 267 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 270 | A 3353510725 | U-BOLT |
| Repalced by: A 6203510025 | ||
| 270 | A 6203510025 | U-BOLT |
| 273 | A 3933510028 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 273 | A 6483510028 | PAD |
| Repalced by: A 3873510528 | ||
| 273 | A 3873510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 276 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 279 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 282 | N 000934024006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 285 | A 3353910133 | SHACKLE |
| REAR SPRING TO SWINGING LINK | ||
| 285 | A 6233910033 | SHACKLE |
| Repalced by: A 6583250020 | ||
| 285 | A 6583250020 | SHACKLE |
| REAR SPRING TO SWINGING LINK | ||
| 288 | A 3893200165 | SHACKLE PIN |
| (PARTS KIT) SHACKLE TO TRAILING AXLE SWINGING LINK | ||
| 291 | N 071412010100 | GREASE NIPPLE |
| 294 | A 3523230976 | WASHER |
| SHACKLE TO YOKE | ||
| 4.00 MM | ||
| 294 | A 3523231076 | WASHER |
| SHACKLE TO YOKE | ||
| 4.20 MM | ||
| 297 | A 0029973040 | SEAL RING |
| SHACKLE TO YOKE | ||
| 300 | A 3529900337 | BOLT |
| SHACKLE TO YOKE | ||
| 303 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 303 | N 000125010532 | WASHER |
| SHACKLE TO YOKE | ||
| 306 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 306 | N 910113010000 | NUT |
| SHACKLE TO YOKE | ||
| 309 | A 6233260220 | BEARING |
| LEFT SHOCK ABSORBER | ||
| 309 | A 6233260320 | BEARING |
| RIGHT SHOCK ABSORBER | ||

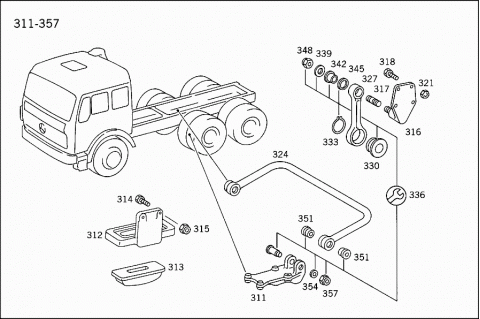

| 311 | A 6233260420 | BEARING |
| SHOCK ABSORBER AND STABILIZER,LEFT | ||
| 311 | A 6233260520 | BEARING |
| SHOCK ABSORBER AND STABILIZER,RIGHT | ||
| 312 | A 3873250040 | BRACKET |
| REAR AXLE I STOP TO SIDE MEMBER | ||
| 312 | A 3873250040 | BRACKET |
| REAR AXLE I STOP TO SIDE MEMBER | ||
| 313 | A 3873250144 | RUBBER BUFFER |
| REAR AXLE I STOP TO SIDE MEMBER | ||
| 313 | A 3873250144 | RUBBER BUFFER |
| REAR AXLE I STOP TO SIDE MEMBER | ||
| 314 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000931010282 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 315 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE I STABILIZER | ||
| 316 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 316 | A 3933261163 | BEARING BRACKET |
| TORSION BAR | ||
| 317 | N 000939016033 | STUD BOLT |
| SHACKLE TO BEARING BRACKET | ||
| 318 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 318 | N 308676016020 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 318 | N 308676016020 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| N 000961016108 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 321 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 324 | A 3873260065 | TORSION BAR |
| REAR AXLE I | ||
| 327 | A 6153260047 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 330 | A 3873260281 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 333 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 336 | A 6203200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 339 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 342 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 345 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 348 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 348 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 351 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 354 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 357 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 357 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE I SHOCK ABSORBER | ||

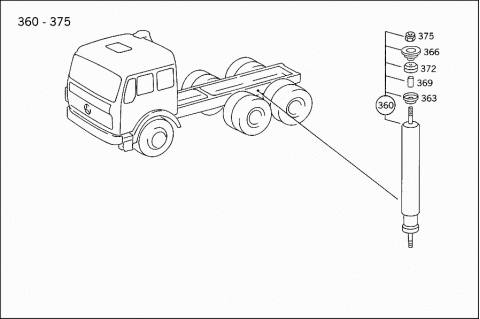

| 360 | A 3933260000 | SHOCK ABSORBER |
| (PARTS KIT),DRIVING AXLE | ||
| 360 | A 6483260000 | SHOCK ABSORBER |
| (PARTS KIT),DRIVING AXLE | ||
| A 6483260100 | SHOCK ABSORBER | |
| (PARTS KIT),DRIVING AXLE | ||
| 363 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO SUPPORTING ARM | ||
| 53 MM | ||
| 366 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO SUPPORTING ARM | ||
| 63 MM | ||
| 369 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER AND TO SUPPORTING ARM | ||
| 372 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO SUPPORTING ARM | ||
| 375 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 375 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER AND TO SUPPORTING ARM | ||
| N 000960016244 | SCREW | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| N 007349017002 | WASHER | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRAILING AXLE | ||

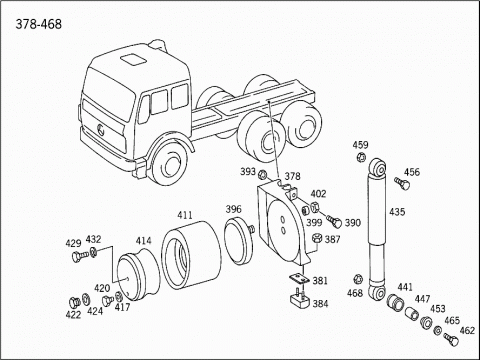

| 378 | A 3933910438 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 378 | A 3933910538 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 381 | A 3933250184 | SHIM |
| TRAILING AXLE STOP | ||
| 381 | A 3633250084 | SHIM |
| TRAILING AXLE STOP | ||
| 384 | A 3933250144 | RUBBER BUFFER |
| TRAILING AXLE STOP | ||
| 384 | A 3633250044 | RUBBER BUFFER |
| TRAILING AXLE STOP | ||
| 387 | A 0009906550 | NUT |
| RUBBER BUFFER TO CONSOLE | ||
| 390 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 390 | N 308676016007 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X50 | ||
| 390 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 390 | N 308676016004 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X55 | ||
| 390 | N 308676016004 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X55 | ||
| 390 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 390 | N 308676016005 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X60 | ||
| 393 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 393 | N 910113016001 | NUT |
| CONSOLE TO FRAME | ||
| 396 | A 3933200535 | PLATE |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 399 | A 3833270053 | SPACER TUBE |
| PLATE TO CONSOLE | ||
| 402 | N 913004022003 | NUT |
| Repalced by: N 910113022001 | ||
| 402 | N 910113022001 | NUT |
| PLATE TO CONSOLE | ||
| 411 | A 3633280201 | AIR SPRING BELLOWS |
| LIFTING DEVICE USED FOR TRAILING AXLE | ||
| 414 | A 3913200118 | PISTON |
| LIFTING DEVICE USED FOR TRAILING AXLE | ||
| 417 | N 007603012405 | SEAL RING |
| 420 | A 0004290456 | SCREW PLUG |
| 422 | N 007604012102 | SCREW PLUG |
| PISTON TO AIR SPRING BELLOWS | ||
| 424 | N 007603012405 | SEAL RING |
| PISTON TO AIR SPRING BELLOWS | ||
| 429 | N 000961016040 | SCREW |
| PISTON TO BEARING BRACKET | ||
| 432 | N 912004016101 | LOCK WASHER |
| PISTON TO BEARING BRACKET | ||
| 435 | A 0013264100 | SHOCK ABSORBER |
| TRAILING AXLE | ||
| 435 | A 0033265100 | SHOCK ABSORBER |
| TRAILING AXLE | ||
| 441 | A 0003260168 | RUBBER BUFFER |
| TO 001 326 41 00 | ||
| 441 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 441 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 51 00 | ||
| 447 | A 0003260550 | BUSHING |
| TO 001 326 41 00 | ||
| 447 | A 0003261250 | BUSHING |
| TO 003 326 51 00 | ||
| 453 | A 0003260450 | BUSHING |
| TO 001 326 41 00 | ||
| 456 | N 000960020143 | SCREW |
| SHOCK ABSORBER TO CONSOLE,TOP | ||
| 459 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 459 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CONSOLE,TOP | ||
| 462 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO TRAILING AXLE SWINGING LINK | ||
| 465 | N 000125021006 | WASHER |
| SHOCK ABSORBER TO TRAILING AXLE SWINGING LINK | ||
| 468 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 468 | N 913004020003 | NUT |
| SHOCK ABSORBER TO TRAILING AXLE SWINGING LINK | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SPRING CENTRAL BEARING | ||
| A 3933200723 | SPRING SEAT | |
| REAR SPRING CENTRAL BEARING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| COMPLETE | ||

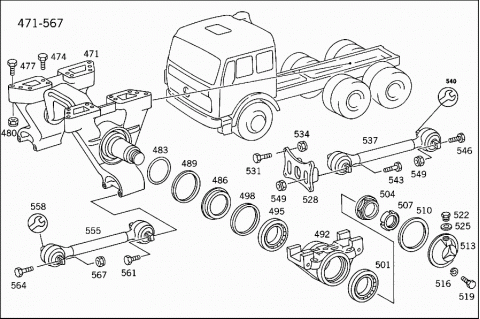

| 471 | A 3933201278 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 474 | N 914142020103 | SCREW |
| Repalced by: A 0003250775 | ||
| 474 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X1.5X80 | ||
| 474 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X1.5X80 | ||
| 477 | N 000960020078 | SCREW |
| Repalced by: A 0003250875 | ||
| 477 | A 0003250875 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X1.5X90 | ||
| 477 | N 914112020201 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X1.5X90 | ||
| 480 | N 913012020000 | NUT |
| REAR SPRING CENTRAL BEARING | ||
| 483 | A 0079976048 | SEAL RING |
| CONSOLE,INSIDE | ||
| 486 | A 3873250162 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 489 | A 3853200167 | GASKET |
| CONSOLE,OUTSIDE | ||
| 492 | A 3833250112 | SPRING SADDLE |
| REAR SPRING | ||
| 495 | A 0049814305 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 495 | A 0049811705 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 495 | A 0059815605 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 495 | A 0069810005 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 498 | A 0099975246 | SEAL RING |
| INSIDE | ||
| 498 | A 0109971646 | SEAL RING |
| INSIDE | ||
| 498 | A 0099975346 | SEAL RING |
| OUTSIDE | ||
| 498 | A 0119973746 | SEAL RING |
| OUTSIDE | ||
| 501 | A 0049811805 | TAPERED ROLLER BEARING |
| SPRING SADDLE,OUTSIDE | ||
| 501 | A 0049814405 | TAPERED ROLLER BEARING |
| SPRING SADDLE,OUTSIDE | ||
| 504 | A 3933250052 | SPACER WASHER |
| SPRING SADDLE TO CONSOLE | ||
| 507 | A 3939900060 | NUT |
| SPRING SADDLE TO CONSOLE | ||
| 510 | A 3833250080 | GASKET |
| TO LOCK SPRING SADDLE | ||
| 513 | A 3833200084 | COVER |
| TO LOCK SPRING SADDLE | ||
| 516 | N 912004008102 | LOCK WASHER |
| COVER TO SPRING SADDLE | ||
| 519 | N 000933008145 | SCREW |
| COVER TO SPRING SADDLE | ||
| M 8X18 | ||
| 522 | N 007603014405 | SEAL RING |
| OIL FILLING | ||
| 525 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 525 | N 007604014110 | SCREW PLUG |
| OIL FILLING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| UPPER CONTROL ARM | ||
| 528 | A 3953253709 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 528 | A 3953254009 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 531 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 531 | N 308676014014 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 534 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 534 | N 910113014001 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 537 | A 3953500206 | CONTROL ARM |
| TOP | ||
| 537 | A 6593500106 | CONTROL ARM |
| TOP | ||
| 537 | A 6593502406 | CONTROL ARM |
| TOP | ||
| 540 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 540 | A 0003500613 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 543 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 543 | N 000960020120 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| 546 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 546 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 549 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 549 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 549 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LOWER CONTROL ARM | ||
| 555 | A 3953500706 | CONTROL ARM |
| REAR AXLE,BOTTOM | ||
| 555 | A 6593500406 | CONTROL ARM |
| REAR AXLE,BOTTOM | ||
| 555 | A 6593502706 | CONTROL ARM |
| REAR AXLE,BOTTOM | ||
| 558 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 558 | A 0003500613 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 561 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 561 | N 000960020120 | SCREW |
| LOWER CONTROL ARM TO CONSOLE | ||
| 564 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 564 | N 308765020012 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| 567 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 567 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO CONSOLE | ||
| 567 | N 913004020003 | NUT |
| CONTROL ARM TO BEARING BRACKET | ||

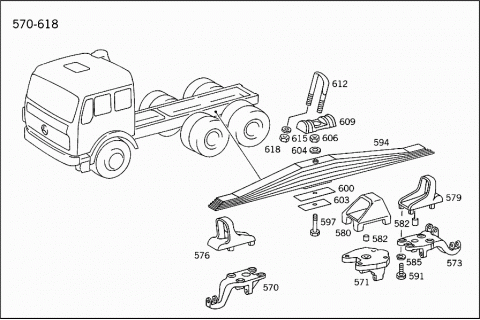

| 570 | A 3933252209 | BEARING BRACKET |
| BOTTOM CONTROL ARM,REAR AXLE | ||
| "I" | ||
| 571 | A 3953251109 | BEARING BRACKET |
| BOTTOM CONTROL ARM,REAR AXLE | ||
| 573 | A 3933253009 | BEARING BRACKET |
| LEFT BOTTOM CONTROL ARM TO REAR AXLE | ||
| "II" | ||
| 573 | A 3933253109 | BEARING BRACKET |
| RIGHT BOTTOM CONTROL ARM TO REAR AXLE | ||
| "II" | ||
| 576 | A 3933250719 | SPRING SEAT |
| Repalced by: A 6583250019 | ||
| 576 | A 6583250019 | SPRING SEAT |
| 576 | A 6583250019 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 576 | A 6583250019 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 579 | A 3933250819 | SPRING SEAT |
| Repalced by: A 6583250119 | ||
| 579 | A 6583250119 | SPRING SEAT |
| 579 | A 6583250119 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 579 | A 6583250119 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 580 | A 6243250319 | SPRING SEAT |
| 580 | A 6243250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 580 | A 6243250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 580 | A 6243251119 | SPRING SEAT |
| Repalced by: A 6253250319 | ||
| 580 | A 6253250319 | SPRING SEAT |
| 580 | A 6253250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 580 | A 6253250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 580 | A 6243250219 | SPRING SEAT |
| 580 | A 6243250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 580 | A 6243250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 580 | A 6243251019 | SPRING SEAT |
| Repalced by: A 6253250219 | ||
| 580 | A 6253250219 | SPRING SEAT |
| 580 | A 6253250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 580 | A 6253250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 582 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 585 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 591 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 591 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 20X205 | ||
| 591 | A 3959900301 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 20X240 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SPRING | ||
| 594 | A 3933200406 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 594 | A 6233200306 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 594 | A 6483200006 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 597 | A 3933240071 | SPRING BOLT |
| M 12X175 | ||
| 597 | A 3523240271 | SPRING BOLT |
| M 16X205 | ||
| 597 | A 3523240171 | SPRING BOLT |
| Repalced by: A 3523240371 | ||
| 597 | A 3523240371 | SPRING BOLT |
| M 16X225 | ||
| 600 | A 3933210184 | SHIM |
| 600 | A 6193210284 | SHIM |
| 603 | A 3913210184 | SHIM |
| Repalced by: A 3933210184 | ||
| 603 | A 3933210184 | SHIM |
| 604 | N 007349017002 | WASHER |
| 606 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 606 | N 910113016001 | NUT |
| 609 | A 3933510326 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 609 | A 6233510326 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 612 | A 3933510425 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 612 | A 6233510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 310 MM | ||
| 612 | A 3933510325 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 350 MM | ||
| 615 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 618 | N 000934024006 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

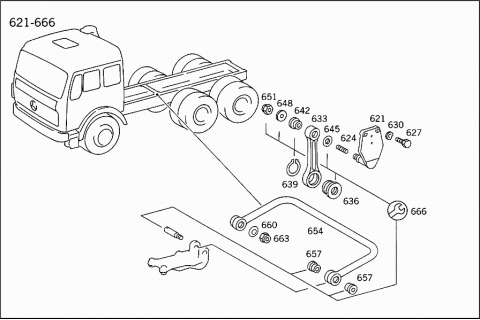

| TORSION BAR,REAR | ||
| 621 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 621 | A 3933261163 | BEARING BRACKET |
| SHACKLE | ||
| 621 | A 3933201178 | CONSOLE |
| Repalced by: A 3933261263 | ||
| 621 | A 3933261263 | BEARING BRACKET |
| SHACKLE | ||
| 624 | N 000939016033 | STUD BOLT |
| 627 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X30 | ||
| 627 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X30 | ||
| 627 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X30 | ||
| 627 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 627 | N 308676016020 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X35 | ||
| 627 | N 308676016020 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X35 | ||
| 627 | N 308676016020 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X35 | ||
| 630 | N 000137016202 | SPRING WASHER |
| CONSOLE TO FRAME | ||
| 633 | A 3873260647 | SHACKLE |
| TORSION BAR,REAR | ||
| 636 | A 3933260481 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 639 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 642 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 645 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 648 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 651 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 651 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 654 | A 3933260265 | TORSION BAR |
| STABILIZER | ||
| 657 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 660 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 663 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 663 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 666 | A 6233200041 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 669 | A 3873200243 | BRACKET |
| SHOCK ABSORBER | ||
| 672 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 672 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 675 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 678 | A 0023269200 | SHOCK ABSORBER |
| REAR AXLES I AND II | ||
| 678 | A 0033265000 | SHOCK ABSORBER |
| REAR AXLES I AND II | ||
| 681 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 681 | A 0003233150 | SPACER RING |
| TOP AND BOTTOM | ||
| TO 002 326 92 00 | ||
| 681 | A 0003233150 | SPACER RING |
| TOP | ||
| TO 003 326 50 00 | ||
| 681 | A 0003234350 | BUSHING |
| BOTTOM | ||
| TO 003 326 50 00 | ||
| 684 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 684 | A 0003232885 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 002 326 92 00 | ||
| 684 | A 0003232885 | RUBBER MOUNTING |
| TOP | ||
| TO 003 326 50 00 | ||
| 684 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 684 | A 0003233144 | RUBBER BUFFER |
| BOTTOM | ||
| TO 003 326 50 00 | ||
| 687 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 690 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 690 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 693 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 696 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 696 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
