Transporto priemonė: 2244/S,LS; VIN numerio dalis: 648195
Grupė: 39 TRAILING AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 6483900009 | SWINGING LINK | |
| COMPLETE | ||
| A 6583900409 | SWINGING LINK | |
| COMPLETE | ||
| A 6583900030 | AXLE SUSPENSION | |

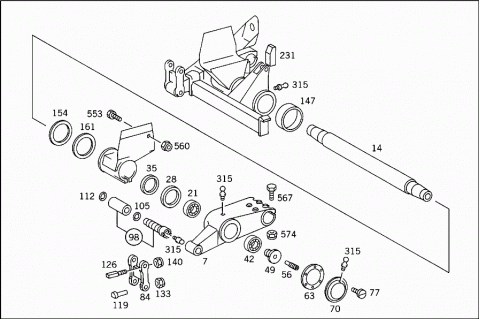

| 007 | A 6993910009 | SWINGING LINK |
| LEFT | ||
| 007 | A 6993910109 | SWINGING LINK |
| RIGHT | ||
| 014 | A 6993900008 | AXLE TUBE |
| SWINGING LINK | ||
| 021 | N 000720032020 | TAPERED ROLLER BEARING |
| 028 | A 6993910180 | SEAL RING |
| 035 | A 6993920060 | THRUST RING |
| 042 | A 6999800001 | CYLINDR. ROLLER BEARING |
| 049 | A 6993910045 | FLANGE |
| 056 | A 6999900012 | SCREW |
| 056 | A 0003930070 | STUD |
| 063 | A 6993910080 | GASKET |
| COVER TO SWINGING LINK | ||
| 070 | A 6993910020 | COVER |
| 077 | N 000912006004 | SCREW |
| Repalced by: A 0009847929 | ||
| 077 | A 0009847929 | SCREW |
| COVER TO SWINGING LINK | ||
| 084 | A 0003220020 | SHACKLE |
| (SPRING SHACKLE) | ||
| A 0003220220 | SHACKLE | |
| LEFT | ||
| A 0003220320 | SHACKLE | |
| RIGHT | ||
| A 0003930250 | BUSHING | |
| Repalced by: A 0003900050 | ||
| A 0003930074 | PIN | |
| Repalced by: A 0003900050 | ||
| 098 | A 0003900050 | BUSHING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 105 | A 6999970448 | SEAL RING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 112 | A 6999970548 | SEAL RING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 119 | N 000960012307 | SCREW |
| SPRING SHACKLE TO SWINGING LINK | ||
| 126 | A 6993930070 | STUD |
| Repalced by: A 3529900337 | ||
| 126 | A 3529900337 | BOLT |
| SHACKLE PIN TO SHACKLE | ||
| 133 | N 913002012007 | NUT |
| SPRING SHACKLE TO SWINGING LINK | ||
| 140 | N 913002010001 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 147 | A 6993930150 | BUSHING |
| LIFT ARM | ||
| 154 | A 6999910045 | RING |
| LIFT ARM | ||
| 161 | A 6993910280 | GASKET |
| LIFT ARM | ||
| 168 | A 0003910587 | STOP |
| SWINGING LINK | ||
| 168 | A 6583900087 | AXLE STOP |
| Repalced by: A 0003260668 | ||
| 168 | A 0003260668 | RUBBER BUFFER |
| SWINGING LINK | ||
| A 6583260040 | BRACKET | |
| A 3353250044 | RUBBER BUFFER | |
| STOP | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BUFFER TO BRACKET | ||
| 175 | N 007991012009 | SCREW |
| STOP BUFFER TO FRAME | ||
| 182 | N 910113012002 | NUT |
| STOP BUFFER TO FRAME | ||
| 189 | A 0003900040 | BRACKET |
| MOUNTING BRACKET | ||
| 196 | A 6999900301 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 196 | A 0069900101 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 203 | N 000609016010 | FITTED SCREW |
| BRACKET TO CROSS MEMBER | ||
| 210 | N 000125017015 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 217 | A 6999900551 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 217 | A 0039906451 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 224 | N 913017016000 | NUT |
| Repalced by: N 913023016001 | ||
| 224 | N 913023016001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 231 | A 6993930073 | LOCK |
| SWINGING LINK | ||

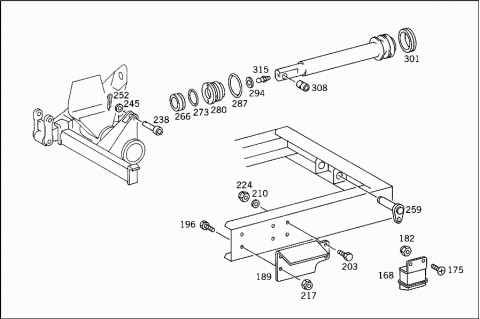

| 238 | A 6993930074 | PIN |
| PISTON ROD TO LIFTING ARM | ||
| 245 | A 6999900840 | WASHER |
| PISTON ROD TO LIFTING ARM | ||
| 252 | N 000094006014 | COTTER PIN |
| PISTON ROD TO LIFTING ARM | ||
| 259 | A 6993930174 | PIN |
| CYLINDRICAL TUBE TO CROSS MEMBER | ||
| 259 | A 6993930374 | PIN |
| CYLINDRICAL TUBE TO CROSS MEMBER | ||
| A 6995500007 | CYLINDER | |
| A 0003900022 | CYLINDER | |
| 266 | A 6995530096 | BOOT |
| HYDRAULIC CYLINDER | ||
| 273 | A 6999970248 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 280 | A 6995530006 | HOUSING |
| HYDRAULIC CYLINDER | ||
| 280 | A 0005530906 | HOUSING |
| HYDRAULIC CYLINDER | ||
| 287 | A 6999970348 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 294 | A 6995530196 | BOOT |
| HYDRAULIC CYLINDER | ||
| 301 | A 6995530360 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 308 | A 6995530021 | BEARING |
| PISTON ROD | ||
| A 0019972235 | PLUG | |
| Repalced by: N 000908010004 | ||
| N 000908010004 | SCREW PLUG | |
| Repalced by: N 000000000648 | ||
| N 000000000648 | SCREW PLUG | |
| 315 | A 6999970088 | GREASE NIPPLE |
| Repalced by: N 071412010100 | ||
| 315 | N 071412010100 | GREASE NIPPLE |
| A 0009974688 | GREASE NIPPLE | |
| N 000912016066 | SCREW | |
| MOUNTING BRACKET | ||
| N 000125017015 | WASHER | |
| MOUNTING BRACKET | ||
| A 0019902912 | SCREW | |
| DETENT | ||

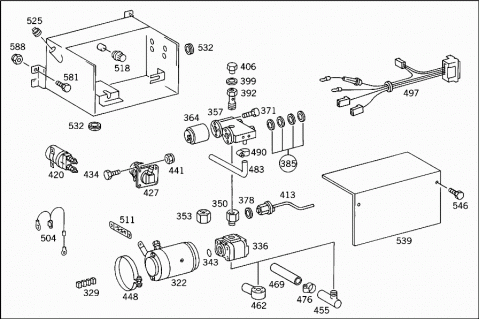

| A 6583900117 | HYDRAULIC UNIT | |
| 322 | A 6992350095 | MOTOR |
| SWE | ||
| 322 | A 0012352295 | MOTOR |
| BOSCH | ||
| 329 | A 6995480042 | CARBON BRUSH |
| SWE | ||
| 329 | A 0005480542 | CARBON BRUSH |
| BOSCH | ||
| 336 | A 6995500083 | PUMP |
| SWE | ||
| 336 | A 0005502483 | PUMP |
| BOSCH | ||
| 343 | A 6995530160 | SEAL RING |
| SWE | ||
| 343 | A 0169973247 | SEAL RING |
| BOSCH | ||
| A 0005504355 | VALVE | |
| Repalced by: A 0005505355 | ||
| A 0005505355 | VALVE | |
| (CONTROL VALVE) | ||
| S W E | ||
| 350 | A 6995530007 | VALVE |
| (CHECK VALVE) | ||
| SWE | ||
| 353 | A 0005537107 | VALVE |
| (CHECK VALVE) | ||
| BOSCH | ||
| 357 | A 6995500055 | VALVE |
| Repalced by: A 0005504355 | ||
| 357 | A 0005505255 | VALVE |
| (CONTROL VALVE) | ||
| 364 | A 6995430085 | MAGNET |
| 371 | N 000084005402 | SCREW |
| SOLENOID VALVE | ||
| 378 | N 007603016103 | SEAL RING |
| CHECK VALVE | ||
| 385 | A 6995530060 | SEAL RING |
| PARTS KIT | ||
| 392 | A 6999900263 | HOLLOW SCREW |
| SOLENOID VALVE | ||
| 399 | A 6999970648 | SEAL RING |
| SOLENOID VALVE | ||
| 406 | A 6995530071 | SCREW |
| Repalced by: A 0019976130 | ||
| 406 | A 0019976130 | SCREW PLUG |
| SOLENOID VALVE | ||
| 413 | A 6995450214 | SWITCH |
| (PRESSURE SWITCH) | ||
| 420 | A 6995430010 | COIL |
| Repalced by: A 0005450967 | ||
| 427 | A 0005430310 | COIL |
| Repalced by: A 0005450967 | ||
| 427 | A 0005450967 | CONTACTOR |
| 434 | N 000933005058 | SCREW |
| COIL TO SWITCH BOX | ||
| 441 | N 913004005001 | NUT |
| COIL TO SWITCH BOX | ||
| 448 | A 6995530140 | BRACKET |
| ENGINE | ||
| 455 | A 6995531657 | LINE |
| SUCTION LINE | ||
| SWE | ||
| 462 | A 0005530157 | LINE |
| SUCTION LINE | ||
| BOSCH | ||
| 469 | A 6995530182 | HOSE |
| SUCTION LINE | ||
| 476 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 476 | N 000000000667 | CLAMP |
| SUCTION LINE | ||
| 20-32X13 MM | ||
| 483 | A 6995530082 | HOSE |
| FROM OIL TANK TO SOLENOID VALVE | ||
| 490 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 490 | N 000000000665 | CLAMP |
| 12-22X13 MM | ||
| A 0003930041 | PIPE | |
| A 0004280027 | SCREW CONNECTION | |
| 497 | A 6995402008 | CABLE HARNESS |
| ELECTRIC | ||
| 504 | A 6995450132 | CONTROL UNIT |
| THERMAL | ||
| SWE | ||
| 511 | A 6995460020 | GROUND STRAP |
| ENGINE | ||
| SWE | ||
| 518 | A 6995510085 | FILTER HOUSING |
| OIL TANK | ||
| 525 | A 6999970032 | SCREW PLUG |
| OIL TANK | ||
| A 0019972335 | PLUG | |
| OIL TANK | ||
| 532 | A 6999970081 | GROMMET |
| Repalced by: A 6999970181 | ||
| 532 | A 6999970181 | GROMMET |
| SWITCH BOX | ||
| 539 | A 6995510005 | COVER |
| SWITCH BOX | ||
| A 0003910020 | COVER | |
| SWITCH BOX | ||
| A 0003910080 | GASKET | |
| COVER TO SWITCH BOX | ||
| 546 | N 000933006127 | SCREW |
| COVER TO SWITCH BOX | ||
| 553 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 553 | A 9429901304 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 14X40 | ||
| 553 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 553 | N 308676014012 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 14X45 | ||
| 553 | N 000960014237 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 14X50 | ||
| 553 | N 000960014229 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 14X55 | ||
| 553 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 553 | N 308676016007 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X50 | ||
| 553 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 553 | N 308676016004 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X55 | ||
| 553 | N 000960016237 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X60 | ||
| 560 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 560 | N 910113014000 | NUT |
| SWINGING LINK TO SIDE MEMBER | ||
| M 14 | ||
| 560 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 560 | N 910113016001 | NUT |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5 | ||
| 567 | N 000912016088 | SCREW |
| TRAILING AXLE TO SWINGING LINK | ||
| M 16X30 | ||
| 567 | N 000912016096 | SCREW |
| TRAILING AXLE TO SWINGING LINK | ||
| M 16X70 | ||
| 567 | N 000912016097 | SCREW |
| TRAILING AXLE TO SWINGING LINK | ||
| M 16X110 | ||
| 574 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 574 | N 910113016001 | NUT |
| TRAILING AXLE TO SWINGING LINK | ||
| 581 | N 000933010105 | SCREW |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| M 10X25 | ||
| 581 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 581 | N 304017010002 | SCREW |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| M 10X30 | ||
| 588 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 588 | N 910113010000 | NUT |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| A 6483900328 | OIL LINE | |
| Repalced by: A 0002610283 | ||
| A 6483900028 | OIL LINE | |
| Repalced by: A 0002610283 | ||
| A 6483900128 | OIL LINE | |
| Repalced by: A 0002610283 | ||
| A 6483900228 | OIL LINE | |
| Repalced by: A 0002610283 | ||

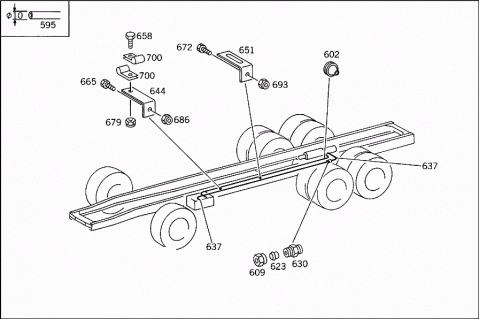

| 595 | A 0002610283 | OIL PIPE |
| FROM OIL PUMP TO CYLINDER | ||
| 602 | A 1869970481 | GROMMET |
| 609 | N 915017010100 | UNION NUT |
| 609 | N 915017010104 | UNION NUT |
| 623 | N 003861010009 | GLAND |
| N 003902010002 | CONNECTION FITTING | |
| Repalced by: A 0049971672 | ||
| 630 | A 0049971672 | FITTING |
| BETWEEN THE LINES | ||
| 637 | A 6489970082 | HOSE |
| OIL LINE CONNECTION | ||
| 644 | A 3875015420 | BRACKET |
| Repalced by: A 6454310740 | ||
| 644 | A 6454310740 | BRACKET |
| HYDRAULIC LINES TO FRAME | ||
| A 3914280043 | ANGLE | |
| Repalced by: A 3464295540 | ||
| 651 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 651 | A 3464296040 | BRACKET |
| HYDRAULIC LINES TO FRAME | ||
| 658 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 658 | N 007985006581 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| 665 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 665 | N 304017008034 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| 672 | N 000961014100 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 14X30 | ||
| 672 | N 000960014190 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 14X60 | ||
| 672 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 672 | N 308676016014 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 16X1.5X65 | ||
| 679 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 679 | N 913004006001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 686 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 686 | N 913004008001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 693 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 693 | N 910113014001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 693 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 693 | N 910113014000 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 693 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 693 | N 910113016001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| M 16X1.5 | ||
| 700 | A 3609950301 | CLAMP |
| HYDRAULIC LINES TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
