Transporto priemonė: 2418; VIN numerio dalis: 682313

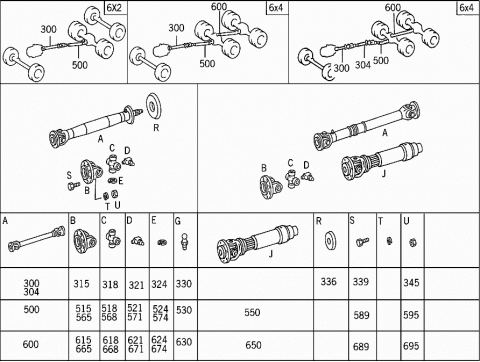

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 3844100804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 836 MM - KRUPP | ||
| 300 | A 6824100104 | PROPELLER SHAFT |
| Repalced by: A 3844104207 | ||
| 300 | A 3844104207 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1720 MM - ALBARUS | ||
| 300 | A 3844104207 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1720 MM - ALBARUS | ||
| 300 | A 6824100704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1688 MM - KRUPP | ||
| 304 | A 6824100004 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 980 MM - KRUPP | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 315 | A 3544110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| KRUPP | ||
| 318 | A 3454107031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| KRUPP | ||
| 318 | A 0004101431 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| KRUPP | ||
| 318 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| KRUPP | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 324 | A 3449947135 | SNAP RING |
| 2.500 MM - KRUPP | ||
| 324 | A 3129941135 | SNAP RING |
| 2.500 MM - KRUPP | ||
| 324 | A 3449947235 | SNAP RING |
| 2.525 MM - KRUPP | ||
| 324 | A 3449947335 | SNAP RING |
| 2.550 MM - KRUPP | ||
| 324 | A 3129941635 | SNAP RING |
| 2.550 MM - KRUPP | ||
| 324 | A 3449947435 | SNAP RING |
| 2.575 MM - KRUPP | ||
| 324 | A 3449947535 | SNAP RING |
| 2.600 MM - KRUPP | ||
| 324 | A 3129941335 | SNAP RING |
| 2.600 MM - KRUPP | ||
| 324 | A 3449947635 | SNAP RING |
| 2.625 MM - KRUPP | ||
| 324 | A 3449947735 | SNAP RING |
| 2.650 MM - KRUPP | ||
| 324 | A 3129941435 | SNAP RING |
| 2.650 MM - KRUPP | ||
| 324 | A 3449947835 | SNAP RING |
| 2.675 MM - KRUPP | ||
| 324 | A 3449947935 | SNAP RING |
| 2.700 MM - KRUPP | ||
| 324 | A 3129941535 | SNAP RING |
| 2.700 MM - KRUPP | ||
| 324 | A 3449948035 | SNAP RING |
| 2.725 MM - KRUPP | ||
| 324 | A 3449948135 | SNAP RING |
| 2.750 MM - KRUPP | ||
| 324 | A 3129941735 | SNAP RING |
| 2.750 MM - KRUPP | ||
| 324 | A 3379945035 | SNAP RING |
| 2.800 MM - KRUPP | ||
| 324 | A 3379945435 | SNAP RING |
| 2.850 MM - KRUPP | ||
| 324 | A 3379945135 | SNAP RING |
| 2.900 MM - KRUPP | ||
| 324 | A 3379945235 | SNAP RING |
| 2.950 MM - KRUPP | ||
| 324 | A 3379945335 | SNAP RING |
| 3.000 MM - KRUPP | ||
| 330 | N 071412008100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 330 | N 071412010100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 336 | A 3524130061 | PROTECTIVE CAP |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 336 | A 3354130061 | PROTECTIVE CAP |
| PROPELLER SHAFT | ||
| KRUPP | ||
| 339 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 10 X 1 MM | ||
| 339 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M 12 X 1,25 MM | ||
| 345 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M10 X 1 | ||
| 345 | N 000934012042 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||

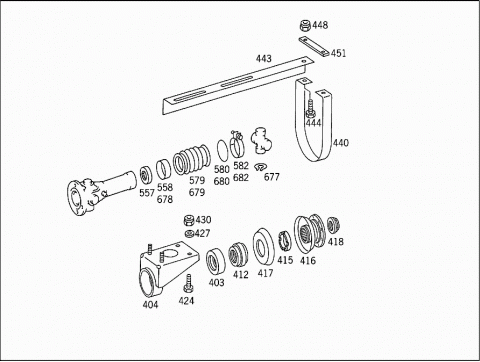

| 403 | A 3524130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 403 | A 3384130012 | RUBBER MOUNTING |
| INTERMEDIATE BEARING | ||
| 404 | A 3764100740 | BRACKET |
| INTERMEDIATE BEARING | ||
| 404 | A 3444107040 | BRACKET |
| INTERMEDIATE BEARING | ||
| 404 | A 3764100940 | BRACKET |
| INTERMEDIATE BEARING | ||
| A 6824107040 | BRACKET | |
| INTERMEDIATE BEARING | ||
| A 3864107040 | BRACKET | |
| INTERMEDIATE BEARING | ||
| A 3524130011 | REINFORCEMENT | |
| BRACKET TO CROSS MEMBER | ||
| N 000961010042 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| M 10X1.0X35 | ||
| N 009021010102 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 913004010010 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| 412 | A 3524100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 412 | A 3454100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 412 | A 3544100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 412 | A 3844100051 | BALL BEARING |
| INTERMEDIATE BEARING | ||
| 415 | A 3124131231 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 415 | A 3374130131 | BEARING RING |
| INTERMEDIATE BEARING | ||
| 416 | A 3524100130 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 416 | A 3364100030 | CENTERING FLANGE |
| INTERMEDIATE BEARING | ||
| 417 | A 3524130061 | PROTECTIVE CAP |
| 417 | A 3354130061 | PROTECTIVE CAP |
| 418 | A 3449907050 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 418 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 418 | A 3853510072 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | N 000961010039 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M 10X1X30 | ||
| 424 | N 000961010039 | SCREW |
| PROPELLER SHAFT BEARING II | ||
| M 10X1X30 | ||
| 427 | N 009021010102 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 427 | N 009021010102 | WASHER |
| PROPELLER SHAFT BEARING II | ||
| 430 | N 913002010002 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 430 | N 913002010002 | NUT |
| PROPELLER SHAFT BEARING II | ||
| 440 | A 3844137046 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 443 | A 3864137114 | SUPPORT |
| Repalced by: A 3864130314 | ||
| 443 | A 3864130314 | SUPPORT |
| LEFT | ||
| 443 | A 3864137214 | SUPPORT |
| Repalced by: A 3864130414 | ||
| 443 | A 3864130414 | SUPPORT |
| RIGHT | ||
| 444 | N 000961010038 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 10X25 | ||
| 448 | N 913004010010 | NUT |
| REBOUND STRAP TO SUPPORT | ||
| 451 | A 3524130011 | REINFORCEMENT |
| REBOUND STRAP TO SUPPORT | ||
| 500 | A 3454101102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE I | ||
| 1620 MM | ||
| 500 | A 6824100002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1985 MM | ||
| 500 | A 3854103702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE I | ||
| 1660 MM | ||
| 515 | A 3524110011 | DRIVE FLANGE |
| 515 | A 3854111811 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 518 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 518 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 521 | A 3459977288 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 524 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 524 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 524 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 524 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 524 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 524 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 524 | A 0069940641 | LOCK |
| 1.650 MM | ||
| 524 | A 0069940741 | LOCK |
| 1.675 MM | ||
| 524 | A 0069940841 | LOCK |
| 1.700 MM | ||
| 524 | A 0069940941 | LOCK |
| 1.725 MM | ||
| 524 | A 0069941041 | LOCK |
| 1.750 MM | ||
| 524 | A 0069941141 | LOCK |
| 1.775 MM | ||
| 524 | A 0069941241 | LOCK |
| 1.800 MM | ||
| 524 | A 0069941341 | LOCK |
| 1.825 MM | ||
| 524 | A 0069941441 | LOCK |
| 1.850 MM | ||
| 524 | A 0069941541 | LOCK |
| 1.875 MM | ||
| 524 | A 0069941641 | LOCK |
| 1.900 MM | ||
| 530 | N 071412008100 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 550 | A 3454107108 | UNIVERSAL JOINT YOKE |
| 550 | A 3854100528 | UNIVERSAL JOINT |
| REAR PROPELLER SHAFT | ||
| 557 | A 3374130080 | SEAL RING |
| 558 | A 3214110158 | SEAL HOLDER |
| 565 | A 3524110011 | DRIVE FLANGE |
| 565 | A 3854111811 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 568 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 568 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 568 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 571 | N 071412008300 | GREASE NIPPLE |
| 571 | A 3459977288 | GREASE NIPPLE |
| 574 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 574 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 574 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 574 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 574 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 574 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 574 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 574 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 574 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 574 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 574 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 574 | A 0069940641 | LOCK |
| 1.650 MM | ||
| 574 | A 0069940741 | LOCK |
| 1.675 MM | ||
| 574 | A 0069940841 | LOCK |
| 1.700 MM | ||
| 574 | A 0069940941 | LOCK |
| 1.725 MM | ||
| 574 | A 0069941041 | LOCK |
| 1.750 MM | ||
| 574 | A 0069941141 | LOCK |
| 1.775 MM | ||
| 574 | A 0069941241 | LOCK |
| 1.800 MM | ||
| 574 | A 0069941341 | LOCK |
| 1.825 MM | ||
| 574 | A 0069941441 | LOCK |
| 1.850 MM | ||
| 574 | A 0069941541 | LOCK |
| 1.875 MM | ||
| 574 | A 0069941641 | LOCK |
| 1.900 MM | ||
| 579 | A 3024100080 | BOOT |
| 580 | A 3214110053 | WIRE RING |
| 582 | N 916018070000 | CLAMP |
| 582 | A 3449979790 | CLAMP |
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO REAR AXLE I | ||
| M 10 X 1 MM | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE I | ||
| M 12 X 1,25 MM | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLE I,FRONT | ||
| M 12 X 1,25 MM | ||
| 595 | N 000934012042 | NUT |
| PROPELLER SHAFT TO REAR AXLE I | ||
| 600 | A 3454108307 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 716 MM | ||
| 600 | A 3074102302 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 757 MM | ||
| 600 | A 3454107116 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 615 | A 3524110211 | DRIVE FLANGE |
| 615 | A 3854111811 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 618 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 618 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 618 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 621 | N 071412008300 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 621 | A 3459977288 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 624 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 624 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 624 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 624 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 624 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 624 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 624 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 624 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 624 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 624 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 624 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 624 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 624 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 624 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 624 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 624 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 624 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 624 | A 0069940641 | LOCK |
| 1.650 MM | ||
| 624 | A 0069940741 | LOCK |
| 1.675 MM | ||
| 624 | A 0069940841 | LOCK |
| 1.700 MM | ||
| 624 | A 0069940941 | LOCK |
| 1.725 MM | ||
| 624 | A 0069941041 | LOCK |
| 1.750 MM | ||
| 624 | A 0069941141 | LOCK |
| 1.775 MM | ||
| 624 | A 0069941241 | LOCK |
| 1.800 MM | ||
| 624 | A 0069941341 | LOCK |
| 1.825 MM | ||
| 624 | A 0069941441 | LOCK |
| 1.850 MM | ||
| 624 | A 0069941541 | LOCK |
| 1.875 MM | ||
| 624 | A 0069941641 | LOCK |
| 1.900 MM | ||
| 630 | N 071412008100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 650 | A 3524100108 | UNIVERSAL JOINT YOKE |
| 650 | A 3854100528 | UNIVERSAL JOINT |
| REAR PROPELLER SHAFT | ||
| 665 | A 3524110211 | DRIVE FLANGE |
| 665 | A 3854111811 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 668 | A 3454107031 | UNIVERSAL JOINT CROSS |
| 668 | A 0004101431 | UNIVERSAL JOINT CROSS |
| 668 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 671 | N 071412008300 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 671 | A 3459977288 | GREASE NIPPLE |
| REAR PROPELLER SHAFT | ||
| 674 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 674 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 674 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 674 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 674 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 674 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 674 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 674 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 674 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 674 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 674 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 674 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 674 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 674 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 674 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 674 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 674 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 674 | A 0069940641 | LOCK |
| 1.650 MM | ||
| 674 | A 0069940741 | LOCK |
| 1.675 MM | ||
| 674 | A 0069940841 | LOCK |
| 1.700 MM | ||
| 674 | A 0069940941 | LOCK |
| 1.725 MM | ||
| 674 | A 0069941041 | LOCK |
| 1.750 MM | ||
| 674 | A 0069941141 | LOCK |
| 1.775 MM | ||
| 674 | A 0069941241 | LOCK |
| 1.800 MM | ||
| 674 | A 0069941341 | LOCK |
| 1.825 MM | ||
| 674 | A 0069941441 | LOCK |
| 1.850 MM | ||
| 674 | A 0069941541 | LOCK |
| 1.875 MM | ||
| 674 | A 0069941641 | LOCK |
| 1.900 MM | ||
| 677 | A 3129941735 | SNAP RING |
| 678 | A 3214110158 | SEAL HOLDER |
| 679 | A 3024100080 | BOOT |
| 680 | A 3214110053 | WIRE RING |
| 682 | N 916018070000 | CLAMP |
| 682 | A 3449979790 | CLAMP |
| 689 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| M 10 X 1 MM | ||
| 689 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| M 12 X 1,25 MM | ||
| 695 | N 000934012042 | NUT |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
