Transporto priemonė: 2418; VIN numerio dalis: 682313

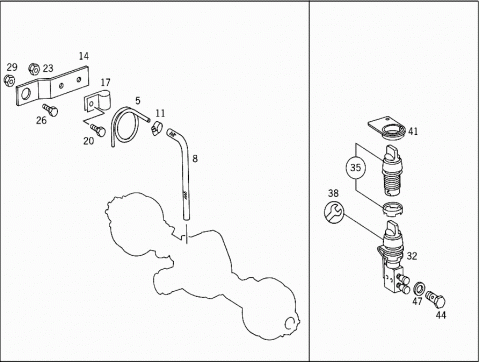

Grupė: 35 REAR AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3443517066 | PIPE |
| BREATHER LINE TO REAR AXLE | ||
| 008 | A 3459978782 | HOSE |
| BREATHER LINE TO REAR AXLE | ||
| 011 | N 916002010100 | CLAMP |
| BREATHER LINE TO REAR AXLE | ||
| 014 | A 3845288240 | BRACKET |
| BREATHER LINE TO REAR AXLE | ||
| 017 | A 3129951401 | CLAMP |
| BREATHER PIPE TO BRACKET | ||
| 020 | N 000933006220 | SCREW |
| BREATHER PIPE TO BRACKET | ||
| M 6X16 | ||
| 023 | N 913004006001 | NUT |
| BREATHER PIPE TO BRACKET | ||
| 026 | N 000961014107 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 029 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 032 | A 3849977136 | VALVE |
| DIFFERENTIAL LOCK | ||
| 032 | A 3849977136 | VALVE |
| DIFFERENTIAL LOCK | ||
| 032 | A 3869977036 | VALVE |
| DIFFERENTIAL LOCK | ||
| 035 | A 0004312164 | ACTUATING PART |
| 035 | A 0004312164 | ACTUATING PART |
| 038 | A 0004201971 | REPAIR KIT |
| TO 384 997 71 36 | ||
| 038 | A 0004201971 | REPAIR KIT |
| TO 384 997 71 36 | ||
| 041 | A 6822647184 | SHIM |
| REAR AXLE DIFFERENTIAL LOCK | ||
| 041 | A 6822647184 | SHIM |
| REAR AXLE DIFFERENTIAL LOCK | ||
| 041 | A 6822647284 | SHIM |
| REAR AXLE DIFFERENTIAL LOCK | ||
| 044 | N 915036006202 | HOLLOW SCREW |
| REAR AXLE DIFFERENTIAL LOCK | ||
| 047 | N 007603010103 | SEAL RING |
| 2/3-WAY VALVE TO ENGINE TUNNEL |
