Transporto priemonė: 2420 L; VIN numerio dalis: 654411

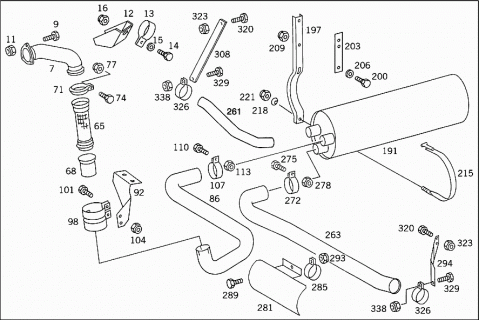

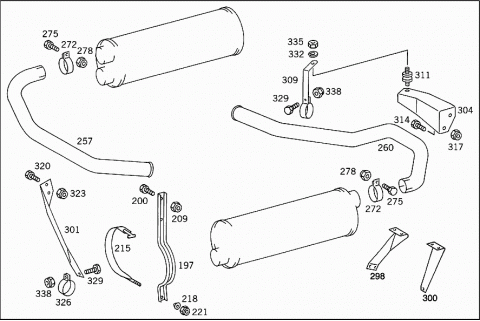

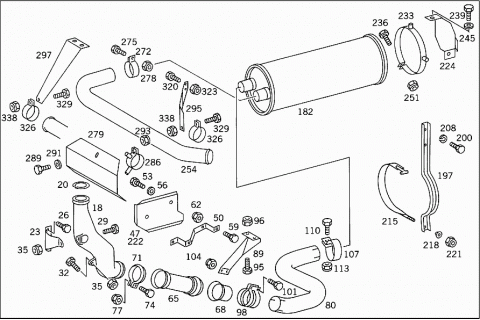

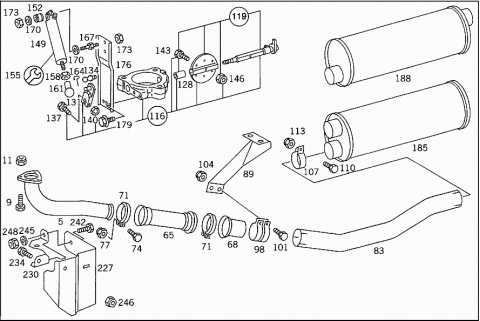

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6524900019 | EXHAUST PIPE |
| 007 | A 6544900425 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 007 | A 6544900625 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 007 | A 6544900625 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 007 | A 6544900525 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 007 | A 6544900725 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 007 | A 6544900725 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 009 | N 000960012258 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X1.5X75 | ||
| 009 | N 000931012132 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 009 | N 000931012114 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 011 | N 910113012002 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 913004012010 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 012 | A 6524911441 | BRACKET |
| LEFT CONNECTOR | ||
| 013 | N 071555075502 | CLAMP |
| LEFT CONNECTOR | ||
| 014 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 014 | N 304017010002 | SCREW |
| LEFT CONNECTOR | ||
| 015 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 015 | N 000125010532 | WASHER |
| LEFT CONNECTOR | ||
| 016 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 016 | N 910113010000 | NUT |
| LEFT CONNECTOR | ||
| 018 | A 6524920201 | FRONT EXHAUST PIPE |
| EXHAUST PIPE IN FRONT OF FLEXIBLE METAL TUBE | ||
| 020 | A 0001424357 | SEAL RING |
| 023 | A 6524920041 | BRACKET |
| Repalced by: A 6524927041 | ||
| 023 | A 6524927041 | BRACKET |
| FRONT EXHAUST PIPE TO TIMING CASE,TOP | ||
| 026 | N 000933016060 | SCREW |
| Repalced by: N 304017016011 | ||
| 026 | N 304017016011 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 029 | N 000933010157 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 032 | N 000933010105 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| M 10X25 | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 035 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 047 | A 6524920030 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| A 6524901340 | BRACKET | |
| COVER PLATE TO SIDE MEMBER | ||
| 050 | A 6524901940 | BRACKET |
| COVER PLATE TO SIDE MEMBER | ||
| 053 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 053 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 056 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 056 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 059 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 059 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 062 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 065 | A 6214900065 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 065 | A 6204900465 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 065 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 068 | A 6214920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 068 | A 6204920208 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 068 | A 6174920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 071 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 071 | A 6209970590 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 071 | A 6209970490 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 074 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 074 | N 304017008018 | SCREW |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| M 8X35 | ||
| 074 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 074 | N 304017008027 | SCREW |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| M 8X30 | ||
| 077 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 080 | A 6524902320 | EXHAUST PIPE |
| FRONT | ||
| 080 | A 6524900520 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 080 | A 6524900620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 080 | A 6544901020 | EXHAUST PIPE |
| FRONT | ||
| 080 | A 6544901020 | EXHAUST PIPE |
| FRONT | ||
| 080 | A 6544901120 | EXHAUST PIPE |
| FRONT | ||
| 080 | A 6544901120 | EXHAUST PIPE |
| FRONT | ||
| 080 | A 6544901820 | EXHAUST PIPE |
| FRONT | ||
| 083 | A 6524901120 | EXHAUST PIPE |
| FRONT | ||
| 086 | A 6544900520 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 086 | A 6194901820 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 086 | A 6544900120 | EXHAUST PIPE |
| Repalced by: A 6544901720 | ||
| 086 | A 6544901720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 086 | A 6544900620 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 086 | A 6194902120 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 086 | A 6544900220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 089 | A 6534920541 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 089 | A 6524929341 | BRACKET |
| Repalced by: A 6524920641 | ||
| 089 | A 6524920641 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 089 | A 6524920641 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 092 | A 6194920441 | BRACKET |
| FRONT EXHAUST PIPE,LEFT | ||
| 092 | A 6194920541 | BRACKET |
| FRONT EXHAUST PIPE,RIGHT | ||
| 095 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 095 | N 308676012013 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 095 | N 000961014027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 096 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 096 | N 910113012003 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 096 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 096 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 098 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 098 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 098 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 098 | A 6524920040 | CLAMP |
| Repalced by: N 071555090501 | ||
| 098 | N 071555090501 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 101 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 101 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 101 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 101 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 104 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 104 | N 910113010000 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 107 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 107 | N 071555100501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 107 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 107 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 107 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 110 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 110 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 116 | A 3661402353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 119 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 128 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 128 | A 4761447050 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 131 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 131 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 134 | N 071803013208 | BALL PIVOT |
| 137 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 137 | N 914126006025 | SCREW |
| Repalced by: N 910105006005 | ||
| 137 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 137 | N 000000001479 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 140 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 140 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 140 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 140 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 143 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 143 | A 0099900101 | SCREW |
| THROTTLE VALVE TO SHAFT | ||
| 146 | N 913004008014 | NUT |
| THROTTLE VALVE TO SHAFT | ||
| 149 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 149 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 149 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 149 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| KNORR | ||
| Repalced by: A 0004307926 | ||
| 149 | A 0004307926 | WORKING CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| KNORR | ||
| 152 | A 4421440050 | BUSHING |
| 155 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| KNORR | ||
| 158 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 158 | N 304035008001 | NUT |
| 161 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 161 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 164 | N 071805013402 | CIRCLIP |
| SHIFTING CYLINDER TO FITTING | ||
| 167 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 170 | A 0039902940 | WASHER |
| SHIFTING CYLINDER TO PIN | ||
| 173 | N 000934008035 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 176 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 176 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 179 | N 914126008037 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 182 | A 6524900101 | EXHAUST MUFFLER |
| 185 | A 6524900301 | EXHAUST MUFFLER |
| 188 | A 6524900401 | EXHAUST MUFFLER |
| 191 | A 6174901901 | EXHAUST MUFFLER |
| 197 | A 6524910141 | BRACKET |
| Repalced by: A 6524910741 | ||
| 197 | A 6524910741 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 197 | A 6524900140 | BRACKET |
| Repalced by: A 6524903740 | ||
| 197 | A 6524903740 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 197 | A 6524903740 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 197 | A 6524900540 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 197 | A 6524911141 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 197 | A 6524911141 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 197 | A 6524901840 | BRACKET |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 200 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 200 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 200 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 203 | A 3974750084 | SHIM |
| BRACKET TO SIDE MEMBER | ||
| 206 | A 3209901840 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 912004014100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 209 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 209 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 215 | A 6174900542 | STRAP |
| Repalced by: A 6174900142 | ||
| 215 | A 6174900142 | STRAP |
| EXHAUST MUFFLER | ||
| 215 | A 6524900042 | STRAP |
| Repalced by: A 6524900442 | ||
| 215 | A 6524900442 | STRAP |
| EXHAUST MUFFLER | ||
| 218 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER AND STRAP TO BRACKET | ||
| 221 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 221 | N 910113010000 | NUT |
| EXHAUST MUFFLER AND STRAP TO BRACKET | ||
| 222 | A 6524920030 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 224 | A 6524920130 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 227 | A 6524920230 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 230 | A 6524901940 | BRACKET |
| (HEAT SHIELD) | ||
| 230 | A 6764921641 | BRACKET |
| Repalced by: A 6764901040 | ||
| 230 | A 6764901040 | BRACKET |
| (HEAT SHIELD) | ||
| 233 | A 6524900041 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 234 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 234 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 236 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 236 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 239 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 239 | N 304017008016 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 239 | N 304017008016 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 242 | A 4609900601 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 245 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 245 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 245 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 246 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 248 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 248 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 251 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 251 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 251 | N 910113010000 | HEXAGON NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 254 | A 6524926314 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524926314 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524926314 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524929814 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524920614 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524920814 | END PIECE |
| TAIL PIPE,FRONT | ||
| 254 | A 6524925114 | END PIECE |
| TAIL PIPE,FRONT | ||
| 257 | A 6524921214 | END PIECE |
| TAIL PIPE,FRONT | ||
| 257 | A 6524926014 | END PIECE |
| TAIL PIPE,FRONT | ||
| 260 | A 6164921914 | END PIECE |
| TAIL PIPE,FRONT | ||
| 261 | A 6524929914 | END PIECE |
| EXHAUST OUTLET,RIGHT | ||
| 263 | A 6544920004 | REAR EXHAUST PIPE |
| Repalced by: A 6524921914 | ||
| 263 | A 6524921914 | END PIECE |
| TAIL PIPE,FRONT | ||
| 263 | A 6544920204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 263 | A 6194921904 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 263 | A 6524920204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 263 | A 6524925814 | END PIECE |
| Repalced by: A 6524920204 | ||
| 272 | A 6534920040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 272 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 272 | N 071555094502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 272 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 272 | N 071555090502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 275 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 275 | N 304017010002 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 278 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 278 | N 910113010000 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 279 | A 6524920630 | PROTECTIVE PLATE |
| TAIL PIPE,FRONT | ||
| 281 | A 3834901030 | PROTECTIVE PLATE |
| TAIL PIPE,FRONT | ||
| 281 | A 3834901030 | PROTECTIVE PLATE |
| TAIL PIPE,FRONT | ||
| 285 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 285 | N 071555090502 | CLAMP |
| HEAT SHIELD TO TAILPIPE | ||
| 285 | N 071555090502 | CLAMP |
| HEAT SHIELD TO TAILPIPE | ||
| 286 | A 6524900341 | CLAMP |
| HEAT SHIELD TO TAILPIPE | ||
| 286 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 286 | N 071555100501 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 289 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 289 | N 304017010002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 289 | N 304017010002 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 289 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 289 | N 304017008039 | SCREW |
| HEAT SHIELD TO TAILPIPE | ||
| 291 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 291 | N 000125008443 | WASHER |
| HEAT SHIELD TO TAILPIPE | ||
| 293 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 293 | N 910113010000 | NUT |
| HEAT SHIELD TO TAILPIPE | ||
| 293 | N 910113010000 | HEXAGON NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 293 | N 910113010000 | HEXAGON NUT |
| HEAT SHIELD TO TAILPIPE | ||
| 293 | N 913004008004 | NUT |
| HEAT SHIELD TO TAILPIPE | ||
| 294 | A 6194921241 | BRACKET |
| Repalced by: A 6524921441 | ||
| 294 | A 6524921441 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 294 | A 6524921441 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 294 | A 6544920341 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 294 | A 6214921741 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 295 | A 6524920941 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 297 | A 6524921041 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 298 | A 6544920641 | BRACKET |
| TAIL PIPE TO APPARATUS SUPPORT | ||
| 300 | A 6524928441 | BRACKET |
| BRACKET TO FRAME | ||
| 301 | A 6524921641 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 304 | A 3814910116 | SUPPORT |
| TAIL PIPE TO SIDE MEMBER | ||
| 308 | A 6544920041 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 308 | A 6244920741 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 309 | A 6164920141 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 311 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 314 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 314 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 317 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 317 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 320 | N 000961014027 | SCREW |
| BRACKET TO FRAME | ||
| 320 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 320 | N 308676014020 | SCREW |
| BRACKET TO CONSOLE | ||
| 320 | N 308676014020 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| 320 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 320 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 320 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 320 | N 000933008145 | SCREW |
| TAIL PIPE TO CROSS MEMBER | ||
| 323 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 323 | N 910113014001 | NUT |
| BRACKET TO CONSOLE | ||
| 323 | N 910113014001 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 323 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 323 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 323 | N 910113010000 | HEXAGON NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 323 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 323 | N 913004008001 | NUT |
| TAIL PIPE TO CROSS MEMBER | ||
| 326 | N 071555110501 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 326 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 326 | A 6454921140 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 329 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 329 | N 304017010002 | SCREW |
| TAIL PIPE TO BRACKET | ||
| 329 | N 304017010002 | HEXAGON HEAD BOLT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 329 | N 304017010002 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 332 | N 912004010102 | LOCK WASHER |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 335 | N 000934010014 | NUT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 338 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 338 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 338 | N 910113010000 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 338 | N 910113010000 | HEXAGON NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
