Transporto priemonė: 2421 INDONESIA; VIN numerio dalis: 684352

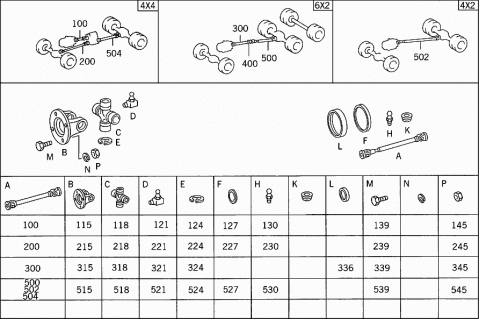

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 3854106407 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 115 | A 3854111711 | DRIVE FLANGE |
| 118 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 121 | N 071412008300 | GREASE NIPPLE |
| 124 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.650 MM | ||
| 124 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.700 MM | ||
| 124 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 124 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.850 MM | ||
| 127 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 130 | N 071412008100 | GREASE NIPPLE |
| 139 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 145 | N 000934012042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 200 | A 6744101502 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 215 | A 3814110811 | DRIVE FLANGE |
| 215 | A 3814111411 | DRIVE FLANGE |
| 218 | A 6174100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 221 | N 071412008300 | GREASE NIPPLE |
| 224 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 224 | A 0059949741 | LOCK |
| 1.825 MM | ||
| 224 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 224 | A 0069940141 | LOCK |
| AS REQUIRED | ||
| 1.925 MM | ||
| 224 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 227 | A 3814110559 | SEAL RING |
| PROTECTIVE TUBE | ||
| 227 | A 3814110759 | SEAL RING |
| PROTECTIVE TUBE | ||
| 230 | N 071412008100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 239 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 245 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 300 | A 6744100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 300 | A 6744100804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 300 | A 3854106304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 315 | A 3814110811 | DRIVE FLANGE |
| 315 | A 3814111411 | DRIVE FLANGE |
| 315 | A 3854111711 | DRIVE FLANGE |
| 318 | A 6174100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 318 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 321 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 324 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.650 MM | ||
| 324 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.700 MM | ||
| 324 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 324 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 324 | A 0059949741 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 324 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.850 MM | ||
| 324 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 324 | A 0069940141 | LOCK |
| AS REQUIRED | ||
| 1.925 MM | ||
| 324 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 336 | A 3814130461 | PROTECTIVE CAP |
| 336 | A 3854130461 | PROTECTIVE CAP |
| 339 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 345 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 345 | N 000934012042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||

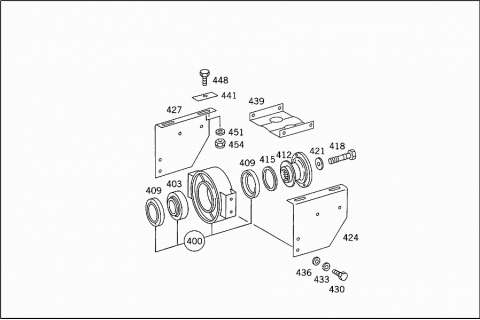

| 400 | A 3814101522 | INTERMEDIATE BEARING |
| 400 | A 3854101722 | INTERMEDIATE BEARING |
| 403 | A 0019818625 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 403 | A 0019818125 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 409 | A 3814130561 | PROTECTIVE CAP |
| PROPELLER SHAFT BEARING | ||
| 409 | A 3854130561 | PROTECTIVE CAP |
| PROPELLER SHAFT BEARING | ||
| 412 | A 3814110145 | FLANGE |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| A 674 410 01 04; 08 04 | ||
| 412 | A 3854110045 | FLANGE |
| 415 | A 3814130461 | PROTECTIVE CAP |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| A 674 410 01 04; 08 04 | ||
| 415 | A 3854130461 | PROTECTIVE CAP |
| 418 | N 000961016027 | SCREW |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| A 674 410 01 04; 08 04 | ||
| 421 | A 3832820262 | THRUST WASHER |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| A 674 410 01 04; 08 04 | ||
| 421 | A 3894110162 | THRUST WASHER |
| 424 | A 3854138442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854137042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3974130142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854137142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 3854138542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854137142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3974130042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854137042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000933010254 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 433 | N 000127010202 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | N 007349010002 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 439 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 441 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 448 | N 000960010066 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 007349010002 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913004010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 6744100002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 500 | A 6744100702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 500 | A 3854107207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 500 | A 3974100207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 502 | A 6164100807 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 504 | A 3854109307 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 515 | A 3814110811 | DRIVE FLANGE |
| 515 | A 3814111411 | DRIVE FLANGE |
| 515 | A 3854111711 | DRIVE FLANGE |
| 518 | A 6174100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 524 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.650 MM | ||
| 524 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.700 MM | ||
| 524 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 524 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 524 | A 0059949741 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 524 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.850 MM | ||
| 524 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 524 | A 0069940141 | LOCK |
| AS REQUIRED | ||
| 1.925 MM | ||
| 524 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 527 | A 3814110559 | SEAL RING |
| PROTECTIVE TUBE | ||
| 527 | A 3814110759 | SEAL RING |
| PROTECTIVE TUBE | ||
| 527 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 530 | N 071412008100 | GREASE NIPPLE |
| 539 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 545 | N 000934010042 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 545 | N 000934012042 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 545 | N 000934012042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 545 | N 000934012042 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE |
