Transporto priemonė: 2423K/ 6X4; VIN numerio dalis: 693386

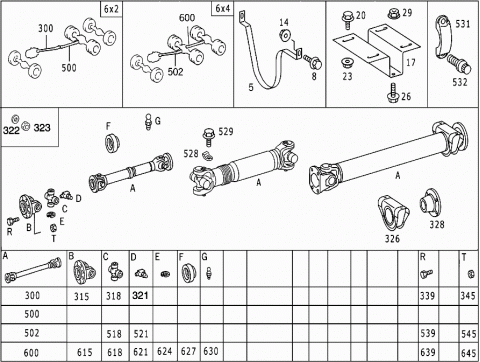

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 6954117282	REBOUND STRAP
	Repalced by: A 6954117082
005	A 6954117082	REBOUND STRAP
008	N 910105014005	SCREW
		REBOUND STRAP TO FRAME
		M 14 X 1,5 X 40
	N 000125015012	WASHER
		REBOUND STRAP TO FRAME
014	N 913023014003	NUT
		REBOUND STRAP TO FRAME
017	A 6934130342	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER
020	N 910105012007	SCREW
		BRACKET TO CROSS MEMBER
		M 12X1.5X30
023	N 913023012002	NUT
		BRACKET TO CROSS MEMBER
026	N 910105014013	SCREW
		PROPELLER SHAFT BEARING TO BRACKET
		M 14X1.5X35
029	N 913023014003	NUT
		PROPELLER SHAFT BEARING TO BRACKET
300	A 6934100401	PROPELLER SHAFT
	Repalced by: A 6934100701
300	A 6934100701	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1248 MM
315	A 0004110845	FLANGE
		TO 693 410 04 01 / 693 410 02 02
315	A 0004110645	FLANGE
		TO 693 410 07 01
318	A 0004103631	UNIVERSAL JOINT CROSS
		DIA.,
		(55) TO 693 410 04 01
318	A 0004103631	UNIVERSAL JOINT CROSS
		DIA.,
		(55) TO 693 410 02 02
318	A 0004103831	UNIVERSAL JOINT CROSS
		DIA.,
		(60) TO 693 410 07 01
321	A 0009976188	GREASE NIPPLE
		TO 693 410 04 01;07 01
322	A 0004110376	WASHER
		TO 693 410 04 01
323	A 0019905550	NUT
		TO 693 410 04 01
326	A 0004100510	INTERMEDIATE BEARING
		TO 693 410 04 01;07 01
328	A 0004110745	FLANGE
		TO 693 410 04 01;07 01
339	N 000960014237	SCREW
		PROPELLER SHAFT TO TRANSMISSION
		M 14X1.5X50
345	N 000934014025	NUT
		PROPELLER SHAFT TO TRANSMISSION
500	A 6934100202	PROPELLER SHAFT
	Repalced by: A 6934100402
500	A 6934100402	PROPELLER SHAFT
		FROM PROPELLER SHAFT BEARING TO REAR AXLE I
		1613 MM
502	A 6934100502	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1640MM
502	A 6934108002	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1730 MM
502	A 6954107702	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1700 MM
	A 0004110645	FLANGE
518	A 0004103531	UNIVERSAL JOINT CROSS
	Repalced by: A 0004103931
518	A 0004103931	UNIVERSAL JOINT CROSS
518	A 0004103931	UNIVERSAL JOINT CROSS
518	A 0004103631	UNIVERSAL JOINT CROSS
		DIA.,
		(55) TO A 693 410 02 02
518	A 0004103831	UNIVERSAL JOINT CROSS
		DIA.,
		(60) TO A 693 410 04 02
521	A 0009974788	GREASE NIPPLE
521	A 0009974788	GREASE NIPPLE
521	A 0009976188	GREASE NIPPLE
528	A 0004113373	LOCK
528	A 0004113373	LOCK
528	A 0004113373	LOCK
529	A 0004110071	SCREW
529	A 0004110071	SCREW
529	A 0004110071	SCREW
531	A 6959957110	CLAMP
		PROPELLER SHAFT TO TRANSMISSION
532	A 6969907201	SCREW
		PROPELLER SHAFT TO TRANSMISSION
539	N 000960014237	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT
		M 14X1.5X50
539	A 3609903001	SCREW
		PROPELLER SHAFT TO REAR AXLE
		M 12 X 1,25 MM
539	N 000960014237	SCREW
		PROPELLER SHAFT TO REAR AXLE I
		M 14X1.5X50
545	N 000934014025	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT
545	N 000934012042	NUT
		PROPELLER SHAFT TO REAR AXLE
545	N 000934014025	NUT
		PROPELLER SHAFT TO REAR AXLE I
600	A 3454107116	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		728 MM
600	A 3864107102	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		655 MM
615	A 3864100030	CENTERING FLANGE
615	A 3864100030	CENTERING FLANGE
618	A 3864100031	UNIVERSAL JOINT CROSS
618	A 3864100031	UNIVERSAL JOINT CROSS
621	N 071412008200	GREASE NIPPLE
621	N 071412008200	GREASE NIPPLE
624	A 0029941241	LOCK
		AS REQUIRED
		1.65MM
624	A 0029943135	SNAP RING
		AS REQUIRED
		1.67 MM
624	A 0029943135	SNAP RING
		AS REQUIRED
		1.67 MM
624	A 0029943235	SNAP RING
		AS REQUIRED
		1.72 MM
624	A 0029943235	SNAP RING
		AS REQUIRED
		1.72 MM
624	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
624	A 0029941741	LOCK
		AS REQUIRED
		1.80 MM
624	A 0029943335	SNAP RING
		AS REQUIRED
		1.82 MM
624	A 0029943335	SNAP RING
		AS REQUIRED
		1.82 MM
627	A 0119976346	SEAL RING
630	N 071412008100	GREASE NIPPLE
630	A 0009974888	GREASE NIPPLE
639	A 3609903001	SCREW
		PROPELLER SHAFT TO REAR AXLE II
		M 12 X 1,25 MM
645	N 000934012042	NUT
		PROPELLER SHAFT TO REAR AXLE II
