Transporto priemonė: 2435 S MBSA; VIN numerio dalis: 658135

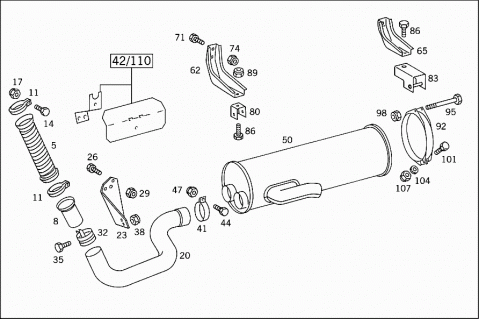

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR THE REMAINING PARTS,SEE ENGINE STANDARD VERSION | ||
| 005 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 008 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 011 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 014 | N 000933008161 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 017 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 020 | A 6554901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 023 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 023 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 026 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 026 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 029 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 032 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 035 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 038 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 047 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 050 | A 6454902101 | EXHAUST MUFFLER |
| 050 | A 6454902401 | EXHAUST MUFFLER |
| 062 | A 6204910415 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 065 | A 6204910815 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 071 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 074 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 080 | A 6204910341 | BRACKET |
| STRAP TO FRONT AND REAR CONSOLES | ||
| 083 | A 6554900040 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 089 | N 913004010008 | NUT |
| BRACKET TO CONSOLE | ||
| 092 | A 6204900042 | STRAP |
| EXHAUST MUFFLER | ||
| 092 | A 6204900042 | STRAP |
| EXHAUST MUFFLER | ||
| 095 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 095 | N 304017010030 | HEXAGON HEAD BOLT |
| STRAP TO BRACKET | ||
| M10X50 | ||
| 098 | N 913004010008 | NUT |
| STRAP TO BRACKET | ||
| 101 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 104 | N 000125008418 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 107 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO STRAP |
