Transporto priemonė: 2435 S MBSA; VIN numerio dalis: 658135

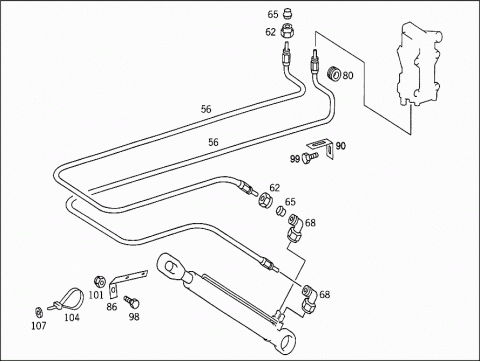

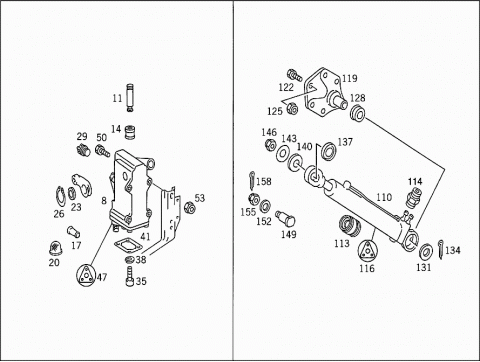

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005536801 | PUMP |
| Repalced by: A 0005537901 | ||
| 008 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 011 | A 0005531890 | PISTON |
| WEBER | ||
| 014 | A 0005502855 | VALVE |
| WEBER | ||
| 017 | A 0005530403 | FILTER |
| WEBER | ||
| 020 | A 0005531203 | FILTER |
| SAUER/HUNGER | ||
| 023 | N 000988020011 | FITTED WASHER |
| WEBER | ||
| 026 | N 000471020001 | LOCK RING |
| WEBER | ||
| 029 | A 0009901610 | SCREW |
| OIL FILLING | ||
| WEBER | ||
| 029 | A 0009901510 | SCREW |
| OIL FILLING | ||
| HUNGER | ||
| 035 | N 000912008111 | SCREW |
| BOX COVER | ||
| WEBER | ||
| 035 | N 000912008114 | SCREW |
| Repalced by: N 000912008201 | ||
| 035 | N 000912008201 | SCREW |
| BOX COVER | ||
| HUNGER | ||
| 038 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER | ||
| 041 | A 0005531280 | GASKET |
| HUNGER | ||
| 047 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| WEBER | ||
| 047 | A 0005502983 | GASKET KIT |
| HAND PUMP | ||
| HUNGER | ||
| 050 | N 000933010105 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| M 10X25 | ||
| 050 | N 000933010129 | SCREW |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| M 10X30 | ||
| 053 | N 913004010008 | NUT |
| HAND PUMP TO AIR CLEANER SUPPORT | ||
| 056 | A 6205530182 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6555530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 062 | N 915017006100 | UNION NUT |
| 065 | N 003861006007 | GLAND |
| 068 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 080 | A 6559970081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 080 | A 6554290081 | GROMMET |
| 086 | A 6205530440 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 090 | A 6205240340 | BRACKET |
| HIGH PRESSURE HOSE TO FRAME | ||
| 098 | N 000933010129 | SCREW |
| BRACKET TO FRAME | ||
| 099 | N 000933010145 | SCREW |
| HIGH PRESSURE HOSE TO FRAME | ||
| 101 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 101 | N 913004010008 | NUT |
| HIGH PRESSURE HOSE TO FRAME | ||
| 104 | A 0019978390 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 280 MM | ||
| 104 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 376 MM | ||
| 107 | N 000125008418 | WASHER |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 110 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 110 | A 0015534705 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 110 | A 0005538905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| HUNGER | ||
| 113 | A 0005531428 | GUIDE |
| WEBER,TO 001 553 35 05 | ||
| 114 | A 0005530368 | FITTING |
| WEBER,TO 001 553 35 05 | ||
| 116 | A 0005502007 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| HUNGER TO 000 553 89 05 | ||
| 116 | A 0005501607 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER, TO 001 553 47 05 | ||
| 116 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 35 05 | ||
| 119 | A 3875530838 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 119 | A 6205531238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 122 | N 000961014134 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 122 | N 000961016077 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 16X45 | ||
| 122 | A 0039904104 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X1,5X50 | ||
| 122 | N 308676016007 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X1,5X50 | ||
| 122 | N 000960016237 | SCREW |
| BEARING BRACKET AND ENGINE FRONT MOUNTING TO SIDE MEMBER | ||
| M 16X60 | ||
| 125 | N 913004016005 | NUT |
| BEARING BRACKET TO FRAME | ||
| 128 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER | ||
| 131 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 134 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 137 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 140 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 143 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 146 | N 913004016004 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 149 | A 6208910057 | PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 152 | N 001440014002 | WASHER |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 155 | N 000979014004 | NUT |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
| 158 | N 000094003226 | COTTER PIN |
| HYDRAULIC CYLINDER TO ROCKER ARM | ||
