Transporto priemonė: 2435 S MBSA; VIN numerio dalis: 658135

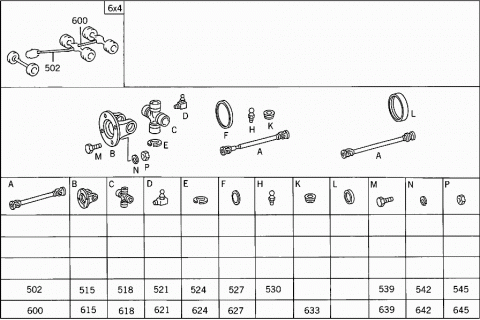

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
502	A 3954106002	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE I
		1247 MM
502	A 3954107702	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE I
		1183 MM
515	A 3954110911	DRIVE FLANGE
	Repalced by: A 3954111011
515	A 3954111011	DRIVE FLANGE
	Repalced by: A 3954111211
515	A 3954111211	DRIVE FLANGE
518	A 6204100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
521	N 071412008300	GREASE NIPPLE
524	A 0069943141	LOCK
		AS REQUIRED
		2.00 MM
524	A 0069943541	LOCK
		AS REQUIRED
		2.10 MM
524	A 0069943941	LOCK
		AS REQUIRED
		2.20 MM
527	A 3954110059	SEAL RING
		PROTECTIVE TUBE
		105X17 MM
527	A 0004110159	SEAL RING
		PROTECTIVE TUBE
		102.5X22 MM
527	A 0004110259	SEAL RING
		PROTECTIVE TUBE
		105.6X12 MM
530	N 071412008100	GREASE NIPPLE
539	N 000960014237	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
542	N 912004014100	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
545	N 000934014020	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
600	A 3894102502	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		780 MM
615	A 3894110411	DRIVE FLANGE
	Repalced by: A 6544110511
615	A 6544110511	DRIVE FLANGE
618	A 0004100231	UNIVERSAL JOINT CROSS
	Repalced by: A 0004101628
618	A 0004101628	UNIVERSAL JOINT
		WITH BUSHINGS
621	N 071412008300	GREASE NIPPLE
624	A 0069941941	LOCK
		AS REQUIRED
		2.00 MM
624	A 0069942341	LOCK
		AS REQUIRED
		2.10 MM
624	A 0069942741	LOCK
		AS REQUIRED
		2.20 MM
627	A 3894110080	GASKET
		PROTECTIVE TUBE
633	N 000906008001	SCREW PLUG
639	A 3609902901	SCREW
	Repalced by: A 3609903101
639	A 3609903101	SCREW
		PROPELLER SHAFT TO REAR AXLES I AND II
642	N 912004012100	LOCK WASHER
		PROPELLER SHAFT TO REAR AXLES I AND II
645	N 000934012034	NUT
		PROPELLER SHAFT TO REAR AXLES I AND II
