Transporto priemonė: 2538,2553; VIN numerio dalis: 658027

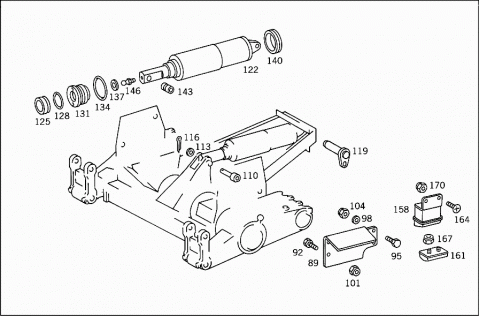

Grupė: 39 TRAILING AXLE - 200 SWINGING LINK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6583900509 | SWINGING LINK |
| COMPLETE | ||
| A 6583900130 | AXLE SUSPENSION | |
| Repalced by: A 0003910027 | ||
| 008 | A 0003910027 | LEVER |
| LIFTING DEVICE USED FOR TRAILING AXLE | ||
| 009 | A 0003900638 | CONSOLE |
| LIFTING DEVICE USED FOR TRAILING AXLE | ||
| 011 | A 6993910009 | SWINGING LINK |
| LEFT | ||
| 011 | A 6993910109 | SWINGING LINK |
| RIGHT | ||
| 014 | A 6993900008 | AXLE TUBE |
| 017 | N 000720032020 | TAPERED ROLLER BEARING |
| SWINGING LINK TO AXLE TUBE,INSIDE | ||
| 020 | A 6993910180 | SEAL RING |
| SWINGING LINK TO AXLE TUBE,INSIDE | ||
| 023 | A 6993920060 | THRUST RING |
| SWINGING LINK TO AXLE TUBE,INSIDE | ||
| 026 | A 6999800001 | CYLINDR. ROLLER BEARING |
| SWINGING LINK TO AXLE TUBE,OUTSIDE | ||
| 029 | A 6993910045 | FLANGE |
| SWINGING LINK TO AXLE TUBE,OUTSIDE | ||
| 032 | A 0003930070 | STUD |
| 035 | A 6993910080 | GASKET |
| COVER TO SWINGING LINK | ||
| 038 | A 6993910020 | COVER |
| 041 | N 000908010004 | SCREW PLUG |
| Repalced by: N 000000000648 | ||
| 041 | N 000000000648 | SCREW PLUG, FILLING |
| 044 | N 000912006004 | SCREW |
| Repalced by: A 0009847929 | ||
| 044 | A 0009847929 | SCREW |
| COVER TO SWINGING LINK | ||
| 047 | A 0003220220 | SHACKLE |
| LEFT | ||
| 047 | A 0003220320 | SHACKLE |
| RIGHT | ||
| 050 | A 0003900050 | BUSHING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 053 | A 6999970448 | SEAL RING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 056 | A 6999970548 | SEAL RING |
| SPRING SHACKLE TO SWINGING LINK | ||
| 059 | N 000960012307 | SCREW |
| SPRING SHACKLE TO SWINGING LINK | ||
| 062 | N 913002012007 | NUT |
| SPRING SHACKLE TO SWINGING LINK | ||
| 065 | A 6993930150 | BUSHING |
| LIFT ARM | ||
| 068 | A 6999910045 | RING |
| LIFT ARM | ||
| 071 | A 6993910280 | GASKET |
| LIFT ARM | ||
| 089 | A 0003900040 | BRACKET |
| MOUNTING BRACKET | ||
| 092 | A 0069900101 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 095 | N 000609016010 | FITTED SCREW |
| BRACKET TO CROSS MEMBER | ||
| 098 | N 000125017015 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 101 | A 0039906451 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 104 | N 913017016000 | NUT |
| Repalced by: N 913023016001 | ||
| 104 | N 913023016001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 110 | A 6993930074 | PIN |
| PISTON ROD TO LIFTING ARM | ||
| 113 | A 6999900840 | WASHER |
| PISTON ROD TO LIFTING ARM | ||
| 116 | N 000094006014 | COTTER PIN |
| PISTON ROD TO LIFTING ARM | ||
| 119 | A 6993930374 | PIN |
| CYLINDRICAL TUBE TO CROSS MEMBER | ||
| 122 | A 0003900122 | CYLINDER |
| 125 | A 6995530096 | BOOT |
| HYDRAULIC CYLINDER | ||
| 128 | A 6999970248 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 131 | A 0005530906 | HOUSING |
| HYDRAULIC CYLINDER | ||
| 134 | A 6999970348 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 137 | A 6995530196 | BOOT |
| HYDRAULIC CYLINDER | ||
| 140 | A 6995530360 | SEAL RING |
| HYDRAULIC CYLINDER | ||
| 143 | A 6995530021 | BEARING |
| PISTON ROD | ||
| 146 | A 0009974688 | GREASE NIPPLE |
| 149 | N 000912016066 | SCREW |
| MOUNTING BRACKET | ||
| 152 | N 000125017015 | WASHER |
| MOUNTING BRACKET | ||
| 155 | A 0019902912 | SCREW |
| DETENT | ||
| 158 | A 6583900287 | AXLE STOP |
| SWINGING LINK | ||
| 161 | A 3353250044 | RUBBER BUFFER |
| STOP | ||
| 164 | N 000933012071 | SCREW |
| STOP BUFFER TO FRAME | ||
| 167 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 167 | N 910113010000 | NUT |
| BUFFER TO BRACKET | ||
| 170 | N 910113012002 | NUT |
| STOP BUFFER TO FRAME | ||
| 173 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 173 | N 308676016007 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X50 | ||
| 173 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 173 | N 308676016004 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X55 | ||
| 173 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 173 | N 308676016014 | SCREW |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 176 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 176 | N 910113016001 | NUT |
| SWINGING LINK TO SIDE MEMBER | ||
| M 16X1.5 | ||
| 179 | N 000912016096 | SCREW |
| TRAILING AXLE TO SWINGING LINK | ||
| M 16X70 | ||
| 179 | N 000912016097 | SCREW |
| TRAILING AXLE TO SWINGING LINK | ||
| M 16X110 | ||
| 182 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 182 | N 910113016001 | NUT |
| TRAILING AXLE TO SWINGING LINK | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

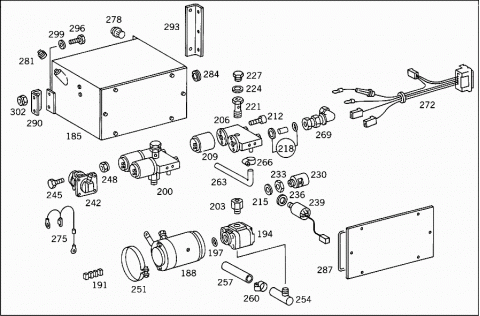

| HYDRAULIC SYSTEM | ||
| 185 | A 6583900017 | HYDRAULIC UNIT |
| 188 | A 6992350095 | MOTOR |
| 191 | A 6995480042 | CARBON BRUSH |
| 194 | A 6995500083 | PUMP |
| 197 | A 6995530160 | SEAL RING |
| 200 | A 0005504355 | VALVE |
| Repalced by: A 0005505355 | ||
| 200 | A 0005505355 | VALVE |
| (CONTROL VALVE) | ||
| 203 | A 6995530007 | VALVE |
| (CHECK VALVE) | ||
| 206 | A 0005505255 | VALVE |
| (CONTROL VALVE) | ||
| 209 | A 6995430085 | MAGNET |
| 212 | N 000084005402 | SCREW |
| SOLENOID VALVE | ||
| 215 | N 007603016103 | SEAL RING |
| CHECK VALVE | ||
| 218 | A 6995530060 | SEAL RING |
| PARTS KIT | ||
| 221 | A 6999900263 | HOLLOW SCREW |
| SOLENOID VALVE | ||
| 224 | A 6999970648 | SEAL RING |
| SOLENOID VALVE | ||
| 227 | A 0019976130 | SCREW PLUG |
| SOLENOID VALVE | ||
| 230 | A 0009975074 | T-FITTING |
| PRESSURE SWITCH | ||
| 233 | A 0009902860 | NUT |
| PRESSURE SWITCH | ||
| 236 | A 0003920060 | SEAL RING |
| PRESSURE SWITCH | ||
| 239 | A 6995450314 | SWITCH |
| (PRESSURE SWITCH) | ||
| 239 | A 6995450214 | SWITCH |
| (PRESSURE SWITCH) | ||
| 140 BAR | ||
| 242 | A 0005450967 | CONTACTOR |
| 140 BAR | ||
| 245 | N 000933005058 | SCREW |
| COIL TO SWITCH BOX | ||
| 248 | N 913004005001 | NUT |
| COIL TO SWITCH BOX | ||
| 251 | A 6995530140 | BRACKET |
| ENGINE | ||
| 254 | A 6995531657 | LINE |
| SUCTION LINE | ||
| 257 | A 6995530182 | HOSE |
| SUCTION LINE | ||
| 260 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 260 | N 000000000667 | CLAMP |
| SUCTION LINE | ||
| 20-32X13 MM | ||
| 263 | A 6995530082 | HOSE |
| FROM OIL TANK TO SOLENOID VALVE | ||
| 266 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 266 | N 000000000665 | CLAMP |
| HOSE TO PIPE LINE | ||
| 12-22X12MM | ||
| 269 | A 0004280027 | SCREW CONNECTION |
| 272 | A 6995402008 | CABLE HARNESS |
| ELECTRIC | ||
| 275 | A 6995450132 | CONTROL UNIT |
| THERMAL | ||
| 278 | A 6995510085 | FILTER HOUSING |
| OIL TANK | ||
| 281 | A 6999970032 | SCREW PLUG |
| OIL TANK | ||
| 281 | A 0019972335 | PLUG |
| OIL TANK | ||
| 284 | A 6999970181 | GROMMET |
| SWITCH BOX | ||
| 287 | A 0003910080 | GASKET |
| COVER TO SWITCH BOX | ||
| 290 | A 6584300610 | BRACKET |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| 293 | A 6584300310 | BRACKET |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| 296 | N 000933010105 | SCREW |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| M 10X25 | ||
| 296 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 296 | N 304017010002 | SCREW |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| M 10X30 | ||
| 299 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 299 | N 007349010007 | WASHER |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| 302 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 302 | N 910113010000 | NUT |
| HYDRAULIC UNIT TO APPARATUS SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

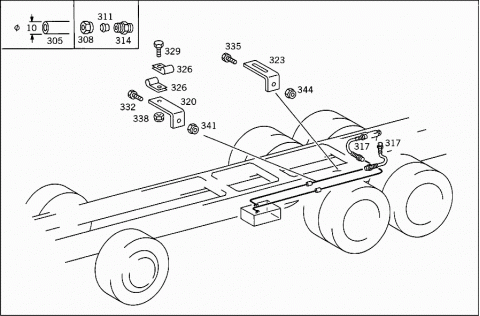

| HYDRAULIC LINES | ||
| 305 | A 0002610283 | OIL PIPE |
| FROM OIL PUMP TO CYLINDER | ||
| 308 | N 915017010100 | UNION NUT |
| LINE CONNECTION | ||
| 308 | N 915017010104 | UNION NUT |
| LINE CONNECTION | ||
| 311 | N 003861010009 | GLAND |
| LINE CONNECTION | ||
| 314 | A 0049971672 | FITTING |
| BETWEEN THE LINES | ||
| 317 | A 6489970082 | HOSE |
| OIL LINE CONNECTION | ||
| 320 | A 6584311140 | BRACKET |
| HYDRAULIC LINES TO FRAME | ||
| 323 | A 3464296040 | BRACKET |
| HYDRAULIC LINES TO FRAME | ||
| 326 | A 3609950301 | CLAMP |
| HYDRAULIC LINES TO FRAME | ||
| 329 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 329 | N 007985006581 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| 332 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 332 | N 304017008034 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 8X25 | ||
| 332 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 332 | N 304017012020 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 12X30 | ||
| 335 | N 000961014028 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 14X40 | ||
| 335 | N 000960014244 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 14X65 | ||
| 335 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 335 | N 308676016014 | SCREW |
| HYDRAULIC LINES TO FRAME | ||
| M 16X65 | ||
| 338 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 338 | N 913004006001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 341 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 341 | N 913004008001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| N 910113012002 | NUT | |
| HYDRAULIC LINES TO FRAME | ||
| 344 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 344 | N 910113014001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 344 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 344 | N 910113014000 | NUT |
| HYDRAULIC LINES TO FRAME | ||
| 344 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 344 | N 910113016001 | NUT |
| HYDRAULIC LINES TO FRAME | ||
