Transporto priemonė: 2544; VIN numerio dalis: 658050

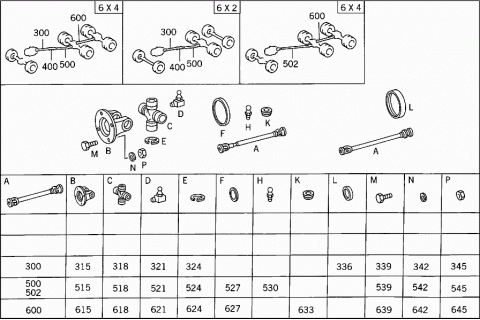

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 6564101004 | PROPELLER SHAFT |
| Repalced by: A 6564102204 | ||
| 300 | A 6564102204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1388 MM | ||
| 300 | A 6564101404 | PROPELLER SHAFT |
| Repalced by: A 6564102704 | ||
| 300 | A 6564102704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1621 MM | ||
| 300 | A 6564102004 | PROPELLER SHAFT |
| Repalced by: A 6564102504 | ||
| 300 | A 6564102504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2031 MM | ||
| 300 | A 6564100904 | PROPELLER SHAFT |
| Repalced by: A 6564103004 | ||
| 300 | A 6564103004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1311 MM | ||
| 300 | A 6564101304 | PROPELLER SHAFT |
| Repalced by: A 6564103104 | ||
| 300 | A 6564103104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1561 MM | ||
| 315 | A 6564110011 | DRIVE FLANGE |
| Repalced by: A 6564110311 | ||
| 315 | A 6564110311 | DRIVE FLANGE |
| 318 | A 6564100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9424100031 | ||
| 318 | A 9424100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 321 | N 071412008302 | GREASE NIPPLE |
| 324 | A 6564111073 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 324 | A 6564110173 | LOCK |
| Repalced by: A 6564110673 | ||
| 324 | A 6564110673 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 324 | A 6564110573 | LOCK |
| Repalced by: A 6564110673 | ||
| 324 | A 6564110673 | LOCK |
| AS REQUIRED | ||
| 3.10 MM | ||
| 324 | A 6564110973 | LOCK |
| AS REQUIRED | ||
| 3.20 MM | ||
| 324 | A 6564111473 | LOCK |
| AS REQUIRED | ||
| 3.25 MM | ||
| 324 | A 6564111773 | LOCK |
| AS REQUIRED | ||
| 3.30 MM | ||
| 336 | A 3894130061 | PROTECTIVE CAP |
| 336 | A 3954130061 | PROTECTIVE CAP |
| 339 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 342 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 345 | N 000934014020 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 400 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 400 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 400 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 403 | A 0029819225 | BALL BEARING |
| 403 | A 0029819325 | BALL BEARING |
| 406 | N 912009110200 | SNAP RING |
| 409 | A 3874130261 | PROTECTIVE CAP |
| 410 | A 6554110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 412 | A 6454110046 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 415 | A 3894130061 | PROTECTIVE CAP |
| 415 | A 3954130061 | PROTECTIVE CAP |
| 418 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | A 6204136942 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6204134142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6204134742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6204136842 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 6204139342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 6204136842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6204134042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6204134642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6204136942 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 6204139242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000961012106 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 433 | N 912004012100 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 436 | A 1232420366 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 439 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 442 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 445 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 445 | N 910113012003 | HEXAGON NUT |
| REINFORCEMENT TO BRACKET | ||
| 448 | N 000961012108 | SCREW |
| Repalced by: A 0029902704 | ||
| 448 | A 0029902704 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X30 | ||
| 451 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 451 | A 1232420366 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 454 | N 910113012003 | HEXAGON NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 6564101002 | PROPELLER SHAFT |
| Repalced by: A 6564104902 | ||
| 500 | A 6564104902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1417 MM | ||
| 500 | A 6564101102 | PROPELLER SHAFT |
| Repalced by: A 6564105002 | ||
| 500 | A 6564105002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1497 MM | ||
| 500 | A 6564103702 | PROPELLER SHAFT |
| Repalced by: A 6564108902 | ||
| 500 | A 6564108902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1461 MM | ||
| 500 | A 6564100802 | PROPELLER SHAFT |
| Repalced by: A 6564106502 | ||
| 500 | A 6564106502 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE I | ||
| 1297 MM | ||
| 502 | A 6564102002 | PROPELLER SHAFT |
| Repalced by: A 6564105402 | ||
| 502 | A 6564105402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2152 MM | ||
| 502 | A 6564102302 | PROPELLER SHAFT |
| Repalced by: A 6564105502 | ||
| 502 | A 6564105502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2365 MM | ||
| 502 | A 6564100702 | PROPELLER SHAFT |
| Repalced by: A 6564106702 | ||
| 502 | A 6564106702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1220 MM | ||
| 502 | A 6564101002 | PROPELLER SHAFT |
| Repalced by: A 6564104902 | ||
| 502 | A 6564104902 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1417 MM | ||
| 502 | A 6564101902 | PROPELLER SHAFT |
| Repalced by: A 6564107002 | ||
| 502 | A 6564107002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 2086 MM | ||
| 502 | A 6564100602 | PROPELLER SHAFT |
| Repalced by: A 6564107602 | ||
| 502 | A 6564107602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1142 MM | ||
| 515 | A 6564110011 | DRIVE FLANGE |
| Repalced by: A 6564110311 | ||
| 515 | A 6564110311 | DRIVE FLANGE |
| 518 | A 6564100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9424100031 | ||
| 518 | A 9424100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 521 | N 071412008302 | GREASE NIPPLE |
| 524 | A 6564111073 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 524 | A 6564110173 | LOCK |
| Repalced by: A 6564110673 | ||
| 524 | A 6564110673 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 524 | A 6564110573 | LOCK |
| Repalced by: A 6564110673 | ||
| 524 | A 6564110673 | LOCK |
| AS REQUIRED | ||
| 3.10 MM | ||
| 524 | A 6564110973 | LOCK |
| AS REQUIRED | ||
| 3.20 MM | ||
| 524 | A 6564111473 | LOCK |
| AS REQUIRED | ||
| 3.25 MM | ||
| 524 | A 6564111773 | LOCK |
| AS REQUIRED | ||
| 3.30 MM | ||
| 527 | A 3954110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| 527 | A 0004110159 | SEAL RING |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 527 | A 0004110259 | SEAL RING |
| PROTECTIVE TUBE | ||
| 105.6X12 MM | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 539 | N 000960014237 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 542 | N 912004014100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934014020 | NUT |
| PROPELLER SHAFT | ||
| 600 | A 3894102502 | PROPELLER SHAFT |
| Repalced by: A 6544104102 | ||
| 600 | A 6544104102 | PROPELLER SHAFT |
| Repalced by: A 3894102502 | ||
| 600 | A 3894102502 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 780 MM | ||
| 615 | A 3894110411 | DRIVE FLANGE |
| Repalced by: A 6544110511 | ||
| 615 | A 6544110511 | DRIVE FLANGE |
| 618 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 618 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 618 | A 9424100131 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 621 | N 071412008302 | GREASE NIPPLE |
| 624 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 624 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 624 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 627 | A 3894110080 | GASKET |
| PROTECTIVE TUBE | ||
| 633 | N 000906008001 | SCREW PLUG |
| 639 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 639 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| 642 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| 645 | N 000934012034 | NUT |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
