Transporto priemonė: 2550 LS; VIN numerio dalis: 657585

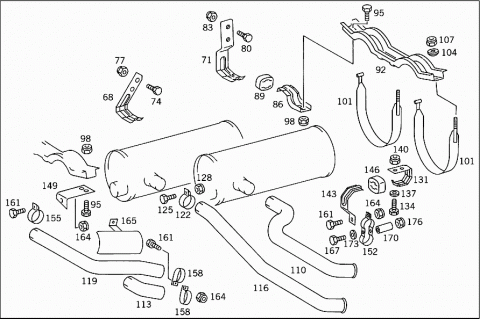

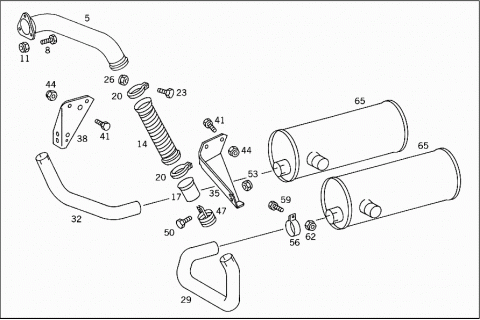

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR THE REMAINING PARTS,SEE ENGINE STANDARD VERSION | ||
| 005 | A 6574900025 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 005 | A 6554900025 | CONNECTOR |
| (CONNECTING PIPE),LEFT FRONT | ||
| 005 | A 6554900125 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 005 | A 6574900125 | CONNECTOR |
| (CONNECTING PIPE),RIGHT FRONT | ||
| 008 | N 000931012114 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 011 | N 913004012010 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 014 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 014 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 017 | A 6204920208 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 017 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 020 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 020 | A 6209970590 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 020 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 023 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 023 | N 304017008018 | SCREW |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 023 | N 304017008018 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 023 | N 304017008018 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 026 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 029 | A 6574900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574900319 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574900019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574902119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574900119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574902319 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6574902519 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 032 | A 6574900719 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574900619 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574900519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574902219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574900419 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574902419 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6574902619 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 035 | A 6474920441 | BRACKET |
| FRONT EXHAUST PIPE,LEFT | ||
| 035 | A 6204923441 | BRACKET |
| FRONT EXHAUST PIPE,LEFT | ||
| 038 | A 6204923541 | BRACKET |
| FRONT EXHAUST PIPE,RIGHT | ||
| 038 | A 6474920541 | BRACKET |
| FRONT EXHAUST PIPE,RIGHT | ||
| 041 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 041 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 041 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 044 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 044 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 047 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 047 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 050 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 050 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 050 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X40 | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 056 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 056 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 059 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 062 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 062 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 065 | A 6574901101 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 065 | A 6574901201 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 068 | A 6574910041 | BRACKET |
| EXHAUST MUFFLER,LEFT FRONT | ||
| 068 | A 6574910141 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 068 | A 6574910141 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 068 | A 6214920341 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 071 | A 6224910441 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 071 | A 6474920241 | BRACKET |
| Repalced by: A 6474920841 | ||
| 071 | A 6474920841 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 071 | A 6574920141 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 071 | A 6474920341 | BRACKET |
| Repalced by: A 6474920941 | ||
| 071 | A 6474920941 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 071 | A 6574920241 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 071 | A 6224910541 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 074 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 074 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 074 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 074 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 074 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 074 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 074 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 077 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 077 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 077 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 077 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 077 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 080 | N 000961014028 | SCREW |
| REAR BRACKET TO SIDE MEMBER | ||
| 083 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 083 | N 910113014001 | NUT |
| REAR BRACKET TO SIDE MEMBER | ||
| 086 | A 6224910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 086 | A 6224910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 086 | A 6574910241 | BRACKET |
| EXHAUST MUFFLER | ||
| 086 | A 6574910241 | BRACKET |
| EXHAUST MUFFLER | ||
| 086 | A 6574910241 | BRACKET |
| EXHAUST MUFFLER | ||
| 089 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 092 | A 6224910016 | SUPPORT |
| EXHAUST MUFFLER | ||
| 095 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 095 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 095 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 095 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 095 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 095 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 098 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 098 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 101 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 101 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 104 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER AND STRAP TO SUPPORT | ||
| 107 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 107 | N 910113010000 | NUT |
| EXHAUST MUFFLER AND STRAP TO SUPPORT | ||
| 110 | A 6574921304 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 110 | A 6574920004 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 113 | A 6574921804 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 113 | A 6574920304 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 113 | A 6574921404 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 116 | A 6574920104 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 119 | A 6574921704 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 119 | A 6574920204 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 122 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 122 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 125 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 125 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 128 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 128 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 131 | A 6204910141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 134 | N 000931010264 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 137 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 137 | N 007349010007 | WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 140 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 140 | N 910113010000 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 143 | A 6194920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 146 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 149 | A 6224920441 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER SUPPORT | ||
| 152 | A 6474920040 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 152 | A 6474920040 | CLAMP |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 152 | A 6224920040 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 155 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 155 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 158 | A 6454921140 | CLAMP |
| Repalced by: A 6474920040 | ||
| 158 | A 6224920040 | CLAMP |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 161 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 161 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 161 | N 304017010002 | SCREW |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 161 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 161 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 164 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 164 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 164 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 164 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 165 | A 6574920030 | PROTECTIVE PLATE |
| 167 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 167 | N 304014010009 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO CLAMP | ||
| 167 | N 304014010009 | HEXAGON HEAD BOLT |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 170 | A 3140720253 | SPACER TUBE |
| REAR EXHAUST PIPE TO CLAMP | ||
| 170 | A 3140720253 | SPACER TUBE |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 173 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 173 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO CLAMP | ||
| 173 | N 000125010532 | WASHER |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 176 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 176 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO CLAMP | ||
| 176 | N 910113010000 | NUT |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
