Transporto priemonė: 2628 6X4 MBSA; VIN numerio dalis: 624033
Grupė: 25 CLUTCH

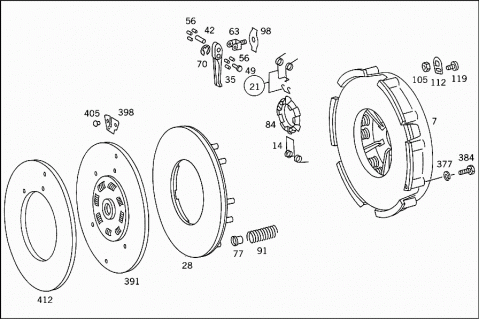

| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 007 | A 0032509004 | CLUTCH PRESSURE PLATE |
| 014 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 014 | A 0002522927 | SPRING |
| RELEASE LEVER | ||
| 014 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 021 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 021 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 021 | A 0002523127 | SPRING |
| RELEASE LEVER | ||
| 028 | A 0002524912 | PRESSURE PLATE |
| 028 | A 0002525612 | PRESSURE PLATE |
| 035 | A 0002524613 | RELEASE LEVER |
| 035 | A 0002526013 | RELEASE LEVER |
| 042 | A 0002522216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 042 | A 0002523216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 049 | A 0002523116 | SPINDLE |
| FOR BRACKETS | ||
| 049 | A 0002523316 | SPINDLE |
| FOR BRACKETS | ||
| 056 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 056 | A 0002520418 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 063 | A 0002522614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 063 | A 0002522814 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 070 | N 006799007007 | LOCK PLATE |
| 070 | N 006799009002 | LOCK PLATE |
| 077 | A 0002520535 | SLEEVE |
| 084 | A 0002521245 | FLANGE |
| 084 | A 0002522345 | FLANGE |
| 091 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 091 | A 0002528620 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.30 MM | ||
| 091 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 091 | A 0002528720 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.40 MM | ||
| 098 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 098 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 098 | A 0002523219 | LEAF SPRING |
| 105 | A 0002523072 | NUT |
| 105 | A 0002523572 | NUT |
| 112 | A 0002521073 | LOCK |
| 112 | A 0002521273 | LOCK |
| 119 | A 0002522971 | SCREW |
| 126 | A 0042507004 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 126 | A 0042507104 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 126 | A 0042507204 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 126 | A 0042509604 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE | ||
| 126 | A 0032507404 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) | ||
| 126 | A 0032509204 | CLUTCH PRESSURE PLATE |
| (TWIN PLATE CLUTCH) | ||
| 132 | A 0032508304 | CLUTCH PRESSURE PLATE |
| 139 | A 0002525512 | PRESSURE PLATE |
| 146 | A 0002522445 | FLANGE |
| 153 | A 0002523327 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 153 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 160 | A 0002525913 | RELEASE LEVER |
| Repalced by: A 0002501813 | ||
| 160 | A 0002501813 | RELEASE LEVER |
| 167 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 174 | A 0002520118 | ROLLER |
| Repalced by: A 0002501813 | ||
| 181 | N 006799007007 | LOCK PLATE |
| Repalced by: A 0002501813 | ||
| 188 | A 0002522816 | SPINDLE |
| Repalced by: A 0002501813 | ||
| 195 | A 0002520614 | BRACKET |
| Repalced by: A 0002501813 | ||
| 202 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 202 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 209 | A 0002521073 | LOCK |
| 216 | A 0002522971 | SCREW |
| 223 | A 0002523072 | NUT |
| 230 | A 0002522127 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 230 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 237 | A 0002528320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 5.50 MM | ||
| 237 | A 0002528820 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 5.30 MM | ||
| 244 | A 0002520079 | RING |
| 251 | A 0009908412 | SCREW |
| Repalced by: N 000912010038 | ||
| 251 | N 006912010030 | SCREW |
| 258 | N 000137010201 | SPRING WASHER |
| 265 | A 0002501308 | INTERMEDIATE PIECE |
| Repalced by: A 0002501608 | ||
| 265 | A 0002501608 | INTERMEDIATE PIECE |
| 272 | A 0002510012 | REINFORCEMENT PLATE |
| Repalced by: A 0002501608 | ||
| 279 | A 0002510073 | LOCK |
| Repalced by: A 0002501608 | ||
| 286 | A 0002522071 | SCREW |
| Repalced by: A 0002501608 | ||
| 293 | A 0002510371 | SCREW |
| Repalced by: A 0002510571 | ||
| 293 | A 0002510571 | SCREW |
| Repalced by: A 0002501608 | ||
| 300 | A 0002510052 | SPACER WASHER |
| Repalced by: A 0002501608 | ||
| 307 | A 0002510070 | STUD |
| Repalced by: A 0002501608 | ||
| 314 | A 0002500161 | SLEEVE VALVE |
| Repalced by: A 0002500361 | ||
| 314 | A 0002500361 | SLEEVE VALVE |
| (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.HEAD SCREW | ||
| M 6 | ||
| 314 | A 0002500461 | SLEEVE VALVE |
| (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.SOCKET SCREW | ||
| M 8 | ||
| 321 | A 0002510076 | WASHER |
| Repalced by: A 0002501608 | ||
| 328 | A 0002510471 | SCREW |
| M 6 | ||
| 328 | A 0002510671 | SCREW |
| M 8 | ||
| 335 | A 0082507903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 335 | A 0082508003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 335 | A 0082508103 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 335 | A 0102507403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 335 | A 0042509603 | CLUTCH DISC |
| 335 | A 0052509303 | CLUTCH DISC |
| 342 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 342 | A 0002523819 | LEAF SPRING |
| 349 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 349 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 356 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 356 | A 0012522910 | CLUTCH LINING |
| 363 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 363 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 370 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 370 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 377 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 384 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 384 | N 000931010379 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 391 | A 0072504203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0072504303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0052500103 | CLUTCH DISC |
| 391 | A 0052500203 | CLUTCH DISC |
| 391 | A 0082507403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0052506003 | CLUTCH DISC |
| 391 | A 0052506103 | CLUTCH DISC |
| 391 | A 0082507903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0082508003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0082508103 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0102507403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 391 | A 0042509603 | CLUTCH DISC |
| 391 | A 0052509303 | CLUTCH DISC |
| 398 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 398 | A 0002523919 | LEAF SPRING |
| 398 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 398 | A 0002523819 | LEAF SPRING |
| 405 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 405 | A 0002523875 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 412 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 412 | A 0012528310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 412 | A 0012522010 | CLUTCH LINING |
| 412 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 412 | A 0012522910 | CLUTCH LINING |
| 419 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 419 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 419 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 419 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 419 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 419 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 426 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 426 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||

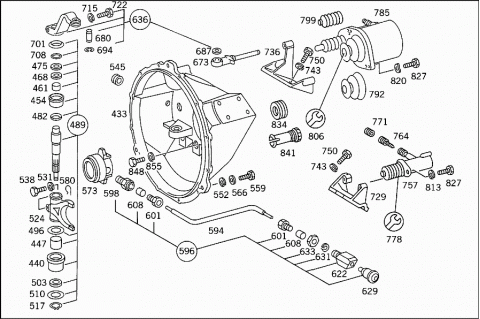

| 433 | A 3972500305 | HOUSING |
| Repalced by: A 6202501205 | ||
| 433 | A 6202501205 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 433 | A 6202500305 | HOUSING |
| Repalced by: A 4032505405 | ||
| 433 | A 4032505405 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 433 | A 6202501505 | HOUSING |
| Repalced by: A 6212500305 | ||
| 433 | A 6212500305 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 440 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 447 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 454 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 454 | A 6202510050 | BUSHING |
| TOP | ||
| 461 | A 3389920103 | BUSHING |
| TOP | ||
| 468 | A 3859970040 | SEAL RING |
| 475 | A 0119978846 | SEAL RING |
| 475 | A 0099971547 | SEAL RING |
| 482 | A 3852930027 | COVER PLATE |
| TOP | ||
| 489 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 489 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 496 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 496 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 496 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 496 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 496 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 496 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 503 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 510 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 517 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 524 | A 6202540108 | RELEASE LEVER |
| 531 | N 912004012100 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
| 538 | N 000931012033 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| M 12X50 | ||
| 545 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 545 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 552 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 559 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 566 | N 000125010518 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 573 | A 0002507415 | RELEASE BEARING |
| 573 | A 0002507715 | RELEASE BEARING |
| 573 | A 0002507315 | RELEASE BEARING |
| 573 | A 0002507515 | RELEASE BEARING |
| 580 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 594 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 596 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 598 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 601 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 608 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| A 3872510108 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| 622 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| N 003411002001 | GREASE CUP | |
| Repalced by: A 6209880135 | ||
| 629 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 631 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 633 | N 000936014010 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 636 | A 6202950028 | LEVER |
| CLUTCH ACTUATION | ||
| 636 | A 6202900434 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 673 | A 0009967640 | ROD END |
| CLUTCH ACTUATION | ||
| 680 | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 687 | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 694 | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 701 | A 6202540176 | WASHER |
| RELEASE SHAFT,TOP | ||
| 701 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| 708 | A 0029972948 | SEAL RING |
| RELEASE SHAFT,TOP | ||
| 715 | N 912004010102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 722 | N 304017010030 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 722 | N 000931010258 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 729 | A 3072950840 | BRACKET |
| SLAVE CYLINDER | ||
| 736 | A 6202950240 | BRACKET |
| SLAVE CYLINDER | ||
| 743 | N 912004010102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 750 | N 000933010129 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 757 | A 0012955307 | SLAVE CYLINDER |
| Repalced by: A 0012958807 | ||
| 757 | A 0012958807 | SLAVE CYLINDER |
| Repalced by: A 0022950407 | ||
| 757 | A 0022950407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 764 | A 3075530107 | VALVE |
| CLUTCH SLAVE CYLINDER | ||
| 771 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 771 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 771 | A 0004210887 | PROTECTIVE CAP |
| CLUTCH SLAVE CYLINDER | ||
| 778 | A 0005863129 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 778 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 785 | A 0012952107 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KNORR | ||
| 785 | A 0012956707 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| WABCO | ||
| 785 | A 0012953907 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| KONGSBERG | ||
| 792 | A 0002954183 | BOOT |
| WABCO | ||
| A 0002956683 | BOOT | |
| KONGSBERG | ||
| 799 | A 0002954283 | BOOT |
| WABCO | ||
| A 0002956783 | BOOT | |
| KONGSBERG | ||
| 806 | A 0002903267 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| WABCO | ||
| A 0002950047 | STOP | |
| CLUTCH SLAVE CYLINDER | ||
| KONGSBERG | ||
| 813 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 820 | N 000137010201 | SPRING WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 827 | N 000933010129 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 827 | N 914126010032 | SCREW |
| Repalced by: N 914146010114 | ||
| 827 | N 914146010114 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 834 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 841 | A 0002510183 | PLUG |
| BELL HOUSING | ||
| 848 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 848 | N 308676018010 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 855 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
