Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181

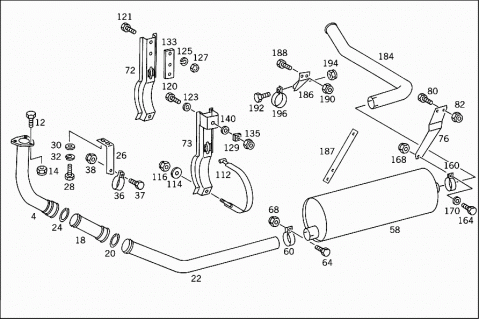

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3974900119 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 3974900619 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 3974900019 | EXHAUST PIPE |
| FRONT | ||
| 012 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | N 000931012254 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 018 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 018 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 018 | A 3464900025 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 018 | A 3464900025 | CONNECTOR |
| FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE | ||
| 020 | A 0001424257 | SEAL RING |
| 020 | A 0001424257 | SEAL RING |
| 020 | A 0001424357 | SEAL RING |
| 020 | A 0001424357 | SEAL RING |
| 022 | A 3974900419 | EXHAUST PIPE |
| Repalced by: A 3974901119 | ||
| 022 | A 3974901119 | EXHAUST PIPE |
| CENTRAL | ||
| 022 | A 3974900120 | EXHAUST PIPE |
| Repalced by: A 3974900520 | ||
| 022 | A 3974900520 | EXHAUST PIPE |
| CENTRAL | ||
| 022 | A 3974900519 | EXHAUST PIPE |
| Repalced by: A 3974901019 | ||
| 022 | A 3974901019 | EXHAUST PIPE |
| CENTRAL | ||
| 022 | A 3974901319 | EXHAUST PIPE |
| CENTRAL | ||
| 022 | A 3974901319 | EXHAUST PIPE |
| CENTRAL | ||
| 022 | A 3974900020 | EXHAUST PIPE |
| Repalced by: A 3974900620 | ||
| 022 | A 3974900620 | EXHAUST PIPE |
| CENTRAL | ||
| 024 | A 0001424257 | SEAL RING |
| 024 | A 0001424257 | SEAL RING |
| 024 | A 0001424357 | SEAL RING |
| 024 | A 0001424357 | SEAL RING |
| 026 | A 3974921541 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 026 | A 3974920841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 026 | A 3974920841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 026 | A 3974920241 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 028 | N 000961014088 | SCREW |
| BRACKET TO ENGINE MOUNTING | ||
| 030 | N 000125015013 | WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 030 | N 000125015013 | WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 032 | N 912004014100 | LOCK WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 032 | N 912004014100 | LOCK WASHER |
| BRACKET TO ENGINE MOUNTING | ||
| 036 | N 071555090501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 036 | N 071555090501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 036 | N 071555100500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 036 | N 071555100500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 037 | N 000933010129 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 037 | N 000933010129 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 038 | N 913004010008 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 038 | N 913004010008 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 058 | A 3974900201 | EXHAUST MUFFLER |
| 058 | A 3974900201 | EXHAUST MUFFLER |
| 058 | A 3974900101 | EXHAUST MUFFLER |
| 058 | A 3974900801 | EXHAUST MUFFLER |
| 058 | A 3974900801 | EXHAUST MUFFLER |
| 058 | A 3974900801 | EXHAUST MUFFLER |
| 060 | N 071555094501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 060 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 064 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 068 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 072 | A 3974910241 | BRACKET |
| Repalced by: A 6214910641 | ||
| 072 | A 6214910641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 072 | A 6214910641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 072 | A 6214910741 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 073 | A 6244900140 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 073 | A 6244900140 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| A 0009851148 | METAL SECTION | |
| 076 | A 3974920016 | SUPPORT |
| Repalced by: A 3974920216 | ||
| 076 | A 3974920216 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 076 | A 3974920216 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 080 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 080 | A 0029909604 | SCREW |
| SUPPORT TO FRAME | ||
| N 000125015013 | WASHER | |
| 082 | N 913004014002 | NUT |
| SUPPORT TO FRAME | ||
| 112 | A 3974900142 | STRAP |
| Repalced by: A 6214900042 | ||
| 112 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 112 | A 6554900942 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 112 | A 6554900942 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 112 | A 6554900942 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 114 | N 006319010303 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 116 | N 913004010008 | NUT |
| STRAP TO BRACKET | ||
| 120 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| M 12X40 | ||
| 120 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 120 | N 000961014064 | SCREW |
| BRACKET TO FRAME | ||
| M 14X50 | ||
| 120 | N 000960012197 | SCREW |
| BRACKET TO FRAME | ||
| M 12 X 55 | ||
| 120 | N 000960014249 | SCREW |
| BRACKET TO FRAME | ||
| M 14X55 | ||
| 120 | N 000960014249 | SCREW |
| BRACKET TO FRAME | ||
| M 14X55 | ||
| 121 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 121 | A 0029909604 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 121 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 121 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 123 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 123 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 125 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 125 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 127 | N 913004014002 | NUT |
| BRACKET TO FRAME | ||
| 127 | N 913004014002 | NUT |
| BRACKET TO FRAME | ||
| 129 | A 3874310884 | SHIM |
| BRACKET TO FRAME | ||
| A 3974920118 | BASE PLATE | |
| 133 | A 3974920718 | BASE PLATE |
| BRACKET TO FRAME | ||
| 135 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 140 | N 000125013008 | WASHER |
| BRACKET TO FRAME | ||
| 160 | N 071555090501 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 160 | N 071555090501 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 160 | N 071555094501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 160 | N 071555094501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 164 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 164 | N 000933010129 | SCREW |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 164 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 168 | N 913004010008 | NUT |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 168 | N 913004010008 | NUT |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 168 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 170 | A 3839900640 | WASHER |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 170 | A 3839900440 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 184 | A 3974920904 | REAR EXHAUST PIPE |
| Repalced by: A 3974921104 | ||
| 184 | A 3974921004 | REAR EXHAUST PIPE |
| Repalced by: A 3974921104 | ||
| 184 | A 3974921104 | REAR EXHAUST PIPE |
| 184 | A 3974921104 | REAR EXHAUST PIPE |
| 184 | A 3974921504 | REAR EXHAUST PIPE |
| 184 | A 3974921504 | REAR EXHAUST PIPE |
| 184 | A 3974920204 | REAR EXHAUST PIPE |
| Repalced by: A 3974921204 | ||
| 184 | A 3974921204 | REAR EXHAUST PIPE |
| 184 | A 3974921204 | REAR EXHAUST PIPE |
| 184 | A 3974921604 | REAR EXHAUST PIPE |
| 184 | A 3974920014 | END PIECE |
| 184 | A 3974921304 | REAR EXHAUST PIPE |
| 186 | A 3974921441 | BRACKET |
| Repalced by: A 3974922841 | ||
| 186 | A 3974922841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 186 | A 3974922841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 186 | A 3974923041 | BRACKET |
| Repalced by: A 6244920741 | ||
| 186 | A 6244920741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 186 | A 6244920741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 186 | A 3974922941 | BRACKET |
| Repalced by: A 6194921441 | ||
| 187 | A 6194921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 187 | A 6194921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 188 | N 000933010094 | SCREW |
| BRACKET TO FRAME | ||
| 188 | N 000933010094 | SCREW |
| BRACKET TO FRAME | ||
| 188 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| M 10X35 | ||
| 188 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| M 10X35 | ||
| 188 | N 000933010105 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X25 | ||
| 188 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| M 10X25 | ||
| 190 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 190 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
| 192 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 192 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 194 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 194 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 196 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 196 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 196 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 196 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
