Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181
Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|

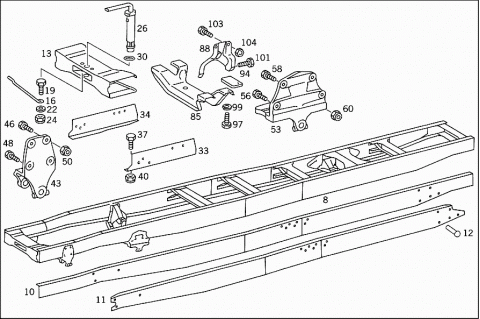

| 008 | A 3973100301 | FRAME |
| Repalced by: A 3973106201 | ||
| 008 | A 3973106201 | FRAME |
| 008 | A 3973100101 | FRAME |
| Repalced by: A 3973105801 | ||
| 008 | A 3973105801 | FRAME |
| 008 | A 3973105801 | FRAME |
| Repalced by: A 3973106501 | ||
| 008 | A 3973106501 | FRAME |
| 008 | A 3973100701 | FRAME |
| Repalced by: A 3973105601 | ||
| 008 | A 3973105601 | FRAME |
| 008 | A 3973100401 | FRAME |
| Repalced by: A 3973106301 | ||
| 008 | A 3973106301 | FRAME |
| 008 | A 3973100501 | FRAME |
| Repalced by: A 3973105701 | ||
| 008 | A 3973105701 | FRAME |
| 008 | A 3973106501 | FRAME |
| 010 | A 6243102118 | SIDE MEMBER |
| LEFT | ||
| 010 | A 6243101418 | SIDE MEMBER |
| LEFT | ||
| 010 | A 6243101618 | SIDE MEMBER |
| LEFT | ||
| 010 | A 6243101918 | SIDE MEMBER |
| LEFT | ||
| 010 | A 6243102019 | SIDE MEMBER |
| RIGHT | ||
| 010 | A 6243101319 | SIDE MEMBER |
| RIGHT | ||
| 010 | A 6243101519 | SIDE MEMBER |
| RIGHT | ||
| 010 | A 6243101819 | SIDE MEMBER |
| RIGHT | ||
| 011 | A 6243114351 | TRUSS |
| LEFT | ||
| 011 | A 6243112951 | TRUSS |
| LEFT | ||
| 011 | A 6243113351 | TRUSS |
| LEFT | ||
| 011 | A 6243113951 | TRUSS |
| LEFT | ||
| 011 | A 6243114451 | TRUSS |
| RIGHT | ||
| 011 | A 6243113051 | TRUSS |
| RIGHT | ||
| 011 | A 6243113451 | TRUSS |
| RIGHT | ||
| 011 | A 6243114051 | TRUSS |
| RIGHT | ||
| 012 | N 910005012080 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 012 | N 910005014056 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 012 | N 910005012080 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 012 | N 910005014056 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 013 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| NO.1 | ||
| 016 | A 3873150031 | LOCKING SPRING |
| TO SECURE COUPLING PIN | ||
| 019 | N 000933008152 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 022 | N 000125008418 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 024 | N 913004008004 | NUT |
| SPRING TO CROSS MEMBER | ||
| 026 | A 3873150106 | COUPLING PIN |
| 030 | A 0009874346 | SEALING CORD |
| COUPLING MOUTH | ||
| 033 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 034 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 034 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 037 | N 000961012097 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 040 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 040 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 043 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 043 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 043 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 043 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 043 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 046 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M16X45 | ||
| 048 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 050 | N 913004014005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 053 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 053 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 056 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M14X55 | ||
| 058 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 058 | N 000961014101 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 060 | N 913004014002 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 085 | A 3973120110 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 085 | A 3973120210 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 085 | A 3873120610 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 088 | A 3973100053 | STRUT |
| Repalced by: A 6203121561 | ||
| 088 | A 6203121561 | STRUT |
| RIGHT FRONT SPRING REAR BRACKET | ||
| 088 | A 6203121561 | STRUT |
| LEFT FRONT SPRING REAR BRACKET | ||
| 088 | A 6203121561 | STRUT |
| LEFT FRONT SPRING REAR BRACKET | ||
| 088 | A 3873122561 | STRUT |
| Repalced by: A 3873100353 | ||
| 088 | A 3873100353 | STRUT |
| Repalced by: A 6203121561 | ||
| 094 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 094 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 097 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 099 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 101 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14 X 28 | ||
| N 000961014097 | SCREW | |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14 X 35 | ||
| 103 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 103 | A 0029909604 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X40 | ||
| 104 | N 913004014002 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||

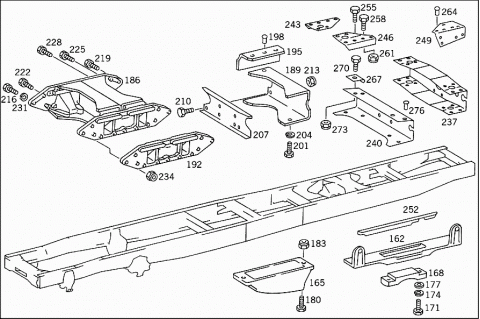

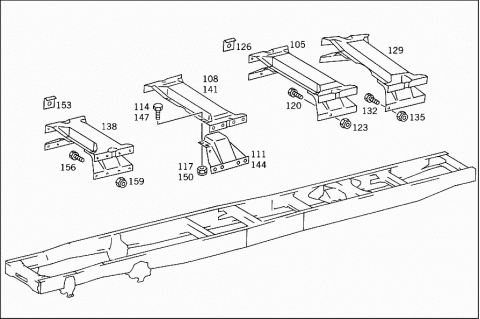

| 105 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 6243100537 | CROSS MEMBER |
| NO.3 | ||
| 105 | A 6203100036 | CROSS MEMBER |
| NO.3 | ||
| 108 | A 3893120125 | CROSS MEMBER |
| 108 | A 6243120025 | CROSS MEMBER |
| 111 | A 6243120261 | STRUT |
| AT CROSS MEMBER | ||
| 111 | A 3873121961 | STRUT |
| AT CROSS MEMBER | ||
| 114 | A 0039900901 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 117 | N 913004012009 | NUT |
| STRUT TO CROSS MEMBER | ||
| 120 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 120 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 123 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 126 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 129 | A 3913100136 | CROSS MEMBER |
| NO.4 | ||
| 132 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 132 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 135 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 138 | A 3953100037 | CROSS MEMBER |
| NO.3 | ||
| 138 | A 3953100037 | CROSS MEMBER |
| NO.4 | ||
| 138 | A 3953100037 | CROSS MEMBER |
| NO.5 | ||
| 138 | A 3953100037 | CROSS MEMBER |
| NO.7 | ||
| 141 | A 3893120025 | CROSS MEMBER |
| 144 | A 3873120261 | STRUT |
| AT CROSS MEMBER | ||
| 147 | A 0039900901 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 150 | N 913004012009 | NUT |
| STRUT TO CROSS MEMBER | ||
| 153 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 156 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 156 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 159 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 162 | A 3933250731 | PLATE |
| REAR AXLE | ||
| 165 | A 3933110087 | STOP |
| REAR AXLE | ||
| 165 | A 3433110187 | STOP |
| REAR AXLE | ||
| 168 | A 3933250044 | RUBBER BUFFER |
| REAR AXLE | ||
| 171 | N 000933010129 | SCREW |
| RUBBER BUFFER TO PLATE | ||
| 174 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO PLATE | ||
| 177 | N 007349010007 | WASHER |
| RUBBER BUFFER TO PLATE | ||
| 180 | N 000961012122 | SCREW |
| PLATE TO SIDE MEMBER | ||
| 183 | N 913004012008 | NUT |
| PLATE TO SIDE MEMBER | ||
| 186 | A 6243100037 | CROSS MEMBER |
| Repalced by: A 6243100437 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| NO.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| NO.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| NO.6 | ||
| 189 | A 3953120124 | CROSS MEMBER |
| CENTRAL BEARING | ||
| 192 | A 6243250110 | SUPPORT |
| Repalced by: A 6243250310 | ||
| 195 | A 6243120041 | ANGLE |
| Repalced by: A 6243120141 | ||
| 198 | N 910005014056 | RIVET |
| ANGLE TO CROSS MEMBER | ||
| 201 | N 000961014050 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 204 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 207 | A 6243120060 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 210 | A 6249900014 | SCREW |
| REINFORCEMENT TO CROSS MEMBER | ||
| 213 | N 913004012009 | NUT |
| REINFORCEMENT TO CROSS MEMBER | ||
| 216 | N 000961016036 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X40 | ||
| 219 | N 000960016249 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X55 | ||
| 222 | N 000960016040 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X65 | ||
| 225 | N 000960016250 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| 228 | N 000960012260 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X90 | ||
| 231 | N 912004016101 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 234 | N 913004016005 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 237 | A 3873120835 | CROSS MEMBER |
| REAR | ||
| 240 | A 6213120635 | CROSS MEMBER |
| Repalced by: A 6213120335 | ||
| 240 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 240 | A 6553120435 | CROSS MEMBER |
| REAR | ||
| 243 | A 3873120687 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 243 | A 3873120987 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 246 | A 3873120787 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 246 | A 3873120887 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 249 | A 6213120287 | GUSSET PLATE |
| REAR LEFT | ||
| 249 | A 6213120387 | GUSSET PLATE |
| REAR RIGHT | ||
| 252 | A 6243160052 | ANGLE |
| REAR LEFT | ||
| 252 | A 6243160152 | ANGLE |
| REAR RIGHT | ||
| 255 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 255 | A 0029909604 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 258 | N 000961014100 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 261 | N 913004014002 | NUT |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 264 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 264 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 264 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 264 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 264 | N 910005016017 | RIVET |
| 16X48 MM | ||
| 267 | A 6203121584 | SHIM |
| 270 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 270 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 270 | A 0029909604 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 273 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 273 | N 913004014002 | NUT |
| STRUT TO SIDE MEMBER | ||
| 276 | N 910005014056 | RIVET |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 279 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 279 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 282 | A 3878912831 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 285 | A 6208900232 | BOW |
| CAB MOUNTING,FRONT | ||
| 288 | A 6203170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 288 | A 6203170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 288 | A 3973170023 | STRUT |
| BUMPER AT TORSION BAR | ||
| 291 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 291 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 294 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 294 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 297 | N 007349015003 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 300 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 300 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 303 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 303 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 303 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 303 | A 6208910720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 303 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 303 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 303 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 303 | A 6208910820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 306 | A 3878910098 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 306 | A 3878910098 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 306 | A 3878910498 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 306 | A 3878910498 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 309 | N 000961014088 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M14X35 | ||
| 309 | N 000961014088 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M14X35 | ||
| 312 | N 000960014251 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M 14X85 | ||
| 315 | N 000960014248 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M 14X100 | ||
| 315 | N 000960014180 | SCREW |
| 318 | N 912004014100 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 318 | N 912004014100 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 321 | N 007349015003 | WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 324 | N 000960014229 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M14X55 | ||
| 324 | N 000960014229 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| M14X55 | ||
| 327 | N 913004014005 | NUT |
| MOUNTING TO SIDE MEMBER | ||
| 330 | A 3878912656 | LEVER |
| Repalced by: A 3878912856 | ||
| 330 | A 3878912856 | LEVER |
| 333 | A 3879920203 | BUSHING |
| LEVER | ||
| 333 | A 3879920003 | BUSHING |
| LEVER | ||
| 336 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 339 | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 342 | N 913004016004 | NUT |
| CAB SUSPENSION,FRONT | ||
| 345 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 348 | A 6208910017 | BUSHING |
| LEVER | ||
| 351 | A 3878913220 | MOUNTING |
| Repalced by: A 6208901603 | ||
| 351 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 354 | N 308676012012 | SCREW |
| MOUNTING TO LEVER | ||
| N 912004010102 | LOCK WASHER | |
| 360 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 363 | A 3878916420 | MOUNTING |
| CAB TO LEFT BEARING BRACKET | ||
| 363 | A 3878916520 | MOUNTING |
| CAB TO RIGHT BEARING BRACKET | ||
| 366 | N 000960012189 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 369 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 372 | N 000960014167 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 375 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 378 | N 913004014002 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 381 | N 000961014054 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M14X45 | ||
| 381 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 381 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 384 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 387 | N 000125015013 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||

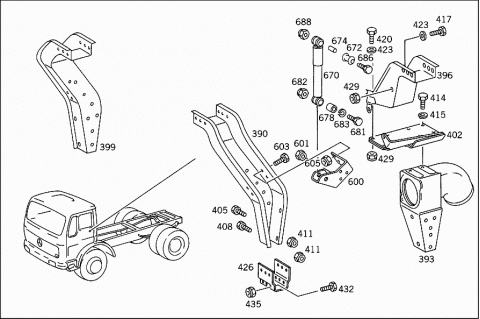

| 390 | A 3878911531 | CONSOLE |
| REAR LEFT | ||
| 390 | A 3978910031 | CONSOLE |
| Repalced by: A 3878911531 | ||
| 393 | A 3978910231 | CONSOLE |
| ELBOW | ||
| 393 | A 3978910231 | CONSOLE |
| ELBOW | ||
| 396 | A 3978910331 | CONSOLE |
| (SUPPORT) | ||
| 396 | A 3978910331 | CONSOLE |
| (SUPPORT) | ||
| 396 | A 6208910131 | CONSOLE |
| (SUPPORT) | ||
| 399 | A 3878911631 | CONSOLE |
| REAR RIGHT | ||
| 399 | A 3878911631 | CONSOLE |
| REAR RIGHT | ||
| 399 | A 3878911631 | CONSOLE |
| ELBOW | ||
| 399 | A 6208910831 | CONSOLE |
| ELBOW | ||
| 399 | A 3978910131 | CONSOLE |
| Repalced by: A 3878911531 | ||
| 399 | A 3878911531 | CONSOLE |
| REAR RIGHT | ||
| 399 | A 3878911531 | CONSOLE |
| REAR RIGHT | ||
| 402 | A 6208900131 | CONSOLE |
| 402 | A 6208900131 | CONSOLE |
| 405 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M14X45 | ||
| 408 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 408 | A 0029909604 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M14X40 | ||
| 411 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 414 | N 000961012174 | SCREW |
| CONSOLE TO CONSOLE | ||
| 414 | N 000961012174 | SCREW |
| CONSOLE TO CONSOLE | ||
| 414 | N 000961012069 | SCREW |
| CONSOLE TO CONSOLE | ||
| 415 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 417 | N 000961012097 | SCREW |
| M 12X1.5X35 | ||
| 417 | N 000961012097 | SCREW |
| M 12X1.5X35 | ||
| 420 | N 000961012122 | SCREW |
| M 12X1.5X40 | ||
| 420 | N 000961012122 | SCREW |
| M 12X1.5X40 | ||
| 423 | A 3609900940 | WASHER |
| 423 | A 3609900940 | WASHER |
| 426 | A 3978910230 | CLAMP |
| CAB SUSPENSION | ||
| 426 | A 3978910230 | CLAMP |
| CAB SUSPENSION | ||
| 426 | A 3978910230 | CLAMP |
| CAB SUSPENSION | ||
| 429 | N 913004012008 | NUT |
| 429 | N 913004012008 | NUT |
| 432 | N 308676012012 | SCREW |
| CLAMP TO CONSOLE | ||
| 432 | N 308676012012 | SCREW |
| CLAMP TO CONSOLE | ||
| 432 | N 308676012012 | SCREW |
| CLAMP TO CONSOLE | ||
| 435 | N 913004012008 | NUT |
| CLAMP TO CONSOLE | ||
| 435 | N 913004012008 | NUT |
| CLAMP TO CONSOLE | ||
| 435 | N 913004012008 | NUT |
| CLAMP TO CONSOLE | ||

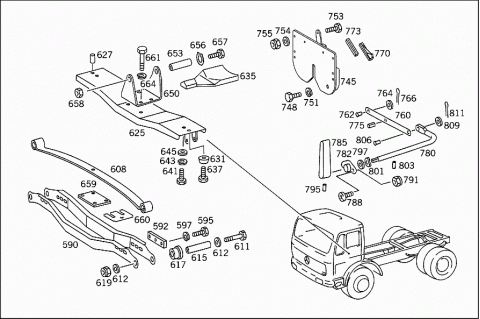

| 590 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 590 | A 6558910224 | STRUT |
| CROSS CONNECTION | ||
| 592 | A 3878910198 | SHIM |
| CROSS CONNECTION | ||
| 595 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 597 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 600 | A 3878908303 | MOUNTING |
| Repalced by: A 3878918520 | ||
| 600 | A 3878918520 | MOUNTING |
| LEFT | ||
| 600 | A 3878918520 | MOUNTING |
| LEFT | ||
| 600 | A 3978900003 | MOUNTING |
| SPRING STOP,LEFT | ||
| 600 | A 3878908403 | MOUNTING |
| Repalced by: A 3878918620 | ||
| 600 | A 3878918620 | MOUNTING |
| RIGHT | ||
| 600 | A 3878918620 | MOUNTING |
| RIGHT | ||
| 600 | A 3978900103 | MOUNTING |
| SPRING STOP,RIGHT | ||
| 601 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 601 | N 910113018004 | NUT |
| MOUNTING | ||
| 603 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 603 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 603 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 603 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 605 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 605 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 605 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 605 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 608 | A 3878911051 | SPRING |
| CAB | ||
| 611 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 612 | N 009021013101 | WASHER |
| SPRING TO STRUT | ||
| 615 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 617 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 619 | N 913004012008 | NUT |
| SPRING TO STRUT | ||
| 625 | A 3878900422 | RAIL |
| Repalced by: A 6558900022 | ||
| 625 | A 6558900022 | RAIL |
| CAB SUSPENSION | ||
| 625 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 625 | A 6558900122 | RAIL |
| CAB SUSPENSION | ||
| 627 | N 000007012201 | CYLINDRICAL PIN |
| 631 | A 3878910323 | BUFFER |
| CAB SUSPENSION | ||
| 635 | A 6208910372 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 635 | A 6208910472 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 635 | A 3878910072 | MOUNTING |
| CONNECTING RAIL | ||
| 637 | N 000933008154 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M8X22 | ||
| 641 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M8X20 | ||
| 641 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M8X20 | ||
| 643 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 645 | N 000125008418 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 650 | A 3878916820 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 650 | A 6208911320 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 650 | A 6208911320 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 653 | A 3878911057 | PIN |
| CAB LOCKING MECHANISM | ||
| 653 | A 3878911653 | SPACER TUBE |
| CAB LOCKING MECHANISM | ||
| 653 | A 3878911653 | SPACER TUBE |
| CAB LOCKING MECHANISM | ||
| 656 | N 000471025001 | LOCK RING |
| CAB LOCKING MECHANISM | ||
| 657 | N 000960016286 | SCREW |
| CAB LOCKING MECHANISM | ||
| 657 | N 000960016286 | SCREW |
| CAB LOCKING MECHANISM | ||
| 658 | N 913004016004 | NUT |
| CAB LOCKING MECHANISM | ||
| 658 | N 913004016004 | NUT |
| CAB LOCKING MECHANISM | ||
| 659 | A 3878910811 | PLATE |
| CAB LOCKING MECHANISM | ||
| 660 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 661 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 664 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 670 | A 0008912205 | SHOCK ABSORBER |
| VIBRATION ABSORBER | ||
| 672 | A 0008910501 | RUBBER MOUNTING |
| 674 | A 0008910617 | BUSHING |
| 678 | A 3878910353 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 678 | A 3878910953 | SPACER TUBE |
| 678 | A 3878910953 | SPACER TUBE |
| 678 | A 3978910053 | SPACER TUBE |
| Repalced by: A 3878910453 | ||
| 678 | A 3878910453 | SPACER TUBE |
| 25 MM | ||
| 678 | A 3878910953 | SPACER TUBE |
| 678 | A 3878910453 | SPACER TUBE |
| 681 | N 000960018148 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 681 | N 000960018148 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 681 | N 000960018062 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 681 | N 000960018127 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 682 | N 000439018210 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 683 | N 912004018101 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 686 | N 000960018040 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 686 | N 000960018127 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 688 | N 913004018004 | NUT |
| SHOCK ABSORBER TO RAIL AND TO CONSOLE | ||
| 745 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 745 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 745 | A 0008902389 | FASTENER |
| CAB | ||
| FA.TACK U.GABEL | ||
| 748 | N 000933010128 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| 751 | N 912004010102 | LOCK WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 753 | N 000933010105 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| 754 | N 000125010518 | WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 755 | N 913004010008 | NUT |
| FASTENER AND CONSOLE TO CAB | ||
| 760 | A 3878910170 | ROD |
| CAB | ||
| 760 | A 6208910170 | ROD |
| CAB | ||
| 760 | A 6208910170 | ROD |
| CAB | ||
| 762 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 764 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 766 | N 000094002053 | COTTER PIN |
| PULL TO FASTENER | ||
| 770 | A 3878910814 | BRACKET |
| CAB SEALING | ||
| 773 | A 3878910085 | SEAL |
| CAB SEALING | ||
| 775 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 780 | A 3878911956 | LEVER |
| CAB LOCKING MECHANISM | ||
| 780 | A 6208910056 | LEVER |
| CAB LOCKING MECHANISM | ||
| 780 | A 6208910456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 782 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 785 | A 3638910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 788 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 791 | N 913004008004 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| 795 | N 007346005004 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 797 | N 000125015013 | WASHER |
| LEVER MOUNTING | ||
| 801 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| TO 387 891 19 56,620 891 00 56 | ||
| 803 | N 007346005004 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| TO 620 891 04 56 | ||
| 806 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 809 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 811 | N 000094002053 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
