Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181

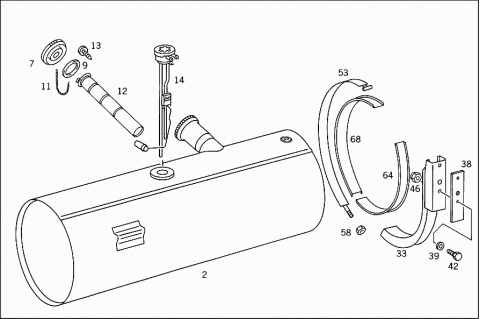

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3874701801 | FUEL TANK |
| Repalced by: A 3874701601 | ||
| 002 | A 3874701601 | FUEL TANK |
| LESS SENDER UNIT | ||
| 300 L | ||
| 004 | A 3874700901 | FUEL TANK |
| Repalced by: A 3874700701 | ||
| 004 | A 3874700701 | FUEL TANK |
| LESS SENDER UNIT | ||
| 400 L | ||
| 007 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 007 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 007 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 007 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 007 | A 0004700305 | FILLER CAP |
| 009 | A 3049970340 | SEAL RING |
| TO 000 471 79 30,80 30 | ||
| 011 | A 3034700031 | CHAIN |
| 012 | A 3954700206 | FUEL STRAINER |
| FILLER NECK | ||
| 012 | A 0004710435 | FUEL STRAINER |
| FILLER NECK | ||
| 012 | A 0004710435 | FUEL STRAINER |
| FILLER NECK | ||
| 012 | A 0004710535 | FUEL STRAINER |
| FILLER NECK | ||
| 012 | A 0004710535 | FUEL STRAINER |
| FILLER NECK | ||
| 013 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 013 | N 007981004339 | SHEET METAL SCREW |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 014 | A 0055424117 | SENDER UNIT |
| Repalced by: A 0085428317 | ||
| 014 | A 0085428317 | SENDER UNIT |
| FUEL GAUGE | ||
| 015 | A 0055423917 | SENDER UNIT |
| Repalced by: A 0085428117 | ||
| 015 | A 0085428117 | SENDER UNIT |
| FUEL GAUGE | ||
| 019 | A 0004710235 | FUEL STRAINER |
| AT TANK | ||
| 023 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 027 | N 007603014405 | SEAL RING |
| AT TANK | ||
| 031 | N 007604014106 | SCREW PLUG |
| AT TANK | ||
| 033 | A 3874701342 | SUPPORT |
| Repalced by: A 3874702142 | ||
| 033 | A 3874702142 | SUPPORT |
| FUEL TANK | ||
| 033 | A 3874701442 | SUPPORT |
| FUEL TANK | ||
| 036 | A 3894700242 | SUPPORT |
| FUEL TANK | ||
| 036 | A 3894700242 | SUPPORT |
| FUEL TANK | ||
| 036 | A 6204701542 | SUPPORT |
| FUEL TANK | ||
| 036 | A 6204701542 | SUPPORT |
| FUEL TANK | ||
| 037 | A 3934700842 | SUPPORT |
| FUEL TANK | ||
| 037 | A 3934700842 | SUPPORT |
| FUEL TANK | ||
| 037 | A 6204701642 | SUPPORT |
| FUEL TANK | ||
| 037 | A 6204701642 | SUPPORT |
| FUEL TANK | ||
| A 3894750184 | SHIM | |
| 038 | A 3374750384 | SHIM |
| 039 | N 007349015003 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 042 | N 000960014205 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X50 | ||
| 042 | N 000960014229 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X55 | ||
| 042 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| N 912004014100 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| 046 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 048 | A 3504750126 | REINFORCEMENT |
| SUPPORT TO CONSOLE | ||
| 048 | A 3504750126 | REINFORCEMENT |
| SUPPORT TO CONSOLE | ||
| 048 | A 3874750126 | REINFORCEMENT |
| SUPPORT TO CONSOLE | ||
| 048 | A 3874750126 | REINFORCEMENT |
| SUPPORT TO CONSOLE | ||
| 050 | N 000961012151 | SCREW |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 051 | N 000125013008 | WASHER |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 052 | N 913004012008 | NUT |
| REINFORCEMENT RAIL TO CONSOLE | ||
| 053 | A 3874700240 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 054 | A 3464705340 | STRAP |
| FUEL TANK TO CONSOLE | ||
| 058 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| 060 | N 001443016203 | PIN |
| STRAP TO SUPPORT | ||
| 062 | N 000094004051 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 064 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 066 | A 3634750120 | PAD |
| FUEL TANK TO CONSOLE | ||
| 068 | A 3634750320 | PAD |
| STRAP | ||
| 070 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 072 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 073 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 073 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 074 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 60 MM | ||
| 075 | A 0029978790 | CLIP |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 376 MM | ||
| 076 | A 0019978390 | LOOM TIE |
| FEED LINE AND RETURN LINE | ||
| 280 MM | ||
| 077 | N 916026010000 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 078 | N 040621011200 | INSULATING HOSE |
| 082 | N 915052008016 | BANJO UNION |
| I.D., / HOSE WIDTH, | ||
| 14/8 MM | ||
| 083 | A 0019974972 | FITTING |
| 086 | N 915017010202 | UNION NUT |
| 088 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 088 | N 915062008000 | SLEEVE |
| FUEL LINE | ||
| 098 | A 3854760836 | BRACKET |
| BRACKET TO CLUTCH CROSS MEMBER | ||
| 098 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 098 | A 6205240340 | BRACKET |
| BRACKET TO TRANSMISSION | ||
| 108 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 112 | N 915036010204 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 114 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 118 | A 3549970081 | GROMMET |
| LINE PASSAGE AT SIDE MEMBER | ||
| 32/27 MM | ||
| 118 | A 3549970081 | GROMMET |
| LINE PASSAGE AT SIDE MEMBER | ||
| 32/27 MM | ||
