Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181

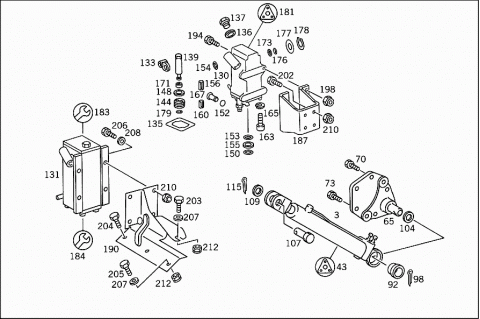

Grupė: 55 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0005537205 | CYLINDER |
| Repalced by: A 0015534205 | ||
| 003 | A 0015534205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER" | ||
| 003 | A 0015534205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER" | ||
| 003 | A 0005537305 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "SAUER" | ||
| 003 | A 0005537305 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "SAUER" | ||
| 003 | A 0015530905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER PACKER" | ||
| 003 | A 0015530905 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER PACKER" | ||
| 003 | A 0015531005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER PACKER" | ||
| 003 | A 0005537405 | CYLINDER |
| Repalced by: A 0015534305 | ||
| 003 | A 0015534305 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER" | ||
| 043 | A 0005864755 | REPAIR KIT |
| Repalced by: A 0005501235 | ||
| 043 | A 0005501235 | REPAIR KIT |
| Repalced by: A 0015535105 | ||
| 043 | A 0015535105 | GASKET KIT |
| Repalced by: A 0015535005 | ||
| 043 | A 0015535005 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| TO 000 553 72 05,001 553 43 05 | ||
| 043 | A 0005501735 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| TO 001 553 09 05 | ||
| 063 | A 3875530438 | BEARING BRACKET |
| Repalced by: A 3875530938 | ||
| 063 | A 3875530938 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 065 | A 6205531638 | BEARING BRACKET |
| Repalced by: A 6205531738 | ||
| 065 | A 6205531738 | BEARING BRACKET |
| Repalced by: A 6555530238 | ||
| 065 | A 6555530238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 065 | A 6555530238 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 069 | N 000961014112 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X25 | ||
| 070 | N 000961016036 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X40 | ||
| 070 | N 000961016036 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X40 | ||
| 072 | N 000961014105 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X30 | ||
| 073 | N 000961016112 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X25 | ||
| 073 | N 000961016112 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X25 | ||
| 075 | N 000961014101 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 082 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 092 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER | ||
| 098 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 104 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 107 | N 001444020201 | PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| WEBER,SAUER;60 MM | ||
| 107 | N 001444020203 | PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| "POWER PACKER";65 MM | ||
| 109 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 115 | N 000094005044 | COTTER PIN |
| HYDRAULIC CYLINDER TO SWIVEL ARM | ||
| 130 | A 0005533901 | PUMP |
| Repalced by: A 0005537901 | ||
| 130 | A 0005537901 | PUMP |
| "WEBER" | ||
| 130 | A 0005534301 | PUMP |
| Repalced by: A 0005536801 | ||
| 130 | A 0005536801 | PUMP |
| "SAUER" | ||
| 130 | A 0005536801 | PUMP |
| "SAUER" | ||
| 131 | A 0005535401 | PUMP |
| "POWER PACKER" | ||
| 133 | A 0005500113 | LEVER |
| TO 000 553 39 01 | ||
| 135 | A 0005530280 | GASKET |
| TO 000 553 39 01 | ||
| 136 | N 009045016001 | SNAP RING |
| TO 000 553 39 01 | ||
| 137 | A 0009901310 | SCREW |
| TO 000 553 39 01 | ||
| 139 | A 0005531190 | PISTON |
| Repalced by: A 0005531790 | ||
| 139 | A 0005531790 | PISTON |
| TO 000 553 39 01 | ||
| 144 | A 0005500055 | VALVE |
| Repalced by: A 0005501555 | ||
| 144 | A 0005501555 | VALVE |
| Repalced by: A 0005502855 | ||
| 144 | A 0005502855 | VALVE |
| TO 000 553 39 01 | ||
| 148 | A 0005534560 | SEAL RING |
| 20X2 MM,TO 000 553 39 01 | ||
| 150 | A 0059977448 | SEAL RING |
| TO 000 553 43 01 | ||
| 152 | A 0019978748 | SEAL RING |
| 12X2 MM,TO 000 553 39 01 | ||
| 153 | A 0069973748 | SEAL RING |
| TO 000 553 43 01 | ||
| 154 | A 0069973848 | SEAL RING |
| TO 000 553 43 01 | ||
| 155 | A 0069973948 | SEAL RING |
| TO 000 553 43 01 | ||
| 156 | N 001481004015 | CLAMPING SLEEVE |
| 4X28 MM,TO 000 553 39 01 | ||
| 160 | N 001481004001 | CLAMPING SLEEVE |
| 4X12 MM,TO 000 553 39 01 | ||
| 163 | N 000912008111 | SCREW |
| TO 000 553 39 01 | ||
| 165 | N 912004008102 | LOCK WASHER |
| TO 000 553 39 01 | ||
| 167 | A 0005530403 | FILTER |
| TO 000 553 39 01 | ||
| 171 | A 0005530096 | BOOT |
| 6X14X6 MM,TO 000 553 39 01 | ||
| 173 | A 0009978948 | SEAL RING |
| 15X2.5 MM,TO 000 553 39 01 | ||
| 176 | A 0089978648 | SEAL RING |
| 20X2.5 MM,TO 000 553 39 01 | ||
| 177 | N 000988020011 | FITTED WASHER |
| TO 000 553 39 01 | ||
| 178 | N 000471020001 | LOCK RING |
| TO 000 553 39 01 | ||
| 179 | A 0049971548 | SEAL RING |
| 2.44X1.78 MM,TO 000 553 39 01 | ||
| 181 | A 0015532760 | GASKET KIT |
| Repalced by: A 0005502583 | ||
| 181 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| TO 000 553 39 01 | ||
| 183 | A 0005500255 | REPAIR KIT |
| VALVE | ||
| TO 000 553 54 01 | ||
| 184 | A 0005500275 | REPAIR KIT |
| PISTON | ||
| TO 000 553 54 01 | ||
| 187 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 187 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 187 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 190 | A 6205500140 | BRACKET |
| HAND PUMP | ||
| 190 | A 6205500140 | BRACKET |
| HAND PUMP | ||
| 194 | N 000933010129 | SCREW |
| HAND PUMP TO BRACKET | ||
| 198 | N 913004010008 | NUT |
| HAND PUMP TO BRACKET | ||
| 202 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 202 | A 0029909604 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 202 | A 0029909604 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 203 | N 308676012012 | SCREW |
| BRACKET TO FRAME | ||
| M 12X25 | ||
| 203 | N 308676012012 | SCREW |
| BRACKET TO SUPPORT | ||
| M 12X25 | ||
| 203 | N 308676012012 | SCREW |
| BRACKET TO SUPPORT | ||
| M 12X25 | ||
| 204 | N 000961014154 | SCREW |
| BRACKET TO SUPPORT | ||
| M 14X25 | ||
| 204 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| M 14X45 | ||
| 204 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| M 14X45 | ||
| 205 | N 000961012151 | SCREW |
| BRACKET TO SUPPORT | ||
| M 12X30 | ||
| 205 | N 000961012151 | SCREW |
| BRACKET TO SUPPORT | ||
| M 12X30 | ||
| 206 | N 000961014097 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 206 | N 000961014097 | SCREW |
| BRACKET TO FRAME | ||
| M 14X35 | ||
| 207 | N 000125013008 | WASHER |
| BRACKET TO FRAME | ||
| 207 | N 000125013008 | WASHER |
| BRACKET TO SUPPORT | ||
| 207 | N 000125013008 | WASHER |
| BRACKET TO SUPPORT | ||
| 208 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 208 | N 000125015013 | WASHER |
| BRACKET TO FRAME | ||
| 208 | N 000125015013 | WASHER |
| BRACKET TO SUPPORT | ||
| 210 | N 913004014002 | NUT |
| BRACKET TO FRAME | ||
| 210 | N 913004014002 | NUT |
| BRACKET TO FRAME | ||
| 210 | N 913004014002 | NUT |
| BRACKET TO SUPPORT | ||
| 212 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 212 | N 913004012008 | NUT |
| BRACKET TO SUPPORT | ||
| 212 | N 913004012008 | NUT |
| BRACKET TO SUPPORT | ||

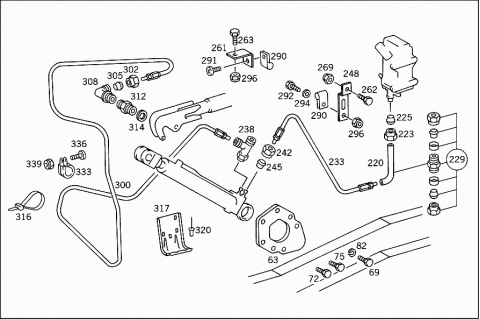

| 220 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 6 MM | ||
| 223 | N 915017006100 | UNION NUT |
| 225 | N 003861006007 | GLAND |
| 229 | A 0039979172 | FITTING |
| HYDRAULIC LINE | ||
| 233 | A 3875530282 | HOSE |
| Repalced by: A 3875530182 | ||
| 233 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 238 | N 003954006100 | FITTING |
| Repalced by: A 0019900170 | ||
| 238 | A 0019900170 | T-FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 242 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 245 | N 003861006007 | GLAND |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 248 | A 3164290040 | BRACKET |
| OIL LINE MOUNTING | ||
| 248 | A 3164290040 | BRACKET |
| OIL LINE MOUNTING | ||
| 248 | A 3164290040 | BRACKET |
| OIL LINE MOUNTING | ||
| 261 | A 3604280243 | ANGLE |
| OIL LINE MOUNTING | ||
| 261 | A 3604280243 | ANGLE |
| OIL LINE MOUNTING | ||
| 262 | N 000933008150 | SCREW |
| BRACKET TO FRAME | ||
| M 8X35 | ||
| 262 | N 000933008150 | SCREW |
| BRACKET TO FRAME | ||
| M 8X35 | ||
| 262 | N 000933008150 | SCREW |
| BRACKET TO FRAME | ||
| M 8X35 | ||
| 262 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 262 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 262 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 263 | N 000933008204 | SCREW |
| BRACKET TO FRAME | ||
| 263 | N 000933008204 | SCREW |
| BRACKET TO FRAME | ||
| 269 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 290 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 290 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 290 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 291 | N 007985006145 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| M 6X20 | ||
| 292 | N 000933006183 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| M 6X16 | ||
| 292 | N 000933006183 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| M 6X16 | ||
| 294 | N 000125006421 | WASHER |
| OIL DELIVERY LINE TO BRACKET | ||
| 294 | N 000125006421 | WASHER |
| OIL DELIVERY LINE TO BRACKET | ||
| 296 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 296 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 296 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 296 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 300 | A 3975530082 | HOSE |
| Repalced by: A 3805530082 | ||
| 300 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 300 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 300 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 300 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 300 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 302 | N 915017006100 | UNION NUT |
| 305 | N 003861006007 | GLAND |
| 308 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 308 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 312 | N 003901006004 | SCREW-IN FITTING |
| Repalced by: A 0029978472 | ||
| 312 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 314 | N 007603010103 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 316 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 316 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 316 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 317 | A 3816820186 | BRACKET |
| 320 | N 910002004132 | RIVET |
| BRACKET TO CAB | ||
| A 3875015920 | BRACKET | |
| Repalced by: A 6454310740 | ||
| A 6454310740 | BRACKET | |
| N 000933008147 | SCREW | |
| N 007349008003 | WASHER | |
| N 913004008004 | NUT | |
| 333 | N 916016008200 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 336 | N 007985006145 | SCREW |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 339 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 339 | N 913004006001 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
