Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181

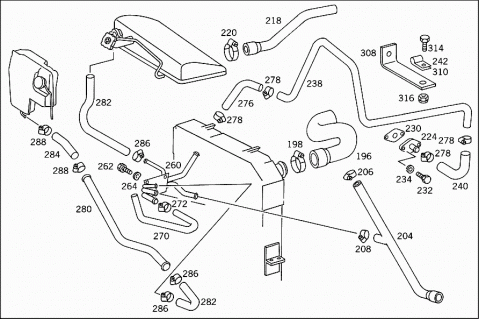

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0005016501 | RADIATOR |
| 006 | A 0005016401 | RADIATOR |
| 006 | A 0005019501 | RADIATOR |
| 006 | A 0005015701 | RADIATOR |
| Repalced by: A 0005019101 | ||
| 006 | A 0005019101 | RADIATOR |
| 006 | A 0005019101 | RADIATOR |
| 009 | A 0005000749 | TANK |
| EXPANSION TANK | ||
| 009 | A 0005001349 | TANK |
| EXPANSION TANK | ||
| 012 | A 0005013715 | RADIATOR CAP |
| OVERFLOW VALVE | ||
| 012 | A 0005017115 | RADIATOR CAP |
| OVERFLOW VALVE | ||
| 015 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 015 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 018 | A 0139978082 | HOSE |
| Repalced by: A 0149975782 | ||
| 018 | A 0149975782 | HOSE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 021 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 021 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 021 | N 000000000665 | CLAMP |
| COOLING WATER HOSE TO RADIATOR | ||
| 12-22X13 MM | ||
| 024 | N 007603014405 | SEAL RING |
| EXPANSION TANK | ||
| 027 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 027 | N 007604014101 | SCREW PLUG |
| EXPANSION TANK | ||
| 030 | N 000933008212 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 033 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 036 | N 000125008418 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 039 | A 4090100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 042 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 045 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 048 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 050 | A 3975000016 | AIR BAFFLE |
| RADIATOR | ||
| 050 | A 3975000116 | AIR BAFFLE |
| RADIATOR | ||
| 051 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 051 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 052 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 052 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 052 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 053 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 053 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 053 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 055 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 057 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 059 | A 6205050086 | BOOT |
| FAN SHROUD TO FAN RING | ||
| 059 | A 6205050086 | BOOT |
| FAN SHROUD TO FAN RING | ||
| 060 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 062 | A 3975040101 | SUPPORT |
| RADIATOR,LEFT | ||
| 063 | A 3975040001 | SUPPORT |
| RADIATOR,RIGHT | ||
| 066 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 069 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 069 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 072 | N 000125010518 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 073 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 075 | N 000933010257 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 075 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 075 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 078 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 081 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 084 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 094 | A 6175000049 | TANK |
| Repalced by: A 6205000349 | ||
| 094 | A 6205000349 | TANK |
| BEHIND CAB | ||
| 094 | A 6205000349 | TANK |
| BEHIND CAB | ||
| 097 | A 0005014515 | RADIATOR CAP |
| LATERAL | ||
| 100 | A 0005010010 | DRAIN PIPE |
| 103 | A 0139978582 | HOSE |
| Repalced by: A 0139978682 | ||
| 103 | A 0139978682 | HOSE |
| 810 MM | ||
| 106 | A 6175000031 | BRACKET |
| EXPANSION TANK | ||
| 109 | A 6175000131 | BRACKET |
| EXPANSION TANK | ||
| 112 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 115 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 118 | A 6175010220 | STRAP |
| EXPANSION TANK TO BRACKET | ||
| 121 | A 6175010320 | BRACKET |
| EXPANSION TANK TO BRACKET | ||
| 124 | A 6175010095 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 127 | A 6175010195 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 130 | N 007985006193 | SCREW |
| STRAP TO BRACKET | ||
| 133 | N 009021006205 | WASHER |
| STRAP TO BRACKET | ||
| 136 | N 912004006102 | LOCK WASHER |
| STRAP TO BRACKET | ||
| 138 | A 3975010001 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| 140 | N 000933006121 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 142 | N 000137006204 | SPRING WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 144 | A 4270980038 | AIR COLLECTOR PIPE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 146 | N 000933010145 | SCREW |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 148 | N 000137010201 | SPRING WASHER |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 150 | N 000934010014 | NUT |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 152 | N 000933008153 | SCREW |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 154 | N 000137008204 | SPRING WASHER |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 156 | N 000934008010 | NUT |
| AIR COLLECTOR PIPE TO ENGINE | ||
| 158 | A 4070980016 | CONNECTING PIPE |
| AIR COLLECTOR PIPE TO TURBOCHARGER | ||
| 160 | A 0069974948 | SEAL RING |
| AIR COLLECTOR PIPE TO TURBOCHARGER | ||
| 162 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 162 | A 0020945282 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 164 | N 916017100000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 166 | A 3975280107 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 168 | A 0010947982 | HOSE |
| Repalced by: A 0020941782 | ||
| 168 | A 0020941782 | HOSE |
| Repalced by: A 0010947982 | ||
| 168 | A 0010947982 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 172 | N 916017100000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 174 | A 3975280080 | GASKET |
| Repalced by: A 6555280180 | ||
| 174 | A 6555280180 | GASKET |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 176 | N 006912010030 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| M 10X30 | ||
| 176 | N 000912010015 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| M 10X45 | ||
| 178 | N 000137010201 | SPRING WASHER |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 180 | N 009021010202 | WASHER |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 182 | N 913004010008 | NUT |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 184 | A 3975200201 | AIR INTAKE PIPE |
| 186 | A 3975280682 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 188 | N 916017110001 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 190 | N 916017120000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 192 | A 3975010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 194 | A 3975010182 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 196 | A 3975011582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 198 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 198 | N 000000000673 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 60-80X13 MM | ||
| 198 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 198 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 70-90X13 MM | ||
| 200 | A 3975010282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 200 | A 3975010282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 200 | A 3975011682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 204 | A 3975011882 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 206 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 206 | N 000000000670 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 35-50 X13 MM | ||
| 208 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 208 | N 000000000667 | CLAMP |
| HOSE TO WATER PUMP AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 210 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 210 | N 000000000673 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 60-80X13 MM | ||
| 210 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 210 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 70-90X13 MM | ||
| 212 | A 3975010882 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 214 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 214 | N 000000000670 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 216 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 216 | N 000000000667 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 20-32X13 MM | ||
| 218 | A 3975010382 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 220 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 220 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 222 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 222 | N 000000000667 | CLAMP |
| FROM ENGINE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 224 | A 3975000079 | FLANGE |
| HEATING AND VENTILATION | ||
| 226 | N 000933006103 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 228 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 230 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 232 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 234 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 236 | A 3975060460 | PIPE |
| Repalced by: A 0005516456 | ||
| 236 | A 0005516456 | TUBE |
| (HEATING PIPE) | ||
| 236 | A 3975060360 | PIPE |
| (HEATING PIPE) | ||
| 238 | A 3975060660 | PIPE |
| (HEATING PIPE) | ||
| 240 | A 4608320223 | HOSE |
| HEATING; TO CONNECTOR | ||
| 242 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 242 | A 3609950601 | CLAMP |
| HEATING PIPE TO INTAKE PIPE | ||
| 242 | A 3609950601 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 244 | A 3975060440 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 246 | A 3975060540 | BRACKET |
| Repalced by: A 3525422840 | ||
| 246 | A 3525422840 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 248 | A 3975060640 | BRACKET |
| Repalced by: A 3604293140 | ||
| 248 | A 3604293140 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 250 | N 000933008285 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 252 | N 007985006196 | SCREW |
| HEATING PIPE TO INTAKE PIPE | ||
| 254 | N 000933008148 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 256 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 256 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 258 | N 912004008102 | LOCK WASHER |
| HEATING PIPE TO ENGINE | ||
| 258 | N 912004008102 | LOCK WASHER |
| HEATING PIPE TO ENGINE | ||
| 260 | A 3975000172 | LINE |
| HEATING; TO CAB | ||
| 260 | A 3975000472 | LINE |
| LINE TO RADIATOR | ||
| 262 | N 000933006102 | SCREW |
| LINE TO RADIATOR | ||
| 264 | N 000137006204 | SPRING WASHER |
| LINE TO RADIATOR | ||
| 266 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 266 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 270 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 272 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 272 | N 000000000667 | CLAMP |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 20-32X13 MM | ||
| 274 | A 3975060035 | HOSE |
| HEATING; TO CONNECTOR | ||
| 276 | A 6205062035 | HOSE |
| HEATING; TO CONNECTOR | ||
| 278 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 278 | N 000000000667 | CLAMP |
| HEATING; TO CONNECTOR | ||
| 20-32X13 MM | ||
| 280 | A 6205010725 | BREATHER PIPE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 282 | A 6175010325 | BREATHER PIPE |
| Repalced by: A 6205010725 | ||
| 282 | N 900271008043 | HOSE |
| DE-AERATION LINE TO CAB | ||
| 250 MM | ||
| 282 | N 900271008043 | HOSE |
| BETWEEN DE-AERATION LINE AND EXPANSION TANK | ||
| 60 MM | ||
| 282 | N 900271008043 | HOSE |
| HEATING-TO-RADIATOR DE-AERATION LINE TO BODY | ||
| 440 MM | ||
| 282 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17 MM | ||
| A 6205013282 | HOSE | |
| Repalced by: A 6205012882 | ||
| 284 | A 6205012882 | HOSE |
| DE-AERATION LINE TO CAB | ||
| 284 | A 6205012882 | HOSE |
| DE-AERATION LINE TO CAB | ||
| 286 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 286 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12-22X13 MM | ||
| 286 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12-22X13 MM | ||
| 288 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 288 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 288 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 290 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 292 | N 900271018038 | HOSE |
| FROM RADIATOR TO ENGINE | ||
| 18X27 MM | ||
| 294 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 294 | N 000000000667 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 20-32X13 MM | ||
| 296 | A 6175010520 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 298 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 300 | N 007981005306 | SHEET METAL SCREW |
| DE-AERATION LINE TO CAB | ||
| 302 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 302 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 302 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO CAB | ||
| 304 | N 007985006193 | SCREW |
| DE-AERATION LINE TO CAB | ||
| 306 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 306 | N 913004006001 | NUT |
| DE-AERATION LINE TO CAB | ||
| 308 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 308 | A 6454310740 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 310 | A 3609950601 | CLAMP |
| HEATING FEED AND RETURN LINES TO BRACKET | ||
| 312 | N 007985006196 | SCREW |
| HEATING FEED AND RETURN LINES TO BRACKET | ||
| M 6X16 | ||
| 314 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| M 6X18 | ||
| 316 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 316 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
