Transporto priemonė: 2628/6X4 MBSA-RSA; VIN numerio dalis: 397181

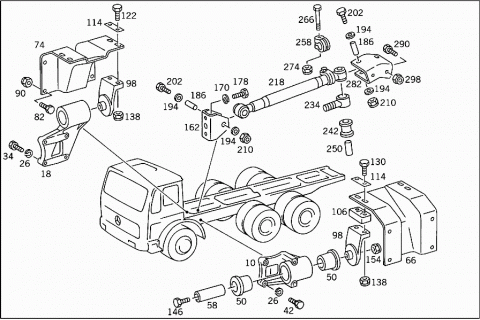

Grupė: 28 TRANSFER CASE

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.7
010	A 6212850001	CONSOLE
		LEFT
010	A 6212850001	CONSOLE
		LEFT
010	A 6212850201	CONSOLE
		LEFT
018	A 6212850101	CONSOLE
		RIGHT
018	A 6212850101	CONSOLE
		RIGHT
018	A 6212850301	CONSOLE
		RIGHT
026	N 912004014100	LOCK WASHER
		BEARING BRACKET TO TRANSMISSION
034	N 000960014209	SCREW
		BEARING BRACKET TO TRANSMISSION
		M 14X70
042	N 000960014252	SCREW
		BEARING BRACKET TO TRANSMISSION
		M 14X140
050	A 6212850003	BEARING
		RUBBER MOUNT
058	A 6212850053	SPACER TUBE
		RUBBER MOUNT
066	A 6212850140	BRACKET
		LEFT
066	A 6212850240	BRACKET
		LEFT
074	A 6212850040	BRACKET
		RIGHT
074	A 6212850340	BRACKET
		RIGHT
082	N 000961016077	SCREW
		BRACKET TO SIDE MEMBER
090	N 913004016005	NUT
		BRACKET TO SIDE MEMBER
098	A 6212850103	BEARING
		TRANSFER CASE TO SUPPORT
098	A 6212850103	BEARING
106	A 6212850284	SHIM
		BEARING BRACKET TO BRACKET
114	A 6212850084	SHIM
		BEARING BRACKET TO BRACKET
122	N 000961016096	SCREW
		BEARING BRACKET TO BRACKET
		M 16X50
130	N 000960016254	SCREW
		BEARING BRACKET TO BRACKET
		M 16 X 80
138	N 913004016005	NUT
		BEARING BRACKET TO BRACKET
146	N 000960016256	SCREW
		RUBBER MOUNTING TO BEARING BRACKET
154	N 913004016005	NUT
		RUBBER MOUNTING TO BEARING BRACKET
162	A 6212850840	BRACKET
		ROD TO TRANSFER CASE
170	N 912004014100	LOCK WASHER
		BRACKET TO TRANSFER CASE
178	N 000960014247	SCREW
		BRACKET TO TRANSFER CASE
186	A 6212850153	SPACER TUBE
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
194	N 007349013003	WASHER
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
202	N 000960012264	SCREW
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
210	N 913004012008	NUT
		PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
218	A 6212850055	ROD
218	A 6212850655	ROD
218	A 6212850155	ROD
		TRANSFER CASE TO FRAME
234	A 0002850035	JOINT
242	A 0002850082	RUBBER MOUNTING
	Repalced by: A 0002420250
242	A 0002420250	BUSHING
250	A 0002850050	BUSHING
	Repalced by: A 0002420350
250	A 0002420350	BUSHING
258	A 0009953644	CLAMP
	Repalced by: A 0009950544
258	A 0009950544	CLAMP
	Repalced by: A 0009957044
258	A 0009957044	CLAMP
266	N 000960010023	SCREW
274	N 913004010010	NUT
282	A 6212850940	BRACKET
		ROD TO SIDE MEMBER
282	A 6212851440	BRACKET
		ROD TO SIDE MEMBER
290	N 000961014119	SCREW
		BRACKET TO SIDE MEMBER
298	N 913004014005	NUT
		BRACKET TO SIDE MEMBER
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.7
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR ACTUATION OF LONGITUDINAL DIFFERENTIAL LOCK,SEE GROUP 35
