Transporto priemonė: 2628 AS; VIN numerio dalis: 624331

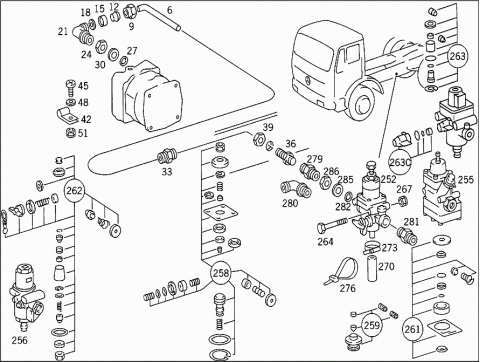

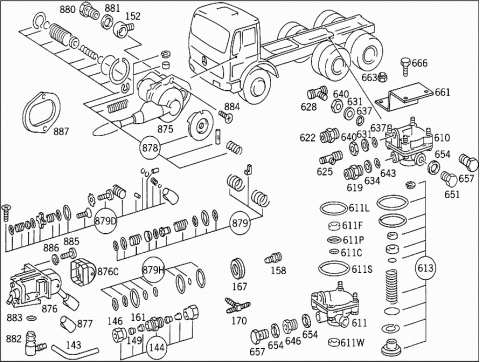

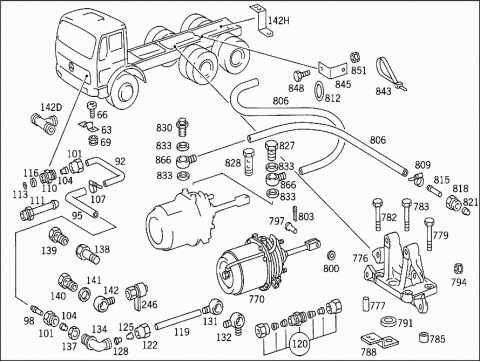

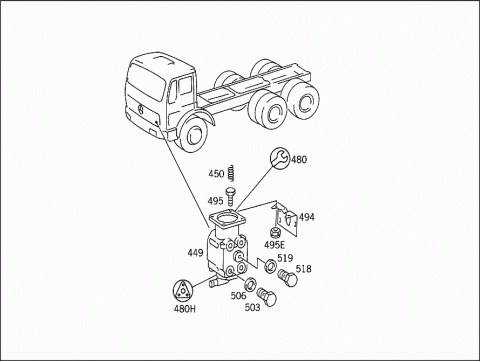

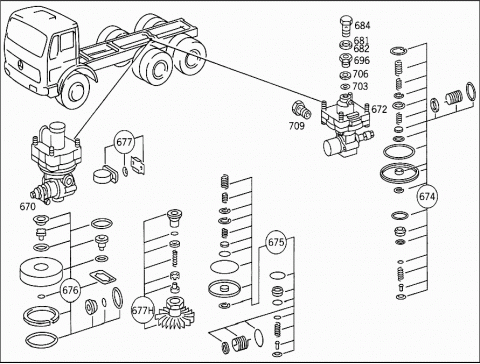

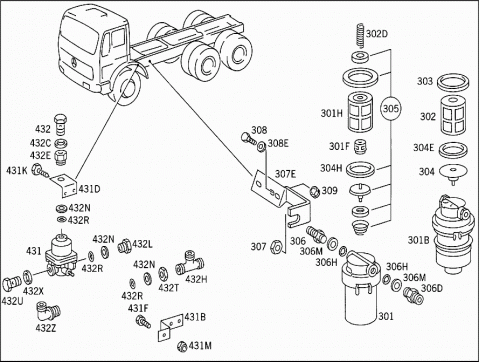

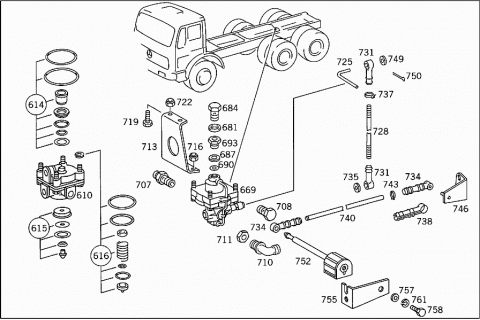

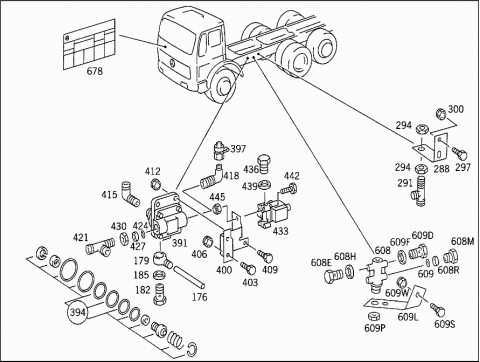

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 739.1 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 731.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL: | ||
| 740.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL: | ||
| 740.1 | ||
| A 6209970272 | FITTING | |
| AIR COMPRESSOR,CONNECTION: | ||
| "20" | ||
| N 007603026104 | SEAL RING | |
| AIR COMPRESSOR,CONNECTION: | ||
| "20" | ||
| 006 | A 0004291401 | LINE |
| 15 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 006 | A 0004291401 | LINE |
| FROM AIR RESERVOIR TO CHECK VALVE | ||
| 15 MM | ||
| 009 | N 915018015000 | UNION NUT |
| N 915017015100 | UNION NUT | |
| 012 | N 003861015004 | GLAND |
| 015 | N 915065015101 | THRUST RING |
| 018 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 018 | N 007603012121 | SEAL RING |
| 021 | A 0004294338 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 024 | N 074305026202 | NUT |
| AT AIR COMPRESSOR | ||
| 027 | A 0039973848 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 030 | A 0004290527 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 030 | A 0004290527 | THRUST RING |
| SEE ALSO GROUP: | ||
| "13" | ||
| 033 | N 074298022203 | DOUBLE FITTING |
| BETWEEN THE LINES | ||
| N 003902015002 | CONNECTION FITTING | |
| BETWEEN THE LINES | ||
| 036 | N 003940014201 | BULKHEAD FITTING |
| THROUGH SIDE MEMBER | ||
| N 003910015002 | BULKHEAD FITTING | |
| THROUGH SIDE MEMBER | ||
| 039 | N 074305022202 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 042 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 042 | A 6739950001 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 045 | N 000000001147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| 045 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 045 | N 000000001146 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X16 | ||
| 048 | N 000125006421 | WASHER |
| CLAMP TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 048 | N 000125006449 | WASHER |
| CLAMP TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| 051 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 051 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 054 | A 0004292101 | LINE |
| 12 MM | ||
| 054 | A 0004292101 | LINE |
| AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER | ||
| 12 MM | ||
| 054 | A 0004292101 | LINE |
| LOAD/NO-LOAD VALVE,TRISTOP CYLINDERS | ||
| 12 MM | ||
| 057 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 057 | N 000000006239 | UNION NUT |
| 060 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 060 | A 0019901967 | SEAL CONE |
| 061 | A 3609950401 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 062 | N 000000001147 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X20 | ||
| 062E | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 062E | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 063 | A 3159955010 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 066 | N 007985006145 | SCREW |
| Repalced by: N 007985006581 | ||
| 066 | N 007985006581 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| N 000125006421 | WASHER | |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 069 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 069 | N 913004006001 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 092 | A 3874299502 | LINE |
| Repalced by: A 3834290801 | ||
| 092 | A 3834290801 | LINE |
| Repalced by: A 6194290801 | ||
| 092 | A 6194290801 | LINE |
| Repalced by: A 6254293501 | ||
| 092 | A 6254293501 | LINE |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 095 | N 916027011014 | HOSE |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 098 | A 0004290541 | FITTING |
| BRAKE HOSE | ||
| 101 | N 915017012100 | UNION NUT |
| BRAKE HOSE | ||
| Repalced by: N 000000006239 | ||
| 101 | N 000000006239 | UNION NUT |
| BRAKE HOSE | ||
| 104 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 104 | A 0019901967 | SEAL CONE |
| BRAKE HOSE | ||
| 107 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 107 | N 000000000666 | CLAMP |
| BRAKE HOSE | ||
| 110 | A 0029971572 | FITTING |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 111 | N 074304016201 | FITTING |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 113 | A 0009971548 | SEAL RING |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 116 | A 0004290927 | THRUST RING |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 119 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 119 | A 0009872827 | PLASTIC PIPE |
| 9X12 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| CHECK VALVE,RELAY VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE VALVE,BRAKE POWER REGULATOR | ||
| 119 | A 0009872827 | PLASTIC PIPE |
| LOAD/NO-LOAD VALVE,TRISTOP CYLINDERS | ||
| 9X12 MM | ||
| 119 | A 0009872827 | PLASTIC PIPE |
| HAND BRAKE VALVE | ||
| 9X12 MM | ||
| 119 | A 0009872827 | PLASTIC PIPE |
| REGULATING VALVE | ||
| 9X12 MM | ||
| 120 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 120 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| A 0009907378 | CONNECTOR | |
| REPAIR SIZE | ||
| 122 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 122 | N 000000006239 | UNION NUT |
| 125 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 125 | A 0019901967 | SEAL CONE |
| 128 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 128 | N 915062009000 | SLEEVE |
| 131 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 132 | A 0019901088 | BANJO UNION |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO TO AIR RESERVOIR | ||
| 134 | N 003911012100 | FITTING |
| Repalced by: A 0009907871 | ||
| 134 | A 0009907871 | ELBOW FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| Repalced by: N 000000006195 | ||
| 134 | N 000000006195 | FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 0019908171 | ELBOW FITTING | |
| COMPRESSED AIR LINE THRU FRAME | ||
| 137 | N 080705018002 | NUT |
| COMPRESSED AIR LINE THRU FRAME | ||
| 138 | A 0004296634 | ADAPTER FITTING |
| Repalced by: A 0004296934 | ||
| 138 | A 0004296934 | ADAPTER FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 0004296834 | ADAPTER FITTING | |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 0009970934 | UNION SCREW | |
| COMPRESSED AIR LINE THRU FRAME | ||
| N 000439018204 | NUT | |
| COMPRESSED AIR LINE THRU FRAME | ||
| 139 | N 915047012203 | HOLLOW SCREW |
| COMPRESSED AIR LINE THRU FRAME | ||
| 139 | N 915047012203 | HOLLOW SCREW |
| COMPRESSED AIR LINE THRU FRAME | ||
| 140 | N 915036012203 | HOLLOW SCREW |
| COMPRESSED AIR LINE THRU FRAME | ||
| 140 | N 915036012203 | HOLLOW SCREW |
| COMPRESSED AIR LINE THRU FRAME | ||
| 140 | N 915036012203 | HOLLOW SCREW |
| COMPRESSED AIR LINE THRU FRAME | ||
| 141 | N 007603016401 | SEAL RING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 142 | A 0019900788 | BANJO UNION |
| COMPRESSED AIR LINE THRU FRAME | ||
| 142 | A 0019900788 | BANJO UNION |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 0009940147 | SEAL RING | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| A 0009941448 | LOCK | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| A 6739970145 | TS SEALING RING | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 142D | A 0019901570 | T-FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 142D | A 0019907070 | T-FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| 142H | A 6204290473 | LOCK |
| COMPRESSED AIR LINE THRU FRAME | ||
| 143 | A 0089979082 | HOSE |
| 6X8 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3/2-WAY VALVE,BRAKE POWER REGULATOR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AXLE BREATHING | ||
| 144 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 144 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 008 997 90 82 | ||
| 146 | N 915017008100 | UNION NUT |
| 149 | N 003861008005 | GLAND |
| 152 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 155 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 155 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 155 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 158 | A 0019976772 | FITTING |
| Repalced by: N 915059006000 | ||
| 158 | N 915059006002 | FITTING |
| 161 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 161 | N 915062006000 | SLEEVE |
| 164 | A 3549970081 | GROMMET |
| LINE THRU FRAME | ||
| 32/27 MM | ||
| 164 | A 3879970481 | GROMMET |
| LINE THRU FRAME | ||
| 38/30 MM | ||
| 167 | A 6209970181 | GROMMET |
| LINE THRU FRAME | ||
| 42/36 MM | ||
| 167 | A 6454290081 | GROMMET |
| Repalced by: A 6554290081 | ||
| 167 | A 6554290081 | GROMMET |
| LINE THRU FRAME | ||
| A 3604280243 | ANGLE | |
| BREATHER LINE TO FRONT AXLE | ||
| 170 | A 0019903970 | T-FITTING |
| Repalced by: A 0029909070 | ||
| 170 | A 0029909070 | T-FITTING |
| 173 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 173 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3/2-WAY VALVE,PRESSURE GAUGE,EXHAUST BRAKE CYLINDER | ||
| 173 | A 0009872627 | PLASTIC PIPE |
| LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE | ||
| 4X6 MM | ||
| 174 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 6 MM | ||
| 176 | N 073379006203 | HOSE |
| PRESSURE GAUGE LINE | ||
| 6X10 MM | ||
| 179 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 179 | N 915052004015 | BANJO UNION |
| NO-LOAD/LOAD VALVE | ||
| 182 | N 915039008202 | HOLLOW SCREW FITTING |
| NO-LOAD/LOAD VALVE | ||
| 182 | N 915036008202 | HOLLOW SCREW |
| NO-LOAD/LOAD VALVE | ||
| 185 | N 007603012405 | SEAL RING |
| NO-LOAD/LOAD VALVE | ||
| 188 | N 915017006100 | UNION NUT |
| 191 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 191 | A 0019901667 | SEAL CONE |
| 194 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 194 | N 915062004000 | SLEEVE |

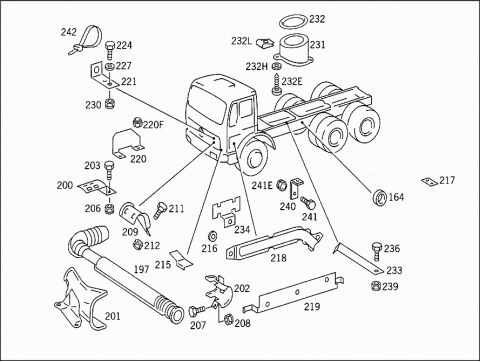

| 197 | A 0004290086 | PROTECTIVE TUBE |
| Repalced by: A 0004290286 | ||
| 197 | A 0004290286 | PROTECTIVE TUBE |
| COMPRESSED AIR LINE | ||
| 200 | A 3874291140 | BRACKET |
| PLASTIC LINES TO FRAME | ||
| 201 | A 6204201186 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 201 | A 6204201286 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 202 | A 6154200086 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 202 | A 6204201486 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 203 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 203 | N 304017008021 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 206 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 206 | N 913004008001 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 207 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 207 | N 304017008034 | SCREW |
| BRACKET TO CONSOLE | ||
| 208 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 208 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 209 | A 3874292540 | BRACKET |
| PRESSURE GAUGE LINE TO CAB | ||
| 209 | A 3874292640 | BRACKET |
| PRESSURE GAUGE LINE TO CAB | ||
| 211 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 211 | N 304017008021 | SCREW |
| BRACKET TO CONSOLE | ||
| 212 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 212 | N 913004008001 | NUT |
| BRACKET TO CONSOLE | ||
| 215 | A 3874291540 | BRACKET |
| PRESSURE GAUGE LINE TO CAB | ||
| 215 | A 3874292740 | BRACKET |
| PRESSURE GAUGE LINE TO CAB | ||
| 216 | A 3609902340 | WASHER |
| PLASTIC LINES TO FRAME | ||
| 217 | A 6204294340 | BRACKET |
| Repalced by: A 3604293140 | ||
| 217 | A 3604293140 | BRACKET |
| LINE MOUNTING | ||
| 218 | A 6204292340 | BRACKET |
| PLASTIC LINES TO FRAME | ||
| 219 | A 6204295740 | BRACKET |
| CONSOLE TO SIDE MEMBER | ||
| 220 | A 6204295240 | BRACKET |
| CAB FLOOR | ||
| 220F | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 220F | N 913004006001 | NUT |
| CAB FLOOR | ||
| 221 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 221 | A 6205240340 | BRACKET |
| LINE MOUNTING | ||
| 224 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 224 | N 304017008034 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| 227 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 227 | N 000125008443 | WASHER |
| BRACKET TO FRONT CROSS MEMBER | ||
| 230 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 230 | N 913004008001 | NUT |
| BRACKET TO FRONT CROSS MEMBER | ||
| 231 | A 6204291940 | BRACKET |
| BRAKE LINE THRU CAB FLOOR | ||
| 231 | A 6204292440 | BRACKET |
| BRAKE LINE THRU CAB FLOOR | ||
| 232 | A 6204290084 | SEAL RING |
| BRAKE LINE THRU CAB FLOOR | ||
| 232E | N 007981004252 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 232H | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 232H | N 009021005205 | WASHER |
| BRACKET TO CAB FLOOR | ||
| 232L | A 0009946445 | LOCK |
| BRACKET TO CAB FLOOR | ||
| 233 | A 3874296940 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 234 | A 6204293940 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 236 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 236 | N 304017008027 | SCREW |
| LINE TO SIDE MEMBER | ||
| 239 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 239 | N 913004008001 | NUT |
| LINE TO SIDE MEMBER | ||
| 240 | A 3954290440 | BRACKET |
| Repalced by: A 6205243040 | ||
| 240 | A 6205243040 | BRACKET |
| 241 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 241 | N 304017008027 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 241E | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 241E | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 242 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 246 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 246 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 246 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 246 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 246 | A 0004316131 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,22" | ||
| 246 | A 0004316131 | TEST CONNECTION |
| COMPRESSED AIR LINE,"SUPPLY" | ||
| WIRA | ||
| 246 | A 0004316131 | TEST CONNECTION |
| BRAKE POWER REGULATOR | ||
| WIRA | ||
| A 0009979486 | PROTECTIVE CAP | |
| 252 | A 0014310006 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 252 | A 0014313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 255 | A 0014310606 | PRESSURE REGULATOR |
| Repalced by: A 0024313406 | ||
| 255 | A 0024313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 255 | A 0024314306 | PRESSURE REGULATOR |
| Repalced by: A 0034313506 | ||
| 255 | A 0034313506 | PRESSURE REGULATOR |
| BOSCH | ||
| 256 | A 0014311206 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 256 | A 0024314906 | PRESSURE REGULATOR |
| Repalced by: A 0034313706 | ||
| 256 | A 0034313706 | PRESSURE REGULATOR |
| WABCO | ||
| 256 | A 0024318306 | PRESSURE REGULATOR |
| Repalced by: A 0034313506 | ||
| 258 | A 0025866043 | REPAIR KIT |
| TO 001 431 34 06,GRAU 312 017 014 | ||
| 258 | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 258 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WABCO,975 300 110 0 | ||
| 259 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WABCO,975 300 110 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 49 06,WABCO,975 303 460 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 003 431 37 06,WABCO | ||
| 261 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 261 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| 262 | A 0025866743 | REPAIR KIT |
| TO 001 431 12 06,KNORR 3200 | ||
| 263 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 263 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 263C | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 263C | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| A 0004300407 | REPAIR KIT | |
| TO 002 431 83 06,KNORR 90309 | ||
| A 0004300907 | REPAIR KIT | |
| TO 003 431 35 06,BOSCH | ||
| 264 | N 000931008251 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 267 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 267 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 270 | A 0005461830 | INSULATING HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 16X20 MM | ||
| 270 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 273 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 273 | A 0059970190 | HOSE CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 273 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 273 | N 000000000667 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 276 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 279 | N 074298022203 | DOUBLE FITTING |
| AT PRESSURE REGULATOR | ||
| 280 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| N 003911015102 | FITTING | |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 281 | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 282 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 285 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 285 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 286 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| N 007604012102 | SCREW PLUG | |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "4,23" | ||
| Repalced by: N 007604012105 | ||
| N 007604012105 | SCREW PLUG | |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "4,23" | ||
| N 007603012405 | SEAL RING | |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "4,23" | ||
| 288 | A 3934310840 | BRACKET |
| COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR | ||
| 291 | A 0029977372 | FITTING |
| COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR | ||
| 294 | N 080705018002 | NUT |
| FITTING TO BRACKET | ||
| 297 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 297 | N 304017008018 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 300 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 300 | N 913004008001 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 301 | A 0004292795 | AIR CLEANER |
| WABCO | ||
| 301 | A 0004292595 | AIR CLEANER |
| BOSCH | ||
| 301 | A 0004292695 | AIR CLEANER |
| KNORR | ||
| 301B | A 0004292895 | AIR CLEANER |
| GRAU | ||
| 301F | A 0004290597 | FILTER ELEMENT |
| TO 000 429 27 95,WABCO | ||
| 301H | A 0004290497 | FILTER ELEMENT |
| TO 000 429 27 95,WABCO | ||
| 302 | A 0004290397 | FILTER ELEMENT |
| TO 000 429 28 95,GRAU | ||
| 302 | A 0004290797 | FILTER ELEMENT |
| TO 000 429 25 95,BOSCH | ||
| 302D | A 0059930901 | SPRING |
| TO 000 429 27 95,WABCO | ||
| 303 | A 0089978048 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 303 | A 0019974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 304 | A 0004290845 | DIAPHRAGM |
| TO 000 429 28 95,GRAU | ||
| 304 | A 0004291045 | DIAPHRAGM |
| TO 000 429 25 95,BOSCH | ||
| 304E | A 0059972748 | SEAL RING |
| TO 000 429 28 95, GRAU | ||
| 304E | A 0119974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 304E | A 0089978848 | SEAL RING |
| Repalced by: A 0049972248 | ||
| 304E | A 0049972248 | SEAL RING |
| Repalced by: A 0289972348 | ||
| 304E | A 0289972348 | SEAL RING |
| TO 000 429 27 95,100X3 MM,WABCO | ||
| 304H | A 0089978948 | SEAL RING |
| Repalced by: A 0009870746 | ||
| 304H | A 0009870746 | SEALING CORD |
| TO 000 429 27 95,75X3 MM,WABCO | ||
| 305 | A 0004204455 | REPAIR KIT |
| TO 000 429 27 95,WABCO | ||
| A 0004300369 | REPAIR KIT | |
| TO 000 429 26 95,KNORR | ||
| 306 | A 0019972372 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "1" | ||
| 306D | A 0019972172 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "2" | ||
| A 0029978972 | FITTING | |
| AIR CLEANER,CONNECTION: | ||
| "2" | ||
| 306H | A 0009870446 | O-RING |
| AIR CLEANER,CONNECTION: | ||
| "1,2" | ||
| 306M | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 306M | A 0009940203 | THRUST RING |
| AIR CLEANER,CONNECTION: | ||
| "1,2" | ||
| 307 | N 074305022202 | NUT |
| AIR CLEANER TO BRACKET | ||
| 307E | A 6204310740 | BRACKET |
| AIR CLEANER | ||
| 308 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 308 | N 304017008021 | SCREW |
| BRACKET TO STRAP | ||
| 308E | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 308E | N 000125008443 | WASHER |
| BRACKET TO STRAP | ||
| 309 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 309 | N 913004008001 | NUT |
| BRACKET TO STRAP | ||
| 310 | A 0014313806 | VALVE |
| Repalced by: A 0024310406 | ||
| 310 | A 0024310406 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| BOSCH | ||
| 310 | A 0014319306 | VALVE |
| Repalced by: A 0034315006 | ||
| 313 | A 0014314706 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| WABCO | ||
| 313 | A 0014318906 | VALVE |
| Repalced by: A 0024314006 | ||
| 313 | A 0024314006 | VALVE |
| Repalced by: A 0034315006 | ||
| 316 | A 0014313506 | VALVE |
| Repalced by: A 0014318406 | ||
| 316 | A 0014318406 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| KNORR | ||
| 316 | A 0014318706 | VALVE |
| Repalced by: A 0034315006 | ||
| 319 | A 0014316806 | VALVE |
| Repalced by: A 0024312906 | ||
| 319 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 319 | A 0024319306 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| GRAU | ||
| 319 | A 0024312706 | VALVE |
| Repalced by: A 0024319106 | ||
| 319 | A 0024319106 | VALVE |
| Repalced by: A 0034315006 | ||
| A 0034315006 | VALVE | |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| WABCO | ||
| 320 | A 0014310986 | CUP |
| TO 002 431 04 06,BOSCH | ||
| 320E | A 0009934905 | SPRING |
| Repalced by: A 0009935205 | ||
| 320E | A 0009935205 | SPRING |
| TO 002 431 04 06,BOSCH | ||
| 322 | A 0014311860 | SEAL RING |
| 34X2.3 MM,TO 001 431 68 06,GRAU | ||
| 323 | A 0024298844 | VALVE |
| TO 001 431 68 06,GRAU 37001 | ||
| 324 | A 0099972448 | SEAL RING |
| TO 001 431 68 06,19.3X2.4 MM,GRAU37001 | ||
| 325 | A 0059973248 | SEAL RING |
| 25.3X2.4 MM,TO 001 431 68 06,GRAU | ||
| 326 | A 0004313188 | VALVE SEAT |
| TO 001 431 68 06,GRAU 37001 | ||
| 327 | A 0014311960 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 327 | A 0009971548 | SEAL RING |
| 15X2 MM,TO 001 431 68 06 GRAU 19001 | ||
| 327D | A 0004304706 | GASKET KIT |
| TO 001 431 93 06,BOSCH 62401 | ||
| 327D | A 0004300260 | REPAIR KIT |
| TO 001 431 93 06,BOSCH 62201 | ||
| 327D | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06;BOSCH | ||
| 328 | A 0015863842 | REPAIR KIT |
| TO 001 431 35 06,KNORR | ||
| 329 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| 331 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 38 06,BOSCH | ||
| 334 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 38 06,BOSCH | ||
| 337 | A 0025862843 | REPAIR KIT |
| TO 001 431 47 06,WABCO 2100 | ||
| 337 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO 2210 | ||
| A 0034300881 | REPAIR KIT | |
| TO 002 431 93 06 GRAU 74001 | ||
| 338 | A 0035860943 | REPAIR KIT |
| TO 001 431 89 06,002 431 40 06,WABCO | ||
| 338 | A 0035861043 | REPAIR KIT |
| TO 001 431 87 06,KNORR | ||
| A 0034300981 | GASKET KIT | |
| TO 002 431 91 06 GRAU 66001 | ||
| 338 | A 0004305106 | REPAIR KIT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO; TO 003 431 50 06 | ||
| 340 | A 0009909671 | ELBOW FITTING |
| Repalced by: A 0029901271 | ||
| 340 | A 0029901271 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| A 0029902271 | ELBOW FITTING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 343 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 346 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 346 | A 0009940203 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 349 | A 0009870446 | O-RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 352 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11,12,21" | ||
| 355 | N 074313012304 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 356 | A 0004296434 | ADAPTER FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 357 | N 000439016206 | NUT |
| Repalced by: N 308675016001 | ||
| 357 | N 308675016001 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 358 | N 080705018002 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 358 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 361 | N 000125019009 | WASHER |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 361 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 361 | N 000125017016 | WASHER |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 364 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 364 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 365 | N 915039012205 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,22,23" | ||
| 366 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21,22,23" | ||
| 367 | A 0019979272 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| N 915036008202 | HOLLOW SCREW | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 368 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 370 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11,12,21,22,23,24" | ||
| 373 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11,12,21,22,23,24" | ||
| 376 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11,12,21,22,23,24" | ||
| 379 | A 0009970386 | PLUG |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 382 | N 915020018000 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 385 | N 915039008202 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 386 | A 0034291044 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 386 | A 0044293744 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| 388 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 391 | A 0004313313 | VALVE |
| LOAD/NO-LOAD | ||
| 394 | A 0005867843 | REPAIR KIT |
| TO 000 431 33 13 | ||
| 397 | A 0004314831 | TEST CONNECTION |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2",WABCO | ||
| 397 | A 0004316131 | TEST CONNECTION |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2",WIRA | ||
| 397 | A 0004312031 | TEST CONNECTION |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2" VOSS | ||
| 397 | A 0004314531 | TEST CONNECTION |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2",SCHAEFER | ||
| A 0009979486 | PROTECTIVE CAP | |
| 400 | A 3874293240 | BRACKET |
| LOAD/NO-LOAD VALVE | ||
| 403 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 403 | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 403 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 403 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 403 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 403 | N 910143008005 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 406 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 406 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 409 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 409 | N 304017008034 | SCREW |
| BRACKET TO LOAD/NO-LOAD VALVE | ||
| 412 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 412 | N 913004008001 | NUT |
| BRACKET TO LOAD/NO-LOAD VALVE | ||
| 415 | A 0019903071 | ELBOW FITTING |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "1" | ||
| 418 | A 3529900071 | ELBOW FITTING |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2" | ||
| 421 | A 0009904570 | T-FITTING |
| LOAD/NO-LOAD VALVE,CONNECTION: | ||
| "2" | ||
| 424 | A 0009971548 | SEAL RING |
| LOAD/NO-LOAD VALVE | ||
| 427 | A 0004290927 | THRUST RING |
| LOAD/NO-LOAD VALVE | ||
| 430 | N 080705016003 | NUT |
| LOAD/NO-LOAD VALVE | ||
| 431 | A 0014306481 | VALVE |
| (PRESSURE RATIO VALVE) | ||
| 431 | A 0014306481 | VALVE |
| (PRESSURE RATIO VALVE) | ||
| 431B | A 6214310040 | BRACKET |
| PRESSURE RATIO VALVE | ||
| 431D | A 6204312440 | BRACKET |
| PRESSURE RATIO VALVE | ||
| 431D | A 6204312540 | BRACKET |
| PRESSURE RATIO VALVE | ||
| 431F | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 431F | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 431F | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 431F | N 910143008005 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 431K | N 007976005204 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 431M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 431M | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 431M | N 913004008001 | NUT |
| BRACKET TO CAB FLOOR | ||
| 432 | N 915036012203 | HOLLOW SCREW |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1" | ||
| 432 | N 915036012203 | HOLLOW SCREW |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1" | ||
| 432C | N 007603016401 | SEAL RING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1" | ||
| 432C | N 007603016401 | SEAL RING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1" | ||
| 432E | A 0004296134 | ADAPTER FITTING |
| Repalced by: A 0069970072 | ||
| 432E | A 0069970072 | FITTING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1" | ||
| 432H | A 0009904570 | T-FITTING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "2" | ||
| 432L | N 000908016001 | SCREW PLUG |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "2" | ||
| 432N | A 0009971548 | SEAL RING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1,2" | ||
| 432R | A 0004290927 | THRUST RING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1,2" | ||
| 432T | N 080705016003 | NUT |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "1,2" | ||
| 432U | N 915047012203 | HOLLOW SCREW |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "2" | ||
| 432X | N 007603016401 | SEAL RING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "2" | ||
| 432Z | A 3529900071 | ELBOW FITTING |
| PRESSURE RATIO VALVE,CONNECTION: | ||
| "2" | ||
| A 0029900271 | ELBOW FITTING | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| FITTING TO CAB FLOOR | ||
| N 915036012203 | HOLLOW SCREW | |
| AT FITTING | ||
| N 915047012203 | HOLLOW SCREW | |
| AT FITTING | ||
| N 007603016401 | SEAL RING | |
| AT FITTING | ||
| 433 | A 0004202755 | BLEEDER VALVE |
| 436 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 436 | N 000908012009 | SCREW PLUG |
| TO PLUG THE FREE CONNECTIONS | ||
| 439 | N 007603012405 | SEAL RING |
| TO PLUG THE FREE CONNECTIONS | ||
| 442 | N 000933006124 | SCREW |
| VALVE TO BRACKET | ||
| 445 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 445 | N 913004006001 | NUT |
| VALVE TO BRACKET | ||

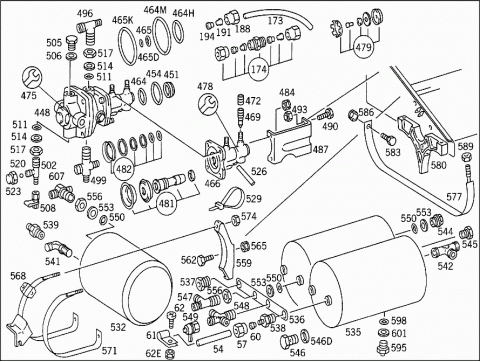

| 448 | A 0014313505 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO-TEVES | ||
| 448 | A 0014314305 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH-TEVES | ||
| 448 | A 0014319405 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO-SCHAEFER | ||
| 448 | A 0024310505 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH-SCHAEFER | ||
| 449 | A 0014318305 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO | ||
| 449 | A 0014318905 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH | ||
| 449 | A 0014319105 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| KNORR | ||
| 449 | A 0014319905 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| GRAU | ||
| 449 | A 0024310605 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO | ||
| 449 | A 0024311005 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH | ||
| 449 | A 0024312005 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| KNORR | ||
| 450 | A 0014316993 | SPRING |
| TO 001 431 89 05,BOSCH | ||
| 451 | A 0004310378 | RUBBER RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 454 | A 0049970248 | SEAL RING |
| TO 001 431 43 05,BOSCH-TEVES | ||
| A 0004312181 | VALVE DISC | |
| Repalced by: A 0004312781 | ||
| A 0004312781 | VALVE DISC | |
| TO 001 431 43 05,BOSCH-TEVES | ||
| A 0004318986 | CUP | |
| TO 001 431 43 05,BOSCH-TEVES | ||
| A 0004312281 | VALVE DISC | |
| TO 001 431 43 05,BOSCH-TEVES | ||
| 464 | A 0109974248 | SEAL RING |
| TO 001 431 43 05,BOSCH-TEVES | ||
| 464 | A 0109974348 | SEAL RING |
| Repalced by: A 0049970248 | ||
| 464 | A 0049970248 | SEAL RING |
| TO 002 431 05 05,BOSCH-SCHAEFER | ||
| 464H | A 0059975248 | SEAL RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 464M | A 0059975348 | SEAL RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 465 | A 0059975448 | SEAL RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 465D | A 0049979148 | SEAL RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 465K | A 0059975548 | SEAL RING |
| TO 001 431 43 05,002 431 05 05 | ||
| 466 | A 0074202118 | WHEEL BRAKE CYLINDER |
| (SLAVE CYLINDER) | ||
| TEVES,TO 001 431 35 05,001 431 43 05 | ||
| 466 | A 0064201518 | WHEEL BRAKE CYLINDER |
| (SLAVE CYLINDER) | ||
| SCHAEFER,TO001 431 94 05,002 431 05 05 | ||
| 469 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 469 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 469 | A 3075530107 | VALVE |
| 472 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 472 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 472 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 472 | A 0004217187 | PROTECTIVE CAP |
| A 0004313623 | VALVE | |
| WABCO | ||
| 475 | A 0005868643 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 001 431 35 05,001 431 94 05,WABCO | ||
| 478 | A 0025861343 | REPAIR KIT |
| VALVE DISC | ||
| TO 001 431 43 05,002 431 05 05,BOSCH | ||
| 479 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 479 | A 0004301109 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 001 431 43 05,002 431 05 05,BOSCH | ||
| 480 | A 0025868043 | REPAIR KIT |
| Repalced by: A 0004306260 | ||
| 480 | A 0004306260 | REPAIR KIT |
| Repalced by: A 0014300460 | ||
| 480 | A 0014300460 | REPAIR KIT |
| Repalced by: A 0004308006 | ||
| 480 | A 0004308006 | REPAIR KIT |
| TO 001 431 83 05,WABCO | ||
| 480 | A 0025868743 | REPAIR KIT |
| Repalced by: A 0004303506 | ||
| 480 | A 0004303506 | REPAIR KIT |
| TO 001 431 89 05,BOSCH | ||
| 480 | A 0035861243 | REPAIR KIT |
| TO 001 431 91 05,KNORR | ||
| 480 | A 0035861143 | REPAIR KIT |
| Repalced by: A 0004306360 | ||
| 480 | A 0004306360 | REPAIR KIT |
| Repalced by: A 0004308206 | ||
| 480 | A 0004308206 | REPAIR KIT |
| TO 002 431 06 05,WABCO | ||
| 480H | A 0004300060 | REPAIR KIT |
| Repalced by: A 0014308460 | ||
| 480H | A 0014308460 | GASKET KIT |
| TO 002 431 10 05,BOSCH | ||
| 481 | A 0025862442 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 007 420 21 18,TEVES | ||
| 482 | A 0025865542 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 006 420 15 18,SCHAEFER | ||
| 484 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 484 | N 913004008001 | NUT |
| BRAKE VALVE TO BRACKET | ||
| 487 | A 3874311340 | BRACKET |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 490 | N 000933010128 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 493 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 493 | N 910113010000 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 494 | A 6202920140 | BRACKET |
| BRAKE VALVE TO PEDAL UNIT | ||
| 495 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 495 | N 304017008027 | SCREW |
| BRAKE VALVE TO PEDAL UNIT | ||
| 495E | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 495E | N 913004008001 | NUT |
| BRAKE VALVE TO PEDAL UNIT | ||
| 496 | A 0009904770 | T-FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 499 | A 0029979072 | FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 502 | A 0009906170 | T-FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 503 | N 915036012203 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 505 | N 000908016001 | SCREW PLUG |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 506 | N 007603016401 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 508 | A 0004312031 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22" VOSS | ||
| 508 | A 0004314531 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22" SCHAEFER | ||
| 508 | A 0004314831 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22",WABCO | ||
| 508 | A 0004316131 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22",WIRA | ||
| A 0009979486 | PROTECTIVE CAP | |
| 511 | A 0009971548 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 514 | A 0004290927 | THRUST RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11,12,21,22" | ||
| 517 | N 080705016003 | NUT |
| TWO-CIRCUIT BRAKE VALVE | ||
| "11,12,21,22" | ||
| 518 | N 915036008202 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "40" | ||
| 519 | N 007603012405 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "40" | ||
| 520 | A 3879970086 | PLUG |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| 523 | N 915020014000 | NUT |
| TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| 526 | A 0089979082 | HOSE |
| TWO-CIRCUIT BRAKE VALVE BLEEDING | ||
| 6X8 MM | ||
| 529 | A 0019978390 | LOOM TIE |
| TWO-CIRCUIT BRAKE VALVE BLEEDING | ||
| 280 MM | ||
| 532 | A 0004324801 | RESERVOIR |
| Repalced by: A 0014327501 | ||
| 532 | A 0014327501 | RESERVOIR |
| Repalced by: A 0034321201 | ||
| 532 | A 0034321201 | RESERVOIR |
| AIR RESERVOIR I | ||
| 20 L | ||
| 535 | A 0004322101 | RESERVOIR |
| Repalced by: A 0034322301 | ||
| 535 | A 0034322301 | RESERVOIR |
| AIR RESERVOIRS II,III | ||
| 40 L | ||
| 536 | A 3464320073 | LOCK |
| 537 | A 0019907368 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "11,12,21,22" | ||
| 538 | A 0029971172 | FITTING |
| AIR RESERVOIRS II,III | ||
| Repalced by: N 000000006191 | ||
| 538 | N 000000006191 | FITTING |
| AIR RESERVOIRS II,III | ||
| 539 | A 0019972172 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| N 915036012203 | HOLLOW SCREW | |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| A 0009905168 | FITTING | |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| N 007603016401 | SEAL RING | |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| A 0019909771 | ELBOW FITTING | |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| N 915052009009 | BANJO UNION | |
| AIR RESERVOIR,CONNECTION: | ||
| "13" | ||
| 541 | A 0009907771 | ELBOW FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "14" | ||
| 541 | A 0009907771 | ELBOW FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "31" | ||
| 542 | A 0019901570 | T-FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "32" | ||
| 544 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 544 | N 000908022011 | SCREW PLUG |
| AIR RESERVOIR | ||
| N 007603022403 | SEAL RING | |
| AIR RESERVOIR | ||
| 545 | A 0009905168 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "23" | ||
| 546 | N 915036012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,23" | ||
| 546D | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,23" | ||
| A 0009970934 | UNION SCREW | |
| AIR RESERVOIR,CONNECTION: | ||
| 547 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 547 | A 0019901070 | T-FITTING |
| AIR RESERVOIRS II,III | ||
| 548 | A 0009902687 | CROSS FITTING |
| AIR RESERVOIRS II,III | ||
| 549 | A 0004312031 | TEST CONNECTION |
| AIR RESERVOIRS II,III | ||
| 549 | A 0004314531 | TEST CONNECTION |
| AIR RESERVOIRS II,III | ||
| 549 | A 0004314831 | TEST CONNECTION |
| AIR RESERVOIRS II,III | ||
| 549 | A 0004316131 | TEST CONNECTION |
| AIR RESERVOIRS II,III | ||
| A 0009979486 | PROTECTIVE CAP | |
| 550 | A 0009870446 | O-RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,31,32" | ||
| 553 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 553 | A 0009940203 | THRUST RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,31,32" | ||
| 556 | N 074305022202 | NUT |
| AIR RESERVOIR,CONNECTIONS: | ||
| "14,24,32,31" | ||
| 559 | A 3874320540 | BRACKET |
| AIR RESERVOIR | ||
| 562 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 562 | N 304017008021 | SCREW |
| BRACKET TO SIDE PART,FRONT | ||
| 565 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 565 | N 913004008001 | NUT |
| BRACKET TO SIDE PART,FRONT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54 | ||
| 568 | A 3874301240 | STRAP |
| AIR RESERVOIR | ||
| 568 | A 6204300740 | STRAP |
| AIR RESERVOIR | ||
| 568 | A 6204301240 | STRAP |
| AIR RESERVOIR | ||
| 568 | A 6204301240 | STRAP |
| AIR RESERVOIR | ||
| 571 | A 3874300640 | STRAP |
| AIR RESERVOIR | ||
| 571 | A 6204300240 | STRAP |
| AIR RESERVOIR | ||
| 571 | A 6204300240 | STRAP |
| AIR RESERVOIR | ||
| 571 | A 6204300640 | STRAP |
| AIR RESERVOIR | ||
| 574 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 574 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 577 | A 3874300740 | STRAP |
| AIR RESERVOIR TO FRAME | ||
| 577 | A 6204300040 | STRAP |
| AIR RESERVOIR TO FRAME | ||
| 580 | A 3854320218 | BASE |
| AIR RESERVOIR,STRAP | ||
| 580 | A 6204320018 | BASE |
| AIR RESERVOIR,STRAP | ||
| 583 | N 000933010105 | SCREW |
| AIR RESERVOIR,STRAP | ||
| N 001440010002 | WASHER | |
| AIR RESERVOIR,STRAP | ||
| 586 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 586 | N 910113010000 | NUT |
| AIR RESERVOIR,STRAP | ||
| 589 | N 000934010014 | NUT |
| AIR RESERVOIR,STRAP | ||
| 595 | A 0004321107 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322407 | ||
| 595 | A 0004322407 | DRAIN VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 595 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 595 | A 0004322107 | VALVE |
| DRAIN | ||
| 595 | A 0004322407 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 595 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 595 | A 0004322107 | DRAIN VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| 598 | A 0009870446 | O-RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 601 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 601 | A 0009940203 | THRUST RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 607 | A 0024295844 | VALVE |
| (CHECK VALVE) | ||
| 607 | A 0024295944 | VALVE |
| (CHECK VALVE) | ||
| 607 | A 0024297544 | VALVE |
| (CHECK VALVE) | ||
| 608 | A 0024299644 | VALVE |
| (CHECK VALVE) | ||
| VOSS | ||
| 608 | A 0034290444 | VALVE |
| (CHECK VALVE) | ||
| WABCO | ||
| 608 | A 0034291244 | VALVE |
| (CHECK VALVE) | ||
| SCHAEFER | ||
| A 0004290383 | VALVE TAPPET | |
| VOSS | ||
| A 0004290728 | SEAL CONE | |
| SCHAEFER | ||
| A 0004292584 | SEAL RING | |
| VOSS | ||
| A 0109970048 | SEAL RING | |
| 13.6X8X2, SCHAEFER | ||
| A 0109970148 | SEAL RING | |
| 15.3X2.4, SCHAEFER | ||
| A 0004290662 | THRUST WASHER | |
| SCHAEFER | ||
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 608E | N 915036012203 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "21" | ||
| 608H | N 007603016401 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "21" | ||
| 608M | N 000908016001 | SCREW PLUG |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 608R | A 0009971548 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 609 | A 0004290927 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 609D | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 609D | N 915036010108 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 609F | N 007603014405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 609L | A 6204292540 | BRACKET |
| Repalced by: A 6164290140 | ||
| 609L | A 6204292540 | BRACKET |
| Repalced by: A 6164290140 | ||
| 609L | A 6164290140 | BRACKET |
| CHECK VALVE | ||
| 609L | A 6164290140 | BRACKET |
| CHECK VALVE | ||
| 609P | N 074305022202 | NUT |
| CHECK VALVE TO BRACKET | ||
| 609S | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 609W | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 609W | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 6204310062 | COVERING | |
| CHECK VALVE | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| BRACKET TO COVER PLATE | ||
| M 8X12 | ||
| N 000933008145 | SCREW | |
| BRACKET TO COVER PLATE | ||
| M 8X18 | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO COVER PLATE | ||
| 610 | A 0034291644 | VALVE |
| (RELAY VALVE) | ||
| BOSCH | ||
| 610 | A 0034291644 | VALVE |
| (RELAY VALVE) | ||
| BOSCH | ||
| 610 | A 0024290744 | VALVE |
| Repalced by: A 0034295344 | ||
| 610 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 610 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 610 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 610 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 611 | A 0014299144 | VALVE |
| (RELAY VALVE) | ||
| GRAU | ||
| 611 | A 0014299144 | VALVE |
| (RELAY VALVE) | ||
| GRAU | ||
| 611C | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 611F | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 611L | A 0059972748 | SEAL RING |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| 611P | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 611S | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 611W | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 613 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 614 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 614 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; UP TO 03.82 | ||
| 614 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; FROM 04.82 | ||
| 615 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 615 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 616 | A 0025863542 | REPAIR KIT |
| TO 002 429 07 44,003 429 53 44,KNORR | ||
| 619 | A 0029971172 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| Repalced by: N 000000006191 | ||
| 619 | N 000000006191 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 622 | A 0039972072 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 625 | A 0009904470 | T-FITTING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 628 | A 0009904270 | T-FITTING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 631 | A 0004290927 | THRUST RING |
| RELAY VALVE;CONNECTIONS: | ||
| "2,4" | ||
| 634 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 634 | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 637 | A 0009971548 | SEAL RING |
| RELAY VALVE;CONNECTIONS: | ||
| "2,4" | ||
| 640 | N 080705016003 | NUT |
| RELAY VALVE;CONNECTIONS: | ||
| "2,4" | ||
| 643 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 643 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 646 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 646 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 651 | N 000908016001 | SCREW PLUG |
| RELAY VALVE;CONNECTIONS: | ||
| "2" | ||
| 651 | N 000908016001 | SCREW PLUG |
| RELAY VALVE;CONNECTIONS: | ||
| "2" | ||
| 654 | N 007603016401 | SEAL RING |
| RELAY VALVE;CONNECTIONS: | ||
| "1,2,4" | ||
| 657 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "1,2,4" | ||
| 657 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "1,2,4" | ||
| 657 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "1,2,4" | ||
| 657 | N 915047012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 657 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "1,2,4" | ||
| 661 | A 6234310940 | BRACKET |
| RELAY VALVE | ||
| 661 | A 6234310940 | BRACKET |
| RELAY VALVE | ||
| 663 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 663 | N 913004008001 | NUT |
| RELAY VALVE TO CROSS MEMBER | ||
| 663 | N 913004008001 | NUT |
| RELAY VALVE TO CROSS MEMBER | ||
| 666 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X18 | ||
| 666 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X18 | ||
| N 000433008406 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| 669 | A 0004316912 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 669 | A 0014311312 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 669 | A 0014313212 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 669 | A 0014313612 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| BOSCH | ||
| 669 | A 0024310412 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| KNORR | ||
| 670 | A 0014313312 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 670 | A 0014313312 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 672 | A 0014313512 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| BOSCH | ||
| 672 | A 0014313512 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| BOSCH | ||
| 672 | A 0024310512 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 672 | A 0024310512 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| 674 | A 0035860243 | REPAIR KIT |
| Repalced by: A 0004307560 | ||
| 675 | A 0004307560 | REPAIR KIT |
| TO 001 431 32 12,33 12,WABCO | ||
| 676 | A 0004301868 | REPAIR KIT |
| GASKETS | ||
| TO 001 431 35 12,36 12,BOSCH | ||
| 677 | A 0014311486 | REPAIR KIT |
| COVERING | ||
| TO 001 431 35 12,BOSCH | ||
| 677 | A 0014311586 | REPAIR KIT |
| COVERING | ||
| TO 001 431 36 12,BOSCH | ||
| 677H | A 0004301883 | REPAIR KIT |
| VALVE | ||
| TO 001 431 35 12,36 12,BOSCH | ||
| A 0004300207 | REPAIR KIT | |
| BRAKE POWER REGULATOR | ||
| TO 002 431 04 12,KNORR | ||
| A 0004300307 | REPAIR KIT | |
| Repalced by: A 0004300207 | ||
| A 0004300207 | REPAIR KIT | |
| BRAKE POWER REGULATOR | ||
| TO 002 431 05 12,KNORR | ||
| A 0004300207 | REPAIR KIT | |
| BRAKE POWER REGULATOR | ||
| TO 002 431 05 12,KNORR | ||
| 678 | A 3955840621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 6245843521 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 3955840921 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 3435841721 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 6245843621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 6245840121 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 6245840021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 678 | A 6245844021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| A 3875840055 | ADHESIVE FOIL | |
| 681 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2,4" | ||
| 682 | N 007603016401 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2,4" | ||
| 684 | N 915039008202 | HOLLOW SCREW FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 684 | N 915036008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 687 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 687 | A 0009940203 | THRUST RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 690 | A 0009870446 | O-RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 693 | A 0009904468 | FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 696 | A 0019905268 | FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 703 | A 0009971548 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 706 | A 0004290927 | THRUST RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 707 | N 915039012205 | HOLLOW SCREW FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 708 | N 915036012203 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1,2,4" | ||
| 708 | N 915036012203 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 709 | N 915047012203 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 710 | A 0019903071 | ELBOW FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1" | ||
| 710 | A 0019903071 | ELBOW FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1" | ||
| 711 | N 080705016003 | NUT |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1" | ||
| 713 | A 3854317040 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 713 | A 3854317040 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 716 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 716 | N 913004008001 | NUT |
| BRACKET TO BRAKE POWER REGULATOR | ||
| 719 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 719 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 722 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 722 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 725 | A 3934310039 | LEVER |
| Repalced by: A 3854310439 | ||
| 725 | A 3854310439 | LEVER |
| Repalced by: A 6204310439 | ||
| 725 | A 6204310439 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 725 | A 6204310439 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 725 | A 3854310239 | LEVER |
| Repalced by: A 6204310839 | ||
| 725 | A 6204310839 | LEVER |
| Repalced by: A 6744310039 | ||
| 725 | A 6744310039 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 725 | A 6744310039 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 725 | A 3954310039 | LEVER |
| Repalced by: A 3854310439 | ||
| 728 | N 900331008419 | PULL ROD |
| FROM LEVER TO LINK | ||
| 728 | A 3874310092 | ROD |
| Repalced by: N 900331008262 | ||
| 728 | N 900331008262 | PULL ROD |
| Repalced by: N 900331008420 | ||
| 728 | N 900331008420 | PULL ROD |
| BRAKE POWER REGULATOR CONTROL | ||
| 731 | A 3434310035 | CONNECTOR |
| Repalced by: A 0004310735 | ||
| 734 | A 0004310735 | CONNECTOR |
| BRAKE POWER REGULATOR CONTROL | ||
| 735 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 735 | N 000125015019 | WASHER |
| CONNECTOR TO ROD | ||
| 737 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 737 | N 000000000665 | CLAMP |
| CONNECTOR TO ROD | ||
| 738 | A 6249950065 | CLAMP |
| CONNECTOR TO ROD | ||
| 740 | A 3954310192 | ROD |
| LINK | ||
| 743 | N 900055008402 | RETAINING RING |
| PULL ROD TO CONNECTOR | ||
| 746 | A 3854301910 | BRACKET |
| LINK | ||
| 746 | A 3954300010 | BRACKET |
| LINK | ||
| 746 | A 6244300110 | BRACKET |
| LINK | ||
| 746 | A 6244300110 | BRACKET |
| LINK | ||
| 746 | A 6244300310 | BRACKET |
| LINK | ||
| 749 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 749 | N 000125008443 | WASHER |
| CONNECTOR TO ROD | ||
| 750 | N 000094002077 | COTTER PIN |
| CONNECTOR TO ROD | ||
| 752 | A 0004310418 | METAL SPRING BELLOWS |
| BRAKE POWER REGULATOR CONTROL | ||
| 755 | A 3894310140 | BRACKET |
| METAL SPRING BELLOWS | ||
| 755 | A 6244310040 | BRACKET |
| METAL SPRING BELLOWS | ||
| 755 | A 6244310040 | BRACKET |
| METAL SPRING BELLOWS | ||
| 755 | A 6244310340 | BRACKET |
| METAL SPRING BELLOWS | ||
| 757 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 757 | N 000125017016 | WASHER |
| METAL SPRING BELLOWS | ||
| 758 | N 000933012039 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X18 | ||
| 758 | N 000961012047 | SCREW |
| M 12X1.5X18 | ||
| 761 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 770 | A 0074206518 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| WABCO | ||
| 770 | A 0084209018 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| BOSCH | ||
| 770 | A 0074204218 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| KNORR | ||
| 770 | A 0094206118 | WHEEL BRAKE CYLINDER |
| TRISTOP CYLINDER | ||
| GRAU | ||
| 771 | A 0004231060 | SEAL RING |
| TO 007 420 42 18,KNORR | ||
| 771B | A 0004313028 | DIAPHRAGM |
| TO 008 420 90 18,BOSCH | ||
| 771D | A 0004312928 | DIAPHRAGM |
| TO 007 420 42 18,KNORR | ||
| 771F | A 0004234187 | PROTECTIVE CAP |
| TO 007 420 42 18,KNORR | ||
| 771K | A 0004233886 | CUP |
| TO 008 420 90 18,BOSCH | ||
| 771N | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 771N | A 0004215286 | CUP |
| TO 007 420 65 18,WABCO | ||
| 771R | A 0004211263 | GUIDE |
| Repalced by: N 071752014000 | ||
| 771R | N 071752014000 | YOKE |
| TO 008 420 90 18,BOSCH | ||
| 771T | A 0004304060 | REPAIR KIT |
| Repalced by: A 0024209524 | ||
| A 0024209524 | REPAIR KIT | |
| DIAPHRAGM PART | ||
| TO 007 420 42 18,KNORR | ||
| A 0024209424 | REPAIR KIT | |
| SPRING LOAD ACCUMULATOR PART | ||
| TO 007 420 42 18,KNORR | ||
| 771W | A 0014308660 | REPAIR KIT |
| TRISTOP CYLINDER | ||
| TO 008 420 90 18,BOSCH | ||
| 772 | A 0025863742 | REPAIR KIT |
| Repalced by: A 0025865242 | ||
| 772 | A 0025865242 | REPAIR KIT |
| Repalced by: A 0024301560 | ||
| 772 | A 0024301560 | REPAIR KIT |
| SPRING LOAD ACCUMULATOR | ||
| TO 007 420 65 18,WABCO | ||
| 774 | A 0025865042 | REPAIR KIT |
| DIAPHRAGM CYLINDER | ||
| TO 007 420 65 18,WABCO | ||
| 776 | A 3954231233 | BEARING BRACKET |
| TRISTOP CYLINDER | ||
| 776 | A 3954231233 | BEARING BRACKET |
| TRISTOP CYLINDER | ||
| 776 | A 3954231133 | BEARING BRACKET |
| TRISTOP CYLINDER | ||
| 777 | N 007346012003 | CLAMPING SLEEVE |
| BEARING BRACKET | ||
| 777 | N 007346012003 | CLAMPING SLEEVE |
| BEARING BRACKET | ||
| 779 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 779 | N 308676016013 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| M 16X40 | ||
| 782 | N 914142020200 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| M 20X45 | ||
| 783 | N 000961020025 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| M 20X55 | ||
| 785 | N 001481028004 | CLAMPING SLEEVE |
| BEARING BRACKET TO REAR AXLE | ||
| 788 | A 3954290640 | BRACKET |
| BEARING BRACKET TO REAR AXLE | ||
| 791 | A 3379900640 | WASHER |
| BEARING BRACKET TO REAR AXLE | ||
| 794 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 794 | N 910113016002 | NUT |
| TRISTOP CYLINDER TO BEARING BRACKET | ||
| 797 | A 3619910005 | PIN |
| TRISTOP CYLINDER TO SLACK ADJUSTER | ||
| 800 | N 000433015005 | WASHER |
| TRISTOP CYLINDER TO SLACK ADJUSTER | ||
| 803 | N 000094004051 | COTTER PIN |
| TRISTOP CYLINDER TO SLACK ADJUSTER | ||
| 806 | N 916027011014 | HOSE |
| RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE | ||
| 11 MM | ||
| 809 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 809 | N 000000000666 | CLAMP |
| 812 | A 3039971440 | SEAL RING |
| 815 | A 0004290541 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 818 | N 915017012100 | UNION NUT |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| Repalced by: N 000000006239 | ||
| 818 | N 000000006239 | UNION NUT |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 821 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 821 | A 0019901967 | SEAL CONE |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 827 | N 915036012203 | HOLLOW SCREW |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||
| 828 | N 915047012203 | HOLLOW SCREW |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||
| 830 | N 915039012205 | HOLLOW SCREW FITTING |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11" | ||
| 833 | N 007603016401 | SEAL RING |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||
| A 3954290140 | BRACKET | |
| COMPRESSED AIR LINE | ||
| 843 | A 0019978490 | LOOM TIE |
| 845 | A 3954290440 | BRACKET |
| Repalced by: A 6205243040 | ||
| 845 | A 6205243040 | BRACKET |
| COMPRESSED AIR LINE | ||
| 848 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 848 | N 304017008027 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 851 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 851 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 854 | N 915036012203 | HOLLOW SCREW |
| SINGLE | ||
| 857 | N 007603016401 | SEAL RING |
| REAR AXLE II TRISTOP CYLINDER | ||
| 860 | N 915040012206 | HOLLOW SCREW FITTING |
| REAR AXLE II TRISTOP CYLINDER | ||
| 861 | N 915047012203 | HOLLOW SCREW |
| REAR AXLE II TRISTOP CYLINDER | ||
| 863 | N 915039012205 | HOLLOW SCREW FITTING |
| REAR AXLE II TRISTOP CYLINDER | ||
| 866 | N 915052009009 | BANJO UNION |
| REAR AXLE II TRISTOP CYLINDER | ||
| 869 | A 0004312031 | TEST CONNECTION |
| REAR AXLE II TRISTOP CYLINDER | ||
| VOSS | ||
| 869 | A 0004314531 | TEST CONNECTION |
| REAR AXLE II TRISTOP CYLINDER | ||
| SCHAEFER | ||
| 869 | A 0004314831 | TEST CONNECTION |
| REAR AXLE II TRISTOP CYLINDER | ||
| WABCO | ||
| 869 | A 0004316131 | TEST CONNECTION |
| REAR AXLE II TRISTOP CYLINDER | ||
| WIRA | ||
| A 0009979486 | PROTECTIVE CAP | |
| 875 | A 0004305581 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 875 | A 0004306681 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 875 | A 0014305681 | VALVE |
| PARKING BRAKE VALVE | ||
| WABCO | ||
| 875 | A 0014306681 | VALVE |
| Repalced by: A 0024309881 | ||
| 875 | A 0024309881 | VALVE |
| PARKING BRAKE VALVE | ||
| KNORR | ||
| 875 | A 0014303481 | VALVE |
| PARKING BRAKE VALVE | ||
| BOSCH | ||
| 875 | A 0004305681 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 875 | A 0004306781 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 875 | A 0014305781 | VALVE |
| PARKING BRAKE VALVE | ||
| WABCO | ||
| 875 | A 0014306781 | VALVE |
| Repalced by: A 0024309981 | ||
| 875 | A 0024309981 | VALVE |
| PARKING BRAKE VALVE | ||
| KNORR | ||
| 876 | A 0014304381 | VALVE |
| PARKING BRAKE VALVE | ||
| BOSCH | ||
| 876C | A 0014310887 | PROTECTIVE CAP |
| TO 001 430 56 81,57 81,WABCO | ||
| 876C | A 0014311087 | PROTECTIVE CAP |
| TO 001 430 34 81,43 81,BOSCH | ||
| A 0014311287 | PROTECTIVE CAP | |
| KNORR | ||
| 877 | A 0009972477 | HANDLE |
| TO 001 430 56 81,001 430 57 81,WABCO | ||
| 877 | A 0009973477 | HANDLE |
| TO 001 430 34 81,001 430 43 81,BOSCH | ||
| A 0009975577 | HANDLE | |
| KNORR | ||
| N 001481003025 | CLAMPING SLEEVE | |
| KNORR | ||
| 878 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 878 | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,WABCO | ||
| 878 | A 0005868143 | REPAIR KIT |
| Repalced by: A 0004305860 | ||
| 878 | A 0004305860 | REPAIR KIT |
| TO 000 430 56 81,WABCO | ||
| 878 | A 0025866243 | REPAIR KIT |
| Repalced by: A 0034303881 | ||
| 878 | A 0034303881 | REPAIR KIT |
| TO 000 430 66 81,000 431 67 81,KNORR | ||
| 879 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 879 | A 0034303181 | REPAIR KIT |
| TO 001 430 56 81,001 430 57 81,WABCO | ||
| A 0034302081 | REPAIR KIT | |
| TO 002 430 98 81,002 430 99 81,KNORR | ||
| 879D | A 0035860543 | REPAIR KIT |
| TO 001 430 66 81,001 430 67 81,KNORR | ||
| 879H | A 0025866343 | REPAIR KIT |
| TO 001 430 34 81,001 430 43 81,BOSCH | ||
| 880 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 880 | N 915036010108 | HOLLOW SCREW |
| CONNECTION TO VALVE | ||
| 881 | N 007603014405 | SEAL RING |
| CONNECTION TO VALVE | ||
| 882 | A 0009976189 | COUPLING |
| CONNECTION TO VALVE | ||
| 883 | A 0099973948 | SEAL RING |
| 884 | N 000965006003 | SCREW |
| VALVE TO CAB | ||
| 884 | N 000965006040 | SCREW |
| VALVE TO CAB | ||
| M 6X30 | ||
| 885 | N 007985008119 | SCREW |
| VALVE TO WINDOW SILL | ||
| 886 | N 912006008000 | LOCK WASHER |
| VALVE TO WINDOW SILL | ||
| 887 | A 3874310684 | SHIM |
| VALVE TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
