Transporto priemonė: 2628 AS; VIN numerio dalis: 624331

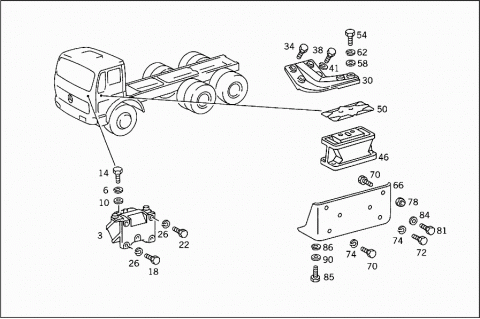

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3872400017 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 3872400317 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 3872400417 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 6202400317 | RUBBER MOUNTING |
| Repalced by: A 6582410013 | ||
| 003 | A 6582410013 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 6202400417 | RUBBER MOUNTING |
| Repalced by: A 6582410113 | ||
| 003 | A 6582410113 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 6202400517 | RUBBER MOUNTING |
| Repalced by: A 6582410213 | ||
| 003 | A 6582410213 | RUBBER MOUNTING |
| FRONT | ||
| 006 | N 912004016101 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 010 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 014 | N 308676016022 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| M 16X40 | ||
| 014 | N 000961016120 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| M 16X38 | ||
| 018 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 018 | N 308676012013 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO FRAME | ||
| M12X1.5X30 | ||
| 018 | N 000961016108 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X30 | ||
| 018 | N 000961016108 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X30 | ||
| 022 | N 308676012015 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 12 X 45 | ||
| 022 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 022 | N 308676016006 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X45 | ||
| 026 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 030 | A 6202420201 | ENGINE SUPPORT |
| LEFT REAR | ||
| 030 | A 6552422201 | ENGINE SUPPORT |
| Repalced by: A 6202420601 | ||
| 030 | A 6202420601 | ENGINE SUPPORT |
| LEFT REAR | ||
| 030 | A 3892420201 | ENGINE SUPPORT |
| LEFT REAR | ||
| 030 | A 6202420801 | ENGINE SUPPORT |
| LEFT REAR | ||
| 030 | A 6202420301 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 030 | A 6552422301 | ENGINE SUPPORT |
| Repalced by: A 6202420701 | ||
| 030 | A 6202420701 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 030 | A 3892420301 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 030 | A 6202420901 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 034 | N 000960016237 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X65 | ||
| 034 | N 000960018142 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18X65 | ||
| 038 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 038 | N 308676016006 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X45 | ||
| 038 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 038 | N 308676018001 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18X45 | ||
| 038 | N 000960016260 | SCREW |
| Repalced by: N 308765016002 | ||
| 038 | N 308765016002 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X90 | ||
| 038 | N 000960018027 | SCREW |
| Repalced by: N 308765018001 | ||
| 038 | N 308765018001 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18 X 90 | ||
| 038 | N 000961016013 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 16X60 | ||
| 038 | N 000960018142 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 18X65 | ||
| 041 | N 912004016101 | LOCK WASHER |
| ENGINE SUPPORT TO BELL HOUSING | ||
| 046 | A 3872400218 | RUBBER MOUNTING |
| Repalced by: A 6172400318 | ||
| 046 | A 6172400318 | RUBBER MOUNTING |
| Repalced by: A 6452400118 | ||
| 046 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 046 | A 3832400718 | RUBBER MOUNTING |
| Repalced by: A 6172400418 | ||
| 046 | A 6172400418 | RUBBER MOUNTING |
| Repalced by: A 6452400018 | ||
| 046 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 046 | A 3872400418 | RUBBER MOUNTING |
| Repalced by: A 6172400518 | ||
| 046 | A 6172400518 | RUBBER MOUNTING |
| Repalced by: A 6452400218 | ||
| 046 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 054 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 054 | N 000960016250 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 16X85 | ||
| 054 | N 000960016171 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 16X60 | ||
| 054 | N 000960016057 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 16 X 80 | ||
| 054 | N 000960016237 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 16 X 60 | ||
| 058 | A 3529902440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 062 | N 912004016101 | LOCK WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 066 | A 3872400906 | CONSOLE |
| Repalced by: A 6202400206 | ||
| 066 | A 6202400206 | CONSOLE |
| REAR | ||
| 070 | N 000961014128 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 070 | N 308676016022 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X40 | ||
| 072 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 072 | N 308676014012 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14 X 45 | ||
| 072 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 072 | N 000961014011 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X38 | ||
| 072 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 072 | N 308676014008 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 072 | N 000961016092 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X38 | ||
| 074 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 078 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 078 | N 910113014000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 078 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 078 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 081 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 081 | N 308676014012 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 084 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 084 | N 000125015019 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 085 | N 000961012151 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 086 | N 000125013008 | WASHER |
| 090 | N 912004012100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
