Transporto priemonė: 2628 AS; VIN numerio dalis: 624331

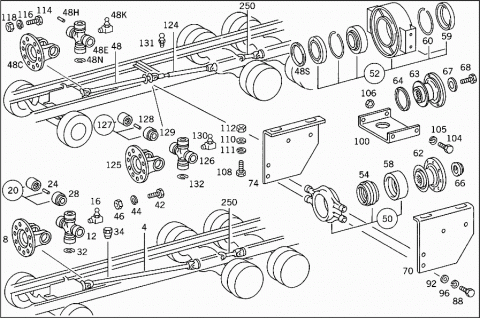

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3954102701 | PROPELLER SHAFT |
| Repalced by: A 6204100302 | ||
| 004 | A 6204100302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 1537 MM | ||
| 004 | A 3954108702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 2470 MM | ||
| 004 | A 6204101501 | PROPELLER SHAFT |
| Repalced by: A 3954102202 | ||
| 004 | A 3954102202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE I | ||
| 2205 MM | ||
| 008 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 008 | A 3954110811 | DRIVE FLANGE |
| 008 | A 3954110811 | DRIVE FLANGE |
| 012 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 012 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 012 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 012 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 016 | N 071412008302 | GREASE NIPPLE |
| 020 | A 3874100142 | BEARING BUSHING |
| 024 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 024 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31;38.14 MM | ||
| 028 | A 3634110280 | GASKET |
| 032 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 032 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 032 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 032 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 032 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 032 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 034 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 042 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 042 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 044 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 046 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 046 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 048 | A 3874106204 | PROPELLER SHAFT |
| Repalced by: A 3954101504 | ||
| 048 | A 3954101504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1564 MM | ||
| 048 | A 3874104304 | PROPELLER SHAFT |
| Repalced by: A 3954101804 | ||
| 048 | A 3954101804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 769 MM | ||
| 048C | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 048C | A 3954110811 | DRIVE FLANGE |
| 048C | A 3954110811 | DRIVE FLANGE |
| 048E | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 048E | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 048E | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 048E | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 048H | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 048H | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31;38.14 MM | ||
| 048K | N 071412008302 | GREASE NIPPLE |
| 048N | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 048N | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 048N | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 048N | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 048N | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 048N | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 048S | A 3894130061 | PROTECTIVE CAP |
| 048S | A 3894130061 | PROTECTIVE CAP |
| 048S | A 3954130061 | PROTECTIVE CAP |
| 050 | A 3875860041 | REPAIR KIT |
| Repalced by: A 3874100010 | ||
| 050 | A 3874100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 052 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 052 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 052 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 052 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 054 | A 3634100151 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 054 | A 0029819225 | BALL BEARING |
| 054 | A 0029819225 | BALL BEARING |
| 054 | A 0029819325 | BALL BEARING |
| 054 | A 0029819325 | BALL BEARING |
| 058 | A 3634130012 | RUBBER MOUNTING |
| PROPELLER SHAFT BEARING | ||
| 059 | A 3874130261 | PROTECTIVE CAP |
| 059 | A 3874130261 | PROTECTIVE CAP |
| 060 | N 912009110200 | SNAP RING |
| 060 | N 912009110200 | SNAP RING |
| A 6554110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 062 | A 3954100030 | CENTERING FLANGE |
| Repalced by: A 3894110146 | ||
| 062 | A 3894110146 | FLANGE |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 063 | A 3954100130 | CENTERING FLANGE |
| Repalced by: A 3874110446 | ||
| 063 | A 3874110446 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 063 | A 3874110446 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| A 3874130061 | PROTECTIVE CAP | |
| 064 | A 3894130061 | PROTECTIVE CAP |
| 064 | A 3894130061 | PROTECTIVE CAP |
| 064 | A 3954130061 | PROTECTIVE CAP |
| 066 | A 3853510672 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 067 | A 3894110062 | THRUST WASHER |
| 067 | A 3894110062 | THRUST WASHER |
| 068 | A 3899900019 | SCREW |
| 068 | A 3899900019 | SCREW |
| 070 | A 6204132542 | BRACKET |
| Repalced by: A 6204136042 | ||
| 070 | A 6204136042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 070 | A 6204136642 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 074 | A 6204132442 | BRACKET |
| Repalced by: A 6204136142 | ||
| 074 | A 6204136142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| A 6204131042 | BRACKET | |
| Repalced by: A 6204136642 | ||
| 074 | A 6204131142 | BRACKET |
| Repalced by: A 6204136742 | ||
| 074 | A 6204136742 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 088 | N 000961012106 | SCREW |
| BRACKET TO HOUSING | ||
| M12X35 | ||
| 088 | N 000961012106 | SCREW |
| BRACKET TO HOUSING | ||
| M12X35 | ||
| 092 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 092 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 092 | N 007349013005 | WASHER |
| BRACKET TO HOUSING | ||
| 092 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 092 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 092 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 096 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 096 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 100 | A 3874130011 | REINFORCEMENT |
| Repalced by: A 3954130011 | ||
| 100 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT | ||
| 100 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT | ||
| 104 | N 000961012025 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 104 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 104 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 105 | N 912004012100 | LOCK WASHER |
| REINFORCEMENT TO BRACKET | ||
| 106 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 106 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 106 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 108 | N 000961012108 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M12X38 | ||
| 108 | N 000961012108 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| M12X38 | ||
| 110 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 110 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 110 | N 007349013005 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 110 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 110 | A 1232420366 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 110 | A 1232420366 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 111 | N 912004012100 | LOCK WASHER |
| REINFORCEMENT TO BRACKET | ||
| 112 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 112 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 112 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 114 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 114 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 114 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 116 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 116 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 118 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 118 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 118 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING I COUPLING FLANGE | ||
| 124 | A 3954107901 | PROPELLER SHAFT |
| Repalced by: A 6204100102 | ||
| 124 | A 6204100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE I | ||
| 1688 MM | ||
| 124 | A 6234100001 | PROPELLER SHAFT |
| Repalced by: A 3954101102 | ||
| 124 | A 3954101102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE I | ||
| 1247 MM | ||
| 125 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 125 | A 3954110811 | DRIVE FLANGE |
| 125 | A 3954110811 | DRIVE FLANGE |
| 126 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 126 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 126 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 126 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 127 | A 3874100142 | BEARING BUSHING |
| 128 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 128 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31;38.14 MM | ||
| 129 | A 3634110280 | GASKET |
| 130 | N 071412008302 | GREASE NIPPLE |
| 131 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 131 | N 071412008102 | GREASE NIPPLE |
| 132 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 132 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 132 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 132 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 132 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 132 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||

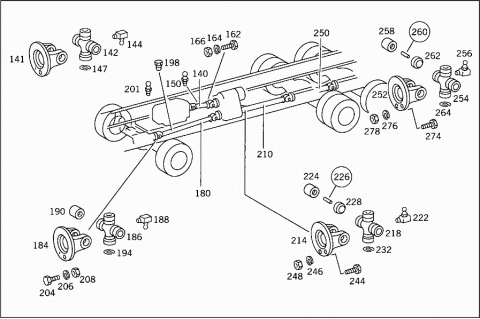

| 140 | A 3954101502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 650 MM | ||
| 140 | A 3874101318 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 723 MM | ||
| 140 | A 3894102202 | PROPELLER SHAFT |
| Repalced by: A 3894103702 | ||
| 140 | A 3894103702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 595 MM | ||
| 141 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 141 | A 3894110611 | DRIVE FLANGE |
| 142 | A 0004100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 142 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 142 | A 9404100031 | UNIVERSAL JOINT CROSS |
| 142 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 142 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 142 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 142 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 144 | N 071412008302 | GREASE NIPPLE |
| 147 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 147 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 147 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| 150 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 150 | N 071412008102 | GREASE NIPPLE |
| 162 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 162 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 164 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 166 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 166 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 180 | A 3854105107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1355 MM | ||
| 184 | A 3854111711 | DRIVE FLANGE |
| 186 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 186 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 188 | N 071412008302 | GREASE NIPPLE |
| 190 | A 3854100742 | BEARING BUSHING |
| 190 | A 3854101042 | BEARING BUSHING |
| 194 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 194 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 194 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 194 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 194 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 3854110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 198 | N 900087008000 | PLUG |
| 201 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 201 | N 071412008102 | GREASE NIPPLE |
| 204 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 204 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 206 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 208 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 210 | A 6244100101 | PROPELLER SHAFT |
| Repalced by: A 3954101702 | ||
| 210 | A 3954101702 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1411 MM | ||
| 210 | A 6204100402 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1798 MM | ||
| 210 | A 6244100001 | PROPELLER SHAFT |
| Repalced by: A 3954100302 | ||
| 210 | A 3954100302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 799 MM | ||
| 210 | A 3954100202 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1183 MM | ||
| 214 | A 3634110111 | DRIVE FLANGE |
| Repalced by: A 3954110211 | ||
| 214 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 214 | A 3954110811 | DRIVE FLANGE |
| 218 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 218 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 218 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 222 | N 071412008302 | GREASE NIPPLE |
| 224 | A 3874100142 | BEARING BUSHING |
| 226 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 226 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31;38.14 MM | ||
| 228 | A 3634110280 | GASKET |
| 232 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 232 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 232 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| N 900087008000 | PLUG | |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 244 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 244 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 246 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 248 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 248 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 250 | A 3954107401 | PROPELLER SHAFT |
| Repalced by: A 3894106501 | ||
| 250 | A 3894106501 | PROPELLER SHAFT |
| FROM REAR AXLE I TO REAR AXLE II | ||
| 780 MM | ||
| 252 | A 3894110011 | DRIVE FLANGE |
| Repalced by: A 3894110711 | ||
| 252 | A 3894110711 | DRIVE FLANGE |
| 254 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 254 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 254 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 254 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 256 | N 071412008302 | GREASE NIPPLE |
| 258 | A 3874100042 | BEARING BUSHING |
| 260 | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| 262 | A 3634110080 | GASKET |
| 264 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 264 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 264 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| N 000906008001 | SCREW PLUG | |
| 274 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 274 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| 276 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
| 278 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 278 | N 308673016001 | NUT |
| PROPELLER SHAFT TO REAR AXLES I AND II | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
