Transporto priemonė: 2628 AS; VIN numerio dalis: 624331
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

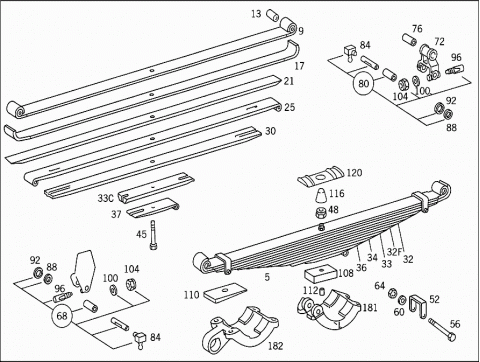

| 005 | A 3873200002 | FRONT SPRING |
| 9-LEAF | ||
| 005 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 005 | A 3953200002 | FRONT SPRING |
| 10-LEAF | ||
| 009 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3953200394 | SPRING LEAF |
| NO. 1 | ||
| 013 | A 3043210150 | BUSHING |
| 013 | A 6203210050 | BUSHING |
| 017 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 017 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 017 | A 3953210312 | SPRING LEAF |
| NO. 2 | ||
| 021 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 021 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 025 | A 3463215613 | SPRING LEAF |
| Repalced by: A 3953210013 | ||
| 025 | A 3953210013 | SPRING LEAF |
| NO. 3 | ||
| 025 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 025 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 025 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 030 | A 3953210014 | SPRING LEAF |
| Repalced by: A 3463215614 | ||
| 030 | A 3463215614 | SPRING LEAF |
| Repalced by: A 6593210614 | ||
| 030 | A 6593210614 | SPRING LEAF |
| NO. 4 | ||
| 030 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 030 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 030 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 030 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 030 | A 3463215615 | SPRING LEAF |
| Repalced by: A 3953210015 | ||
| 030 | A 3953210015 | SPRING LEAF |
| N0. 5 | ||
| 030 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 030 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 030 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 030 | A 3463215616 | SPRING LEAF |
| Repalced by: A 3953210016 | ||
| 030 | A 3953210016 | SPRING LEAF |
| N0. 6 | ||
| 032 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 032 | A 3633210017 | SPRING LEAF |
| Repalced by: A 6593210617 | ||
| 032 | A 6593210617 | SPRING LEAF |
| NO.7 | ||
| 032 | A 3463215617 | SPRING LEAF |
| Repalced by: A 6593210517 | ||
| 032 | A 6593210517 | SPRING LEAF |
| NO. 7 | ||
| 032F | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 032F | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 032F | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| 032F | A 3463215618 | SPRING LEAF |
| NO. 8 | ||
| 033 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 033 | A 3633210019 | SPRING LEAF |
| Repalced by: A 6593210619 | ||
| 033 | A 6593210619 | SPRING LEAF |
| NO.9 | ||
| 033C | A 3463215619 | SPRING LEAF |
| Repalced by: A 6593210519 | ||
| 033C | A 6593210519 | SPRING LEAF |
| NO. 9 | ||
| 034 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 034 | A 3463215620 | SPRING LEAF |
| NO. 10 | ||
| 036 | A 3633210021 | SPRING LEAF |
| Repalced by: A 6593210421 | ||
| 036 | A 6593210421 | SPRING LEAF |
| NO.11 | ||
| 037 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 037 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 045 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 045 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 045 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 048 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 048 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 052 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 052 | A 0003249633 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 052 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 052 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 052 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| 052 | A 6593240133 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| 056 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 056 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| 056 | N 000960012333 | SCREW |
| FOR SPRING CLAMPS | ||
| 056 | N 000963012011 | SCREW |

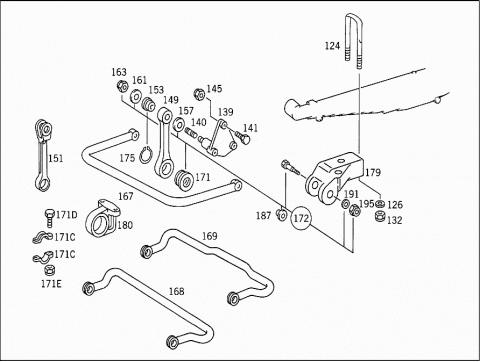

| FOR SPRING CLAMPS | ||
| 060 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 064 | N 000934012022 | NUT |
| FOR SPRING CLAMPS | ||
| 068 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 068 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 072 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 076 | A 3043210150 | BUSHING |
| 076 | A 6203210050 | BUSHING |
| 080 | A 3953200165 | SHACKLE PIN |
| PARTS KIT | ||
| 084 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 088 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 088 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 088 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 092 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 096 | A 3529900337 | BOLT |
| SPRING SUSPENSION | ||
| 100 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 100 | N 000125010532 | WASHER |
| SPRING SUSPENSION | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| SPRING SUSPENSION | ||
| 108 | A 3613310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | A 3873310228 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | A 3863220028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 110 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 112 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 112 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 116 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 116 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 120 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 120 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 120 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3873310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 120 | A 6203310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 120 | A 6553310026 | PLATE |
| Repalced by: A 6553310326 | ||
| 120 | A 6553310326 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3873220031 | PLATE |
| Repalced by: A 6243220031 | ||
| 120 | A 6243220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3873220131 | PLATE |
| Repalced by: A 6243220131 | ||
| 120 | A 6243220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 6563210184 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 124 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 124 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 124 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 124 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 124 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 124 | A 3873310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 410 MM | ||
| 126 | A 3879970026 | WASHER |
| Repalced by: A 3859970126 | ||
| 126 | A 3859970126 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 132 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 132 | N 913004020003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 139 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 139 | A 3873230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 139 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 139 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 140 | N 000939012102 | STUD BOLT |
| 141 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 141 | A 0039904104 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 141 | N 308676016007 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 141 | N 000961016142 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 145 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 145 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 145 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 149 | A 3893230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 151 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 151 | A 6213230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 153 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 157 | A 3873230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 161 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 163 | N 910113012002 | NUT |
| LINK TO CONSOLE | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| LINK TO CONSOLE | ||
| 167 | A 3873230165 | TORSION BAR |
| FRONT AXLE | ||
| 167 | A 3893230065 | TORSION BAR |
| FRONT AXLE | ||
| 168 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 168 | A 6523230765 | TORSION BAR |
| FRONT AXLE | ||
| 169 | A 6213230265 | TORSION BAR |
| FRONT AXLE | ||
| 171 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 171 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 171 | A 6213230085 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 171C | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 171C | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 171D | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| 171E | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| A 6203230174 | PIN | |
| Repalced by: A 6205860232 | ||
| 172 | A 6205860232 | REPAIR KIT |
| Repalced by: A 6203200428 | ||
| 172 | A 6203200428 | REPAIR KIT |
| A 6203230174 | PIN | |
| Repalced by: A 6243200028 | ||
| A 6243200028 | REPAIR KIT | |
| 172 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 172 | A 6213200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 175 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 179 | A 6213230020 | BEARING |
| TORSION BAR,LEFT | ||
| 179 | A 6213230120 | BEARING |
| TORSION BAR,RIGHT | ||
| 180 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 181 | A 6213230220 | BEARING |
| TORSION BAR,LEFT | ||
| 181 | A 6213230320 | BEARING |
| TORSION BAR,RIGHT | ||
| 182 | A 6213230920 | BEARING |
| TORSION BAR,LEFT | ||
| 182 | A 6213231020 | BEARING |
| TORSION BAR,RIGHT | ||
| 187 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 187 | A 6203230250 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 191 | N 007349017002 | WASHER |
| TORSION BAR MOUNTING | ||
| Repalced by: N 007349017003 | ||
| 191 | N 007349017003 | WASHER |
| TORSION BAR MOUNTING | ||
| 195 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 195 | N 910113016001 | NUT |
| TORSION BAR MOUNTING | ||

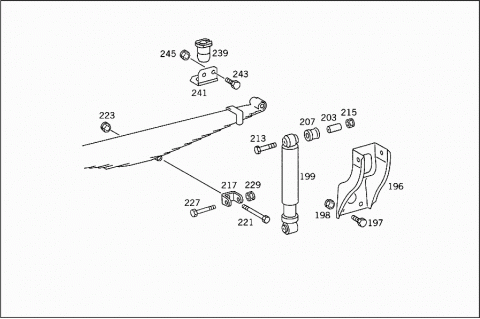

| 196 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 196 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 196 | A 6243230340 | BRACKET |
| SEE GROUP 52,FIG.NO.: | ||
| "27" | ||
| 197 | N 000961014127 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 198 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 198 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 199 | A 0023237200 | SHOCK ABSORBER |
| Repalced by: A 0033239700 | ||
| 199 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 199 | A 0023237300 | SHOCK ABSORBER |
| Repalced by: A 0043234400 | ||
| 199 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 199 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 199 | A 0023235900 | SHOCK ABSORBER |
| Repalced by: A 0043230000 | ||
| 199 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 199 | A 0023235800 | SHOCK ABSORBER |
| Repalced by: A 0043234500 | ||
| 199 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 203 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 203 | A 0003233150 | BUSHING |
| TO 002 323 58 00,59 00,72 00,73 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00 | ||
| 203 | A 0003235250 | BUSHING |
| TO 003 323 97 00,004 323 00 00 | ||
| 207 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 207 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 58 00,59 00,72 00,73 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00 | ||
| 207 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 207 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 97 00,004 323 00 00 | ||
| Repalced by: A 0003238085 | ||
| 207 | A 0003238085 | RUBBER MOUNTING |
| TO 003 323 97 00,004 323 00 00 | ||
| 213 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 213 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 215 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 215 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 217 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 221 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 221 | N 000960020084 | SCREW |
| BRACKET TO SPRING | ||
| 223 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 223 | N 913004020003 | NUT |
| BRACKET TO SPRING | ||
| 227 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 227 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 229 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 229 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 239 | A 6209870039 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 241 | A 3953210040 | BRACKET |
| RUBBER BUFFER | ||
| 243 | N 000933010145 | SCREW |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 245 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 245 | N 910113010000 | NUT |
| SPRING STOP TO FRAME BOTTOM SIDE | ||

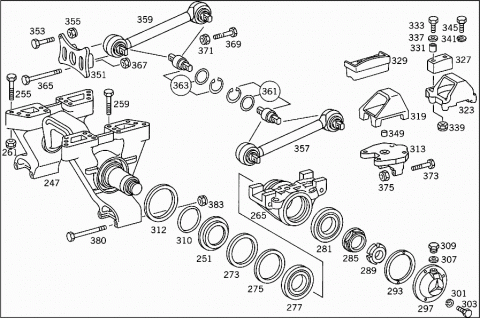

| 247 | A 3953200778 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 251 | A 3893251062 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 255 | N 914142020103 | SCREW |
| Repalced by: A 0003250175 | ||
| 255 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 255 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 255 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X90 | ||
| 259 | N 000960020123 | SCREW |
| Repalced by: A 0003250075 | ||
| 259 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 259 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 259 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X150 | ||
| 261 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 265 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 265 | A 6243250012 | SPRING SADDLE |
| Repalced by: A 6243250112 | ||
| 265 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 265 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 273 | A 0059978447 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 275 | A 0099978846 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 277 | A 0029815005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 277 | A 0029815305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 277 | A 0059819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 277 | A 0079810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 281 | A 0049810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 281 | A 0039816805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 281 | A 0079810305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 285 | A 3893252152 | SPACER WASHER |
| REAR SPRING TO BEARING BRACKET | ||
| 289 | A 3899905060 | NUT |
| REAR SPRING TO BEARING BRACKET | ||
| 293 | A 3893250280 | GASKET |
| COVER TO REAR AXLE CASING | ||
| 297 | A 3893200684 | COVER |
| SPRING SUPPORT | ||
| 301 | N 912004008102 | LOCK WASHER |
| COVER TO REAR AXLE CASING | ||
| 303 | N 000933008145 | SCREW |
| COVER TO REAR AXLE CASING | ||
| 307 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||
| 309 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 309 | N 007604014110 | SCREW PLUG |
| OIL REFILLING | ||
| 310 | A 0079975948 | SEAL RING |
| END COVER | ||
| 312 | A 3953200067 | GASKET |
| END COVER | ||
| 313 | A 3953251109 | BEARING BRACKET |
| REAR AXLES I AND II | ||
| 319 | A 3953250619 | SPRING SEAT |
| Repalced by: A 6243250419 | ||
| 319 | A 6243250419 | SPRING SEAT |
| Repalced by: A 6253250019 | ||
| 319 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 319 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 323 | A 3953250119 | SPRING SEAT |
| Repalced by: A 6243251219 | ||
| 323 | A 6243251219 | SPRING SEAT |
| Repalced by: A 6593250219 | ||
| 323 | A 6593250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 323 | A 6593250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 323 | A 3953250719 | SPRING SEAT |
| Repalced by: A 6243250519 | ||
| 323 | A 6243250519 | SPRING SEAT |
| Repalced by: A 6253250119 | ||
| 323 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 323 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 323 | A 3953250219 | SPRING SEAT |
| Repalced by: A 6243251319 | ||
| 323 | A 6243251319 | SPRING SEAT |
| Repalced by: A 6593250319 | ||
| 323 | A 6593250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 323 | A 6593250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 327 | A 3433250044 | RUBBER BUFFER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 329 | A 3953250043 | BRACKET |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 331 | A 3953250053 | SPACER TUBE |
| Repalced by: A 3805410053 | ||
| 331 | A 3805410053 | SPACER TUBE |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 333 | N 000931010272 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 333 | N 000933010145 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 337 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 337 | N 007349010007 | WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 339 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 339 | N 910113010000 | NUT |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 341 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 345 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 345 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 349 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 351 | A 3953253609 | BEARING BRACKET |
| UPPER AND LOWER CONTROL ARMS | ||
| 351 | A 3953253909 | BEARING BRACKET |
| UPPER AND LOWER CONTROL ARMS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I AND II CONTROL ARM BEARING BRACKETS,SEE GROUP: | ||
| "42" | ||
| 353 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 353 | N 308676014014 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X70 | ||
| 353 | N 308676014002 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 14X80 | ||
| 355 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 355 | N 910113014000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 357 | A 3953500706 | CONTROL ARM |
| BOTTOM | ||
| 357 | A 6593500406 | CONTROL ARM |
| BOTTOM | ||
| 357 | A 6593502706 | CONTROL ARM |
| BOTTOM | ||
| 357 | A 6243500106 | CONTROL ARM |
| BOTTOM | ||
| 357 | A 6593501206 | CONTROL ARM |
| BOTTOM | ||
| 357 | A 6593503506 | CONTROL ARM |
| BOTTOM | ||
| 359 | A 3953500006 | CONTROL ARM |
| Repalced by: A 6243500006 | ||
| 359 | A 6243500006 | CONTROL ARM |
| TOP | ||
| 359 | A 6593501106 | CONTROL ARM |
| TOP | ||
| 359 | A 6593503406 | CONTROL ARM |
| TOP | ||
| 361 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 361 | A 0003500613 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 363 | A 0005861235 | REPAIR KIT |
| Repalced by: A 0003500413 | ||
| 363 | A 0003500413 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 365 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 365 | N 000960020120 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X230 | ||
| 365 | N 000960020080 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X240 | ||
| 367 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 367 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 369 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 369 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 20X85 | ||
| 371 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 371 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 373 | N 000960020152 | SCREW |
| Repalced by: N 000960020120 | ||
| 373 | N 000960020120 | SCREW |
| LOWER CONTROL ARM TO BEARING BRACKET | ||
| M 20X230 | ||
| 373 | N 000960020080 | SCREW |
| LOWER CONTROL ARM TO BEARING BRACKET | ||
| M 20X240 | ||
| 375 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 375 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO BEARING BRACKET | ||
| 380 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 380 | N 308765020012 | SCREW |
| LOWER CONTROL ARM TO BEARING BRACKET | ||
| M 20X90 | ||
| 383 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 383 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO BEARING BRACKET | ||

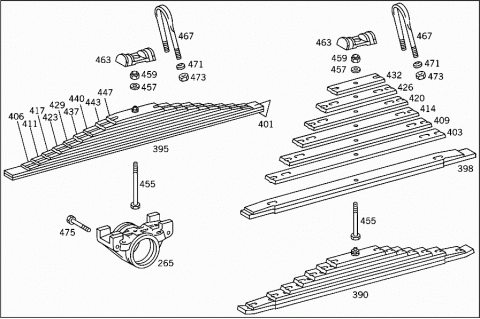

| 390 | A 3433200106 | REAR SPRING |
| 8-LEAF | ||
| 395 | A 3433200206 | REAR SPRING |
| 11-LEAF | ||
| 398 | A 3433200093 | SPRING LEAF |
| NO.1, NO.2 | ||
| 401 | A 3433200193 | SPRING LEAF |
| NO.1, NO.2 | ||
| 403 | A 3433240113 | SPRING LEAF |
| NO.3 | ||
| 406 | A 3433240213 | SPRING LEAF |
| NO.3 | ||
| 409 | A 3433240114 | SPRING LEAF |
| NO.4 | ||
| 411 | A 3433240214 | SPRING LEAF |
| NO.4 | ||
| 414 | A 3433240115 | SPRING LEAF |
| NO.5 | ||
| 417 | A 3433240215 | SPRING LEAF |
| NO.5 | ||
| 420 | A 3433240116 | SPRING LEAF |
| NO.6 | ||
| 423 | A 3433240216 | SPRING LEAF |
| NO.6 | ||
| 426 | A 3433240117 | SPRING LEAF |
| NO.7 | ||
| 429 | A 3433240217 | SPRING LEAF |
| NO.7 | ||
| 432 | A 3433240118 | SPRING LEAF |
| NO.8 | ||
| 437 | A 3433240218 | SPRING LEAF |
| NO.8 | ||
| 440 | A 3433240219 | SPRING LEAF |
| NO.9 | ||
| 443 | A 3433240220 | SPRING LEAF |
| NO.10 | ||
| 447 | A 3433240221 | SPRING LEAF |
| NO.11 | ||
| 455 | A 3473240071 | SPRING BOLT |
| Repalced by: A 3473240271 | ||
| 455 | A 3473240271 | SPRING BOLT |
| 457 | N 007349019002 | WASHER |
| 459 | N 913004018004 | NUT |
| 463 | A 3433510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 463 | A 6243510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 467 | A 3953510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 335 MM | ||
| 471 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 473 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 475 | N 000960024047 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
