Transporto priemonė: 2631; VIN numerio dalis: 659000

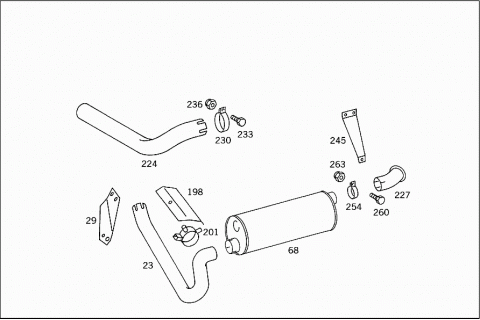

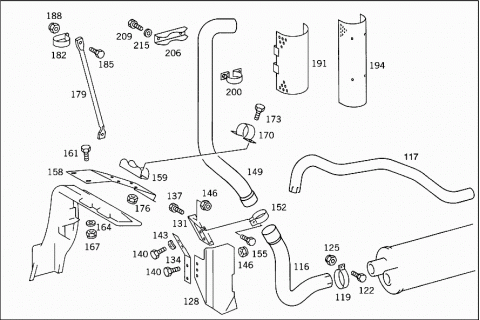

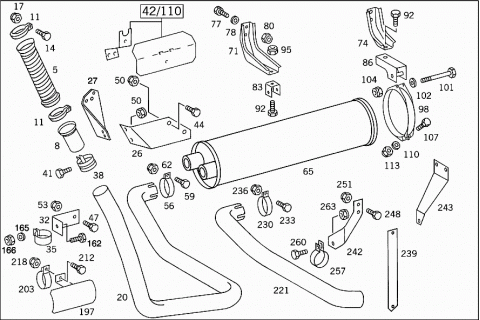

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 008 | A 6214920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 011 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 014 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 014 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 017 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 017 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR | ||
| 020 | A 6584901219 | EXHAUST PIPE |
| Repalced by: A 6584901319 | ||
| 020 | A 6584901319 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6594900920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554900420 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 020 | A 6554904420 | EXHAUST PIPE |
| Repalced by: A 6554905620 | ||
| 020 | A 6554905620 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 023 | A 6554900520 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 026 | A 6554925141 | BRACKET |
| EXHAUST PIPE | ||
| 027 | A 6554926541 | BRACKET |
| EXHAUST PIPE | ||
| 029 | A 6554925841 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 032 | A 6554925941 | BRACKET |
| Repalced by: A 6205240140 | ||
| 032 | A 6205240140 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 035 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 035 | N 071555100501 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 038 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 041 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 041 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X40 | ||
| 041 | N 000933010328 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X45 | ||
| 044 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 047 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 047 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 050 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 053 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 053 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 056 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 059 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 065 | A 6524900101 | EXHAUST MUFFLER |
| 068 | A 6524900701 | EXHAUST MUFFLER |
| 071 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 071 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER,FRONT | ||
| 074 | A 6204910515 | CONSOLE |
| Repalced by: A 6204910715 | ||
| 074 | A 6204910715 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 074 | A 6204910715 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 074 | A 6204910715 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 074 | A 6204910715 | CONSOLE |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 074 | A 6214910215 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 074 | A 6214910215 | CONSOLE |
| EXHAUST MUFFLER,REAR | ||
| 077 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 077 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 077 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 077 | N 308676012010 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 077 | N 000961012106 | SCREW |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 078 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 078 | N 007349013005 | WASHER |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 080 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 083 | A 6554913741 | BRACKET |
| STRAP TO FRONT AND REAR CONSOLES | ||
| 083 | A 6554913741 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 086 | A 6554901340 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6204913641 | BRACKET |
| Repalced by: A 6554903040 | ||
| 086 | A 6204913641 | BRACKET |
| Repalced by: A 6554903140 | ||
| 086 | A 6554903040 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6554903140 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 086 | A 6554903140 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 092 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 095 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 095 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 098 | A 6214900542 | STRAP |
| Repalced by: A 6204900042 | ||
| 098 | A 6204900042 | STRAP |
| EXHAUST MUFFLER | ||
| 098 | A 6554911321 | STRAP |
| EXHAUST MUFFLER | ||
| 101 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 101 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 101 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 101 | N 304017010053 | SCREW |
| STRAP TO BRACKET | ||
| M 10X50 | ||
| 102 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 102 | N 000125010532 | WASHER |
| STRAP TO BRACKET | ||
| 104 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 104 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 107 | N 000933010145 | SCREW |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 107 | A 0019904804 | SCREW |
| Repalced by: N 910143008021 | ||
| 107 | N 910143008021 | HEXALOBULAR BOLT |
| EXHAUST MUFFLER TO STRAP | ||
| M8X65 | ||
| 107 | A 0019904404 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| M 8X45 | ||
| 110 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 110 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 113 | A 0009906350 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 116 | A 6584921304 | REAR EXHAUST PIPE |
| 117 | A 6594920507 | CONNECTOR |
| 119 | A 6534920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 125 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 125 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 128 | A 6554900230 | PROTECTIVE PLATE |
| (HEAT SHIELD),REAR EXHAUST PIPES | ||
| 131 | A 6554900240 | BRACKET |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 134 | A 6204926641 | BRACKET |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 137 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 140 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 140 | N 304017008021 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 140 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 140 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 143 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 143 | N 000137008212 | SPRING WASHER |
| BRACKET TO BRACKET | ||
| 146 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 146 | N 913004008001 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 146 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 146 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 149 | A 6554921014 | END PIECE |
| Repalced by: A 6554926205 | ||
| 149 | A 6554926205 | REAR EXHAUST PIPE |
| BEHIND CAB,UPWARD | ||
| 152 | N 071555120502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 155 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 155 | N 304017010002 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 158 | A 6554920941 | BRACKET |
| Repalced by: A 6554927941 | ||
| 158 | A 6554927941 | BRACKET |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 159 | A 6454920118 | BASE PLATE |
| REAR EXHAUST PIPE | ||
| 161 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 161 | N 304017008027 | SCREW |
| BRACKET TO FENDER BRACKET | ||
| 161 | N 000933010105 | SCREW |
| BRACKET TO CONSOLE | ||
| 162 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 162 | N 304017008034 | SCREW |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 164 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 164 | N 009021010209 | WASHER |
| BRACKET TO CONSOLE | ||
| 165 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 165 | N 000125008443 | WASHER |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 166 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 166 | N 913004008001 | NUT |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 167 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 167 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 170 | A 6454900341 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 173 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 173 | N 304017008021 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 176 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 176 | N 913004008001 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 179 | A 3954900440 | BRACKET |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 182 | A 6454920540 | CLAMP |
| BRACKET TO EXHAUST PIPE | ||
| 185 | N 000933010105 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 188 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 188 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 191 | A 6554900130 | PROTECTIVE PLATE |
| Repalced by: A 6554900330 | ||
| 191 | A 6554900330 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST PIPE BEHIND CAB | ||
| 194 | A 6554920830 | PROTECTIVE PLATE |
| SCREENING PLATE | ||
| 197 | A 3834901030 | PROTECTIVE PLATE |
| HEAT SHIELD | ||
| 198 | A 6524920630 | PROTECTIVE PLATE |
| HEAT SHIELD TO TAILPIPE | ||
| 200 | A 6454900341 | CLAMP |
| HEAT SHIELD TO PIPE CLAMP | ||
| 200 | A 6554900041 | CLAMP |
| Repalced by: A 6454900341 | ||
| 200 | A 6454900341 | CLAMP |
| HEAT SHIELD TO PIPE CLAMP | ||
| A 6244920053 | SPACER TUBE | |
| CLAMP | ||
| M 8X22 | ||
| 201 | A 6524900341 | CLAMP |
| HEAT SHIELD TO PIPE CLAMP | ||
| 203 | N 071555100501 | CLAMP |
| HEAT SHIELD TO PIPE CLAMP | ||
| 206 | A 3954923241 | BRACKET |
| Repalced by: A 3184924841 | ||
| 206 | A 3184924841 | BRACKET |
| HEAT SHIELD TO PIPE CLAMP | ||
| 209 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 209 | N 304017008034 | SCREW |
| HEAT SHIELD TO PIPE CLAMP | ||
| M 8X25 | ||
| 209 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 209 | N 304017008039 | SCREW |
| HEAT SHIELD TO PIPE CLAMP | ||
| M 8X12 | ||
| 209 | N 304017008039 | SCREW |
| HEAT SHIELD TO PIPE CLAMP | ||
| M 8X12 | ||
| 212 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 212 | N 304017010002 | SCREW |
| HEAT SHIELD TO PIPE CLAMP | ||
| 212 | N 304017010002 | SCREW |
| HEAT SHIELD TO TAILPIPE | ||
| 215 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 215 | N 000125008443 | WASHER |
| HEAT SHIELD TO PIPE CLAMP | ||
| 215 | N 000125008443 | WASHER |
| HEAT SHIELD TO PIPE CLAMP | ||
| 218 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 218 | N 910113010000 | NUT |
| HEAT SHIELD TO PIPE CLAMP | ||
| 218 | N 910113010000 | NUT |
| HEAT SHIELD TO TAILPIPE | ||
| 221 | A 6554920814 | END PIECE |
| 221 | A 6554921814 | END PIECE |
| 224 | A 6554920714 | END PIECE |
| Repalced by: A 6554923414 | ||
| 224 | A 6554923414 | END PIECE |
| 227 | A 6524922014 | END PIECE |
| 230 | A 6534920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 233 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 233 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 236 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 236 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 239 | A 6244920741 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 242 | A 6524928141 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 243 | A 6524928241 | BRACKET |
| BRACKET TO APPARATUS SUPPORT | ||
| 243 | A 6544920641 | BRACKET |
| BRACKET TO APPARATUS SUPPORT | ||
| 245 | A 6524925341 | BRACKET |
| Repalced by: A 6564920841 | ||
| 245 | A 6564920841 | BRACKET |
| REAR EXHAUST PIPE TO APPARATUS SUPPORT | ||
| 245 | A 6544920641 | BRACKET |
| 248 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 248 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 248 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 248 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 251 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 251 | N 308673014001 | HEXAGON NUT |
| BRACKET TO SIDE MEMBER | ||
| 251 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 251 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 254 | A 6534920040 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 257 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 257 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 257 | N 071555110501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 257 | N 071555110501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 260 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 260 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 260 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 263 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 263 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
