Transporto priemonė: 2632 AS; VIN numerio dalis: 395422

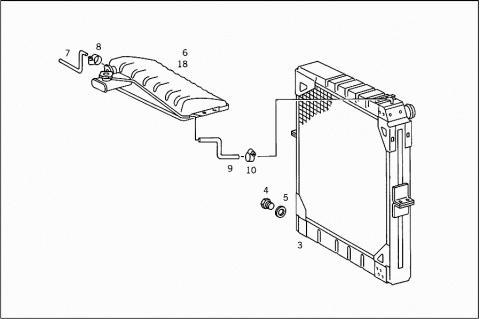

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3875001403 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| A 0005014001 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| A 0005014201 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| A 3875001203 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| A 0005013901 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| A 0005014301 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| A 3875001003 | RADIATOR | |
| Repalced by: A 3875001603 | ||
| A 3875001103 | RADIATOR | |
| Repalced by: A 3875001503 | ||
| 003 | A 0005014701 | RADIATOR |
| LESS TANK | ||
| 003 | A 0005014701 | RADIATOR |
| LESS TANK | ||
| 003 | A 0005014601 | RADIATOR |
| LESS TANK | ||
| 004 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 004 | N 007604014101 | SCREW PLUG |
| 005 | N 007603014405 | SEAL RING |
| 005 | N 007603014405 | SEAL RING |
| 006 | A 0005000249 | TANK |
| ON RADIATOR | ||
| 006 | A 0005000249 | TANK |
| ON RADIATOR | ||
| 006 | A 0005000549 | TANK |
| ON RADIATOR | ||
| 007 | A 0009977952 | HOSE |
| Repalced by: A 0139978682 | ||
| 007 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 4X6 MM | ||
| 007 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 4X6 MM | ||
| 008 | A 0009950468 | CLAMP |
| Repalced by: A 0009881878 | ||
| 008 | A 0009950468 | CLAMP |
| 009 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 8X17 MM | ||
| 009 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 8X17 MM | ||
| A 0005040033 | CLAMP | |
| Repalced by: N 916017011000 | ||
| 010 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 010 | N 000000000665 | CLAMP |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| 010 | N 000000000665 | CLAMP |
| FROM RADIATOR TO EXPANSION TANK ON RADIATOR | ||
| A 3875001603 | RADIATOR | |
| Repalced by: A 3875002903 | ||

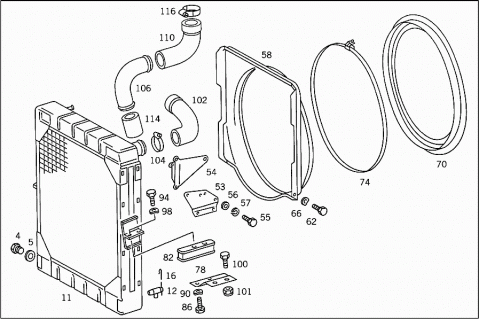

| 011 | A 3875002903 | RADIATOR |
| 011 | A 3875002903 | RADIATOR |
| 011 | A 3875002903 | RADIATOR |
| 011 | A 3875002903 | RADIATOR |
| A 3875001503 | RADIATOR | |
| Repalced by: A 3855010401 | ||
| 011 | A 3855010401 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 011 | A 3875002903 | RADIATOR |
| LESS TANK | ||
| 011 | A 3875002903 | RADIATOR |
| LESS TANK | ||
| 011 | A 3875002903 | RADIATOR |
| LESS TANK | ||
| 011 | A 3875002903 | RADIATOR |
| LESS TANK | ||
| 012 | A 0009976436 | VALVE |
| Repalced by: A 0009970436 | ||
| 012 | A 0009970436 | VALVE |
| DRAIN | ||
| 016 | A 0009930225 | SPRING |
| 018 | A 0005000249 | TANK |
| EXPANSION TANK | ||

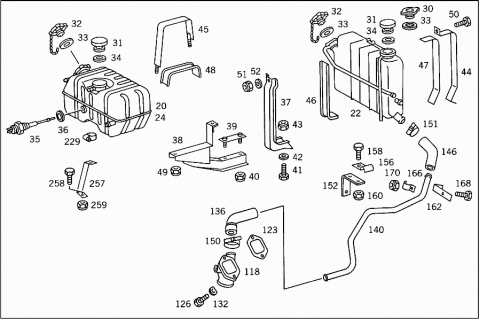

| 020 | A 3875000149 | TANK |
| Repalced by: A 3815001349 | ||
| 020 | A 3815001349 | TANK |
| IN ENGINE TUNNEL | ||
| 022 | A 3815000149 | TANK |
| Repalced by: A 3815000849 | ||
| 022 | A 3815000849 | TANK |
| BEHIND CAB | ||
| 022 | A 3815000849 | TANK |
| BEHIND CAB | ||
| 022 | A 3815000849 | TANK |
| BEHIND CAB | ||
| 020 | A 3875000149 | TANK |
| Repalced by: A 3815001349 | ||
| 022 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 022 | A 3815001649 | TANK |
| BEHIND CAB | ||
| 022 | A 3815001649 | TANK |
| BEHIND CAB | ||
| 022 | A 3815001649 | TANK |
| BEHIND CAB | ||
| 022 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 022 | A 3815000749 | TANK |
| BEHIND CAB | ||
| 022 | A 3815000749 | TANK |
| BEHIND CAB | ||
| 024 | A 3875000249 | TANK |
| IN ENGINE TUNNEL | ||
| 030 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 030 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 030 | A 0005014215 | RADIATOR CAP |
| 031 | A 0005014515 | RADIATOR CAP |
| 031 | A 0005014515 | RADIATOR CAP |
| 032 | A 0005014615 | RADIATOR CAP |
| 032 | A 0005017215 | RADIATOR CAP |
| 033 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM, TO 000 501 42 15,000 501 46 15 | ||
| 034 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 035 | A 0045426317 | SENDER UNIT |
| Repalced by: A 0095426417 | ||
| 035 | A 0095426417 | SENDER UNIT |
| COOLING WATER EXPANSION TANK | ||
| 036 | N 007603014104 | SEAL RING |
| 037 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 037 | A 6155010020 | BRACKET |
| RADIATOR TO BUFFER | ||
| 037 | A 6155010020 | BRACKET |
| RADIATOR TO BUFFER | ||
| 037 | A 6155010020 | BRACKET |
| RADIATOR TO BUFFER | ||
| 037 | A 6155010020 | BRACKET |
| RADIATOR TO BUFFER | ||
| 037 | A 6155010020 | BRACKET |
| RADIATOR TO BUFFER | ||
| 037 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 037 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 038 | A 3875000527 | SUPPORT |
| EXPANSION TANK | ||
| 038 | A 3875000527 | SUPPORT |
| EXPANSION TANK | ||
| 039 | A 3875000531 | BRACKET |
| SUPPORT TO CAB SUSPENSION CONNECTING RAIL | ||
| 039 | A 3875000531 | BRACKET |
| SUPPORT TO CAB SUSPENSION CONNECTING RAIL | ||
| 040 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 040 | N 910113010000 | NUT |
| 040 | N 910113010000 | NUT |
| 041 | N 000933010128 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| M 10X20 | ||
| 041 | N 000933010164 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| M 10X22 | ||
| 042 | N 006902011101 | WASHER |
| BRACKET TO RIGHT FENDER | ||
| 043 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 043 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 044 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 044 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012720 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012520 | BRACKET |
| (STRAP) | ||
| 044 | A 3815012520 | BRACKET |
| (STRAP) | ||
| 045 | A 3875000431 | BRACKET |
| (STRAP) | ||
| 045 | A 3875000431 | BRACKET |
| (STRAP) | ||
| 046 | A 4404750020 | PAD |
| Repalced by: A 3634750220 | ||
| 046 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 046 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 046 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 046 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 046 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 047 | A 3815010095 | SHIM |
| Repalced by: A 3815010295 | ||
| 047 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 047 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 047 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 047 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 047 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 047 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 048 | A 3634750220 | PAD |
| 048 | A 3634750220 | PAD |
| 049 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 049 | N 913004008001 | NUT |
| STRAP | ||
| 049 | N 913004008001 | NUT |
| STRAP | ||
| 050 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 10X25 | ||
| 051 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 051 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 052 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 052 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 053 | A 4030100340 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 054 | A 4220100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 055 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| M 8X18 | ||
| 056 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 057 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 058 | A 3875000716 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000716 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000616 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000616 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000516 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000516 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000516 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000516 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875051230 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875051230 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875051230 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875051230 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875000216 | AIR BAFFLE |
| RADIATOR | ||
| 058 | A 3875050530 | AIR BAFFLE |
| RADIATOR | ||
| 062 | N 000933006102 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| M 6X16 | ||
| 066 | N 000137006201 | SPRING WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 070 | A 3635050180 | BOOT |
| AIR BAFFLE TO RADIATOR | ||
| 074 | A 3639950065 | CLAMP |
| AIR BAFFLE TO RADIATOR | ||
| 078 | A 3875040501 | SUPPORT |
| RADIATOR | ||
| 082 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 086 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 086 | N 304017010028 | SCREW |
| BUFFER TO CONSOLE | ||
| M 10X18 | ||
| 090 | N 000137010201 | SPRING WASHER |
| BUFFER TO CONSOLE | ||
| 094 | N 000933010164 | SCREW |
| RADIATOR TO BUFFER | ||
| M 10X22 | ||
| 094 | N 000933010128 | SCREW |
| RADIATOR TO BUFFER | ||
| M 10X20 | ||
| 098 | N 000137010201 | SPRING WASHER |
| RADIATOR TO BUFFER | ||
| 100 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 101 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 102 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875011582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875011582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 102 | A 3875010582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 104 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 104 | N 000000000674 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 106 | A 3875010356 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 110 | A 3875010782 | HOSE |
| Repalced by: A 3875012982 | ||
| 110 | A 3875012982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 110 | A 3635010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 114 | N 900271065003 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 116 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 116 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 118 | A 3875010323 | CONNECTOR |
| AT WATER PUMP | ||
| 118 | A 3875010323 | CONNECTOR |
| AT WATER PUMP | ||
| 118 | A 3875010123 | CONNECTOR |
| AT WATER PUMP | ||
| 118 | A 3875010223 | CONNECTOR |
| Repalced by: A 3875010423 | ||
| 118 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||
| 118 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||

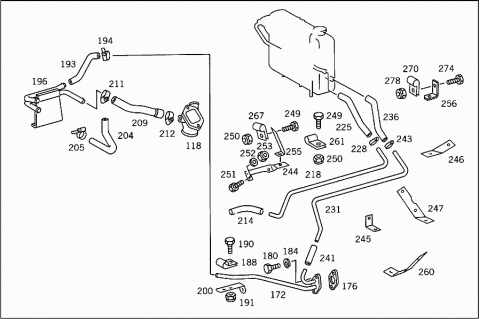

| 118 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||
| 118 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||
| 123 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 123 | A 4422010480 | GASKET |
| AT WATER PUMP | ||
| 126 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 10X25 MM | ||
| 126 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 10X60 MM | ||
| 126 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 10X60 MM | ||
| 132 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 136 | A 3875011382 | HOSE |
| Repalced by: A 3875012882 | ||
| 136 | A 3875012882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 136 | A 3875012882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 136 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 136 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 136 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 136 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 140 | A 3875010124 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 940 MM | ||
| 140 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 140 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 140 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 140 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 950 MM | ||
| 140 | A 3875010024 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 890 MM | ||
| 140 | A 3875010024 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 890 MM | ||
| 140 | A 3875010524 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 900 MM | ||
| 140 | A 3875010524 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 900 MM | ||
| 140 | A 3875011924 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 1710 MM | ||
| 146 | A 3875011182 | HOSE |
| Repalced by: A 3875011782 | ||
| 146 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 146 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 146 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 146 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 150 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 150 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 150 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 151 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 151 | N 000000000668 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 152 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 152 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 152 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 152 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 152 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 156 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 156 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 158 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 158 | N 304017008016 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| M 8X16 | ||
| 160 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 160 | N 913004008001 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 162 | A 3875011320 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 162 | A 3875011320 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 162 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 162 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 162 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 162 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 162 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 166 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 166 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 168 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 168 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| M 8X20 | ||
| 170 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 170 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 172 | A 3875000279 | FLANGE |
| ENGINE BREATHING | ||
| 172 | A 3875000279 | FLANGE |
| ENGINE BREATHING | ||
| 172 | A 3875000079 | FLANGE |
| ENGINE BREATHING | ||
| 172 | A 3875000079 | FLANGE |
| ENGINE BREATHING | ||
| 172 | A 3875000079 | FLANGE |
| ENGINE BREATHING | ||
| 172 | A 3875000079 | FLANGE |
| ENGINE BREATHING | ||
| 176 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 180 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| M 10X25 | ||
| 184 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 188 | A 3609951501 | CLAMP |
| Repalced by: A 3609950601 | ||
| 188 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 190 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 190 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| M 8X16 | ||
| 190 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| M 6X18 | ||
| 191 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 191 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 191 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 191 | N 910113006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 193 | A 3875060135 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 193 | A 3875060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 194 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 194 | N 000000000667 | CLAMP |
| HEATING PIPE | ||
| 196 | A 3875000289 | LINE |
| Repalced by: A 3835000072 | ||
| 196 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 196 | A 3875000072 | LINE |
| HEATING;MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER | ||
| 200 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 204 | A 3635060035 | HOSE |
| Repalced by: A 3835060035 | ||
| 204 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 205 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 205 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 209 | A 3875060435 | HOSE |
| Repalced by: A 3635060135 | ||
| 209 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 209 | A 3635060235 | HOSE |
| HEATING, TO CONNECTOR | ||
| 211 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 211 | N 000000000667 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 212 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 212 | N 000000000668 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 214 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 214 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 8X17 MM | ||
| 218 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 218 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 218 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 218 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1070 MM | ||
| 218 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 218 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 218 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 218 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1250 MM | ||
| 218 | A 3875015425 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875015425 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875015525 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 218 | A 3875011725 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1320 MM | ||
| 218 | A 3875011725 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1320 MM | ||
| 218 | A 3875012325 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1320 MM | ||
| 218 | A 3875012325 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1320 MM | ||
| 218 | A 3875016925 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1260 MM | ||
| 218 | A 3875016925 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1260 MM | ||
| 218 | A 3875012625 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1215 MM | ||
| 218 | A 3875012025 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1115 MM | ||
| 218 | A 3875016225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 1155 MM | ||
| 225 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12X21 MM | ||
| 228 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 228 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 229 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 229 | N 000000000665 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 229 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 229 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 229 | N 916016008200 | CLAMP |
| LINES TO ENGINE | ||
| 231 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 231 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 231 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 231 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 231 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 870 MM | ||
| 231 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 855 MM | ||
| 231 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 855 MM | ||
| 231 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1100 MM | ||
| 231 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1100 MM | ||
| 231 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1100 MM | ||
| 231 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1100 MM | ||
| 231 | A 3875017025 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1055 MM | ||
| 231 | A 3875017025 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 1055 MM | ||
| 231 | A 3875015225 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 830 MM | ||
| 231 | A 3875015125 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 810 MM | ||
| 236 | A 3875011282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 236 | A 3875011282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 236 | A 3875011282 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 241 | N 900271015037 | HOSE |
| ENGINE BREATHING | ||
| 15X24 MM | ||
| 241 | A 3875011682 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 241 | A 3875011682 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 241 | A 3638325223 | HOSE |
| Repalced by: A 3525010982 | ||
| A 3525010982 | HOSE | |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 243 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 243 | N 000000000667 | CLAMP |
| ENGINE BREATHING | ||
| 244 | A 3875011020 | BRACKET |
| Repalced by: A 3855010220 | ||
| 244 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 244 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 244 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 244 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 244 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 245 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 245 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 245 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 245 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 246 | A 3875011820 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 247 | A 3875011920 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 249 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 249 | N 304017008016 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| M 8X16 | ||
| 250 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 250 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 251 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| M 10X40 | ||
| 252 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 252 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 253 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 253 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 255 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 255 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 255 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 255 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 256 | A 3875015820 | BRACKET |
| Repalced by: A 3524290740 | ||
| 256 | A 3524290740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 256 | A 3524290740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 257 | A 3875000631 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 258 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 258 | N 304017006020 | SCREW |
| AT BRACKET | ||
| 6X20 MM | ||
| 259 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 259 | N 913004006001 | NUT |
| AT BRACKET | ||
| 260 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 260 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 260 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 260 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 261 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 261 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 267 | A 3609951301 | CLAMP |
| Repalced by: A 3609951201 | ||
| 267 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 270 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 270 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 270 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 274 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| M 6X16 | ||
| 278 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 278 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
