Transporto priemonė: 2632 AS; VIN numerio dalis: 395422
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.1 | ||

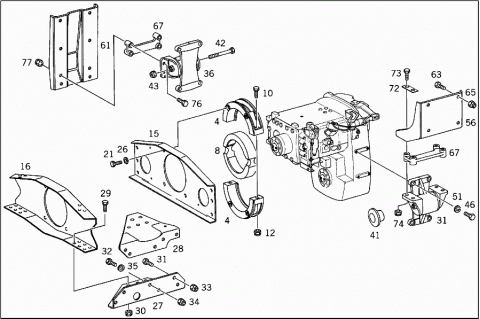

| 004 | A 3952660104 | BEARING CAP |
| TRANSMISSION SUSPENSION | ||
| 008 | A 3872660003 | MOUNTING |
| RUBBER MOUNTING | ||
| 010 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 010 | N 308676012018 | SCREW |
| BEARING COVER TO TRANSMISSION CASE | ||
| 012 | N 910113012002 | NUT |
| BEARING COVER TO TRANSMISSION CASE | ||
| 015 | A 3872660002 | SUPPORT |
| FRONT | ||
| 016 | A 3872660302 | SUPPORT |
| FRONT | ||
| 021 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 021 | N 308676016020 | SCREW |
| SUPPORT TO BEARING COVER | ||
| 026 | N 912004016101 | LOCK WASHER |
| SUPPORT TO BEARING COVER | ||
| 027 | A 3872661740 | BRACKET |
| LEFT BOTTOM | ||
| 028 | A 3872661540 | BRACKET |
| LEFT TOP | ||
| A 3872661840 | BRACKET | |
| RIGHT BOTTOM | ||
| A 3872661640 | BRACKET | |
| RIGHT TOP | ||
| 029 | N 000961014100 | SCREW |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| M14X30 | ||
| 029 | N 000961014100 | SCREW |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| M14X30 | ||
| N 000960014244 | SCREW | |
| SUPPORT TO FRAME | ||
| M14X65 | ||
| A 3892660084 | SHIM | |
| SUPPORT TO FRAME | ||
| 030 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 030 | N 910113014001 | NUT |
| SUPPORT TO BRACKET,TOP AND BOTTOM | ||
| 031 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 031 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 031 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X40 | ||
| 032 | N 000960014229 | SCREW |
| BRACKET TO FRAME | ||
| M 14X55 | ||
| 032 | N 000960014229 | SCREW |
| BRACKET TO FRAME | ||
| M 14X55 | ||
| 033 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 033 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 033 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 034 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 034 | N 910113014000 | NUT |
| SUPPORT TO FRAME | ||
| 035 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 035 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 036 | A 3872600494 | BEARING BRACKET |
| Repalced by: A 3872600594 | ||
| 036 | A 3872600594 | BEARING BRACKET |
| REAR LEFT AND RIGHT | ||
| 041 | A 4932660003 | MOUNTING |
| TRANSMISSION SUSPENSION | ||
| 042 | N 000960016078 | SCREW |
| TRANSMISSION SUSPENSION | ||
| 043 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 043 | N 910113016002 | NUT |
| TRANSMISSION SUSPENSION | ||
| 046 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 046 | N 308676016020 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 051 | N 912004016101 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 056 | A 3872660840 | BRACKET |
| LEFT | ||
| 056 | A 3872660940 | BRACKET |
| LEFT | ||
| 056 | A 3872662840 | BRACKET |
| LEFT | ||
| 056 | A 3872662740 | BRACKET |
| LEFT | ||
| 061 | A 3872661040 | BRACKET |
| RIGHT | ||
| 061 | A 3872661140 | BRACKET |
| RIGHT | ||
| 061 | A 3872663040 | BRACKET |
| RIGHT | ||
| 061 | A 3872662940 | BRACKET |
| RIGHT | ||
| 063 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 063 | N 308676016020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 063 | N 000961016040 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 065 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 065 | N 910113016002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3872660176 | WASHER | |
| Repalced by: A 3029902040 | ||
| A 3029902040 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| 067 | A 3872660084 | SHIM |
| REAR LEFT AND RIGHT | ||
| 072 | A 3872660184 | SHIM |
| Repalced by: A 3093170084 | ||
| 072 | A 3093170084 | SHIM |
| RIGHT REAR | ||
| 073 | N 000960016244 | SCREW |
| TRANSMISSION TO LEFT REAR BRACKET | ||
| 074 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 074 | N 910113016002 | NUT |
| TRANSMISSION TO LEFT REAR BRACKET | ||
| 076 | N 000960016171 | SCREW |
| TRANSMISSION TO RIGHT REAR BRACKET | ||
| 076 | N 000960016105 | SCREW |
| TRANSMISSION TO RIGHT REAR BRACKET | ||
| 077 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 077 | N 910113016002 | NUT |
| TRANSMISSION TO RIGHT REAR BRACKET | ||

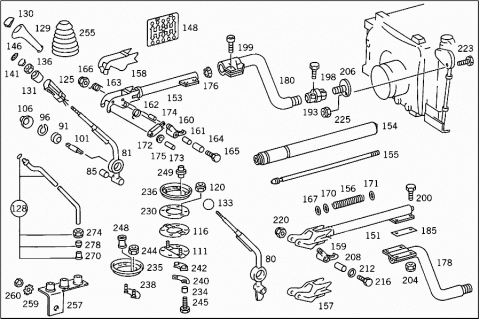

| 080 | A 3872605539 | SHIFT LEVER |
| Repalced by: A 3892606039 | ||
| 080 | A 3892606039 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 080 | A 3892606139 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3852607039 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3852607039 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3892605639 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3852606839 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3892605739 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 081 | A 3852606939 | SHIFT LEVER |
| REMOTE GEARSHIFT MECHANISM | ||
| 085 | A 0003320050 | BUSHING |
| Repalced by: A 3359920203 | ||
| 085 | A 3359920203 | BUSHING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 091 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 091 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 091 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 096 | N 000472042001 | LOCK RING |
| SHIFT LEVER TO PIVOT PIN | ||
| 096 | A 3852681074 | PIN |
| Repalced by: A 3852681474 | ||
| 101 | A 3852681474 | PIN |
| SHIFT LEVER TO BEARING BRACKET | ||
| 106 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 106 | A 6202680196 | BOOT |
| SHIFT LEVER LOWER PART | ||
| 106 | A 3892605162 | BRACKET |
| Repalced by: A 3892605262 | ||
| 111 | A 3892605262 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 116 | A 3892685240 | BRACKET |
| Repalced by: A 3892680440 | ||
| 116 | A 3892680240 | BRACKET |
| Repalced by: A 3892680440 | ||
| 116 | A 3892680440 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 120 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 120 | N 913004008001 | NUT |
| PIVOT PIN TO BEARING BRACKET | ||
| 125 | A 0002603057 | VALVE |
| Repalced by: A 3852600057 | ||
| 125 | A 3852600057 | VALVE |
| (SHIFT LEVER VALVE) | ||
| 125 | A 3852600057 | VALVE |
| (SHIFT LEVER VALVE) | ||
| A 0049974848 | SEAL RING | |
| VALVE | ||
| A 0049974848 | SEAL RING | |
| VALVE | ||
| 128 | A 3879970182 | HOSE |
| Repalced by: A 3019970682 | ||
| 128 | A 3879970282 | HOSE |
| Repalced by: A 3019970682 | ||
| 128 | A 3859970082 | HOSE |
| Repalced by: A 3019970682 | ||
| 128 | A 3019970682 | HOSE |
| Repalced by: A 3019971182 | ||
| 128 | A 3019971182 | HOSE |
| (PARTS KIT) | ||
| A 0012609957 | REPAIR KIT | |
| SHIFT LEVER VALVE | ||
| 129 | A 3852670001 | SHIFT LEVER |
| Repalced by: A 6202680042 | ||
| 129 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 130 | A 0002670114 | CAP |
| Repalced by: A 6202680157 | ||
| 130 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 131 | A 3852600140 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 131 | A 3852600140 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 133 | A 3602600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 133 | A 3602600140 | HANDLE |
| Repalced by: A 3432600040 | ||
| 133 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 136 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 141 | A 3852680357 | COVER |
| SHIFT LEVER KNOB | ||
| 141 | A 3852680357 | COVER |
| SHIFT LEVER KNOB | ||
| 146 | A 3855840040 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 146 | A 3855840040 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 146 | A 3855840140 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 146 | A 3855840140 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 148 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 148 | A 3855840238 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 151 | A 3852603133 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 151 | A 3892603733 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 151 | A 3852606033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 153 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 154 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 154 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 154 | A 3892600833 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 154 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 155 | A 3852600689 | PULL ROD |
| 155 | A 3852600689 | PULL ROD |
| 155 | A 3892600089 | PULL ROD |
| 156 | A 3859930901 | SPRING |
| MECHANICAL RELAESE | ||
| 157 | A 3852680423 | YOKE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 158 | A 3852600534 | ROD END |
| SHIFTING ROD TO SHIFT LEVER | ||
| 159 | A 3852600187 | PAWL |
| MECHANICAL RELAESE | ||
| 160 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 160 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| 161 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 162 | A 3859930020 | SPRING |
| HYDRAULIC RELEASE | ||
| 163 | A 3859930120 | SPRING |
| HYDRAULIC RELEASE | ||
| 164 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 165 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 165 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 166 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 166 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 167 | A 0029971745 | SEAL RING |
| Repalced by: A 0009978648 | ||
| 167 | A 0009978648 | SEAL RING |
| 17.20 MM | ||
| 170 | A 0009978748 | SEAL RING |
| 30.30 MM | ||
| 171 | A 0039970448 | SEAL RING |
| PULL ROD | ||
| 8.30 MM | ||
| 172 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 172 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| A 0069976748 | SEAL RING | |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| A 0069976848 | SEAL RING | |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| A 0019970641 | SEAL RING | |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 173 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X45X39 MM | ||
| 174 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 174 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22X16 MM | ||
| N 000094002059 | COTTER PIN | |
| SHIFTING CYLINDER TO PAWL | ||
| 175 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO PAWL | ||
| 176 | A 3852680776 | WASHER |
| REAR SHIFTING ROD | ||
| 178 | A 3892608833 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872601533 | SHIFTING ROD |
| REAR | ||
| 178 | A 3892603533 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872607233 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872608233 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872601033 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872604833 | SHIFTING ROD |
| REAR | ||
| 178 | A 3892608633 | SHIFTING ROD |
| REAR | ||
| 178 | A 3872601133 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872604933 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872607533 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872603033 | SHIFTING ROD |
| REAR | ||
| 180 | A 3892609033 | SHIFTING ROD |
| REAR | ||
| 180 | A 3892601182 | SHIFTING TUBE |
| REAR | ||
| 180 | A 3872600633 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872608333 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872601233 | SHIFTING ROD |
| REAR | ||
| 180 | A 3872609333 | SHIFTING ROD |
| REAR | ||
| 180 | A 3892600133 | SHIFTING ROD |
| REAR | ||
| 180 | A 3892603333 | SHIFTING ROD |
| REAR | ||
| 180 | A 3892601582 | SHIFTING TUBE |
| REAR | ||
| 185 | A 3852680084 | SHIM |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 193 | A 3852680188 | CLAMPING PIECE |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 198 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 198 | N 304017010047 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| M 10X35 | ||
| 199 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| M 10X25 | ||
| 200 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 200 | N 304017010002 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| M 10X30 | ||
| 204 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 204 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| A 3312600138 | SHAFT | |
| FOR CONNECTION TO SHIFT LEVER | ||
| 206 | A 3892609233 | SHIFTING ROD |
| FOR CONNECTION TO SHIFT LEVER | ||
| 206 | A 3892609233 | SHIFTING ROD |
| FOR CONNECTION TO SHIFT LEVER | ||
| 208 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 212 | A 0029971745 | SEAL RING |
| Repalced by: A 0009978648 | ||
| 212 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 216 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 216 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 220 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 220 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| N 900055018001 | SPRING WASHER | |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 223 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 223 | N 304017008027 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| M 8X30 | ||
| 223 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 223 | N 304017008034 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| M 8X25 | ||
| 225 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 225 | N 913004008001 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 230 | A 3852680292 | RUBBER PAD |
| Repalced by: A 3852680392 | ||
| 230 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 234 | A 3892687125 | TUBE |
| SHIFT LEVER BEARING | ||
| 234 | A 3892680525 | TUBE |
| SHIFT LEVER BEARING | ||
| 235 | A 3852600562 | BRACKET |
| SHIFT LEVER BEARING | ||
| 236 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING | ||
| 238 | A 3852600962 | BRACKET |
| SHIFT LEVER BEARING | ||
| 240 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 242 | A 3852680192 | RUBBER PAD |
| Repalced by: A 3852680492 | ||
| 242 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 244 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 244 | N 913004008001 | NUT |
| SHIFT LEVER BEARING | ||
| 245 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 245 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING | ||
| 248 | A 3892685086 | RUBBER RING |
| SHIFT LEVER BEARING | ||
| 248 | A 3892685086 | RUBBER RING |
| SHIFT LEVER BEARING | ||
| 249 | A 3852681950 | BUSHING |
| N 007981003214 | SHEET METAL SCREW | |
| 255 | A 3892685197 | BOOT |
| Repalced by: A 3892680097 | ||
| 255 | A 3892680097 | BOOT |
| CAB FLOOR COVERING | ||
| 257 | A 3892600062 | BRACKET |
| LINE CONNECTION TO SHIFTING CYLINDER | ||
| 257 | A 3892600062 | BRACKET |
| LINE CONNECTION TO SHIFTING CYLINDER | ||
| 257 | A 3892600162 | BRACKET |
| Repalced by: A 3892600262 | ||
| 257 | A 3892600262 | BRACKET |
| LINE CONNECTION TO SHIFTING CYLINDER | ||
| 257 | A 3892600262 | BRACKET |
| LINE CONNECTION TO SHIFTING CYLINDER | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| BRACKET TO CAB | ||
| 259 | N 006798006103 | SERRATED WASHER |
| BRACKET TO CAB | ||
| 260 | N 000934006007 | NUT |
| BRACKET TO CAB | ||
| A 6742640034 | LOCK NUT | |
| SPEEDOMETER DRIVE COVERING | ||
| 270 | A 0009920605 | BUSHING |
| Repalced by: N 915062002000 | ||
| 270 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 270 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 274 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 278 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| A 0019900170 | T-FITTING | |
| LINE CONNECTIONS | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| LINE CONNECTIONS | ||
| A 0009903563 | HOLLOW SCREW | |
| Repalced by: N 915047008100 | ||
| N 915047008202 | HOLLOW SCREW | |
| CONNECTION "23" | ||
| N 007603012405 | SEAL RING | |
| 280 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 280 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 280 | A 0009872627 | PLASTIC PIPE |
| CONTROL LINE | ||
| 4X6 MM | ||
| 280 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4X6 MM | ||
| 280 | A 0009872627 | PLASTIC PIPE |
| CONTROL LINE | ||
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 281 | A 0089979082 | HOSE |
| 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 282 | N 040621006200 | INSULATING HOSE |
| BLACK | ||
| 284 | A 0009920205 | BUSHING |
| Repalced by: N 915062004000 | ||
| 284 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 284 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 285 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 293 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 293 | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 297 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 297 | N 915052004015 | BANJO UNION |
| I.D., / HOSE WIDTH, | ||
| 12/4 MM | ||
| A 0009906688 | BANJO UNION | |
| Repalced by: N 915052006013 | ||
| N 915052006013 | BANJO UNION | |
| I.D., / HOSE WIDTH, | ||
| 12/6 MM | ||
| 302 | N 915052004016 | BANJO UNION |
| I.D., / HOSE WIDTH, | ||
| 10/4 MM | ||
| 304 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTION IN LEFT SIDE MEMBER | ||
| 6 MM | ||
| N 915036006202 | HOLLOW SCREW | |
| LINE CONNECTION IN LEFT SIDE MEMBER | ||
| 4 MM | ||
| 308 | N 007603012405 | SEAL RING |
| LINE CONNECTION IN LEFT SIDE MEMBER | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| LINE CONNECTION IN LEFT SIDE MEMBER | ||
| 312 | A 3609950101 | CLAMP |
| LINE MOUNTING | ||
| A 0019977290 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| A 0019978390 | LOOM TIE | |
| LINE MOUNTING | ||
| A 0019978490 | LOOM TIE | |
| LINE MOUNTING | ||
| A 0019972872 | FITTING | |
| Repalced by: A 0039979072 | ||
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
| LINE CONNECTIONS | ||
| A 3839970372 | FITTING | |
| Repalced by: N 915039008100 | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| LINE CONNECTIONS | ||
| 313 | A 3874291440 | BRACKET |
| PNEUMATIC LINE | ||
| 313 | A 3874291440 | BRACKET |
| PNEUMATIC LINE | ||
| 314 | A 3604280243 | ANGLE |
| BRACKET TO TRANSMISSION | ||
| 315 | A 3045460643 | BRACKET |
| BRACKET TO BEARING BRACKET | ||
| 316 | N 912004008102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 317 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 317 | N 304017008021 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 318 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 319 | A 0002602457 | VALVE |
| Repalced by: A 0002608157 | ||
| 319 | A 0002608157 | VALVE |
| (SOLENOID VALVE BATTERY) | ||
| 24 V | ||
| 319 | A 0002608157 | VALVE |
| (SOLENOID VALVE BATTERY) | ||
| 24 V | ||
| 320 | A 0015869643 | REPAIR KIT |
| (SOLENOID VALVE BATTERY) | ||
| HERION,94 17232/0711/24V | ||
| 320 | A 0015861626 | REPAIR KIT |
| (SOLENOID VALVE BATTERY) | ||
| HERION,94 17237/0734/24V | ||
| A 0002602257 | VALVE | |
| Repalced by: A 0002607957 | ||
| A 0002607957 | VALVE | |
| P.T.O. | ||
| A 0004350490 | VALVE DISC | |
| Repalced by: A 0005862626 | ||
| A 0049973148 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0049973248 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0049935201 | SPRING | |
| Repalced by: A 0005862626 | ||
| A 0005430485 | MAGNET | |
| Repalced by: A 0005862626 | ||
| A 0009973744 | SEAL RING | |
| Repalced by: A 0005862626 | ||
| A 0005862626 | REPAIR KIT | |
| VALVE | ||
| HERION,94 17134/0711/24V | ||
| A 0015861526 | REPAIR KIT | |
| Repalced by: A 0012608357 | ||
| A 0012608357 | REPAIR KIT | |
| VALVE | ||
| HERION,94 17139/0734/24V | ||
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
| LINE MOUNTING | ||
| 321 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 321 | N 000908012009 | SCREW PLUG |
| LINE MOUNTING | ||
| 322 | N 007603012405 | SEAL RING |
| LINE MOUNTING | ||
| 323 | A 3872640041 | BRACKET |
| SOLENOID VALVE | ||
| 323 | A 3872640041 | BRACKET |
| SOLENOID VALVE | ||
| 323 | A 3872640041 | BRACKET |
| SOLENOID VALVE | ||
| 323 | A 3872640641 | BRACKET |
| SOLENOID VALVE | ||
| 323 | A 3872640641 | BRACKET |
| SOLENOID VALVE | ||
| A 3632640241 | BRACKET | |
| LEFT | ||
| A 3632640541 | BRACKET | |
| RIGHT | ||
| A 3872640441 | BRACKET | |
| AT TRANSMISSION | ||
| A 3872640541 | BRACKET | |
| AT TRANSMISSION | ||
| 324 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 324 | N 304017006012 | SCREW |
| VALVE TO BRACKET | ||
| 325 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 325 | N 913004006001 | NUT |
| VALVE TO BRACKET | ||
| 326 | A 3384310051 | SPACER RING |
| BRACKET TO TRANSMISSION | ||
| 326 | A 3384310051 | SPACER RING |
| BRACKET TO TRANSMISSION | ||
| 326 | A 3384310051 | SPACER RING |
| BRACKET TO TRANSMISSION | ||
| A 3461410150 | BUSHING | |
| BRACKET TO TRANSMISSION | ||
| A 3024270053 | SPACER TUBE | |
| BRACKET TO TRANSMISSION | ||
| 327 | N 912004010102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 328 | N 000931010239 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 328 | N 000931010348 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 328 | N 000931010348 | SCREW |
| BRACKET TO TRANSMISSION | ||
| N 304017010027 | SCREW | |
| BRACKET TO TRANSMISSION | ||
| 330 | A 0002364005 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 330 | A 0002364005 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 330 | A 0002366205 | HYDRAULIC PUMP |
| Repalced by: A 0002369305 | ||
| 330 | A 0002369305 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 330 | A 0002363505 | HYDRAULIC PUMP |
| Repalced by: A 0002366105 | ||
| 330 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 331 | A 0019970630 | SCREW PLUG |
| OIL PUMP HOUSING | ||
| 332 | A 0049936501 | SPRING |
| CHECK VALVE | ||
| 333 | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 333 | A 0019815085 | BALL |
| VALVE | ||
| 12.70 MM | ||
| 334 | A 0002360935 | VALVE |
| (VALVE SEAT) | ||
| 335 | A 0002360376 | WASHER |
| 335 | A 0002360376 | WASHER |
| 336 | A 0049936301 | SPRING |
| 336 | A 0049936301 | SPRING |
| 337 | A 0002361160 | SEAL RING |
| OUTSIDE PISTON | ||
| 337 | A 0002361160 | SEAL RING |
| OUTSIDE PISTON | ||
| 338 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 338 | A 0002361117 | PISTON |
| 338 | A 0002360817 | PISTON |
| Repalced by: A 0002361217 | ||
| 338 | A 0002361217 | PISTON |
| 338 | A 0002361217 | PISTON |
| 339 | A 0002360735 | VALVE |
| 339 | A 0002360735 | VALVE |
| 340 | A 0079977146 | SEAL RING |
| HOUSING,FRONT | ||
| 40X58X9 MM | ||
| 340 | A 0079977146 | SEAL RING |
| HOUSING,FRONT | ||
| 40X58X9 MM | ||
| 340 | A 0079977146 | SEAL RING |
| HOUSING,FRONT | ||
| 40X58X9 MM | ||
| 340 | A 0149971747 | SEAL RING |
| 50X72X7 MM | ||
| 340 | A 0149971747 | SEAL RING |
| 50X72X7 MM | ||
| 341 | A 0002360180 | GASKET |
| CASE PART I TO CASE PART II | ||
| 341 | A 0002361180 | GASKET |
| CASE PART I TO CASE PART II | ||
| 342 | A 0002640479 | GASKET |
| OIL PUMP TO TRANSMISSION CASE | ||
| 342 | A 0002640479 | GASKET |
| OIL PUMP TO TRANSMISSION CASE | ||
| 343 | A 0019976136 | VALVE |
| P.T.O.,DUMPER PUMP | ||
| WABCO | ||
| 343 | A 0019975036 | VALVE |
| P.T.O.,DUMPER PUMP | ||
| BOSCH | ||
| 343 | A 0039975936 | VALVE |
| P.T.O.,DUMPER PUMP | ||
| KNORR | ||
| 343 | A 0039976036 | VALVE |
| P.T.O.,DUMPER PUMP | ||
| VOSS | ||
| A 0049937501 | SPRING | |
| WABCO | ||
| A 0069972648 | SEAL RING | |
| WABCO | ||
| A 0039979640 | SEAL RING | |
| WABCO | ||
| 344 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 345 | A 3859901640 | WASHER |
| VALVE TO CAB | ||
| A 3839970372 | FITTING | |
| Repalced by: N 915039008100 | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| VALVE TO CAB | ||
| A 0005456009 | SWITCH | |
| P.T.O. | ||
| A 0019978490 | LOOM TIE | |
| LINE MOUNTING | ||
| 346 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 347 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 347 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 348 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 349 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 350 | A 3855841524 | SYMBOL PLATE |
| P.T.O. | ||
| 353 | A 0002680759 | SEAL RING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 353 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 353 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
| 353 | N 007603018101 | SEAL RING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 353 | N 007603018101 | SEAL RING |
| DIFFERENTIAL LOCK INDICATOR SWITCH TO TRANSMISSION CASE | ||
| 361 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.60 MM | ||
| 361 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1.80 MM | ||
| 361 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.00 MM | ||
| 361 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.20 MM | ||
| 361 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.40 MM | ||
| 361 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.60 MM | ||
| 361 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2.80 MM | ||
| 361 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 3.00 MM | ||
| 371 | A 0005454214 | SWITCH |
| Repalced by: A 0015458214 | ||
| 371 | A 0015458214 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 371 | A 0015454714 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 371 | A 0005454214 | SWITCH |
| Repalced by: A 0005455209 | ||
| 377 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 377 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 377 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 377 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 377 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 381 | A 0002684674 | PIN |
| IDLE POSITION INDICATOR SWITCH CONTROL | ||
| 385 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 389 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 393 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 393 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 393 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
