Transporto priemonė: 2633 6X4 MBSA; VIN numerio dalis: 624048
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

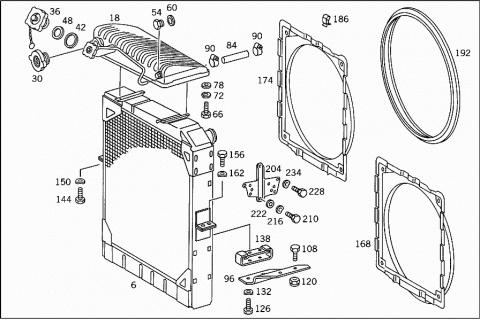

| 006 | A 0005019101 | RADIATOR |
| BEHR | ||
| 006 | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 006 | A 0005001103 | RADIATOR |
| BEHR | ||

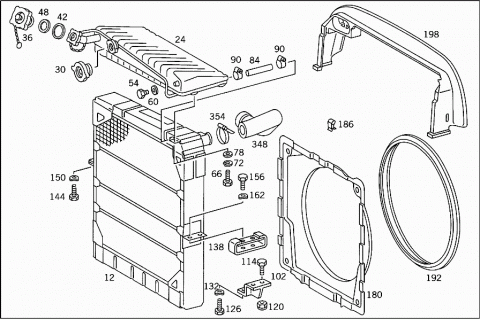

| 012 | A 0015010301 | RADIATOR |
| BEHR | ||
| 018 | A 0005000749 | TANK |
| ON RADIATOR | ||
| 024 | A 0005000849 | TANK |
| ON RADIATOR | ||
| 030 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 030 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 036 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 036 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 042 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 048 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 054 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 054 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 060 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 066 | N 000933008212 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 072 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 078 | N 000125008418 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 084 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 090 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 090 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X12MM | ||
| 096 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 102 | A 6205040801 | SUPPORT |
| RADIATOR,LEFT | ||
| 108 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 114 | N 000961012122 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X40 | ||
| 120 | N 913004012008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 126 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 10X18 | ||
| 132 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| M 10X25 | ||
| 138 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 144 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| M 10X18 | ||
| 144 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| M 10X25 | ||
| 144 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 150 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT | ||
| 150 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 156 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X20 | ||
| 162 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| N 000125010518 | WASHER | |
| RADIATOR TO RUBBER MOUNTING | ||
| 168 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 174 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 180 | A 6205050855 | FAN SHROUD |
| RADIATOR | ||
| 186 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 192 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 198 | A 6205050486 | BOOT |
| HEATING PIPE TO RADIATOR | ||
| 204 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 210 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 216 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 222 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 228 | N 000933006102 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 234 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||

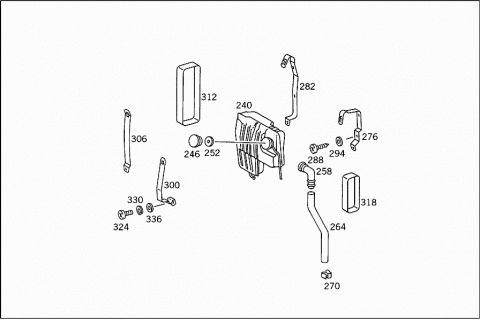

| 240 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 246 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 252 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 258 | A 0005010110 | DRAIN PIPE |
| 264 | A 0079972682 | HOSE |
| 270 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 276 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 282 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 288 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 294 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 300 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 306 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 312 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 318 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 324 | N 007985006193 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 330 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 336 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||

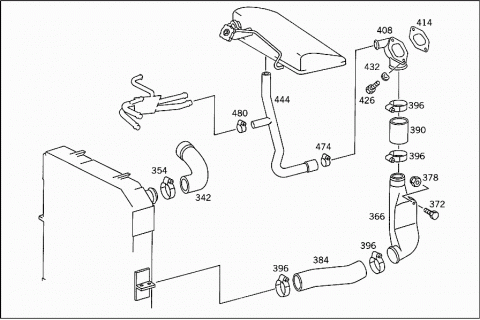

| 342 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 348 | A 6205012982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 354 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 354 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 70-90X13 MM | ||
| 366 | A 6205010056 | PIPE ELBOW |
| Repalced by: A 6205010156 | ||
| 366 | A 6205010156 | PIPE ELBOW |
| Repalced by: A 6205010056 | ||
| 366 | A 6205010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 366 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 366 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 366 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 372 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 378 | N 913004010008 | NUT |
| PIPE BEND TO BRACKET | ||
| 384 | A 6205010382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 384 | A 6205013682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 384 | A 6205010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 384 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 384 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 384 | A 6205016082 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 384 | A 6205013782 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 390 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 396 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 396 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP | ||
| 70-90X13 MM | ||
| 402 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 402 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 408 | A 6205010023 | CONNECTOR |
| Repalced by: A 6205010323 | ||
| 408 | A 6205010323 | CONNECTOR |
| AT WATER PUMP | ||
| 414 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 414 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 420 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X60 | ||
| 426 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| M 10X25 | ||
| 432 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||

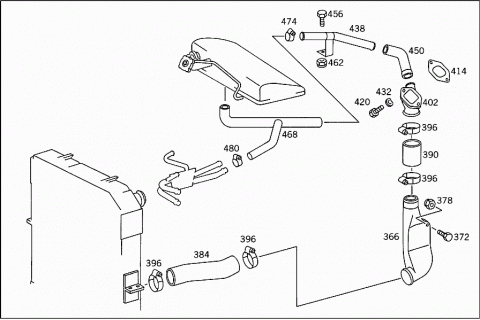

| 438 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 444 | A 6205013082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 450 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 450 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 456 | N 000933006103 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 462 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 462 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 468 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 474 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 474 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 480 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 480 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||

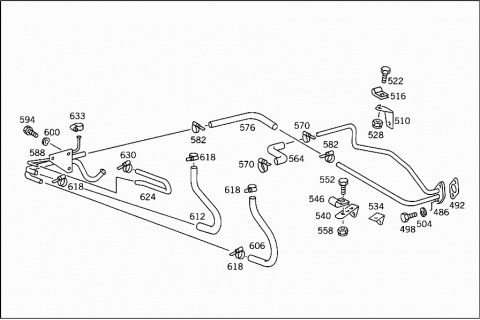

| 486 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| 486 | A 6205000879 | FLANGE |
| HEATING AND BREATHING | ||
| A 6205000579 | FLANGE | |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| A 6205000779 | FLANGE | |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 492 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 498 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 498 | N 000933010105 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 504 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 510 | A 3875016420 | BRACKET |
| BREATHER LINE TO ENGINE,FRONT | ||
| 516 | A 3609950601 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 522 | N 000933006130 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X18 | ||
| 528 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 528 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 534 | A 6205010620 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 540 | A 6205011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 546 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 546 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 546 | A 3609950601 | CLAMP |
| HEATING PIPE TO ANGLE | ||
| 546 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 552 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 552 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 552 | N 000933006130 | SCREW |
| HEATING PIPE TO ANGLE | ||
| 552 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| N 000933008191 | SCREW | |
| ANGLE TO BRACKET | ||
| N 000137008204 | SPRING WASHER | |
| ANGLE TO BRACKET | ||
| 558 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 558 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 558 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 558 | N 913004006001 | NUT |
| HEATING PIPE TO ANGLE | ||
| 558 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 564 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 570 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 570 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| 576 | A 6205060635 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 576 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| A 6205003972 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| A 6205004172 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| A 6205004372 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| N 917003022003 | GASKET | |
| HEATING PIPE TO ENGINE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| A 4609900601 | SCREW | |
| HEATING PIPE TO ENGINE | ||
| M 8X20 | ||
| N 000137008204 | SPRING WASHER | |
| HEATING PIPE TO ENGINE | ||
| A 3604280243 | ANGLE | |
| HEATING PIPE | ||
| A 3818320714 | BRACKET | |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| A 6205062340 | BRACKET | |
| BRACKET TO WATER PUMP | ||
| A 6205062935 | HOSE | |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| N 900271018038 | HOSE | |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 582 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 582 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 588 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 588 | A 6205002972 | LINE |
| Repalced by: A 6205003072 | ||
| 588 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 588 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 594 | N 000933006102 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 600 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 606 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 606 | A 6205060235 | HOSE |
| HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE | ||
| 612 | A 6205060335 | HOSE |
| HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE | ||
| 618 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 618 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 20-32X13 MM | ||
| 624 | N 900271008043 | HOSE |
| 8X17 MM | ||
| 624 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17 MM | ||
| 624 | N 900271008043 | HOSE |
| FROM PIPE LINE AT CAB TO HEATING PIPE AT RADIATOR | ||
| 8X17 MM | ||
| 624 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 624 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 630 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 630 | N 000000000667 | CLAMP |
| HEATING PIPE | ||
| 20-32X13 MM | ||
| 633 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 633 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X12MM | ||
| 636 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 636 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 20-32X13 MM | ||
| 642 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 648 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 654 | A 6175010420 | BRACKET |
| DE-AERATION LINE TO CAB | ||
| 654 | A 6205010920 | BRACKET |
| DE-AERATION LINE | ||
| 660 | N 007985005306 | SCREW |
| DE-AERATION LINE TO CAB | ||
| 666 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 666 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 666 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 672 | N 007985006193 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 678 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 678 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||

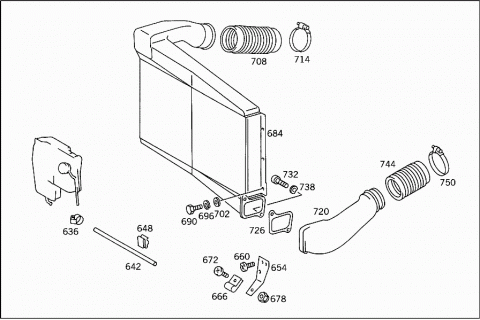

| 684 | A 6205010101 | RADIATOR |
| Repalced by: A 6205010201 | ||
| 684 | A 6205010201 | RADIATOR |
| CHARGE AIR INTERCOOLER | ||
| 690 | N 000933006121 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 696 | N 912004006104 | LOCK WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 702 | N 000125006421 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 708 | A 0010947882 | HOSE |
| Repalced by: A 0020945282 | ||
| 708 | A 0020945282 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 714 | N 916017100000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 720 | A 6205200406 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 726 | A 6205280080 | GASKET |
| Repalced by: A 6555280080 | ||
| 726 | A 6555280080 | GASKET |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 732 | N 000912010119 | SCREW |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 738 | N 000137010201 | SPRING WASHER |
| PIPE TO CHARGING AIR INTERCOOLER | ||
| 744 | A 0010947982 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 750 | N 916017100000 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
