Transporto priemonė: 2633 6X4 MBSA; VIN numerio dalis: 624048
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

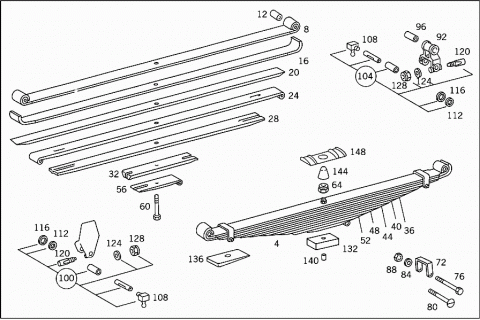

| 004 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 008 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3043210150 | BUSHING |
| 012 | A 6203210050 | BUSHING |
| 016 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 020 | A 3633210013 | SPRING LEAF |
| NO.3 | ||
| 024 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 024 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 028 | A 3633210015 | SPRING LEAF |
| NO.5 | ||
| 032 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 032 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 036 | A 3633210017 | SPRING LEAF |
| NO.7 | ||
| 040 | A 3633210018 | SPRING LEAF |
| NO.8 | ||
| 044 | A 3633210019 | SPRING LEAF |
| NO.9 | ||
| 048 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 052 | A 3633210021 | SPRING LEAF |
| NO. 11 | ||
| 056 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 056 | A 6593210422 | SPRING LEAF |
| NO. 12 | ||
| 060 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 064 | N 913004014005 | NUT |
| SPRING BOLT | ||
| A 0023219233 | SPRING CLAMP | |
| Repalced by: A 6203240733 | ||
| 072 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 072 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 076 | N 000960012216 | SCREW |
| SPRING CLAMP | ||
| 080 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 084 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 088 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 092 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 096 | A 3043210150 | BUSHING |
| 096 | A 6203210050 | BUSHING |
| 100 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 104 | A 3953200165 | SHACKLE PIN |
| PARTS KIT | ||
| 108 | N 071412010300 | GREASE NIPPLE |
| 112 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 112 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 112 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 116 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 120 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 124 | N 000125010518 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 128 | N 913004010008 | NUT |
| SPRING SUSPENSION | ||
| 132 | A 3613310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 136 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 140 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 140 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 144 | A 3263310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 148 | A 3043310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 152 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 152 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 152 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 160 | N 913004020004 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 164 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 164 | A 3873230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 164 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 164 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 168 | N 000939012102 | STUD BOLT |
| 172 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 172 | N 000961016057 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 172 | A 0039904104 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 172 | N 308676016007 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X1,5X50 | ||
| 176 | A 6203230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 184 | N 000933008150 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 188 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 192 | N 913004016004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 192 | N 913004016004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 196 | A 3893230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 200 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 204 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 208 | A 3873230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 212 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 212 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 216 | N 913004012008 | NUT |
| LINK TO CONSOLE | ||
| 216 | N 913004012008 | NUT |
| LINK TO CONSOLE | ||
| 220 | A 6203230074 | PIN |
| LINK TO BEARING BRACKET | ||
| 224 | N 000471032000 | LOCK RING |
| LINK TO BEARING BRACKET | ||

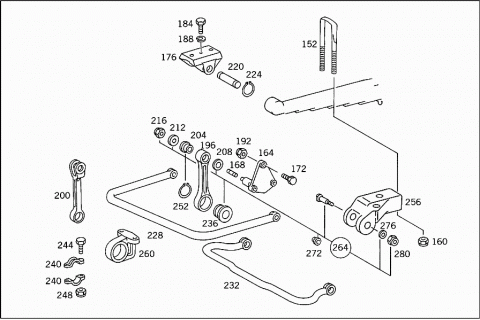

| 228 | A 3873230165 | TORSION BAR |
| FRONT AXLE | ||
| 232 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 232 | A 6523230765 | TORSION BAR |
| FRONT AXLE | ||
| 236 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 240 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 240 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 244 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| 248 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 252 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 256 | A 6213230020 | BEARING |
| TORSION BAR,LEFT | ||
| 256 | A 6213230120 | BEARING |
| TORSION BAR,RIGHT | ||
| 260 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 264 | A 6203200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 264 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 272 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 272 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 276 | N 007349017002 | WASHER |
| TORSION BAR MOUNTING | ||
| 280 | N 913004016005 | NUT |
| TORSION BAR MOUNTING | ||

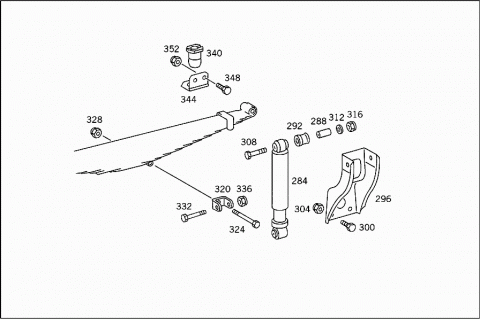

| 284 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 284 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 288 | A 0003233150 | BUSHING |
| TO 004 323 45 00 | ||
| 288 | A 0003235250 | BUSHING |
| TO 004 323 00 00 | ||
| 292 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 45 00 | ||
| 292 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 00 00 | ||
| 296 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 300 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 300 | A 0029909604 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 300 | N 000961014127 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 304 | N 913004014002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 308 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 308 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 308 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 312 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 316 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 320 | A 3953230140 | BRACKET |
| SHOCK ABSORBER | ||
| 324 | N 000960020075 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 328 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 332 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 332 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 336 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 340 | A 6209870039 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 344 | A 3953210040 | BRACKET |
| RUBBER BUFFER | ||
| 348 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 352 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||

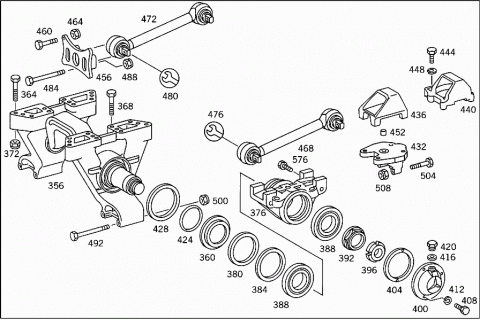

| 356 | A 3953200778 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 360 | A 3893251062 | THRUST WASHER |
| REAR SPRING CENTRAL BEARING CONSOLE | ||
| 364 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 364 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 364 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X90 | ||
| 368 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 368 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 368 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| M 20X145 | ||
| 372 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 376 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 376 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 376 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 380 | A 0059978447 | SEAL RING |
| INSIDE | ||
| 384 | A 0099978846 | SEAL RING |
| INSIDE | ||
| 388 | A 0029815005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 388 | A 0029815305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 388 | A 0059819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 388 | A 0079810205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 388 | A 0049810605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 388 | A 0039816805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 388 | A 0079810305 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 392 | A 3893252152 | SPACER WASHER |
| OUTSIDE | ||
| 396 | A 3899905060 | NUT |
| SPRING SADDLE | ||
| 400 | A 3893200684 | COVER |
| SPRING SUPPORT | ||
| 404 | A 3893250280 | GASKET |
| COVER TO REAR SPRING SADDLE | ||
| 408 | N 000933008145 | SCREW |
| COVER TO REAR SPRING SADDLE | ||
| 412 | N 912004008102 | LOCK WASHER |
| COVER TO REAR SPRING SADDLE | ||
| 416 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||
| 420 | N 007604014106 | SCREW PLUG |
| OIL REFILLING | ||
| 424 | A 0079975948 | SEAL RING |
| INSIDE | ||
| 428 | A 3953200067 | GASKET |
| INSIDE | ||
| 432 | A 3953251109 | BEARING BRACKET |
| REAR AXLES I AND II | ||
| 436 | A 6243250419 | SPRING SEAT |
| Repalced by: A 6253250019 | ||
| 436 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 436 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 440 | A 6243250519 | SPRING SEAT |
| Repalced by: A 6253250119 | ||
| 440 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 440 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 444 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 444 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 448 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 452 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 456 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 456 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I AND II CONTROL ARM BEARING BRACKETS,SEE GROUP: | ||
| "42" | ||
| 460 | N 000960014199 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 464 | N 913004014005 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 468 | A 6243500106 | CONTROL ARM |
| BOTTOM | ||
| 468 | A 6593501206 | CONTROL ARM |
| BOTTOM | ||
| 468 | A 6593503506 | CONTROL ARM |
| BOTTOM | ||
| 472 | A 6243500006 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 472 | A 6593501106 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 472 | A 6593503406 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 476 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 476 | A 0003500613 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 480 | A 0003500413 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 484 | N 000960020080 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| M 20X240 | ||
| 488 | N 913004020004 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 492 | N 000960020138 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M20X1,5X85 | ||
| 492 | N 000960020032 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 20X90 | ||
| 500 | N 913004020004 | NUT |
| CONTROL ARM TO REAR AXLE | ||
| 504 | N 000960020080 | SCREW |
| LOWER CONTROL ARM TO BEARING BRACKET | ||
| M 20X240 | ||
| 508 | N 913004020004 | NUT |
| LOWER CONTROL ARM TO BEARING BRACKET | ||

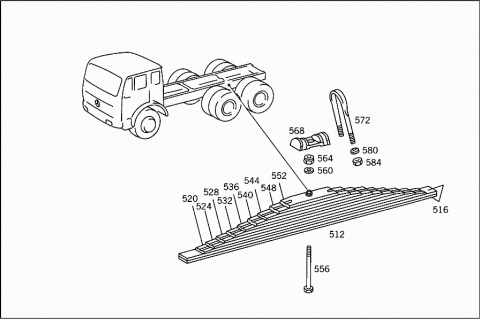

| 512 | A 3433200206 | REAR SPRING |
| 11-LEAF | ||
| 516 | A 3433200193 | SPRING LEAF |
| NO.1,NO.2 | ||
| 520 | A 3433240213 | SPRING LEAF |
| NO.3 | ||
| 524 | A 3433240214 | SPRING LEAF |
| NO.4 | ||
| 528 | A 3433240215 | SPRING LEAF |
| NO.5 | ||
| 532 | A 3433240216 | SPRING LEAF |
| NO.6 | ||
| 536 | A 3433240217 | SPRING LEAF |
| NO.7 | ||
| 540 | A 3433240218 | SPRING LEAF |
| NO.8 | ||
| 544 | A 3433240219 | SPRING LEAF |
| NO.9 | ||
| 548 | A 3433240220 | SPRING LEAF |
| NO.10 | ||
| 552 | A 3433240221 | SPRING LEAF |
| NO.11 | ||
| 556 | A 3473240271 | SPRING BOLT |
| 560 | N 007349019002 | WASHER |
| 564 | N 913004018004 | NUT |
| 568 | A 3433510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 568 | A 6243510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 572 | A 3953510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 335 MM | ||
| 576 | N 000960024047 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| 580 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 584 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
