Transporto priemonė: 2633 A, 6X6; VIN numerio dalis: 949066

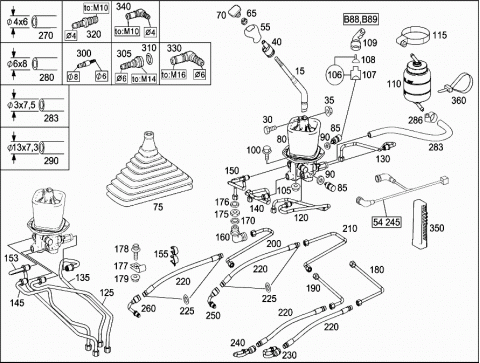

Grupė: 26 TRANSMISSION - 340 HYDRAULIC SHIFT CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 015 | A 9702682824 | SHIFT LEVER |
| 015 | A 9702682924 | SHIFT LEVER |
| 030 | N 304017008024 | HEXAGON HEAD BOLT |
| SHIFT LEVER TO CASE | ||
| M8X25 | ||
| 035 | N 000000003175 | NUT |
| SHIFT LEVER TO CASE | ||
| M8 | ||
| 040 | A 9702670031 | CONNECTOR |
| (SHIFT LEVER HANDLE) | ||
| 055 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 065 | N 913023010003 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| M10 | ||
| 070 | A 6732680157 | COVER |
| WITH GEAR INDICATOR | ||
| 075 | A 9412680097 | BOOT |
| SHIFT LEVER | ||
| 080 | A 0002606298 | SHIFT MECHANISM |
| SENDER UNIT | ||
| Repalced by: A 0002608098 | ||
| 080 | A 0002608098 | TRANSMISSION CONTROL UNIT |
| SENDER UNIT | ||
| 085 | A 9705420018 | PRESSURE SENSOR |
| Repalced by: A 9705420218 | ||
| 085 | A 9705420218 | PRESSURE SENSOR |
| 090 | N 007603010110 | SEALING RING |
| 10X13.5 | ||
| 100 | N 910105010009 | HEXAGON HEAD BOLT |
| SWITCHING UNIT AT CONSOLE | ||
| M10X25 | ||
| 100 | N 910105008019 | HEXAGON HEAD BOLT |
| GEARSHIFT LEVER WITH BELLOWS AT SWITCHING UNIT | ||
| M8X50 | ||
| 105 | N 913023010002 | NUT |
| SWITCHING UNIT AT CONSOLE | ||
| M10 | ||
| 105 | N 000000003175 | NUT |
| GEARSHIFT LEVER WITH BELLOWS AT SWITCHING UNIT | ||
| M8 | ||
| 106 | A 0025402381 | PARTS KIT |
| SWITCHING UNIT PRESSURE SENSOR | ||
| ,B88, B89, 4PIN | ||
| 107 | A 0155456526 | SOCKET HOUSING |
| 4-POLE | ||
| 108 | A 0095454726 | ROUND PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 108 | A 0065459126 | CONTAKT SOCKET |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 108 | A 0005457280 | WIRE SEAL |
| GREY | ||
| 0.5-1.0 MM2 | ||
| 108 | A 0005457380 | CORE BUNDLE SEALING |
| YELLOW COLOURED | ||
| 1.0-2.5 MM2 | ||
| 108 | A 0005456280 | BLIND PLUG |
| NATURAL-COLORED | ||
| 109 | A 0005467735 | BOOT |
| 90 DEGREE OUTLET WITH VARIABLE CLAMPING | ||
| 110 | A 0002680694 | EXPANSION TANK |
| SHIFT MECHANISM | ||
| 115 | N 000000000674 | CLAMP |
| EXPANSION RESERVOIR AT REINFORCEMENT | ||
| 70-90 MM | ||
| 120 | A 9492602285 | PIPE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 125 | A 9492603585 | OIL LINE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 130 | A 9492602885 | PIPE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 135 | A 9492603785 | OIL LINE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 140 | A 9492602585 | PIPE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 145 | A 9492603685 | OIL LINE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 150 | A 9492601985 | PIPE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 153 | A 9492603485 | OIL LINE |
| SWITCHING UNIT TO CAB FLOOR SEPARATION POINT | ||
| 155 | A 0009952614 | BRACKET |
| LINE CONNECTION THROUGH CAB FLOOR | ||
| 160 | N 003911010102 | FITTING |
| LINE CONNECTION THROUGH CAB FLOOR | ||
| 170 | N 007603017101 | SEAL RING |
| LINE CONNECTION THROUGH CAB FLOOR | ||
| 175 | N 000000000572 | NUT |
| LINE CONNECTION THROUGH CAB FLOOR | ||
| M16X1.5 | ||
| 176 | N 000125017016 | WASHER |
| LINE CONNECTION THROUGH CAB FLOOR | ||
| 177 | A 3609950301 | CLAMP |
| FASTENING, OIL LINE TO CAB | ||
| 178 | N 910143006001 | HEXALOBULAR BOLT |
| FASTENING, OIL LINE TO CAB | ||
| M6X16 | ||
| 179 | N 913023006001 | NUT |
| FASTENING, OIL LINE TO CAB | ||
| M6 | ||
| 180 | A 9492602185 | PIPE |
| FROM SEPARATION POINT TO HOSE | ||
| 190 | A 9492601885 | PIPE |
| FROM SEPARATION POINT TO HOSE | ||
| 200 | A 9492602485 | PIPE |
| FROM SEPARATION POINT TO HOSE | ||
| 210 | A 9492602785 | PIPE |
| FROM SEPARATION POINT TO HOSE | ||
| 220 | A 9492612983 | OIL PIPE |
| OIL LINE CONNECTION TO TRANSMISSION | ||
| SCHLAUCH | ||
| 225 | A 0129976845 | SEAL RING |
| 230 | A 9492602085 | PIPE |
| FROM HOSE TO SHIFT VALVE | ||
| 240 | A 9492601785 | PIPE |
| FROM HOSE TO SHIFT VALVE | ||
| 250 | A 9492602385 | PIPE |
| FROM HOSE TO GATE CYLINDER | ||
| 260 | A 9492602685 | PIPE |
| FROM HOSE TO GATE CYLINDER | ||
| 270 | A 0009872627 | PLASTIC PIPE |
| BREATHER LINE | ||
| 4X6 MM | ||
| 280 | A 0009872727 | PLASTIC PIPE |
| BREATHER LINE | ||
| 6X8 MM | ||
| 283 | A 9309970154 | HOSE |
| FROM EXPANSION RESERVOIR TO SWITCHING UNIT | ||
| 3X7,5 MM; 1770 MM | ||
| 286 | A 0009957505 | CLAMP |
| LINE MOUNTING | ||
| 290 | A 4372950535 | HOSE |
| BREATHING | ||
| 13X7.3 MM | ||
| 300 | A 0004740831 | PIPE CONNECTOR |
| LINE CONNECTIONS | ||
| 6 MM / 8 MM | ||
| 305 | A 0009904078 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 14; 6 MM | ||
| 310 | A 0019875046 | SEAL RING |
| 320 | A 0049971489 | CONNECTION PIECE |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 10; 4 MM; SDF | ||
| 330 | A 0059972689 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16; 6 MM; VOSS 232 | ||
| 340 | A 0049971389 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 10; 4 MM, VOSS 232 | ||
| 350 | A 0004293295 | AIR CLEANER |
| BREATHER LINE | ||
| 360 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5MM | ||
