Transporto priemonė: 2635 S/LS; VIN numerio dalis: 649136
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

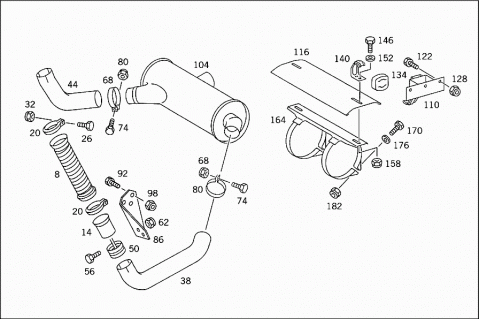

| 008 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 014 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 020 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 026 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 026 | N 304017008018 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 032 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 032 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 038 | A 6454900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 041 | A 6554901719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6454900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 047 | A 6554901819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 050 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 056 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 056 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 056 | N 000933010094 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 068 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 074 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 074 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 080 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 086 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 086 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 089 | A 6554920641 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 089 | A 6554920741 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 092 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 092 | N 000933010094 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 098 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 098 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 104 | A 6454900001 | EXHAUST MUFFLER |
| FRONT | ||
| 110 | A 6204900034 | SUPPORT |
| EXHAUST MUFFLER,FRONT | ||
| 116 | A 6204910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER,FRONT | ||
| 122 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 122 | N 308676014020 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 14X35 | ||
| 122 | N 000961014028 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 14X40 | ||
| 128 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 128 | N 910113014001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO SIDE MEMBER | ||
| 134 | A 3814920082 | DAMPING PAD |
| MUFFLER BRACKET TO FRAME | ||
| 140 | A 6204910141 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 146 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 146 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 152 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 152 | N 000125008443 | WASHER |
| BRACKET TO SUPPORT | ||
| 158 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 158 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 164 | A 6204900051 | SUPPORT |
| EXHAUST MUFFLER,FRONT | ||
| 170 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 170 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 176 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 176 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 182 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 182 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||

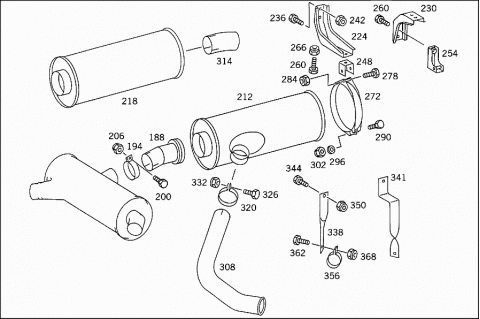

| 188 | A 6454900121 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 188 | A 6454900221 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| A 0001425457 | SEAL RING | |
| 194 | A 6454920440 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 200 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 206 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 206 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 212 | A 6454900201 | EXHAUST MUFFLER |
| REAR | ||
| 212 | A 6454900201 | EXHAUST MUFFLER |
| REAR | ||
| 218 | A 6454900301 | EXHAUST MUFFLER |
| REAR | ||
| 224 | A 6214910215 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 224 | A 6204910615 | CONSOLE |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 230 | A 6204910315 | CONSOLE |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 230 | A 6204910715 | CONSOLE |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 236 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 236 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 236 | N 308676012026 | SCREW |
| CONSOLE TO STRUT | ||
| 242 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 242 | N 910113012002 | NUT |
| CONSOLE TO STRUT | ||
| 248 | A 6204910341 | BRACKET |
| STRAP TO FRONT AND REAR CONSOLES | ||
| 248 | A 6204910541 | BRACKET |
| STRAP TO FRONT CONSOLE | ||
| 254 | A 6204900140 | BRACKET |
| STRAP TO REAR CONSOLE | ||
| 260 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 266 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 266 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 272 | A 6204900441 | STRAP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 272 | A 6204900441 | STRAP |
| EXHAUST MUFFLER TO FRONT BRACKET | ||
| 272 | A 6204910321 | STRAP |
| Repalced by: A 6204900441 | ||
| 272 | A 6204900441 | STRAP |
| EXHAUST MUFFLER TO REAR BRACKET | ||
| 278 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| 278 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 278 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 278 | N 304017010053 | SCREW |
| STRAP TO BRACKET | ||
| 284 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 284 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 290 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 296 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 296 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 302 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 302 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 308 | A 6454920404 | REAR EXHAUST PIPE |
| 308 | A 6454921104 | REAR EXHAUST PIPE |
| 314 | A 6454920504 | REAR EXHAUST PIPE |
| 320 | A 6454920940 | CLAMP |
| Repalced by: N 071555120502 | ||
| 320 | N 071555120500 | CLAMP |
| Repalced by: N 071555120502 | ||
| 320 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 326 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 332 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 332 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 338 | A 6454920041 | BRACKET |
| Repalced by: A 6554920441 | ||
| 338 | A 6554920441 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 338 | A 6454920441 | BRACKET |
| Repalced by: A 6244920741 | ||
| 338 | A 6244920741 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 341 | A 6454920241 | BRACKET |
| Repalced by: A 6554920541 | ||
| 341 | A 6554920541 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 344 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 344 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 MM | ||
| 344 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 344 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 MM | ||
| 350 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 350 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 350 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 350 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 356 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 356 | N 071555120502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 362 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 362 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 362 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 368 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 368 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 368 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||

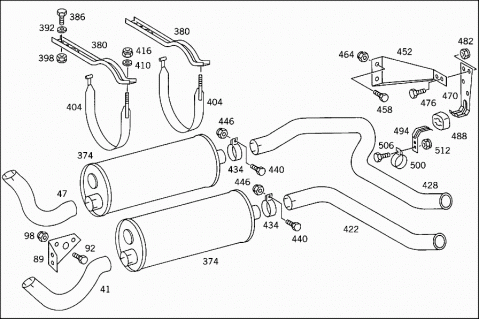

| 374 | A 6454900501 | EXHAUST MUFFLER |
| Repalced by: A 6454901501 | ||
| 374 | A 6454901501 | EXHAUST MUFFLER |
| 380 | A 6554910141 | BRACKET |
| EXHAUST MUFFLER,LEFT FRONT | ||
| 380 | A 6554910541 | BRACKET |
| EXHAUST MUFFLER,LEFT REAR | ||
| 380 | A 6554910941 | BRACKET |
| EXHAUST MUFFLER,RIGHT FRONT | ||
| 380 | A 6554910241 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 380 | A 6554911041 | BRACKET |
| EXHAUST MUFFLER,RIGHT REAR | ||
| 386 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 386 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 386 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 392 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 392 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 398 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 398 | N 910113014001 | NUT |
| 404 | A 6214900242 | STRAP |
| Repalced by: A 6554900942 | ||
| 404 | A 6554900942 | STRAP |
| EXHAUST MUFFLER,LEFT | ||
| 404 | A 6554900042 | STRAP |
| EXHAUST MUFFLER,RIGHT | ||
| 410 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER AND STRAP TO BRACKET | ||
| 416 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 416 | N 910113010000 | NUT |
| EXHAUST MUFFLER AND STRAP TO BRACKET | ||
| 422 | A 6554920004 | REAR EXHAUST PIPE |
| LEFT | ||
| 428 | A 6554920804 | REAR EXHAUST PIPE |
| RIGHT | ||
| 434 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 434 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 440 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 440 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 446 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 446 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 452 | A 6554920141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 452 | A 6554920041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 458 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 464 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 464 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 470 | A 6214920341 | BRACKET |
| REAR EXHAUST PIPES | ||
| 470 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPES | ||
| 476 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 476 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 482 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 482 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 488 | A 3814920082 | DAMPING PAD |
| REAR EXHAUST PIPES | ||
| 494 | A 6204926241 | BRACKET |
| REAR EXHAUST PIPES | ||
| 500 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 500 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 506 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 506 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 512 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 512 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
