Transporto priemonė: 2635 S/LS; VIN numerio dalis: 649136
Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|

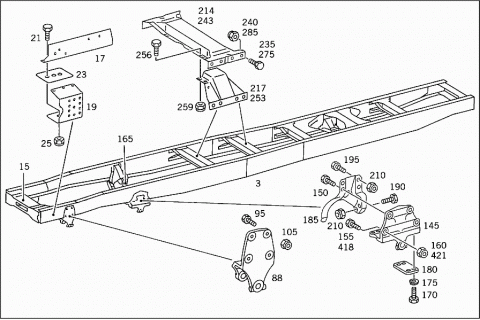

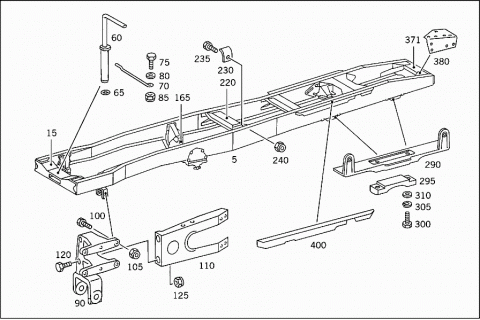

| 003 | A 6243102202 | FRAME |
| 005 | A 6243102701 | FRAME |
| 005 | A 6493100001 | FRAME |
| 005 | A 6243106101 | FRAME |
| 005 | A 6243103801 | FRAME |
| 005 | A 6243108601 | FRAME |
| 005 | A 6243103201 | FRAME |
| 005 | A 6243103501 | FRAME |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT FRAME AREA | ||
| 015 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 015 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| 015 | A 6203100122 | CROSS MEMBER |
| FRONT | ||
| 015 | A 6203100222 | CROSS MEMBER |
| FRONT | ||
| 017 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 017 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 019 | A 3878900032 | BOW |
| FRONT LEFT | ||
| 019 | A 3878900132 | BOW |
| FRONT RIGHT | ||
| 021 | N 000961012106 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X35 | ||
| 021 | N 308676012010 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X40 | ||
| 021 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 021 | N 000961012205 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X50 | ||
| 021 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 021 | N 308676014008 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 14X35 | ||
| 021 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 021 | A 9429901304 | SCREW |
| CLAMP TO SIDE MEMBER | ||
| M 14X40 | ||
| N 000125013008 | WASHER | |
| 023 | A 3878910696 | BASE |
| AS REQUIRED | ||
| 3.00 MM | ||
| 023 | A 3878910796 | BASE |
| AS REQUIRED | ||
| 4.00 MM | ||
| 023 | A 3878910896 | BASE |
| AS REQUIRED | ||
| 5.00 MM | ||
| 025 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 025 | N 910113012003 | NUT |
| CROSS MEMBER,GUSSET PLATES AND BRACKETS TO SIDE MEMBERS | ||
| 025 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 025 | N 910113014000 | NUT |
| CROSS MEMBER,GUSSET PLATES AND BRACKETS TO SIDE MEMBERS | ||
| 025 | N 910113014000 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 910005014018 | RIVET | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 14 X 40 | ||
| 060 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 060 | A 6203150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| LOCK SPRING TO CROSS MEMBER | ||
| 065 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 070 | A 3353150031 | LOCKING SPRING |
| TO SECURE COUPLING PIN | ||
| 070 | A 3873150031 | LOCKING SPRING |
| TO SECURE COUPLING PIN | ||
| 075 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 075 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 075 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 075 | N 304017008027 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 085 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 085 | N 913004008001 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 088 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 088 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 088 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 090 | A 6203220601 | FRONT SPRING BRACKET |
| FRONT | ||
| 095 | A 6569900014 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 095 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 100 | N 000961016108 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X32 | ||
| 100 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 100 | N 308676016004 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 105 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 105 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 110 | A 6203100653 | STRUT |
| Repalced by: A 6553100453 | ||
| 110 | A 6553100453 | STRUT |
| FRONT SPRING FRONT BRACKET,LEFT | ||
| 110 | A 6203100753 | STRUT |
| FRONT SPRING FRONT BRACKET,RIGHT | ||
| 120 | N 000960016250 | SCREW |
| STRUT TO FRONT SPRING BRACKET | ||
| 125 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 125 | N 910113016001 | NUT |
| STRUT TO FRONT SPRING BRACKET | ||
| 145 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 145 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 150 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER | ||
| 155 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 160 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 160 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 165 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 165 | A 3873120610 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 170 | N 000961014100 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 170 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| M 14X28 | ||
| 170 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| M 14X28 | ||
| 175 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 180 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 180 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 185 | A 6203121561 | STRUT |
| CROSS MEMBER AT FRONT SPRING REAR BRACKET | ||
| 190 | N 000961014113 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 195 | N 000961014028 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 195 | N 000961014028 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 195 | N 000961014028 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 210 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 210 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 210 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 210 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CENTRAL FRAME AREA | ||
| 214 | A 6243120025 | CROSS MEMBER |
| NO.3 | ||
| 217 | A 6243120261 | STRUT |
| AT CROSS MEMBER | ||
| NO.3 | ||
| 220 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 220 | A 6203100036 | CROSS MEMBER |
| NO.3 | ||
| 230 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 235 | N 000961014028 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 235 | N 000961014028 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 235 | N 000961014028 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 240 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 240 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 240 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 240 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 243 | A 3893120125 | CROSS MEMBER |
| NO.4 | ||
| 250 | A 3893120025 | CROSS MEMBER |
| NO.4 | ||
| 250 | A 3893120025 | CROSS MEMBER |
| NO.5 | ||
| A 3913100136 | CROSS MEMBER | |
| NO.4 | ||
| 253 | A 3873121961 | STRUT |
| AT CROSS MEMBER | ||
| NO.4 | ||
| 253 | A 3873120261 | STRUT |
| AT CROSS MEMBER | ||
| NO.4 | ||
| 253 | A 3873120261 | STRUT |
| AT CROSS MEMBER | ||
| NO.5 | ||
| 256 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 256 | A 0029908201 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 259 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 259 | N 910113012003 | NUT |
| STRUT TO CROSS MEMBER | ||
| 275 | N 000961014028 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| M 14X40 | ||
| 280 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 285 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 285 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| A 3953100037 | CROSS MEMBER | |
| NO.5 | ||
| A 3953100037 | CROSS MEMBER | |
| NO.4 | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961014028 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961016039 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 290 | A 3933250731 | PLATE |
| REAR AXLES I AND II | ||
| 295 | A 3933250044 | RUBBER BUFFER |
| REAR AXLES I AND II | ||
| 300 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 300 | N 304017010002 | SCREW |
| RUBBER BUFFER TO PLATE | ||
| 305 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO PLATE | ||
| 310 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 310 | N 007349010007 | WASHER |
| RUBBER BUFFER TO PLATE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

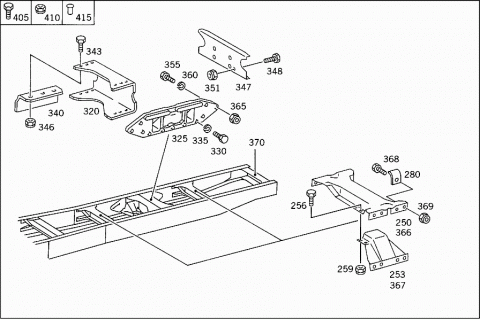

| REAR FRAME AREA | ||
| 320 | A 3953120124 | CROSS MEMBER |
| CENTRAL BEARING | ||
| 325 | A 6243250110 | SUPPORT |
| Repalced by: A 6243250310 | ||
| 325 | A 6243250310 | SUPPORT |
| REAR CROSS MEMBER | ||
| 330 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 330 | N 308676014020 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 335 | N 912004014100 | LOCK WASHER |
| SUPPORT TO CROSS MEMBER | ||
| 340 | A 6243120041 | ANGLE |
| Repalced by: A 6243120141 | ||
| 340 | A 6243120141 | ANGLE |
| REAR CROSS MEMBER | ||
| 343 | A 3219901601 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 346 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 346 | N 910113014000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 347 | A 6243120060 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 348 | N 000960012334 | SCREW |
| REINFORCEMENT TO CROSS MEMBER | ||
| M 12X45 | ||
| 351 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 351 | N 910113012003 | NUT |
| REINFORCEMENT TO CROSS MEMBER | ||
| 355 | A 0003120071 | SCREW |
| Repalced by: A 0003121271 | ||
| 355 | A 0003121271 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X40 | ||
| 355 | A 0003120271 | SCREW |
| Repalced by: N 914112016340 | ||
| 355 | N 914112016340 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X55 | ||
| 355 | A 0003120371 | SCREW |
| Repalced by: N 914112016339 | ||
| 355 | N 914112016341 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X60 | ||
| 355 | A 0003120471 | SCREW |
| Repalced by: N 914112016015 | ||
| 355 | N 914112016015 | SCREW |
| Repalced by: A 3469901104 | ||
| 355 | A 3469901104 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X65 | ||
| 355 | A 0003120171 | SCREW |
| Repalced by: A 0003121471 | ||
| 355 | A 0003121471 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| 355 | A 0003120671 | SCREW |
| Repalced by: N 914112016344 | ||
| 355 | N 914112016344 | SCREW |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X95 | ||
| 360 | N 912004016101 | LOCK WASHER |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| 365 | N 913012016002 | NUT |
| CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS | ||
| A 3433110187 | STOP | |
| REAR AXLE | ||
| N 000961012122 | SCREW | |
| STOP TO SIDE MEMBER | ||
| N 910113012002 | NUT | |
| STOP TO SIDE MEMBER | ||
| 366 | A 3893120025 | CROSS MEMBER |
| NO.7 | ||
| 367 | A 3873120261 | STRUT |
| AT CROSS MEMBER | ||
| NO.7 | ||
| 368 | N 000961014028 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 369 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 369 | N 910113014001 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 370 | A 3873120735 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 371 | A 6213120635 | CROSS MEMBER |
| Repalced by: A 6213120335 | ||
| 371 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 371 | A 6553120435 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 380 | A 6213120287 | GUSSET PLATE |
| REAR CROSS MEMBER,LEFT | ||
| 380 | A 6583120087 | GUSSET PLATE |
| REAR CROSS MEMBER,LEFT | ||
| 380 | A 6213120387 | GUSSET PLATE |
| REAR CROSS MEMBER,RIGHT | ||
| 380 | A 6583120187 | GUSSET PLATE |
| REAR CROSS MEMBER,RIGHT | ||
| 400 | A 6243160052 | ANGLE |
| SADDLE PLATE,LEFT | ||
| 400 | A 6243160152 | ANGLE |
| SADDLE PLATE,RIGHT | ||
| A 6203121584 | SHIM | |
| ANGLE TO SIDE MEMBER | ||
| N 000933010157 | SCREW | |
| GUSSET PLATE TO SIDE MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 405 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 405 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 405 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 405 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 405 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 405 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 405 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 405 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 405 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 405 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 405 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 405 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 405 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 405 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 405 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 405 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 405 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 405 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 405 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 405 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 405 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 405 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 405 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 405 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 405 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 405 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 405 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 405 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 405 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 405 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 405 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 405 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 405 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 405 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 405 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 405 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 405 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 405 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 405 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 405 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 405 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 405 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 405 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 405 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 405 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 405 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 405 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 405 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 405 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 405 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 405 | A 6569900014 | SCREW |
| M 16X18X25X45 | ||
| 405 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 405 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 405 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 405 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 405 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 405 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 405 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 405 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 405 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 410 | N 913004010011 | NUT |
| 410 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 410 | N 910113012003 | NUT |
| 410 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 410 | N 910113014000 | NUT |
| 410 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 410 | N 910113016001 | NUT |
| 410 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 415 | N 910005012080 | RIVET |
| 12X32 MM | ||
| 415 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 415 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 415 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 415 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 415 | N 910005014066 | RIVET |
| 14X70 MM | ||
| 415 | N 910005016009 | RIVET |
| 16X36 MM | ||
| 415 | N 910005016017 | RIVET |
| 16X48 MM | ||
| 418 | N 000961014028 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 421 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 421 | N 910113014001 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

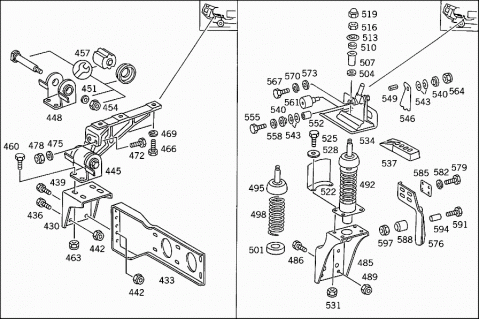

| CAB SUSPENSION,FRONT; SHORT MERCEDES-BENZ CAB | ||
| 430 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 430 | A 6458910331 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| A 6458900032 | BOW | |
| CAB SUSPENSION,FRONT | ||
| 433 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 433 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 436 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 436 | A 9429901304 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 439 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 439 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 442 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 442 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 445 | A 6208902103 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 445 | A 6208902203 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 448 | A 6208902003 | MOUNTING |
| 451 | N 007349017002 | WASHER |
| 454 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 454 | N 910113016002 | NUT |
| 457 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 460 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 460 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| 460 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 460 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE AND TO STRUT | ||
| N 000960014270 | SCREW | |
| MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT | ||
| 463 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 463 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE AND TO STRUT | ||
| 466 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 469 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 472 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 475 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 478 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 478 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CAB SUSPENSION,REAR; SHORT MERCEDES-BENZ CAB | ||
| 485 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 485 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 485 | A 3873170001 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 486 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 486 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 489 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 492 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 492 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 492 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 495 | A 0008910201 | RUBBER MOUNTING |
| TO 620 890 00 19 | ||
| 495 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19 | ||
| 498 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 498 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 501 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 504 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 504 | N 000433015005 | WASHER |
| VIBRATION ABSORBER | ||
| 507 | A 3813170753 | SPACER TUBE |
| VIBRATION ABSORBER | ||
| 510 | A 3275045082 | RUBBER RING |
| VIBRATION ABSORBER | ||
| 513 | A 3878912010 | WASHER |
| VIBRATION ABSORBER | ||
| 516 | N 000934012022 | NUT |
| VIBRATION ABSORBER | ||
| 519 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 519 | N 001587012010 | CAP NUT |
| VIBRATION ABSORBER | ||
| 522 | A 3813170031 | COVER PLATE |
| VIBRATION ABSORBER | ||
| 525 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 525 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 528 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 528 | N 009021008213 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 531 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 531 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| A 3978910430 | CLAMP | |
| Repalced by: A 6553170025 | ||
| A 6553170025 | BRACKET | |
| VIBRATION ABSORBER TO CONSOLE | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| CLAMP TO CONSOLE | ||
| N 000933010105 | SCREW | |
| CLAMP TO CONSOLE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| CLAMP TO CONSOLE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| CLAMP TO CONSOLE | ||
| 534 | A 3813102075 | LOCKING MECHANISM |
| Repalced by: A 6453100283 | ||
| 534 | A 6453100283 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 534 | A 3813101975 | LOCKING MECHANISM |
| Repalced by: A 6453100383 | ||
| 534 | A 6453100383 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 537 | A 3813170119 | LATCH |
| A 3813172374 | PIN | |
| 540 | A 3813170676 | WASHER |
| 543 | A 0009935426 | DISC SPRING |
| 546 | A 3813170924 | LEVER |
| 546 | A 6453100289 | TOOTHED SEGMENT |
| LEFT | ||
| 546 | A 6453100389 | TOOTHED SEGMENT |
| RIGHT | ||
| 549 | N 001481006041 | CLAMPING SLEEVE |
| 552 | A 6553170053 | SPACER TUBE |
| Repalced by: A 6017910036 | ||
| 552 | A 6017910036 | PIPE |
| 555 | N 000933010094 | SCREW |
| 558 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 558 | N 009021010209 | WASHER |
| 561 | A 6553100077 | BUFFER |
| A 6553170099 | COUPLING | |
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| 564 | N 910113012002 | NUT |
| 564 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 564 | N 910113010000 | NUT |
| 567 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 570 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 573 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 573 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 576 | A 3873170626 | GUIDE |
| CAB,LEFT | ||
| 576 | A 3873170726 | GUIDE |
| CAB, RIGHT | ||
| 579 | N 000961012151 | SCREW |
| GUIDE TO CAB | ||
| 582 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 585 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 588 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 591 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 594 | A 6523170053 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| N 001481010035 | CLAMPING SLEEVE | |
| SPACER TUBE TO BRACKET | ||
| 594 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 597 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

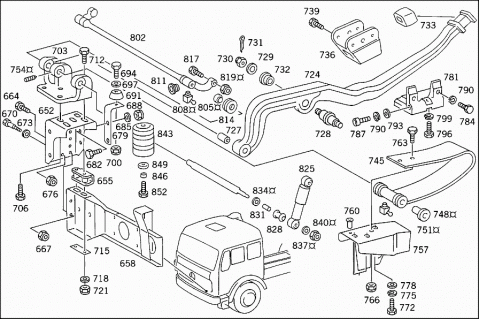

| CAB SUSPENSION,FRONT; MERCEDES-BENZ LARGE-CAPACITY CAB | ||
| 652 | A 3878912831 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 655 | A 6208900232 | BOW |
| CAB SUSPENSION,FRONT | ||
| 658 | A 6203100053 | STRUT |
| BUMPER,LEFT | ||
| 658 | A 6203100153 | STRUT |
| BUMPER,RIGHT | ||
| 664 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 664 | N 308676014008 | SCREW |
| CONSOLE TO FRAME | ||
| 664 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 664 | A 9429901304 | SCREW |
| CONSOLE TO FRAME | ||
| 664 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 664 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 664 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 667 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 667 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 670 | A 3469900014 | SCREW |
| CONSOLE TO FRAME | ||
| 670 | A 6209900014 | SCREW |
| CONSOLE TO FRAME | ||
| 673 | A 3939900240 | WASHER |
| CONSOLE TO FRAME | ||
| 676 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 676 | N 910113016001 | NUT |
| CONSOLE TO FRAME | ||
| 679 | A 3878900314 | BRACKET |
| LEFT RUBBER BUFFER | ||
| 679 | A 3878900414 | BRACKET |
| RIGHT RUBBER BUFFER | ||
| 682 | N 000961014028 | SCREW |
| BRACKET TO CONSOLE | ||
| 685 | N 007349015003 | WASHER |
| BRACKET TO CONSOLE | ||
| 688 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 688 | N 910113014001 | NUT |
| BRACKET TO CONSOLE | ||
| 691 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 694 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 694 | N 304017008034 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 697 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 697 | N 009021008213 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 700 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 700 | N 913004008001 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 703 | A 6208910420 | MOUNTING |
| CAB SUSPENSION,LEFT; SPRING,STABILIZER,VIBRATION ABSORBER | ||
| 703 | A 6208910520 | MOUNTING |
| CAB SUSPENSION,RIGHT; ROCKING LEVER, SPRING,STABILIZER,VIBRATION ABSORBER | ||
| 706 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 706 | N 308676014003 | SCREW |
| MOUNTING TO CONSOLE | ||
| 712 | N 000960014251 | SCREW |
| MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT | ||
| M 14X85 | ||
| 712 | N 000960014071 | SCREW |
| MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT | ||
| M 14X100 | ||
| 715 | A 3878910498 | SHIM |
| MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT | ||
| 718 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE | ||
| 721 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 721 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT | ||
| 724 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 727 | A 3879920003 | BUSHING |
| TILTING LEVER | ||
| 727 | A 3879920203 | BUSHING |
| TILTING LEVER | ||
| 728 | A 6208910257 | PIN |
| ON TOGGLE LEVER;FOR HYDRAULIC CYLINDER | ||
| 729 | A 3875530376 | WASHER |
| PIN TO TOGGLE LEVER | ||
| 730 | N 000979016005 | NUT |
| Repalced by: N 000979016008 | ||
| 730 | N 000979016008 | NUT |
| PIN TO TOGGLE LEVER | ||
| 731 | N 000094004065 | COTTER PIN |
| PIN TO TOGGLE LEVER | ||
| 732 | A 6208910017 | BUSHING |
| ON TOGGLE LEVER;FOR HYDRAULIC CYLINDER | ||
| 733 | A 3638910023 | BUFFER |
| TILTING LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 736 | A 6208901603 | MOUNTING |
| CAB TILTING LEVER | ||
| 739 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 739 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 742 | A 3873100077 | REPAIR KIT |

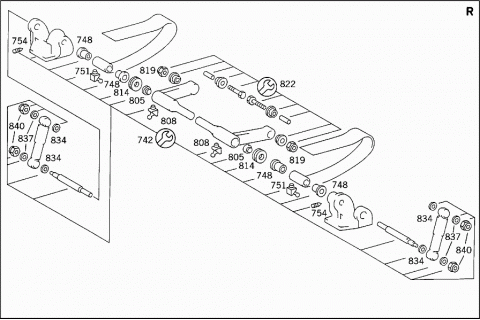

| CAB SUSPENSION,FRONT | ||
| 745 | A 6208910151 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 748 | A 3638910617 | BUSHING |
| SPRING | ||
| 751 | N 071412008200 | GREASE NIPPLE |
| FOR SPRING | ||
| 754 | N 000417008004 | HEADLESS SETSCREW |
| SHAFT ADJUSTMENT | ||
| 757 | A 6218900403 | MOUNTING |
| SPRING AND STABILIZER,LEFT | ||
| 757 | A 6218900503 | MOUNTING |
| SPRING AND STABILIZER,RIGHT | ||
| 760 | A 6218910157 | PIN |
| 763 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 763 | N 304017008034 | SCREW |
| SPRING TO BEARING | ||
| 766 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 766 | N 913004008001 | NUT |
| SPRING TO BEARING | ||
| 772 | N 000961014028 | SCREW |
| MOUNTING TO CONSOLE | ||
| 772 | N 000960014061 | SCREW |
| MOUNTING TO CAB | ||
| 775 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CONSOLE AND TO CAB | ||
| 778 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE AND TO CAB | ||
| 781 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT TOP | ||
| 781 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT TOP | ||
| 784 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 784 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 787 | N 006912012017 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 790 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 793 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 796 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 796 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 799 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 802 | A 6218900504 | STABILIZER |
| Repalced by: A 6558900004 | ||
| 802 | A 6558900004 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 805 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 805 | A 0019814631 | JOINT BEARING |
| 805 | A 0019814831 | JOINT BEARING |
| 808 | N 071412008200 | GREASE NIPPLE |
| 811 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 814 | A 3878911910 | WASHER |
| STABILIZER TO BEARING | ||
| 817 | N 000960014245 | SCREW |
| STABILIZER TO BEARING | ||
| 819 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 819 | N 910113014001 | NUT |
| STABILIZER TO BEARING | ||
| 822 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 825 | A 0008912205 | SHOCK ABSORBER |
| (VIBRATION ABSORBER), CAB FRONT SUSPENSION | ||
| 828 | A 0008910501 | RUBBER MOUNTING |
| 831 | A 0008910617 | BUSHING |
| 834 | A 6203170176 | WASHER |
| VIBRATION ABSORBER TO BEARING AND TO CAB | ||
| 837 | N 000125013008 | WASHER |
| 840 | N 910113012002 | NUT |
| VIBRATION ABSORBER TO BEARING AND TO CAB | ||
| 843 | A 3638910223 | BUFFER |
| (HOLLOW RUBBER SPRING),CAB | ||
| 846 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING | ||
| 849 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING | ||
| 852 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 852 | N 304017010002 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| A 3878912210 | WASHER | |
| Repalced by: A 4432610076 | ||
| A 4432610076 | WASHER | |
| HOLLOW RUBBER SPRING TO CAB | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

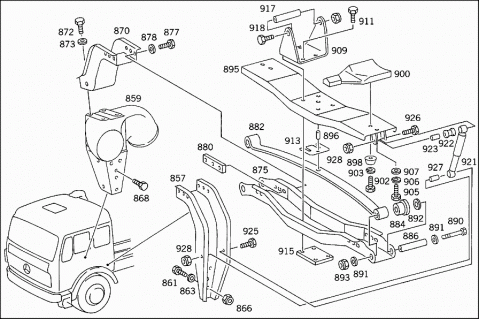

| CAB SUSPENSION,REAR; MERCEDES-BENZ LARGE-CAPACITY CAB | ||
| 857 | A 6208910031 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 859 | A 6208911631 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT,BOTTOM; AND AIR INTAKE | ||
| 861 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 861 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 863 | N 007349015003 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 866 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 866 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 868 | N 000961016040 | SCREW |
| CONSOLE AND ENGINE REAR MOUNTING CONSOLE TO SIDE MEMBER | ||
| 870 | A 6208910131 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT,TOP | ||
| 872 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 873 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||
| 873 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 873 | N 007349013005 | WASHER |
| CONSOLE TO CONSOLE | ||
| 875 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 875 | A 6558910224 | STRUT |
| CAB SUSPENSION,REAR | ||
| 877 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 877 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X25 | ||
| 877 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X30 | ||
| 878 | N 000125013008 | WASHER |
| 880 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 882 | A 6208910051 | SPRING |
| (LEAF SPRING),CAB SUSPENSION | ||
| 884 | A 3638910717 | BUSHING |
| LEAF SPRING | ||
| 886 | A 3638910218 | TUBE |
| LEAF SPRING | ||
| 890 | N 000960012332 | SCREW |
| LEAF SPRING TO STRUT | ||
| 891 | N 009021013203 | WASHER |
| LEAF SPRING TO STRUT | ||
| 892 | A 3638910010 | WASHER |
| LEAF SPRING TO STRUT | ||
| 893 | N 910113012002 | NUT |
| LEAF SPRING TO STRUT | ||
| 895 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 895 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 896 | N 000007012200 | CYLINDRICAL PIN |
| 898 | A 3878910323 | BUFFER |
| RAIL STOP | ||
| 900 | A 6208910272 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 902 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 903 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 905 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 905 | N 304017008021 | SCREW |
| MOUNTING TO RAIL | ||
| 906 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 907 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 907 | N 000125008443 | WASHER |
| MOUNTING TO RAIL | ||
| 909 | A 6208910020 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 911 | N 000931010258 | SCREW |
| MOUNTING AND RAIL TO LEAF SPRING | ||
| 913 | A 6208910296 | BASE |
| MOUNTING AND RAIL TO LEAF SPRING | ||
| 915 | A 3878910811 | PLATE |
| MOUNTING AND RAIL TO LEAF SPRING | ||
| 917 | A 3878911753 | SPACER TUBE |
| CAB LOCKING MECHANISM | ||
| 918 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 918 | N 000960016251 | SCREW |
| SPACER TUBE TO MOUNTING | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| SPACER TUBE TO MOUNTING | ||
| 921 | A 0008912205 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 922 | A 0008910501 | RUBBER MOUNTING |
| 923 | A 0008910617 | BUSHING |
| 925 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 925 | N 000960018072 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 926 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 926 | N 000960018142 | SCREW |
| VIBRATION ABSORBER TO CONNECTING RAIL | ||
| 927 | A 3878910453 | SPACER TUBE |
| VIBRATION ABSORBER TO CONSOLE | ||
| 928 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 928 | N 910113018004 | NUT |
| VIBRATION ABSORBER TO CONSOLE AND TO CONNECTING RAIL | ||

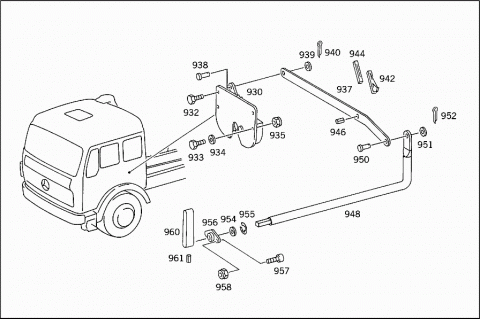

| X XXXXXXXXXXXX | PART NAME MISSING | |
| CAB LOCKING MECHANISM; MERCEDES-BENZ LARGE-CAPACITY CAB | ||
| 930 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 930 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 930 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) CAB LOCKING MECHANISM | ||
| 932 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 933 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 934 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 934 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 935 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 935 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 937 | A 6208910070 | ROD |
| Repalced by: A 6208910270 | ||
| 937 | A 6208910270 | ROD |
| CAB LOCKING MECHANISM | ||
| 938 | N 001444008202 | PIN |
| ROD TO CENTRAL LOCKING MECHANISM | ||
| A 1269911907 | PIN | |
| ROD TO CENTRAL LOCKING MECHANISM | ||
| 939 | N 000433008406 | WASHER |
| ROD TO CENTRAL LOCKING MECHANISM | ||
| 940 | N 000094002059 | COTTER PIN |
| ROD TO CENTRAL LOCKING MECHANISM | ||
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| ROD TO CENTRAL LOCKING MECHANISM | ||
| 942 | A 3878910814 | BRACKET |
| ROD THRU CAB | ||
| 944 | A 3878910085 | SEAL |
| ROD THRU CAB | ||
| 946 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 948 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 948 | A 6208910556 | LEVER |
| CAB LOCKING MECHANISM | ||
| 950 | N 001444008233 | PIN |
| LEVER TO ROD | ||
| 951 | N 000433008406 | WASHER |
| LEVER TO ROD | ||
| 952 | N 000094002059 | COTTER PIN |
| LEVER TO ROD | ||
| 954 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 954 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 955 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 956 | A 3638910317 | BUSHING |
| LEVER TO CAB | ||
| 957 | N 007985008142 | SCREW |
| BUSHING AND LEVER TO CAB | ||
| 958 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 958 | N 913004008001 | NUT |
| BUSHING AND LEVER TO CAB | ||
| A 2019900292 | RIVET | |
| 960 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 961 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 961 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 961 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
