Transporto priemonė: 2635 S/LS; VIN numerio dalis: 649136
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

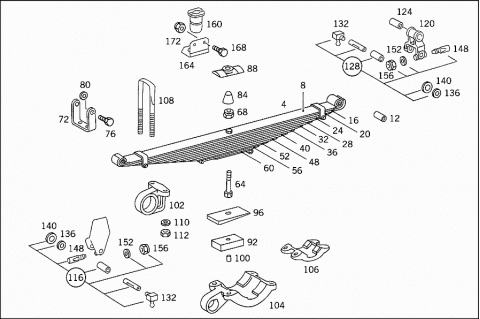

| FRONT SPRING | ||
| 004 | A 3873200102 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 12 | ||
| 004 | A 3873200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 9 | ||
| 004 | A 3953200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 10 | ||
| 008 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3953200094 | SPRING LEAF |
| Repalced by: A 3953200394 | ||
| 008 | A 3953200394 | SPRING LEAF |
| NO.1 | ||
| 012 | A 6203210050 | BUSHING |
| 012 | A 3043210150 | BUSHING |
| 016 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3873210312 | SPRING LEAF |
| NO 2 | ||
| 016 | A 3953210312 | SPRING LEAF |
| NO 2 | ||
| 020 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 020 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 020 | A 3873210013 | SPRING LEAF |
| NO. 3 | ||
| 020 | A 3463215613 | SPRING LEAF |
| Repalced by: A 3953210013 | ||
| 020 | A 3953210013 | SPRING LEAF |
| NO. 3 | ||
| 024 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 024 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3463215614 | SPRING LEAF |
| Repalced by: A 6593210614 | ||
| 024 | A 6593210614 | SPRING LEAF |
| NO.4 | ||
| 028 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 028 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 028 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 028 | A 3463215615 | SPRING LEAF |
| Repalced by: A 3953210015 | ||
| 028 | A 3953210015 | SPRING LEAF |
| NO.5 | ||
| 032 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 032 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 032 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 032 | A 3463215616 | SPRING LEAF |
| Repalced by: A 3953210016 | ||
| 032 | A 3953210016 | SPRING LEAF |
| NO.6 | ||
| 036 | A 3633210017 | SPRING LEAF |
| Repalced by: A 6593210617 | ||
| 036 | A 6593210617 | SPRING LEAF |
| NO.7 | ||
| 036 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 036 | A 3463215617 | SPRING LEAF |
| Repalced by: A 6593210517 | ||
| 036 | A 6593210517 | SPRING LEAF |
| NO.7 | ||
| 040 | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 040 | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| 040 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 040 | A 3463215618 | SPRING LEAF |
| NO.8 | ||
| 048 | A 3633210019 | SPRING LEAF |
| Repalced by: A 6593210619 | ||
| 048 | A 6593210619 | SPRING LEAF |
| NO.9 | ||
| 048 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 048 | A 3463215619 | SPRING LEAF |
| Repalced by: A 6593210519 | ||
| 048 | A 6593210519 | SPRING LEAF |
| NO.9 | ||
| 052 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 052 | A 3463215620 | SPRING LEAF |
| NO.10 | ||
| 056 | A 3633210021 | SPRING LEAF |
| NO.11 | ||
| 060 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 060 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 064 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 064 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 064 | A 3463215071 | SCREW |
| (SPRING BOLT) | ||
| 068 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 068 | N 910113014000 | NUT |
| (SPRING BOLT) | ||
| 072 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 072 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,FRONT AND REAR | ||
| 072 | A 6203240433 | SPRING CLAMP |
| SPRING EYE,REAR | ||
| 072 | A 6593240033 | SPRING CLAMP |
| SPRING EYE,FRONT | ||
| 076 | N 000963012011 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 080 | A 3039902440 | WASHER |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 084 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 084 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 088 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 088 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 088 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 088 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 088 | A 6203310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 088 | A 3873310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 088 | A 6553310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 088 | A 6553310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 092 | A 3613310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 092 | A 3873310228 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 092 | A 3863220028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 096 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 100 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 102 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 104 | A 6213230920 | BEARING |
| TORSION BAR,LEFT | ||
| 104 | A 6213231020 | BEARING |
| TORSION BAR,RIGHT | ||
| 106 | A 6243220031 | PLATE |
| LEFT FRONT SPRING | ||
| 106 | A 6243220131 | PLATE |
| RIGHT FRONT SPRING | ||
| A 6563210184 | SHIM | |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 108 | A 3043311925 | U-BOLT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 275 MM | ||
| 108 | A 3043311925 | U-BOLT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 275 MM | ||
| 108 | A 3043311625 | U-BOLT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 245 MM | ||
| 108 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 110 | A 3859970126 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 112 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 112 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 112 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 116 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 120 | A 3873200162 | SHACKLE |
| FRONT SPRING,REAR | ||
| 124 | A 3043210150 | BUSHING |
| 124 | A 6203210050 | BUSHING |
| 128 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 132 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 136 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 136 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 136 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 140 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 148 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 152 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 152 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 156 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 156 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 160 | A 6209870039 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 164 | A 3953210040 | BRACKET |
| RUBBER BUFFER | ||
| 168 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 172 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 172 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

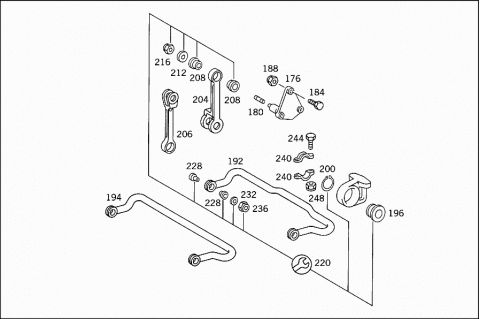

| FRONT AXLE TORSION BAR | ||
| 176 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 176 | A 6203230363 | BEARING BRACKET |
| LINK TO FRAME | ||
| 180 | N 000939012102 | STUD BOLT |
| 184 | N 000961016040 | SCREW |
| CONSOLE TO FRAME | ||
| M 16X45 | ||
| 184 | N 308676016015 | SCREW |
| M 16X55 | ||
| 188 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 188 | N 910113016002 | NUT |
| CONSOLE TO FRAME | ||
| 192 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 192 | A 6523230765 | TORSION BAR |
| FRONT AXLE | ||
| 194 | A 6213230265 | TORSION BAR |
| FRONT AXLE | ||
| 196 | A 3873230285 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 196 | A 6213230085 | RUBBER MOUNTING |
| LINK TO TORSION BAR | ||
| 200 | N 000983068000 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 204 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 206 | A 6213230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 208 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 212 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 216 | N 910113012002 | NUT |
| LINK TO CONSOLE | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| LINK TO CONSOLE | ||
| 220 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 220 | A 6213200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 228 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 232 | N 007349017002 | WASHER |
| TORSION BAR TO SHACKLE | ||
| 236 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 236 | N 910113016001 | NUT |
| TORSION BAR TO SHACKLE | ||
| 240 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 240 | A 6213230340 | BRACKET |
| TORSION BAR TO SHACKLE | ||
| 244 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 244 | N 308676012012 | SCREW |
| TORSION BAR TO SHACKLE | ||
| 248 | N 910113012002 | NUT |
| TORSION BAR TO SHACKLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

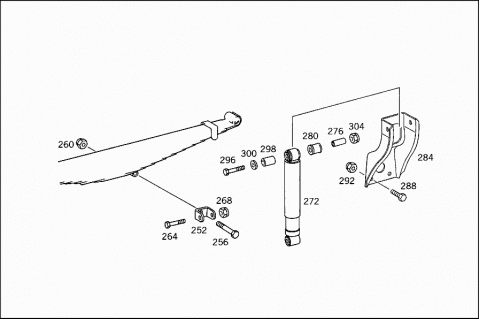

| FRONT AXLE SHOCK ABSORBER | ||
| 252 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 256 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 256 | N 000960020084 | SCREW |
| BRACKET TO SPRING | ||
| 260 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 260 | N 913004020003 | NUT |
| BRACKET TO SPRING | ||
| 264 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 268 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 268 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 272 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 272 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 272 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 272 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 272 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 276 | A 0003235250 | BUSHING |
| TO 004 323 00 00 | ||
| 276 | A 0003233150 | BUSHING |
| TO 004 323 44 00,45 00,006 323 07 00 | ||
| 280 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 280 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 00 00,003 323 97 00 | ||
| 280 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 44 00,45 00,006 323 07 00 | ||
| 284 | A 6243230340 | BRACKET |
| SHOCK ABSORBER TO SIDE MEMBER | ||
| 284 | A 6243230340 | BRACKET |
| SHOCK ABSORBER TO SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 52 | ||
| 288 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 288 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 288 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 292 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 292 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 292 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 296 | N 000960016275 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 296 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 296 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 296 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 298 | A 6208910053 | SPACER TUBE |
| Repalced by: A 6458910653 | ||
| 298 | A 6458910653 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 298 | A 6458910553 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 300 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 300 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 304 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 304 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

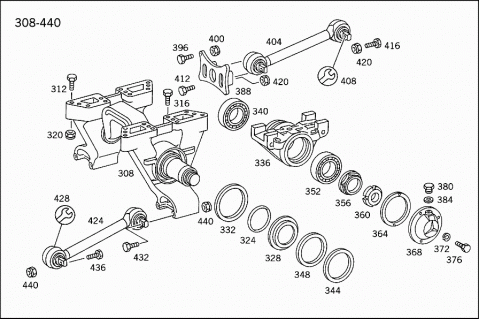

| REAR SPRING CENTRAL BEARING | ||
| 308 | A 3953200778 | CONSOLE |
| REAR SPRING CENTRAL BEARING | ||
| 312 | A 0003250175 | SCREW |
| Repalced by: A 0003250775 | ||
| 312 | A 0003250775 | SCREW |
| CONSOLE TO FRAME | ||
| 312 | N 914112020200 | SCREW |
| CONSOLE TO FRAME | ||
| 316 | A 0003250075 | SCREW |
| Repalced by: A 0003250475 | ||
| 316 | A 0003250475 | SCREW |
| CONSOLE TO FRAME | ||
| 316 | N 914112020204 | SCREW |
| CONSOLE TO FRAME | ||
| 320 | N 913012020000 | NUT |
| CONSOLE TO FRAME | ||
| 324 | A 0079975948 | SEAL RING |
| CONSOLE,INSIDE | ||
| 328 | A 3893251062 | THRUST WASHER |
| CONSOLE,INSIDE | ||
| 332 | A 3953200067 | GASKET |
| CONSOLE,OUTSIDE | ||
| 336 | A 3953250312 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 336 | A 6243250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 336 | A 6243250212 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 340 | A 0029815005 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 340 | A 0029815305 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 340 | A 0059819005 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 340 | A 0079810205 | TAPERED ROLLER BEARING |
| SPRING SADDLE,INSIDE | ||
| 344 | A 0099978846 | SEAL RING |
| INSIDE | ||
| 348 | A 0059978447 | SEAL RING |
| OUTSIDE | ||
| 352 | A 0049810605 | TAPERED ROLLER BEARING |
| SPRING SADDLE,OUTSIDE | ||
| 352 | A 0039816805 | TAPERED ROLLER BEARING |
| SPRING SADDLE,OUTSIDE | ||
| 352 | A 0079810305 | TAPERED ROLLER BEARING |
| SPRING SADDLE,OUTSIDE | ||
| 356 | A 3893252152 | SPACER WASHER |
| SPRING SADDLE TO CONSOLE | ||
| 360 | A 3899905060 | NUT |
| SPRING SADDLE TO CONSOLE | ||
| 364 | A 3893250280 | GASKET |
| TO LOCK SPRING SADDLE | ||
| 368 | A 3893200684 | COVER |
| TO LOCK SPRING SADDLE | ||
| 372 | N 912004008102 | LOCK WASHER |
| COVER TO SPRING SADDLE | ||
| 376 | N 000933008145 | SCREW |
| COVER TO SPRING SADDLE | ||
| 380 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 380 | N 007604014110 | SCREW PLUG |
| OIL FILLING | ||
| 384 | N 007603014106 | SEAL RING |
| OIL FILLING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| UPPER CONTROL ARM | ||
| 388 | A 3953253609 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 388 | A 3953253909 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| 396 | N 308676014002 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 400 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 400 | N 910113014000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 404 | A 6243500006 | CONTROL ARM |
| UPPER CONTROL ARM | ||
| 404 | A 6593501106 | CONTROL ARM |
| UPPER CONTROL ARM | ||
| 404 | A 6593503406 | CONTROL ARM |
| UPPER CONTROL ARM | ||
| 408 | A 0003500413 | REPAIR KIT |
| UPPER CONTROL ARM | ||
| 412 | N 000960020080 | SCREW |
| UPPER CONTROL ARM TO FRAME | ||
| 416 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 416 | N 000960020078 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 420 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 420 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO FRAME | ||
| 420 | N 913004020003 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LOWER CONTROL ARM | ||
| 424 | A 6243500106 | CONTROL ARM |
| LOWER CONTROL ARM | ||
| 424 | A 6593501206 | CONTROL ARM |
| LOWER CONTROL ARM | ||
| 424 | A 6593503506 | CONTROL ARM |
| LOWER CONTROL ARM | ||
| 428 | A 0005861135 | REPAIR KIT |
| Repalced by: A 0003500613 | ||
| 428 | A 0003500613 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 432 | N 000960020080 | SCREW |
| LOWER CONTROL ARM TO CONSOLE | ||
| 436 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 436 | N 308765020012 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 440 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 440 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO CONSOLE | ||
| 440 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 442 | A 3953251109 | BEARING BRACKET |
| LOWER CONTROL ARM TO REAR AXLE | ||
| 444 | A 6243250519 | SPRING SEAT |
| Repalced by: A 6253250119 | ||
| 444 | A 6253250119 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 444 | A 6253250119 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 444 | A 6243250419 | SPRING SEAT |
| Repalced by: A 6253250019 | ||
| 444 | A 6253250019 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 444 | A 6253250019 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 446 | A 6243251219 | SPRING SEAT |
| Repalced by: A 6593250219 | ||
| 446 | A 6593250219 | SPRING SEAT |
| REAR AXLE I,RIGHT | ||
| 446 | A 6593250219 | SPRING SEAT |
| REAR AXLE II,LEFT | ||
| 446 | A 6243251319 | SPRING SEAT |
| Repalced by: A 6593250319 | ||
| 446 | A 6593250319 | SPRING SEAT |
| REAR AXLE I,LEFT | ||
| 446 | A 6593250319 | SPRING SEAT |
| REAR AXLE II,RIGHT | ||
| 448 | A 3433250044 | RUBBER BUFFER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 450 | A 3953250043 | BRACKET |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 452 | A 3953250053 | SPACER TUBE |
| Repalced by: A 3805410053 | ||
| 452 | A 3805410053 | SPACER TUBE |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 454 | N 000931010272 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 10X85 | ||
| 454 | N 000933010145 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| M 10X35 | ||
| 456 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 456 | N 007349010007 | WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 458 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 458 | N 910113010000 | NUT |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 460 | A 3893250074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 462 | A 3959900201 | SCREW |
| Repalced by: A 6599900001 | ||
| 462 | A 6599900001 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 464 | N 074361022351 | LOCK WASHER |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

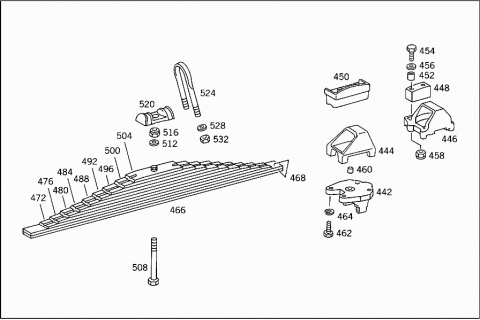

| REAR SPRING | ||
| 466 | A 3433200206 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 11 | ||
| 466 | A 3433200106 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 8 | ||
| 468 | A 3433200193 | SPRING LEAF |
| NO.1,NO.2 | ||
| 468 | A 3433200093 | SPRING LEAF |
| NO.1,NO.2 | ||
| 472 | A 3433240213 | SPRING LEAF |
| NO.3 | ||
| 472 | A 3433240113 | SPRING LEAF |
| NO.3 | ||
| 476 | A 3433240214 | SPRING LEAF |
| NO.4 | ||
| 476 | A 3433240114 | SPRING LEAF |
| NO.4 | ||
| 480 | A 3433240215 | SPRING LEAF |
| NO.5 | ||
| 480 | A 3433240115 | SPRING LEAF |
| NO.5 | ||
| 484 | A 3433240216 | SPRING LEAF |
| NO.6 | ||
| 484 | A 3433240116 | SPRING LEAF |
| NO.6 | ||
| 488 | A 3433240217 | SPRING LEAF |
| NO.7 | ||
| 488 | A 3433240117 | SPRING LEAF |
| NO.7 | ||
| 492 | A 3433240218 | SPRING LEAF |
| NO.8 | ||
| 492 | A 3433240118 | SPRING LEAF |
| NO.8 | ||
| 496 | A 3433240219 | SPRING LEAF |
| NO.9 | ||
| 500 | A 3433240220 | SPRING LEAF |
| NO.10 | ||
| 504 | A 3433240221 | SPRING LEAF |
| NO.11 | ||
| 508 | A 3473240271 | SPRING BOLT |
| 512 | N 007349019002 | WASHER |
| 516 | N 913004018004 | NUT |
| 520 | A 3433510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 520 | A 6243510126 | SPRING CLAMPING PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 524 | A 3953510125 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 528 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 532 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
