Transporto priemonė: 2636 AS; VIN numerio dalis: 624336
Grupė: 42 BRAKES
42290
42291
42292
42293
42294
42295
42296
42297
42298
42299
42300
42301
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
731.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
740.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
740.5
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
740.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
740.3
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"

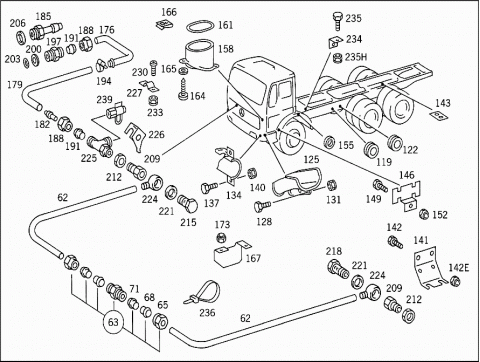

002 A 0004291601 LINE
FROM ENGINE AIR INTAKE PIPE SOCKET TO AIR COMPRESSOR
22 MM
005 N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
Repalced by: N 000000006243
005 N 000000006243 NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
008 N 003861022004 GLAND
Repalced by: A 0019901267
008 A 0019901267 SEAL CONE
COMPRESSED AIR LINE TO AIR COMPRESSOR
011 N 900271022023 HOSE
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
22X31 MM
014 N 916017025000 CLAMP
Repalced by: N 000000000668
014 N 000000000668 CLAMP
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
017 A 4031340156 FITTING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
020 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
023 A 0004291401 LINE
15 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM AIR RESERVOIR TO CHECK VALVE
026 N 915018015000 UNION NUT
N 915017015100 UNION NUT
029 N 003861015004 GLAND
032 N 915065015101 THRUST RING
035 N 915045012100 SEAL RING
Repalced by: N 007603012121
035 N 007603012121 SEAL RING
038 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
041 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
044 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
047 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
050 A 3609952001 CLAMP
Repalced by: A 6739950001
050 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
053 N 007985006145 SCREW
Repalced by: N 007985006581
053 N 007985006581 SCREW
CLAMP TO BRACKET
M 6X20
053 N 007985006193 SCREW
Repalced by: N 000000001146
053 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
056 N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
056 N 000125006449 WASHER
CLAMP TO BRACKET
059 N 913004006002 NUT
Repalced by: N 913004006001
059 N 913004006001 NUT
CLAMP TO BRACKET
061 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
062 A 0109975982 HOSE
Repalced by: A 0009872827
062 A 0009872827 PLASTIC PIPE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
T YYYYYYYYYYYY PART NAME MISSING
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM CHECK VALVE TO PARKING BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
HAND BRAKE VALVE BLEEDING
063 A 0049971772 FITTING
Repalced by: A 0029906171
063 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
065 N 915017012100 UNION NUT
Repalced by: N 000000006239
065 N 000000006239 UNION NUT
068 N 003861012007 GLAND
Repalced by: A 0019901967
068 A 0019901967 SEAL CONE
071 A 0009921505 BUSHING
Repalced by: N 915062009000
071 N 915062009000 SLEEVE
074 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
077 A 0019901088 BANJO UNION
AIR RESERVOIR,CONNECTION:
"21,22"
A 0019908171 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
080 A 0019903970 T-FITTING
Repalced by: A 0029909070
080 A 0029909070 T-FITTING
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
083 A 0089979082 HOSE
6X8 MM
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
3/2-WAY VALVE,BRAKE POWER REGULATOR
T YYYYYYYYYYYY PART NAME MISSING
PRESSURE GAUGE
T YYYYYYYYYYYY PART NAME MISSING
PARKING BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
AXLE BREATHING
085 A 0039978972 FITTING
Repalced by: A 0029905971
085 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
086 N 915017008100 UNION NUT
089 N 003861008005 GLAND
092 N 915062006000 SLEEVE
095 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
098 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
101 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
104 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
107 A 0089976082 HOSE
Repalced by: A 0009872627
107 A 0009872627 PLASTIC PIPE
AIR RESERVOIR,PRESSURE GAUGE
4 X 6 MM
108 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
110 N 915017006100 UNION NUT
113 N 003861006007 GLAND
Repalced by: A 0019901667
113 A 0019901667 SEAL CONE
116 N 915062004000 SLEEVE
119 A 6209970181 GROMMET
COMPRESSED AIR LINE THRU FRAME
42/36 MM
119 A 6454290081 GROMMET
Repalced by: A 6554290081
119 A 6554290081 GROMMET
COMPRESSED AIR LINE THRU FRAME
122 A 3549970081 GROMMET
COMPRESSED AIR LINE THRU FRAME
32/27 MM
122 A 3879970481 GROMMET
COMPRESSED AIR LINE THRU FRAME
38/30 MM
A 3604280243 ANGLE
BREATHER LINE TO FRONT AXLE
125 A 6204201186 BRACKET
COMPRESSED AIR LINE
125 A 6204201586 BRACKET
COMPRESSED AIR LINE
125 A 6204201286 BRACKET
COMPRESSED AIR LINE
125 A 6204201686 BRACKET
COMPRESSED AIR LINE
128 N 000933008147 SCREW
Repalced by: N 304017008021
128 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
131 N 913004008004 NUT
Repalced by: N 913004008001
131 N 913004008001 NUT
BRACKET TO BUMPER STRUT
134 A 6204201386 BRACKET
Repalced by: A 6154200086
134 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
134 A 6204201986 BRACKET
LEFT COMPRESSED AIR LINES
134 A 6204201486 BRACKET
RIGHT COMPRESSED AIR LINES
134 A 6204202086 BRACKET
RIGHT COMPRESSED AIR LINES
137 N 000933008153 SCREW
Repalced by: N 304017008034
137 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
137 N 000961014100 SCREW
BRACKET TO CAB CONSOLE
140 N 913004008004 NUT
Repalced by: N 913004008001
140 N 913004008001 NUT
BRACKET TO CAB CONSOLE
140 N 913004014002 NUT
Repalced by: N 910113014001
140 N 910113014001 NUT
BRACKET TO CAB CONSOLE
141 A 6204297040 BRACKET
LINE MOUNTING
142 N 000933010129 SCREW
Repalced by: N 304017010002
142 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
142E N 913004010008 NUT
Repalced by: N 910113010000
142E N 910113010000 NUT
BRACKET TO SIDE MEMBER
143 A 6204294340 BRACKET
Repalced by: A 3604293140
143 A 3604293140 BRACKET
COMPRESSED AIR LINE
146 A 6204293940 BRACKET
COMPRESSED AIR LINE
146 A 6204293940 BRACKET
COMPRESSED AIR LINE
149 N 000933008152 SCREW
Repalced by: N 304017008027
149 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
149 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
152 N 913004008004 NUT
Repalced by: N 913004008001
152 N 913004008001 NUT
BRACKET TO SIDE MEMBER
152 N 913004008001 NUT
BRACKET TO SIDE MEMBER
155 A 3609902340 WASHER
BRAKE LINE TO SIDE MEMBER
158 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
158 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
161 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
164 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
165 N 009021005202 WASHER
Repalced by: N 009021005205
165 N 009021005205 WASHER
BRACKET TO CAB FLOOR
166 A 0009946445 LOCK
BRACKET TO CAB FLOOR
167 A 6204295240 BRACKET
BETWEEN THE LINES
173 N 913004006002 NUT
Repalced by: N 913004006001
173 N 913004006001 NUT
BRACKET TO CAB FLOOR
176 A 3834290801 LINE
Repalced by: A 6194290801
176 A 6194290801 LINE
Repalced by: A 6254293501
176 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
179 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
182 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
185 N 074304016201 FITTING
LEFT AND RIGHT BRAKE HOSES
188 N 915017012100 UNION NUT
Repalced by: N 000000006239
188 N 000000006239 UNION NUT
191 N 003861012007 GLAND
Repalced by: A 0019901967
191 A 0019901967 SEAL CONE
194 N 916017016000 CLAMP
Repalced by: N 000000000666
194 N 000000000666 CLAMP
LINE MOUNTING
197 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
200 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
203 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
206 N 007603016401 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
209 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
209 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
209 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
A 0004296834 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
212 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
N 000439018204 NUT
ADAPTER FITTING TO SIDE MEMBER
A 0009970934 UNION SCREW
COMPRESSED AIR LINE THRU FRAME
215 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
215 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
215 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
218 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
218 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
221 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
224 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
224 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 TS SEALING RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
225 A 0019901570 T-FITTING
RIGHT FRONT BRAKE HOSE
A 0019907070 T-FITTING
RIGHT FRONT BRAKE HOSE
226 A 6204290473 LOCK
RIGHT FRONT BRAKE HOSE
227 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
230 N 007985006145 SCREW
Repalced by: N 007985006581
230 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
Repalced by: N 000125006449
N 000125006449 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
233 N 913004006002 NUT
Repalced by: N 913004006001
233 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
234 A 3954290440 BRACKET
Repalced by: A 6205243040
234 A 6205243040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
235 N 000933008073 SCREW
BRACKET TO CENTRAL BEARING CROSS MEMBER
235H N 913004008004 NUT
Repalced by: N 913004008001
235H N 913004008001 NUT
BRACKET TO CENTRAL BEARING CROSS MEMBER
236 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
236 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
239 A 0004312031 TEST CONNECTION
VOSS
239 A 0004314531 TEST CONNECTION
SCHAEFER
239 A 0004314831 TEST CONNECTION
WABCO
239 A 0004316131 TEST CONNECTION
WIRA
239 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
239 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21.22"
239 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
239 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
A 0009979486 PROTECTIVE CAP

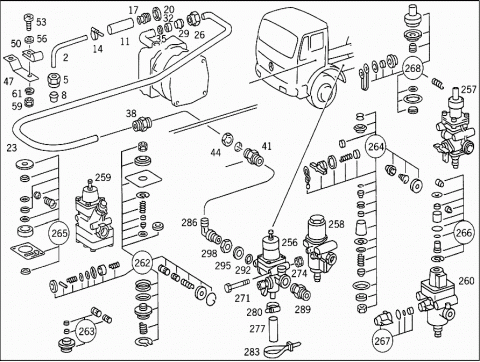

256 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
257 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
258 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
258 A 0024314906 PRESSURE REGULATOR
Repalced by: A 0034313706
258 A 0034313706 PRESSURE REGULATOR
WABCO
259 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
260 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
260 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0034313506
260 A 0034313506 PRESSURE REGULATOR
BOSCH
A 0024318306 PRESSURE REGULATOR
Repalced by: A 0034313506
262 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
262 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
263 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0014304960 REPAIR KIT
TO 003 431 37 06
264 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
265 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
265 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
266 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
266 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 003 431 35 06
267 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
267 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
267 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 003 431 35 06
268 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 012
268 A 0025866043 REPAIR KIT
TO 002 431 43 06,BOSCH. 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
271 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
274 N 913004008004 NUT
Repalced by: N 913004008001
274 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
277 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
277 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
280 N 916026016001 CLAMP
Repalced by: A 0059970190
280 A 0059970190 HOSE CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
280 N 916026020001 CLAMP
Repalced by: N 000000000667
280 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
283 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
286 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
A 0029902271 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
289 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
292 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
295 A 0004290227 THRUST RING
Repalced by: A 0009940203
295 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
298 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
N 007604012102 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
Repalced by: N 007604012105
N 007604012105 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
N 007603012405 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"4,23"

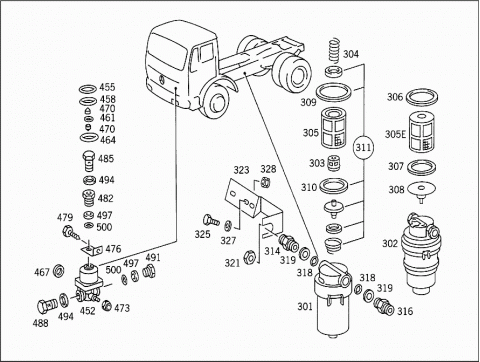

301 A 0004292595 AIR CLEANER
BOSCH
301 A 0004292695 AIR CLEANER
KNORR
301 A 0004292795 AIR CLEANER
WABCO
302 A 0004292895 AIR CLEANER
GRAU
303 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
304 A 0059930901 SPRING
TO 000 429 27 95,WABCO
305 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
305 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
305E A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
306 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
306 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
307 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
307 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
308 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
308 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
309 A 0049972248 SEAL RING
Repalced by: A 0289972348
309 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
310 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
311 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
314 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
316 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
318 A 0009870446 O-RING
AIR CLEANER;CONNECTIONS:
"1,2"
319 A 0004290227 THRUST RING
Repalced by: A 0009940203
319 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
321 N 074305022202 NUT
AIR CLEANER TO BRACKET
323 A 6204310740 BRACKET
AIR CLEANER
325 N 000933008212 SCREW
Repalced by: N 304017008016
325 N 304017008016 SCREW
BRACKET TO STRAP
327 N 000125008418 WASHER
Repalced by: N 000125008443
327 N 000125008443 WASHER
BRACKET TO STRAP
328 N 913004008004 NUT
Repalced by: N 913004008001
328 N 913004008001 NUT
BRACKET TO STRAP

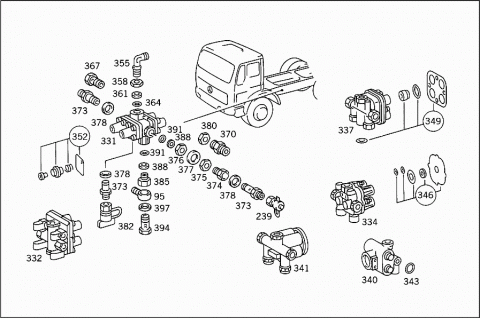

331 A 0014318906 VALVE
Repalced by: A 0024314006
332 A 0024314006 VALVE
Repalced by: A 0034315006
334 A 0014318706 VALVE
Repalced by: A 0034315006
337 A 0014319306 VALVE
Repalced by: A 0034315006
340 A 0024310206 VALVE
Repalced by: A 0024312706
341 A 0024312706 VALVE
Repalced by: A 0024319106
341 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
343 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
346 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
349 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
349 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
352 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
355 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
355 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
358 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
361 A 0004290227 THRUST RING
Repalced by: A 0009940203
361 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
364 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
367 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
370 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
373 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
373 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21.22"
374 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
" 22 "
375 N 000439016206 NUT
Repalced by: N 308675016001
375 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
" 22 "
376 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
377 N 000125017010 WASHER
Repalced by: N 000125017016
377 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
378 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21.22.23"
380 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
382 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
382 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
385 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
388 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
391 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
394 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
397 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"

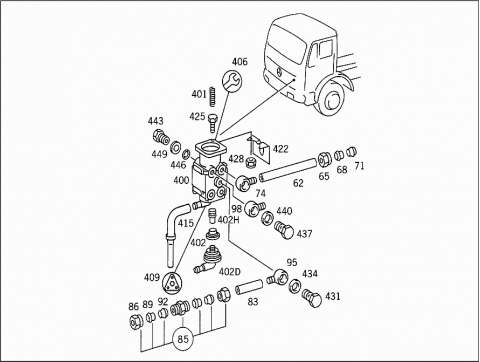

400 A 0024310605 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
400 A 0024311005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
400 A 0024312005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
400 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
400 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
400 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
400 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
401 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
402 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
402D A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
402H A 0004318383 PISTON
TO 001 431 83 05
A 0004313623 VALVE
WABCO
406 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
406 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
406 A 0025868043 REPAIR KIT
Repalced by: A 0004301160
406 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
406 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
406 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
406 A 0004308006 REPAIR KIT
TO 001 431 83 05,WABCO
406 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
406 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
406 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
406 A 0004308206 REPAIR KIT
TO 002 431 06 05,WABCO
409 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
409 A 0014308460 GASKET KIT
TO 002 431 10 05,BOSCH
415 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
415 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
422 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
425 N 000933008152 SCREW
Repalced by: N 304017008027
425 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
428 N 913004008004 NUT
Repalced by: N 913004008001
428 N 913004008001 NUT
BRAKE VALVE TO PEDAL UNIT
431 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
434 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
437 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
440 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
443 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11.12.21.22"
446 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
" 11,12,21,22 "
449 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
" 11,12,21,22 "
A 6204290035 BRAKE HOSE
Repalced by: A 6174310073
A 6204290041 FITTING
Repalced by: A 6174310073
A 0004300270 MUFFLER
Repalced by: A 6174310073
452 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
455 A 0019871746 SEALING CORD
38X3 MM
458 A 0089970445 SEAL RING
34.6X2.6 MM
461 A 0089978648 SEAL RING
28.4X2.6 MM
464 A 0089978748 SEAL RING
56X1.7 MM
467 N 007603016401 SEAL RING
16X20 MM
470 A 0004313223 VALVE
473 N 913004008004 NUT
Repalced by: N 913004008001
473 N 913004008001 NUT
VALVE TO FLOOR
476 A 6204312440 BRACKET
PRESSURE RATIO VALVE
476 A 6204312540 BRACKET
PRESSURE RATIO VALVE
479 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
482 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
482 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
485 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
488 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
491 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
494 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1.2"
497 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1.2"
500 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1.2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915047012203 HOLLOW SCREW
AT FITTING
N 007603016401 SEAL RING
AT FITTING

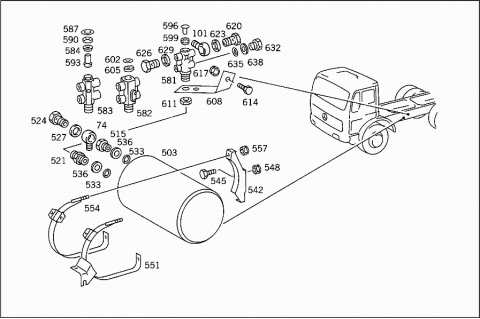

503 A 0004324801 RESERVOIR
Repalced by: A 0014327501
503 A 0014327501 RESERVOIR
Repalced by: A 0034321201
503 A 0034321201 RESERVOIR
AIR RESERVOIR III
20 L

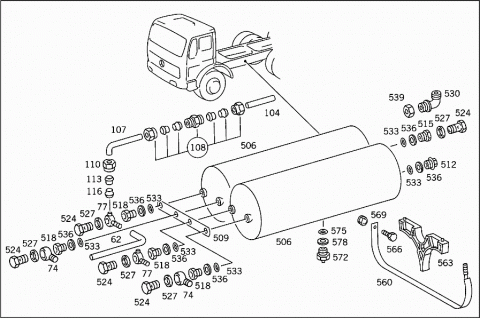

506 A 0004322101 RESERVOIR
Repalced by: A 0034322301
506 A 0034322301 RESERVOIR
AIR RESERVOIRS I AND II
40 L
509 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
512 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
512 N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
515 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
518 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
A 0009970934 UNION SCREW
AIR RESERVOIR,CONNECTIONS:
521 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
" 13 "
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
524 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23 "
527 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23"
530 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"31"
533 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
" 11,12,13,21,22,23,31,32 "
536 A 0004290227 THRUST RING
Repalced by: A 0009940203
536 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
" 11,12,13,21,22,23,31,32 "
539 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"31"
542 A 3874320540 BRACKET
AIR RESERVOIR III
545 N 000933008215 SCREW
Repalced by: A 0069909301
545 A 0069909301 SCREW
BRACKET TO SIDE PART,FRONT
548 N 913004008004 NUT
Repalced by: N 913004008001
548 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
551 A 6204300640 STRAP
AIR RESERVOIR III
A 6204300240 STRAP
AIR RESERVOIR III
554 A 6204300740 STRAP
AIR RESERVOIR III
A 6204301240 STRAP
AIR RESERVOIR III
557 N 913004010008 NUT
Repalced by: N 910113010000
557 N 910113010000 NUT
STRAP TO BRACKET
560 A 6204300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
563 A 6204320018 BASE
AIR RESERVOIR,STRAP
566 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
569 N 913004010008 NUT
Repalced by: N 910113010000
569 N 910113010000 NUT
AIR RESERVOIR,STRAP
572 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
572 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
572 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
572 A 0004322107 VALVE
AIR RESERVOIR DRAIN
572 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
572 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
575 A 0009870446 O-RING
DRAIN VALVE TO AIR RESERVOIR
578 A 0004290227 THRUST RING
Repalced by: A 0009940203
578 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
581 A 0024299644 VALVE
(CHECK VALVE)
VOSS
582 A 0034290444 VALVE
(CHECK VALVE)
WABCO
583 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
584 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
587 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
590 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
593 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
596 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
599 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
602 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
605 A 0002950320 VALVE
TO 003 429 04 44,WABCO
608 A 6204292540 BRACKET
Repalced by: A 6164290140
608 A 6204292540 BRACKET
Repalced by: A 6164290140
608 A 6164290140 BRACKET
CHECK VALVE
608 A 6164290140 BRACKET
CHECK VALVE
611 N 074305022202 NUT
CHECK VALVE TO BRACKET
614 N 000933010145 SCREW
BRACKET TO FRAME SIDE MEMBER
617 N 913004010008 NUT
Repalced by: N 910113010000
617 N 910113010000 NUT
BRACKET TO FRAME SIDE MEMBER
A 6204310062 COVERING
CHECK VALVE
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO COVER PLATE
N 913004008004 NUT
BRACKET TO COVER PLATE
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
620 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
623 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
626 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
626 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
629 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
632 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
635 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
638 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"

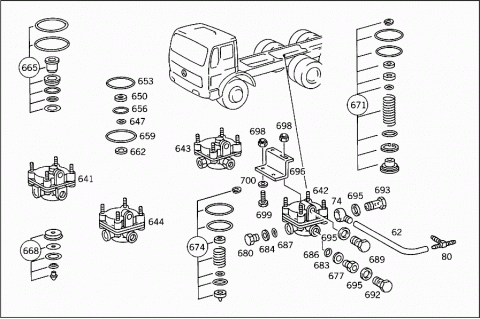

641 A 0034291644 VALVE
RELAY VALVE
BOSCH
642 A 0014296844 VALVE
RELAY VALVE
WABCO
643 A 0034295344 VALVE
RELAY VALVE
KNORR
644 A 0014299144 VALVE
RELAY VALVE
GRAU
647 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
650 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
653 A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95, GRAU
656 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
659 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
662 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
665 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
665 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
665 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
668 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
668 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
671 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
674 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
677 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
680 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
" 2 "
683 A 0004290227 THRUST RING
Repalced by: A 0009940203
683 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
684 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
" 2 "
686 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"1"
687 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
" 2 "
689 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
692 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
" 1,2,4 "
692 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
" 1,2,4 "
693 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"2"
695 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
696 A 6234310940 BRACKET
RELAY VALVE
698 N 913004008004 NUT
Repalced by: N 913004008001
698 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
698 N 913004008001 NUT
BRACKET TO CROSS MEMBER
699 N 000933008145 SCREW
BRACKET TO CROSS MEMBER
M 8X18
700 N 000433008406 WASHER
BRACKET TO CROSS MEMBER

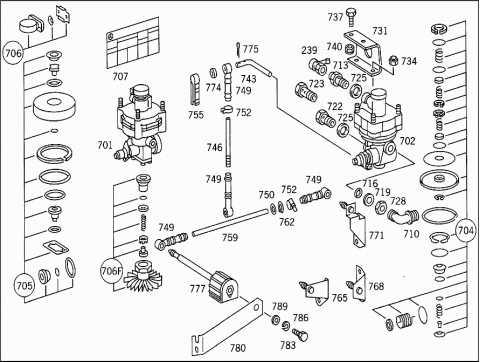

701 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
702 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
702 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
704 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
704 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
705 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,BOSCH
706 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
706F A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
707 A 3435841921 GUIDE SIGN
Repalced by: A 6245843621
707 A 6245843621 GUIDE SIGN
LOAD-DEPENDING BRAKE
707 A 6245840121 GUIDE SIGN
LOAD-DEPENDING BRAKE
707 A 6245843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
707 A 6245843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 6245846021 GUIDE SIGN
LOAD-DEPENDING BRAKE
707 A 6245844021 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
710 A 0019903071 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"1"
713 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
716 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
719 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1"
722 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
723 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
725 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
728 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"1"
731 A 3854317040 BRACKET
BRAKE POWER REGULATOR
734 N 913004008004 NUT
Repalced by: N 913004008001
734 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
737 N 000933008154 SCREW
Repalced by: N 304017008021
737 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
740 N 913004008004 NUT
Repalced by: N 913004008001
740 N 913004008001 NUT
BRACKET TO CROSS MEMBER
743 A 3464315139 LEVER
Repalced by: A 3854310239
743 A 3854310239 LEVER
Repalced by: A 6204310839
743 A 6204310839 LEVER
Repalced by: A 6744310039
743 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
743 A 6204310439 LEVER
BRAKE POWER REGULATOR CONTROL
746 N 900331008262 PULL ROD
Repalced by: N 900331008420
746 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
746 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
A 3434310035 CONNECTOR
Repalced by: A 0004310735
749 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
750 N 000125015013 WASHER
Repalced by: N 000125015019
750 N 000125015019 WASHER
CONNECTOR TO ROD
752 N 916026010000 CLAMP
Repalced by: N 000000000665
752 N 000000000665 CLAMP
CONNECTOR TO ROD
755 A 6249950065 CLAMP
CONNECTOR TO ROD
759 A 3954310192 ROD
BRAKE POWER REGULATOR CONTROL
762 N 900055008402 RETAINING RING
PULL ROD TO CONNECTOR
765 A 6244300110 BRACKET
LINK
765 A 6244300310 BRACKET
LINK
768 A 6244300010 BRACKET
LINK
771 A 6244300210 BRACKET
LINK
774 N 000125008418 WASHER
Repalced by: N 000125008443
774 N 000125008443 WASHER
CONNECTOR TO ROD
775 N 000094002077 COTTER PIN
CONNECTOR TO ROD
777 A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
780 A 6244310040 BRACKET
METAL SPRING BELLOWS
780 A 6244310340 BRACKET
METAL SPRING BELLOWS
783 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
783 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
786 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
789 N 000125017010 WASHER
Repalced by: N 000125017016
789 N 000125017016 WASHER
BRACKET TO REAR AXLE

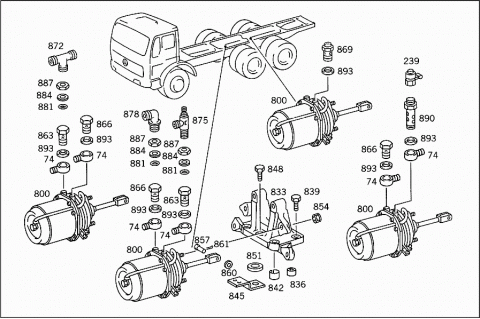

800 A 0074206518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
800 A 0084209018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
800 A 0074204218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
800 A 0094206118 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU

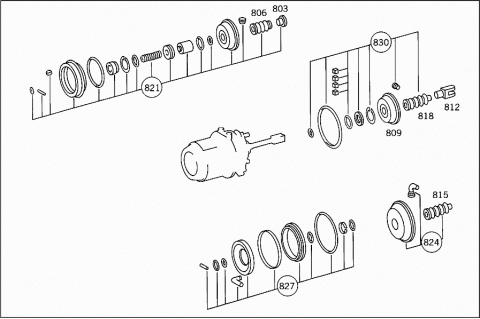

803 A 0004231060 SEAL RING
TO 007 420 42 18,KNORR
806 A 0004234187 PROTECTIVE CAP
TO 007 420 42 18,KNORR
809 A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
812 A 0004211263 GUIDE
Repalced by: N 071752014000
812 N 071752014000 YOKE
TO 008 420 90 18,BOSCH
815 A 0004212286 CUP
Repalced by: A 0004215286
815 A 0004215286 CUP
TO 007 420 65 18,WABCO
818 A 0004233886 CUP
TO 008 420 90 18,BOSCH
821 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 007 420 42 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 007 420 42 18,KNORR
824 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 65 18,WABCO
827 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
827 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
827 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 65 18,WABCO
830 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18,BOSCH
833 A 3954231233 BEARING BRACKET
TRISTOP CYLINDER
833 A 3954231233 BEARING BRACKET
TRISTOP CYLINDER
833 A 3954231133 BEARING BRACKET
TRISTOP CYLINDER
833 A 3954231133 BEARING BRACKET
TRISTOP CYLINDER
836 N 007346012003 CLAMPING SLEEVE
836 N 007346012003 CLAMPING SLEEVE
839 N 000961016036 SCREW
Repalced by: N 308676016013
839 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X40
839 N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
M 20X45
842 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
845 A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
848 N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X55
851 A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
854 N 913004016004 NUT
Repalced by: N 910113016002
854 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
857 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
860 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
861 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
863 N 915047012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
" 11,12 "
866 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
" 11,12 "
866 N 915036012203 HOLLOW SCREW
REAR AXLE II TRISTOP CYLINDER, CONNECTION:
" 11 "
869 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTION:
" 12 "
869 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTION:
" 11 "
869 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
" 21,22 "
872 A 0009904270 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
" 11,12 "
875 A 0009909470 T-FITTING
TRISTOP CYLINDER;CONNECTION:
" 11 "
878 N 074315012100 FITTING
Repalced by: A 0019903371
878 A 0019903371 ELBOW FITTING
TRISTOP CYLINDER;CONNECTION:
" 12 "
881 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11.12"
884 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11.12"
887 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11.12"
890 N 915040012206 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
893 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"

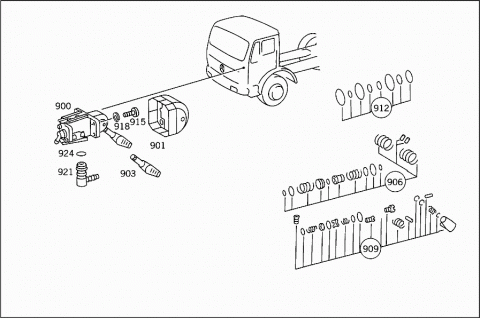

900 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
900 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
900 A 0014306681 VALVE
Repalced by: A 0024309881
900 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
900 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
900 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
900 A 0014306781 VALVE
Repalced by: A 0024309981
900 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
901 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
901 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81,BOSCH
A 0009975577 HANDLE
KNORR
903 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 34 81,001 430 43 81,BOSCH
903 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
N 001481003025 CLAMPING SLEEVE
KNORR
906 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
906 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
909 A 0035860543 REPAIR KIT
TO 01 430 66 81,001 430 67 81,KNORR
912 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 431 43 81,BOSCH
915 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
918 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO CAB
921 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
924 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
