Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

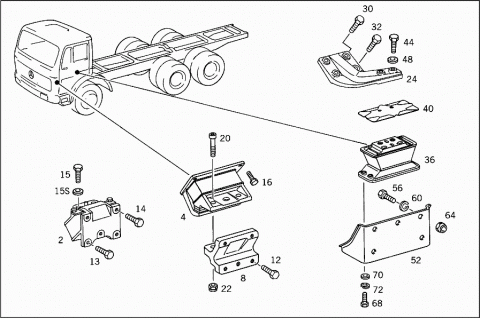

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 6202400317 | RUBBER MOUNTING |
| Repalced by: A 6582410013 | ||
| 002 | A 6582410013 | RUBBER MOUNTING |
| FRONT | ||
| 002 | A 6202400417 | RUBBER MOUNTING |
| Repalced by: A 6582410113 | ||
| 002 | A 6582410113 | RUBBER MOUNTING |
| FRONT | ||
| 002 | A 6202400517 | RUBBER MOUNTING |
| Repalced by: A 6582410213 | ||
| 002 | A 6582410213 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6202400017 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6202400117 | RUBBER MOUNTING |
| Repalced by: A 6202400717 | ||
| 004 | A 6202400717 | RUBBER MOUNTING |
| FRONT | ||
| 004 | A 6202400217 | RUBBER MOUNTING |
| FRONT | ||
| 008 | A 6203230124 | CONSOLE |
| LEFT | ||
| 008 | A 6203230224 | CONSOLE |
| RIGHT | ||
| 008 | A 6203230024 | CONSOLE |
| FRONT RUBBER MOUNTING,STABILIZER BEARING BRACKET | ||
| 012 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 012 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 012 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 012 | N 308676016013 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X40 | ||
| 013 | N 000961016108 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X30 | ||
| 013 | N 000961016108 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X30 | ||
| 014 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 014 | N 308676016006 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| M 16X45 | ||
| 015 | N 000961016120 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 16X38 | ||
| 015S | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 016 | N 000933012016 | SCREW |
| Repalced by: N 304017012020 | ||
| 016 | N 304017012020 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X30 | ||
| 016 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 016 | N 304017012013 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X35 | ||
| 020 | N 000912016066 | SCREW |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| M 16X75 | ||
| 020 | N 000912016075 | SCREW |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| M 16X60 | ||
| 022 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 022 | N 910113016001 | NUT |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 024 | A 6202421601 | ENGINE SUPPORT |
| Repalced by: A 6552423101 | ||
| 024 | A 6552423101 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6552422001 | ENGINE SUPPORT |
| Repalced by: A 6202421601 | ||
| 024 | A 6202421601 | ENGINE SUPPORT |
| Repalced by: A 6552423101 | ||
| 024 | A 6552423101 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6202421001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6202420001 | ENGINE SUPPORT |
| Repalced by: A 6582420001 | ||
| 024 | A 6582420001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6552421801 | ENGINE SUPPORT |
| Repalced by: A 6202420001 | ||
| 024 | A 6202420001 | ENGINE SUPPORT |
| Repalced by: A 6582420001 | ||
| 024 | A 6582420001 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6202421201 | ENGINE SUPPORT |
| LEFT REAR | ||
| 024 | A 6202421701 | ENGINE SUPPORT |
| Repalced by: A 6552423201 | ||
| 024 | A 6552423201 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 024 | A 6552422101 | ENGINE SUPPORT |
| Repalced by: A 6202421701 | ||
| 024 | A 6202421701 | ENGINE SUPPORT |
| Repalced by: A 6552423201 | ||
| 024 | A 6552423201 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 024 | A 6202421101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 024 | A 6202420101 | ENGINE SUPPORT |
| Repalced by: A 6582420101 | ||
| 024 | A 6582420101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 024 | A 6552421901 | ENGINE SUPPORT |
| Repalced by: A 6202420101 | ||
| 024 | A 6202420101 | ENGINE SUPPORT |
| Repalced by: A 6582420101 | ||
| 024 | A 6582420101 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 024 | A 6202421301 | ENGINE SUPPORT |
| RIGHT REAR | ||
| 030 | N 000960022055 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X70 | ||
| 030 | N 000960022055 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X70 | ||
| 030 | N 000960022055 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X70 | ||
| 030 | N 000961022025 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X65 | ||
| 030 | N 000961022029 | SCREW |
| Repalced by: A 0079905801 | ||
| 030 | A 0079905801 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X60 | ||
| 030 | A 0079905801 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X60 | ||
| 030 | N 000961022028 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X55 | ||
| 032 | N 000960022050 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X95 | ||
| 032 | N 000960022036 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X75 | ||
| 036 | A 6202400018 | RUBBER MOUNTING |
| Repalced by: A 6202400318 | ||
| 036 | A 6202400318 | RUBBER MOUNTING |
| Repalced by: A 6452400318 | ||
| 036 | A 6452400318 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 6202400118 | RUBBER MOUNTING |
| Repalced by: A 6202400418 | ||
| 036 | A 6202400418 | RUBBER MOUNTING |
| Repalced by: A 6452400418 | ||
| 036 | A 6452400418 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 6202400218 | RUBBER MOUNTING |
| Repalced by: A 6202400518 | ||
| 036 | A 6202400518 | RUBBER MOUNTING |
| Repalced by: A 6452400518 | ||
| 036 | A 6452400518 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 6452400918 | RUBBER MOUNTING |
| REAR | ||
| 040 | A 6202420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 044 | N 000960018133 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 18X75 | ||
| 044 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 044 | N 308676018009 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 044 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 044 | A 0039909304 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 18X80 | ||
| 044 | A 0039909304 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 18X80 | ||
| 044 | N 000960018119 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M 18X85 | ||
| 048 | A 6209900040 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 052 | A 3872400906 | CONSOLE |
| Repalced by: A 6202400206 | ||
| 052 | A 6202400206 | CONSOLE |
| REAR | ||
| 052 | A 6202400006 | CONSOLE |
| REAR | ||
| 056 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 056 | A 9429901304 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 056 | N 000961016117 | SCREW |
| Repalced by: N 000961016118 | ||
| 056 | N 000961016118 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X42 | ||
| 056 | N 000961014011 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X38 | ||
| 056 | N 000961014062 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X38 | ||
| 056 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 056 | N 308676014008 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 056 | N 308676014008 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 056 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 056 | N 308676014012 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 056 | N 000961016092 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X38 | ||
| 056 | N 000961016092 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X38 | ||
| 056 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 060 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 064 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 064 | N 910113014000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 064 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 064 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 068 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 068 | N 308676014003 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 070 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 070 | N 000125015019 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 072 | N 912004014100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
