Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

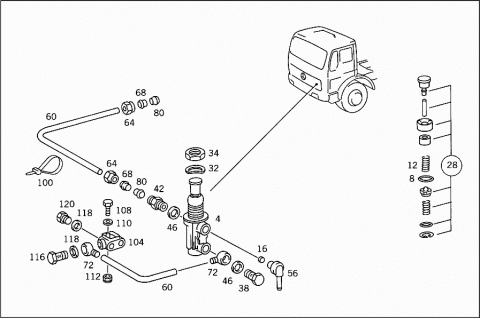

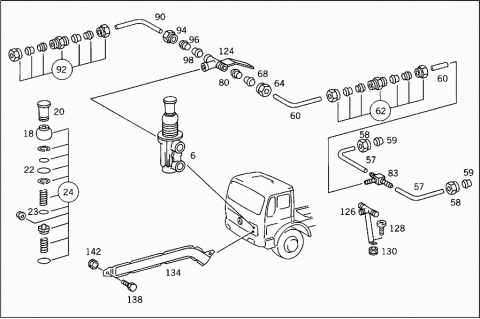

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
004	A 0004342101	VALVE
		EXHAUST BRAKE OPERATING MECHANISM
		BOSCH
006	A 0004342301	VALVE
		EXHAUST BRAKE OPERATING MECHANISM
		WESTINGHOUSE
008	A 0059979248	SEAL RING
		TO 000 434 21 01
012	A 0014315193	SPRING
		TO 000 434 21 01
016	A 0004314034	STRAINER
		TO 000 434 21 01
018	A 0004340586	CUP
		TO 000 434 23 01
020	A 0009971977	HANDLE
		TO 000 434 23 01
022	A 0079972448	SEAL RING
		TO 000 434 23 01
023	A 0079972548	SEAL RING
		TO 000 434 23 01
024	A 0025869843	REPAIR KIT
		TO 000 434 23 01
028	A 0025865343	REPAIR KIT
		TO 000 434 21 01
032	N 000137027201	SPRING WASHER
		VALVE TO CAB
034	N 074305026202	NUT
		VALVE TO CAB
038	N 915036008202	HOLLOW SCREW
		3/2-WAY VALVE;CONNECTION:
		"1"
	A 0009971572	FITTING
	Repalced by: A 0019972572
042	A 0019972572	FITTING
		3/2-WAY VALVE;CONNECTION:
		"2"
	Repalced by: N 000000006446
042	N 000000006446	FITTING
		3/2-WAY VALVE;CONNECTION:
		"2"
046	N 007603012405	SEAL RING
		3/2-WAY VALVE;CONNECTIONS:
		"1,2"
056	A 4063580065	BREATHER
	Repalced by: A 3933280065
056	A 3933280065	PIPE SOCKET
		3/2-WAY VALVE;CONNECTION:
		"3"
057	A 0004290701	LINE
	Repalced by: A 0004296201
057	A 0004296201	LINE
		FROM T-FITTING TO EXHAUST BRAKE CYLINDER
		6X0.70 MM
058	N 915017006100	UNION NUT
059	N 003861006007	GLAND
	Repalced by: A 0019901667
059	A 0019901667	SEAL CONE
060	A 0089979082	HOSE
		6X8 MM
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM DISTRIBUTOR TO VALVE
	T YYYYYYYYYYYY	PART NAME MISSING
		FROM T-FITTING TO T-FITTING
062	A 0039978972	FITTING
	Repalced by: A 0029905971
062	A 0029905971	FITTING
		(PARTS KIT),LINE RUPTURE
064	N 915017008100	UNION NUT
068	N 003861008005	GLAND
	A 0009906688	BANJO UNION
	Repalced by: N 915052006013
072	N 915052006013	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/12 MM
	A 0007630043	SLEEVE
	Repalced by: N 915062006000
080	N 915062006000	SLEEVE
083	A 0019902970	T-FITTING
		EXHAUST BRAKE COMPRESSED AIR LINE
090	A 0089976082	HOSE
	Repalced by: A 0009872627
090	A 0009872627	PLASTIC PIPE
		FROM T-FITTING TO EXHAUST BRAKE CYLINDER
		4X6 MM
092	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
094	N 915017006100	UNION NUT
096	N 003861006007	GLAND
	Repalced by: A 0019901667
096	A 0019901667	SEAL CONE
098	A 0009920105	BUSHING
	Repalced by: N 915062004000
098	N 915062004000	SLEEVE
	A 0029974890	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
100	A 0019978490	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		376 MM
100	A 0019978390	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		280 MM
104	A 0004294037	DISTRIBUTOR
		EXHAUST-BRAKE/LONGITUDINAL-DIFFERENTIAL-LOCK CONNECTION
108	N 000931006084	SCREW
	Repalced by: N 304017006027
108	N 304017006027	SCREW
		DISTRIBUTOR TO CAB
110	N 009021006205	WASHER
	Repalced by: N 009021006208
110	N 009021006208	WASHER
		DISTRIBUTOR TO CAB
112	N 913004006002	NUT
	Repalced by: N 913004006001
112	N 913004006001	NUT
		DISTRIBUTOR TO CAB
116	N 915047008202	HOLLOW SCREW
		AT DISTRIBUTOR
118	N 007603012405	SEAL RING
		AT DISTRIBUTOR
120	N 000908012003	SCREW PLUG
	Repalced by: N 000908012009
120	N 000908012009	SCREW PLUG
		AT DISTRIBUTOR
124	A 3874201186	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
126	A 6204202186	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
128	N 007985006145	SCREW
	Repalced by: N 007985006581
128	N 007985006581	SCREW
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
		M 6X20
128	N 007985006193	SCREW
	Repalced by: N 000000001146
128	N 000000001146	SCREW
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
		M 6X16
130	N 913004006002	NUT
	Repalced by: N 913004006001
130	N 913004006001	NUT
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
134	A 3874296340	BRACKET
		HOSE
138	N 000933008153	SCREW
	Repalced by: N 304017008034
138	N 304017008034	SCREW
		BRACKET TO SIDE MEMBER
142	N 913004008004	NUT
	Repalced by: N 913004008001
142	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
