Transporto priemonė: 2636 AS; VIN numerio dalis: 624336

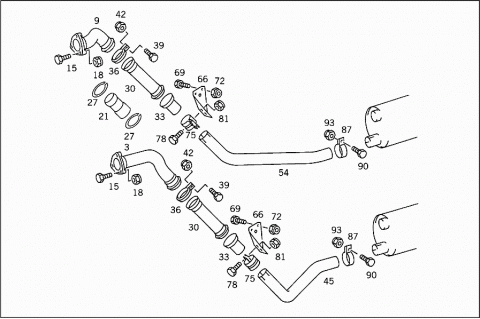

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6214900925 | CONNECTOR |
| LEFT FRONT | ||
| 003 | A 6204901325 | CONNECTOR |
| LEFT FRONT | ||
| 003 | A 6214900925 | CONNECTOR |
| LEFT FRONT | ||
| 003 | A 6214900025 | CONNECTOR |
| LEFT FRONT | ||
| 003 | A 6214900625 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902325 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902625 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204901925 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902425 | CONNECTOR |
| LEFT FRONT | ||
| 009 | A 6214900825 | CONNECTOR |
| RIGHT FRONT | ||
| 009 | A 6214900225 | CONNECTOR |
| RIGHT FRONT | ||
| 009 | A 6214900825 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | A 6204902025 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | A 6204902725 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | A 6204901825 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | A 6204902525 | CONNECTOR |
| RIGHT FRONT | ||
| 015 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 015 | N 000931012254 | SCREW |
| Repalced by: N 000931012186 | ||
| 015 | N 000931012186 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X70 | ||
| N 000931012179 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X65 | ||
| 018 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 021 | A 6204901625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6204900625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 027 | A 0001423957 | SEAL RING |
| 027 | A 0001424257 | SEAL RING |
| 030 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 030 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 030 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 033 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 033 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 033 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 036 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 036 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 036 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 039 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 039 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 039 | N 304017008028 | SCREW |
| CLAMP TO CONNECTOR | ||
| 042 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 042 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 042 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 045 | A 6214900620 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 045 | A 6204903219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 045 | A 6214900120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 045 | A 6214900920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 045 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 045 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6204900819 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6204900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6244901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 051 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 054 | A 6214900720 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6204903319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6214900020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6214901020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 054 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 057 | A 6204900919 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 057 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 057 | A 6204900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 057 | A 6244901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 060 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 063 | A 0001423957 | SEAL RING |
| 063 | A 0001424257 | SEAL RING |
| 066 | A 6204920041 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 066 | A 6204920141 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 066 | A 6234920241 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 066 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 066 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 066 | A 6234920341 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 066 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 066 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 069 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 072 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 072 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 075 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 075 | A 6234920140 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 075 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 075 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 075 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 078 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 078 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 078 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 078 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 078 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 081 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 081 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 081 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 081 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 081 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||

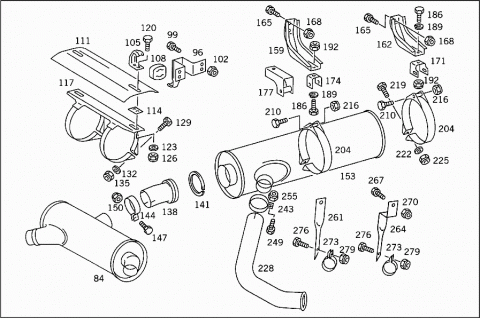

| 084 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 087 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 087 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 087 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 090 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 090 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 090 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 090 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 093 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 093 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 093 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 093 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 096 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 099 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 099 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 099 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 102 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 102 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 105 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 108 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 108 | A 3014920382 | DAMPING PAD |
| Repalced by: A 3814920082 | ||
| 108 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 111 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 114 | A 6204920118 | BASE PLATE |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 117 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 120 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 120 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 120 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 120 | N 910143008005 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 120 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 120 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 120 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 123 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 123 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 126 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 126 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 129 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 129 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 132 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 132 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 135 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 135 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 138 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 141 | A 0001424457 | SEAL RING |
| 144 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 147 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 150 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 150 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||

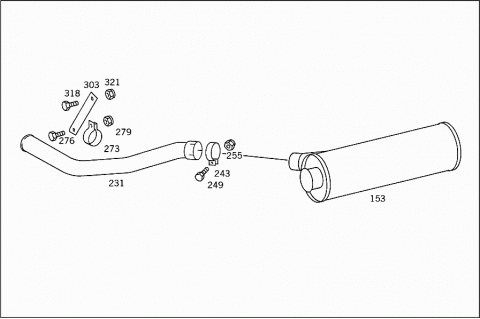

| 153 | A 6234900001 | EXHAUST MUFFLER |
| Repalced by: A 6234900101 | ||
| 153 | A 6234900101 | EXHAUST MUFFLER |
| REAR | ||
| A 6234900001 | EXHAUST MUFFLER | |
| Repalced by: A 6204900601 | ||
| A 6234900001 | EXHAUST MUFFLER | |
| Repalced by: A 6204900501 | ||
| 153 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 153 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 153 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 153 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 153 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||

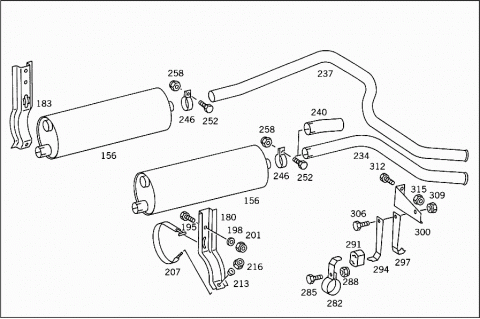

| 156 | A 6204900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 159 | A 6204910215 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 159 | A 6214910215 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 159 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 162 | A 6204910415 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 162 | A 6204910315 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 162 | A 6204910715 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 165 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 165 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 165 | N 308676012026 | SCREW |
| CONSOLE TO STRUT | ||
| 168 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 168 | N 910113012002 | NUT |
| CONSOLE TO STRUT | ||
| 171 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 174 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 177 | A 6204900140 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 180 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 180 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 180 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 180 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 180 | A 6214911741 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 180 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER,REAR | ||
| 183 | A 6214910741 | BRACKET |
| EXHAUST MUFFLER,RIGHT | ||
| 186 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 189 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 192 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 192 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 195 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 195 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| 198 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 198 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 198 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 201 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 201 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 204 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 204 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER,FRONT | ||
| 204 | A 6204910321 | STRAP |
| Repalced by: A 6204900441 | ||
| 204 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER,REAR | ||
| 207 | A 6524900442 | STRAP |
| EXHAUST MUFFLER | ||
| 210 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 210 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 210 | N 304017010053 | SCREW |
| STRAP TO BRACKET | ||
| M 10X50 | ||
| 213 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 216 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 216 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 219 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 222 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 222 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 225 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 225 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 228 | A 6204921204 | REAR EXHAUST PIPE |
| 228 | A 6204921304 | REAR EXHAUST PIPE |
| 231 | A 6204925104 | REAR EXHAUST PIPE |
| 231 | A 6204925104 | REAR EXHAUST PIPE |
| 231 | A 6244920504 | REAR EXHAUST PIPE |
| 231 | A 6244920604 | REAR EXHAUST PIPE |
| 231 | A 6244920604 | REAR EXHAUST PIPE |
| 234 | A 6214921204 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 234 | A 6214920804 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 234 | A 6214920804 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 234 | A 6214923404 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 234 | A 6244921004 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6214921304 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6214922504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6214923504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6214920904 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6214922204 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 237 | A 6244921604 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 237 | A 6244920904 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,LEFT | ||
| 240 | A 6214921004 | REAR EXHAUST PIPE |
| LEFT AND RIGHT | ||
| 240 | A 6214921004 | REAR EXHAUST PIPE |
| LEFT AND RIGHT | ||
| 243 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 243 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 243 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 243 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 243 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 243 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 246 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 249 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 249 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 252 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 252 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 255 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 255 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 258 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 258 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 261 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 264 | A 6204921541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 267 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 267 | N 304017012020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 270 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 273 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 273 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 273 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 273 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 273 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 273 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 273 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 273 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 276 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 276 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 276 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 276 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 279 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 279 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 279 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 279 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 282 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 282 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 282 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 282 | A 6214921841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 285 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 285 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 285 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 288 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 291 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 291 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 294 | A 6214920341 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 294 | A 6214920341 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 297 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 297 | A 6214920441 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 300 | A 6214920541 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6244921141 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6244921341 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6214920241 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6214920241 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6214921941 | BRACKET |
| AT SIDE MEMBER | ||
| 300 | A 6214920141 | BRACKET |
| AT SIDE MEMBER | ||
| 303 | A 6214921741 | BRACKET |
| BRACKET TO BRACKET | ||
| 303 | A 6244920841 | BRACKET |
| AT SUPPORT | ||
| 303 | A 6244920841 | BRACKET |
| AT SUPPORT | ||
| 306 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 306 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X20 | ||
| 306 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X20 | ||
| 306 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 306 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X25 | ||
| 306 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X25 | ||
| 309 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 309 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 309 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 312 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 312 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 312 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 312 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 315 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 315 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 318 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 318 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 318 | N 304017010002 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 318 | N 304017010002 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 321 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 321 | N 910113010000 | NUT |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 321 | N 910113010000 | NUT |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 321 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
